Product Description

Basic Information
Model NO.POS-M101
Card TypeMagcard
Touch ScreenCapacitive Multi-Point
Printer80mm Thermal (Optional)
CertificationCE, CCC, FCC, EMV
SystemWindows / Android
Main Screen10.1 Inch (1280*800)
Battery6000mAh Capacity
Product Description

The M101 POS machine offers highly integrated functionality, allowing for multiple operations within a single, compact terminal. Available with either Windows or Android operating systems, this cost-effective model is designed to save space while providing robust performance for retail and restaurant environments.

Key Features
◈
High-Performance CPU: Choice of Intel Celeron series or Rockchip processors for efficient multitasking.
◈
Storage Flexibility: MSATA SSD options ranging from 64GB to 256GB.
◈
Built-in Printing: Optional 80mm high-speed thermal printer integrated into the base.
◈
Advanced Interaction: Multi-point projected capacitive touch panel with a water-proof, scratch-resistant surface.
◈
Expandable Options: Support for side MSR, VFD customer display, NFC/RFID readers, and 1D/2D barcode scanners.
Technical Specifications
Category Windows Version (POS-M101-W) Android Version (POS-M101-A)
CPU Intel Celeron J1900 2.0GHz ARM Cortex-A17 RK3288 1.8GHz
Memory 4GB DDRIII (up to 8GB) 2GB DDRIII
Storage 64GB SSD (up to 256GB) 8GB eMMC (TF card expansion support)
Display 10.1 inch IPS Monitor, 1280*800 Resolution, 300cd/m²
Touch Multi-point Projected G+G Capacitive
Printer Built-in 80mm Thermal, 170mm/s, Auto-cutter
I/O Ports USB*4, COM*1, LAN, VGA, Audio, RJ11(Opt) USB*4, COM*2, LAN, TF Slot, SIM(Opt)
Environment Operating: 0 to 40°C; Storage: -10 to 60°C
Product Presentation

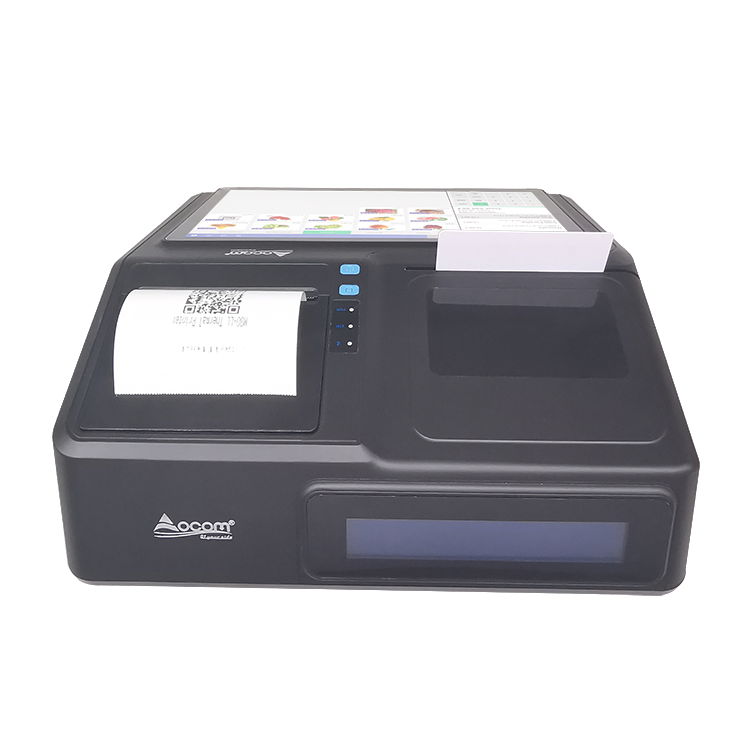

POS-M101 Front View

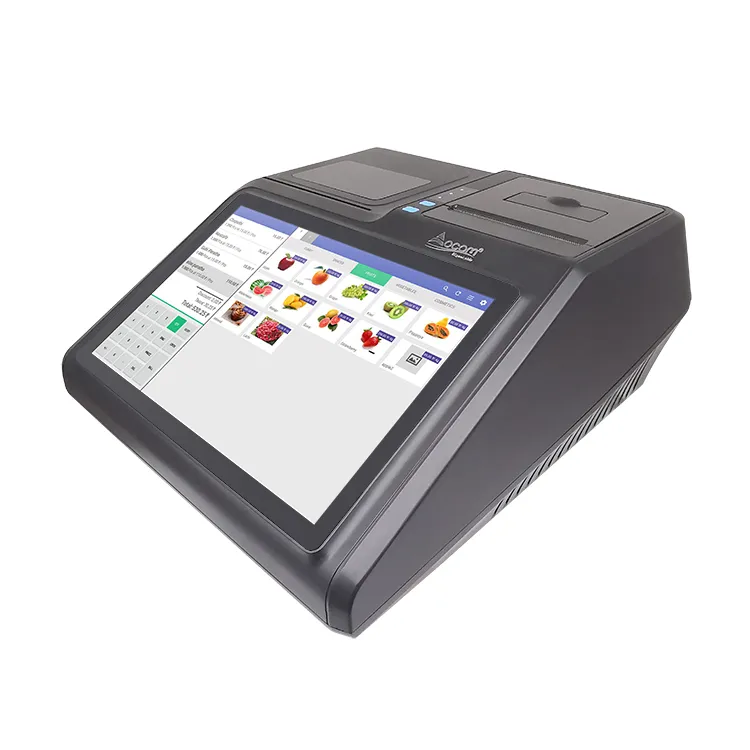

POS-M101 Side Details

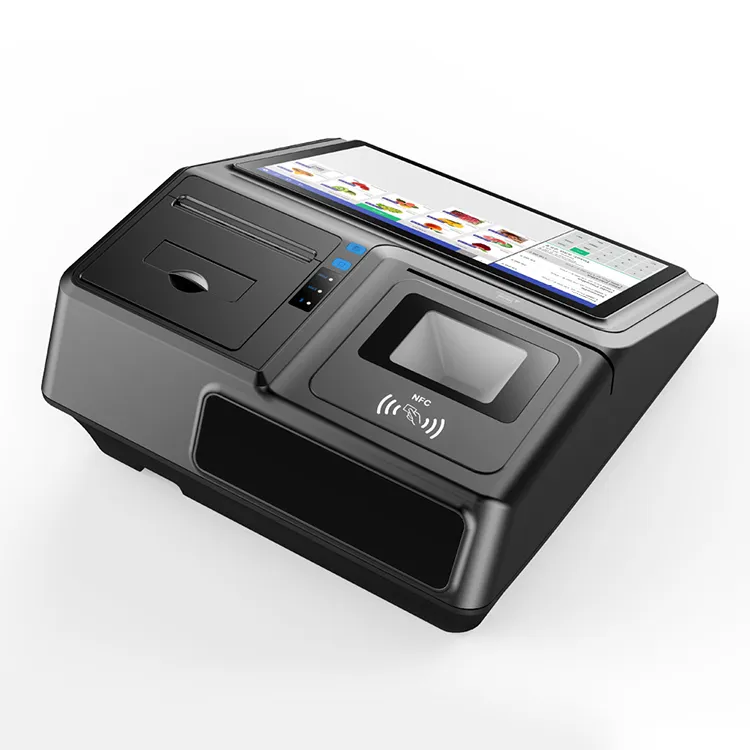

POS-M101 Interface

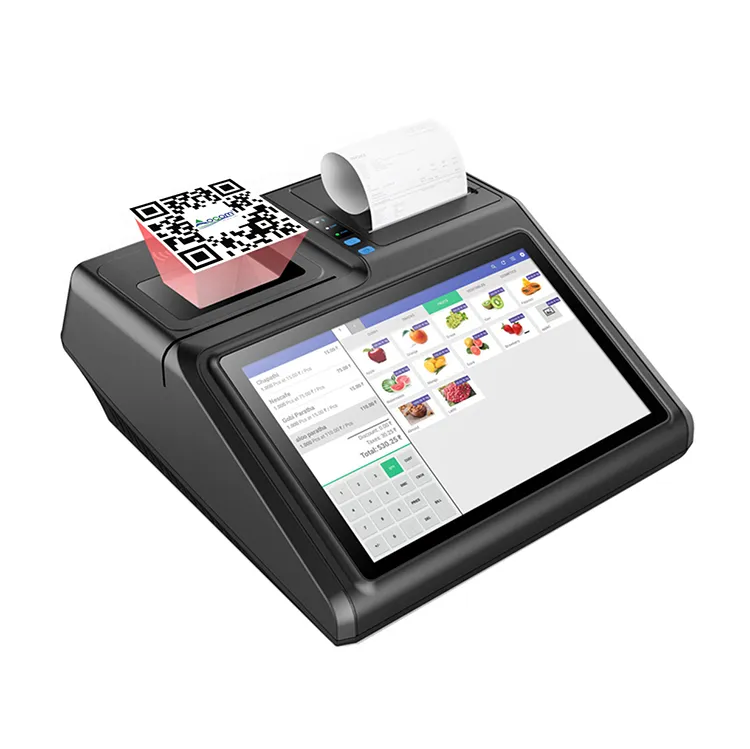

POS-M101 Components
POS-M101 Full Specs
Frequently Asked Questions
Q1: Which operating systems are compatible with the POS-M101? A: The device supports Windows 7, 8, and 10, as well as Linux and Android 7.0, depending on the hardware configuration chosen.
Q2: Is the receipt printer included in the standard package? A: A built-in 80mm high-speed thermal printer with an auto-cutter is available as an integrated option for the POS-M101 system.
Q3: What are the primary display specifications? A: It features a 10.1-inch IPS touch screen with a resolution of 1280*800 and 300cd/m² brightness.
Q4: Does the system support battery operation? A: Yes, it is equipped with a 6000mAh large capacity battery for mobile or backup power needs.
Q5: What extra peripherals can be added to the POS-M101? A: You can opt for a magnetic stripe reader (MSR), RFID/NFC reader, 1D/2D barcode scanner, and a VFD or LCD customer display.
Q6: What is the touch screen technology used? A: The system utilizes a multi-point projected G+G capacitive touch panel for high sensitivity and durability.
