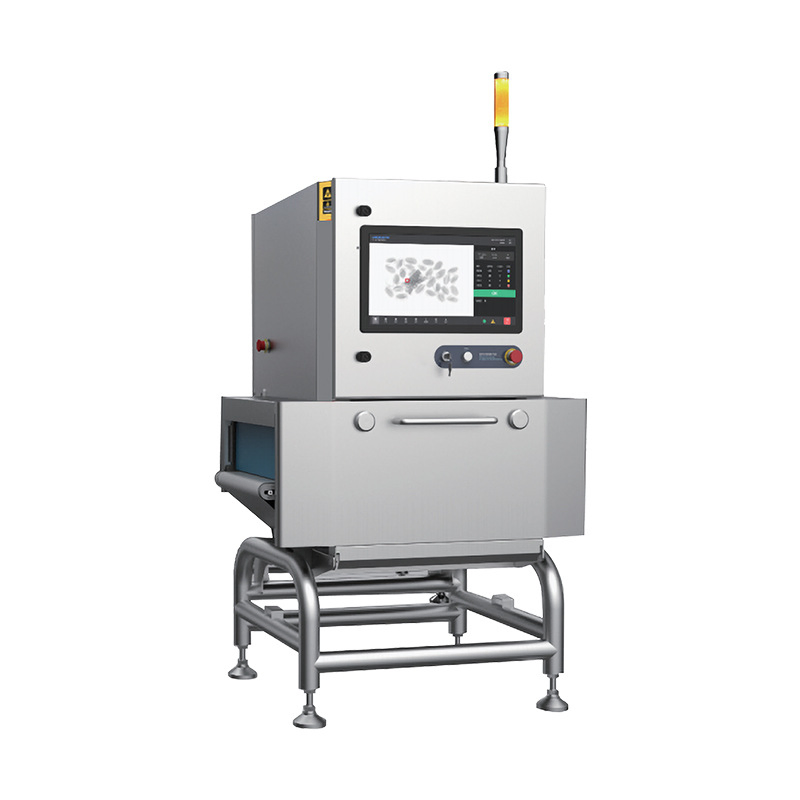

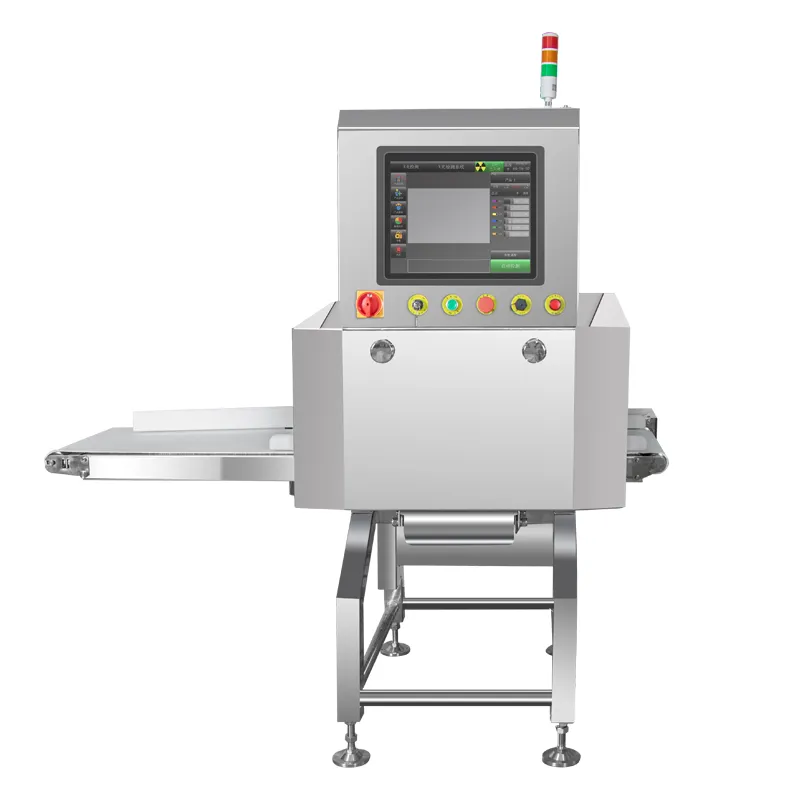

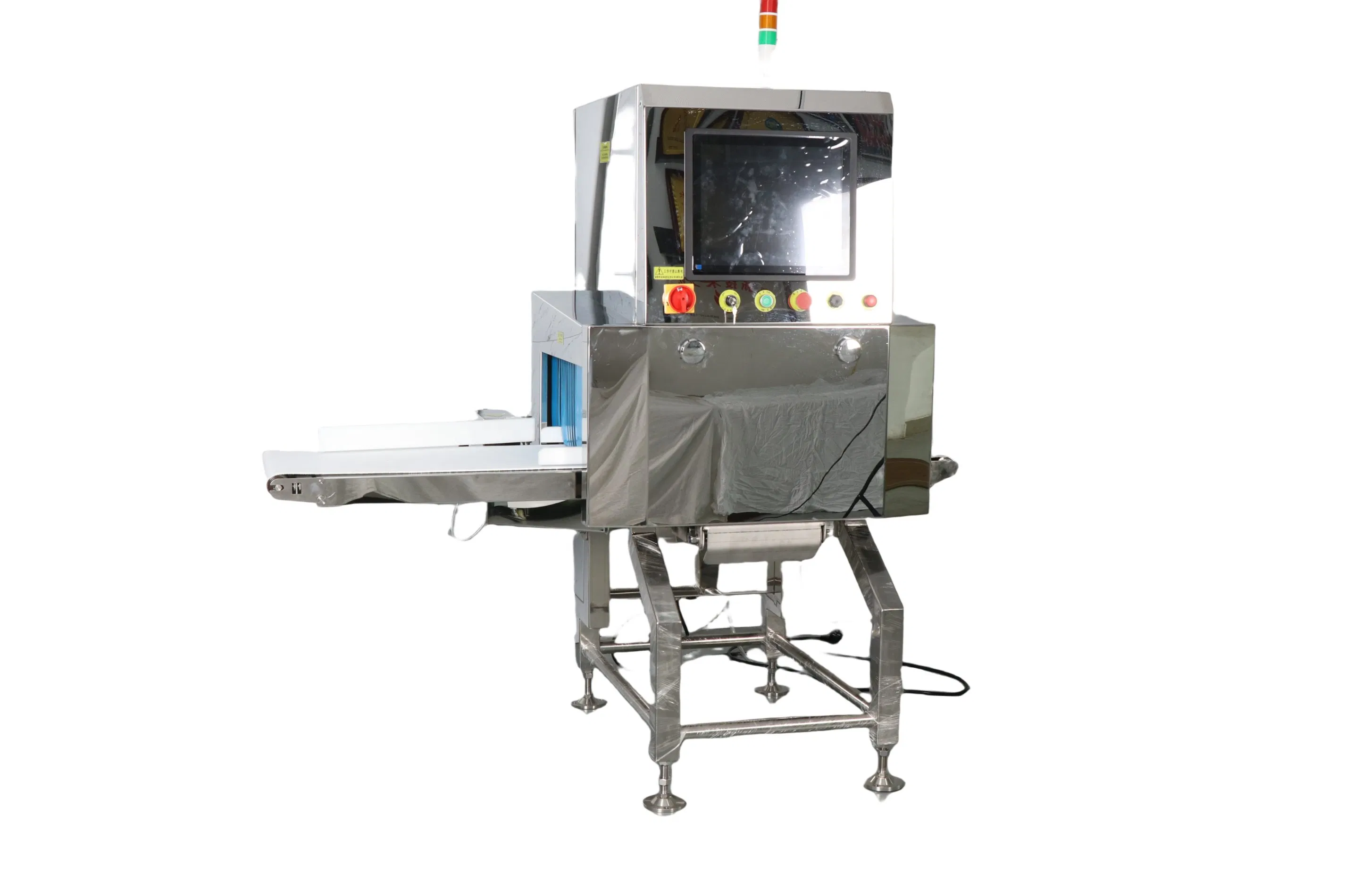

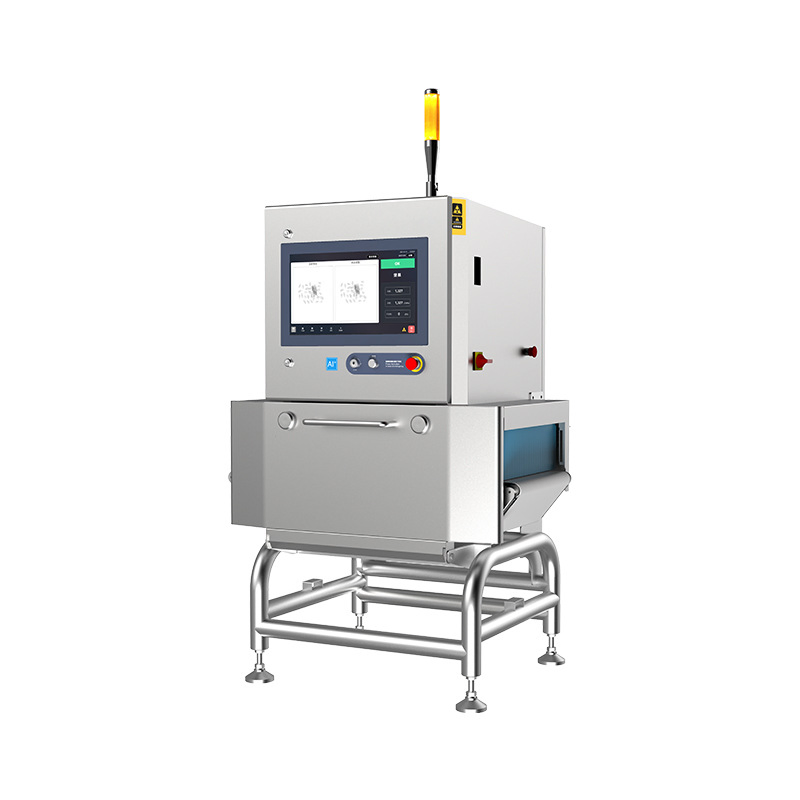

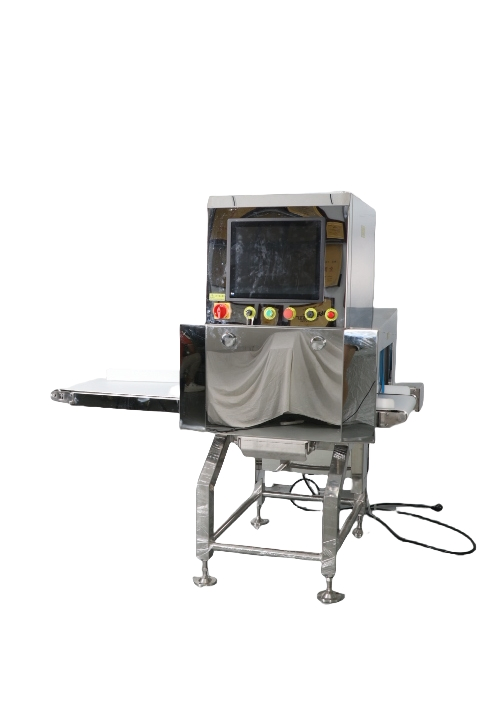

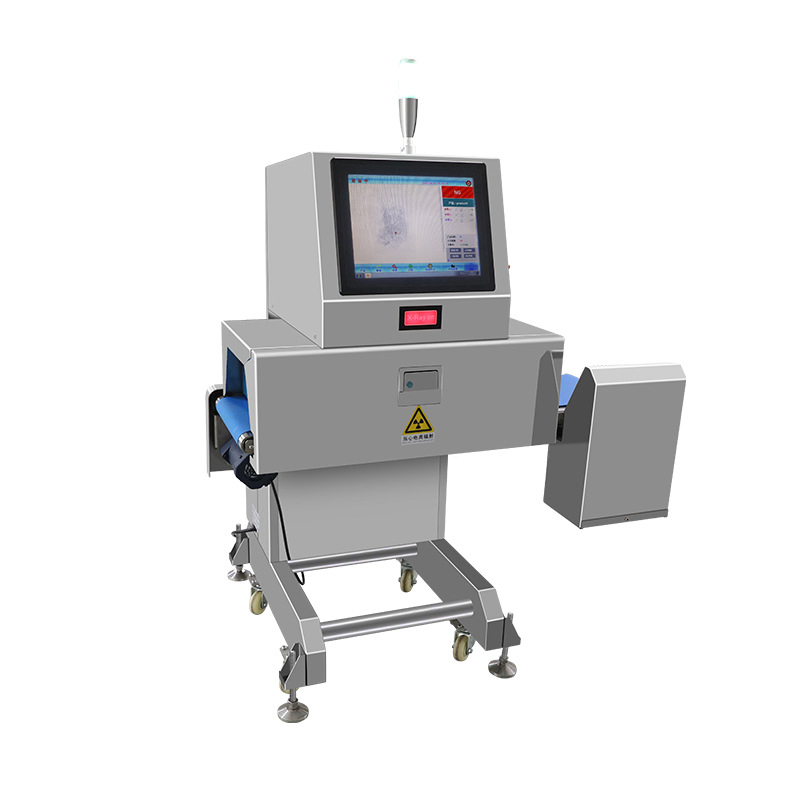

VS3019 Food Safety X-Ray Metal Detector
The VS3019 Food Safety X-Ray Metal Detector is a state-of-the-art inspection system designed to ensure the highest levels of food safety and quality control. This advanced X-ray system is engineered to detect various contaminants, including stainless steel, glass, and ceramic particles, making it an essential tool for food processing and packaging industries.
With a robust detection accuracy that includes stainless steel balls as small as Φ 0.6 mm, glass balls of Φ 2.0 mm, and ceramic balls of Φ 1.0 mm, the VS3019 ensures the highest level of precision in identifying contaminants.
Detects stainless steel particles (Φ 0.6 mm), glass, and ceramic contaminants with impressive precision even in challenging environments.
Equipped with a 150W 80kV single-source X-ray generator and 0.4 mm detector for high-resolution imaging.
Adjustable speed from 20 to 70 m/min, 300 mm belt width, and support for loads up to 20kg.
Windows 11 based system with 17-inch touch screen, LAN/USB ports, and complete product log management.
Constructed from 304 stainless steel with IP65 protection, designed for easy cleaning and durability.
X-ray leakage is < 1µSv/h, featuring protective curtains and covers to ensure operator safety.

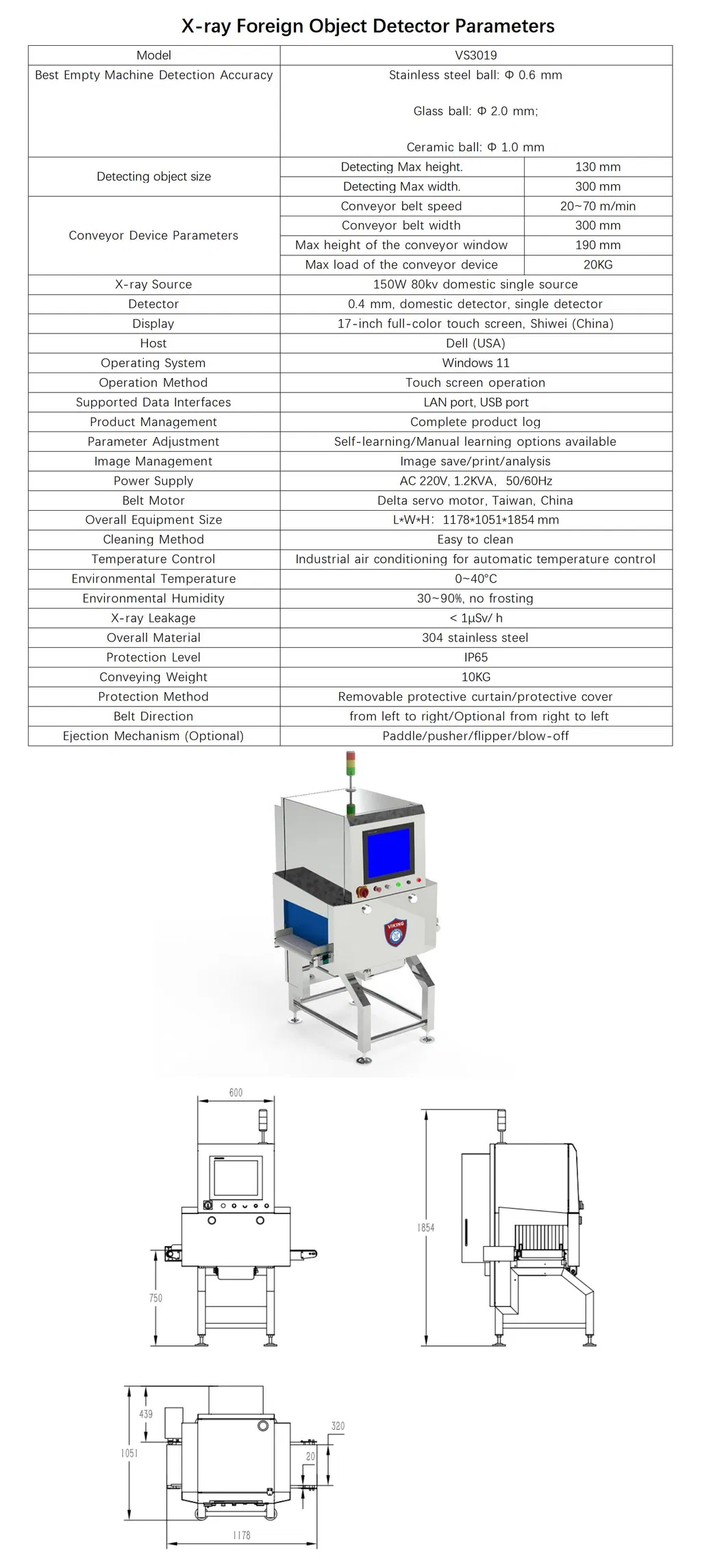

| Specification | Detail |
|---|---|
| Model | VS3019 |
| Detection Accuracy | SS: Φ 0.6 mm, Glass: Φ 2.0 mm, Ceramic: Φ 1.0 mm |
| Detecting Object Size | Max Height: 130 mm, Max Width: 300 mm |
| Conveyor Speed | 20-70 m/min |
| Max Load Capacity | 20 kg |
| X-ray Source | 150W 80kV Single Source |
| Display | 17-inch Full-Color Touch Screen |
| Operating System | Windows 11 |
| Data Interfaces | LAN Port, USB Port |
| Power Supply | AC 220V, 1.2KVA, 50/60Hz |
| Operating Temperature | 0~40°C |
| Material | 304 Stainless Steel |
| Protection Level | IP65 |
| X-ray Leakage | < 1µSv/h |
| Optional Ejection | Paddle, Pusher, Flipper, Blow-off |
The VS3019 Food Safety X-Ray Metal Detector is a cutting-edge solution for food safety and contaminant detection. With its high detection accuracy, robust conveyor system, and user-friendly operation, it is an ideal choice for food manufacturers and quality assurance professionals. Designed to comply with industry standards, it ensures food safety and enhances production efficiency.
