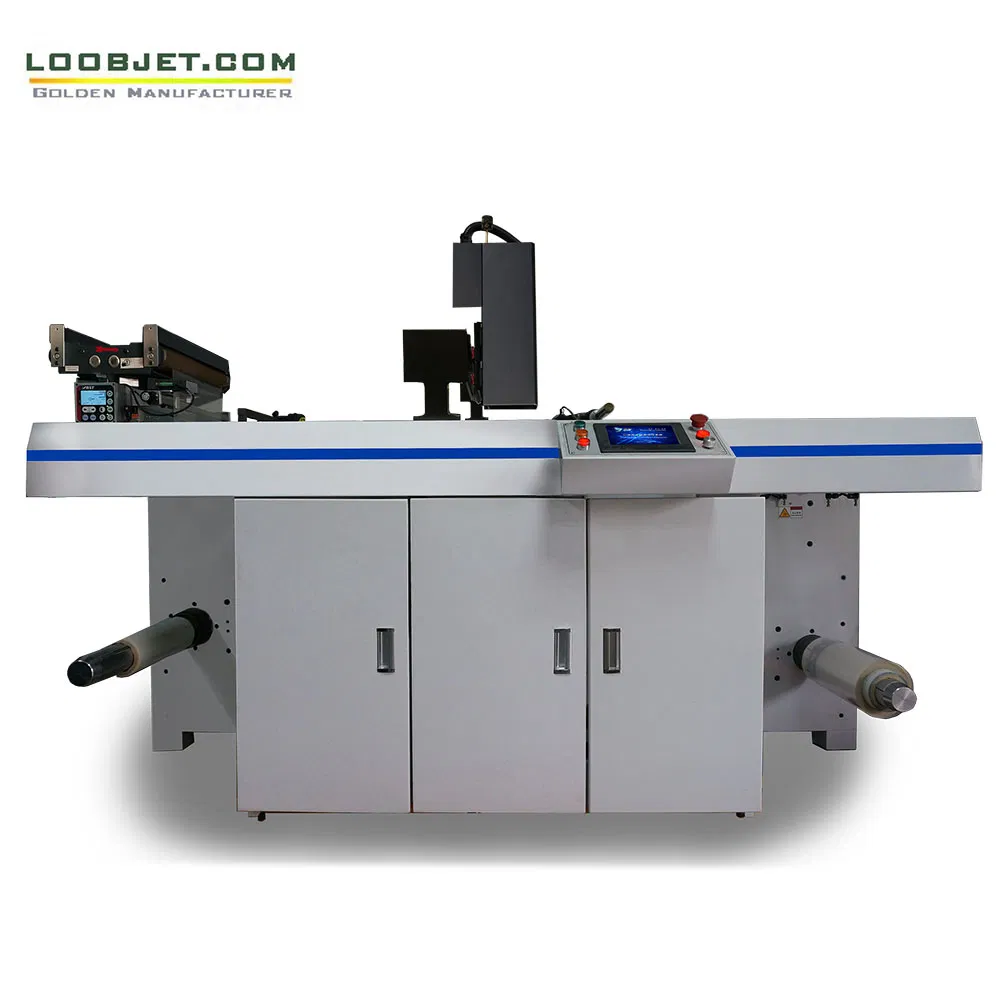

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for applications such as mailings, barcodes, bills, checks, packages, and marking.

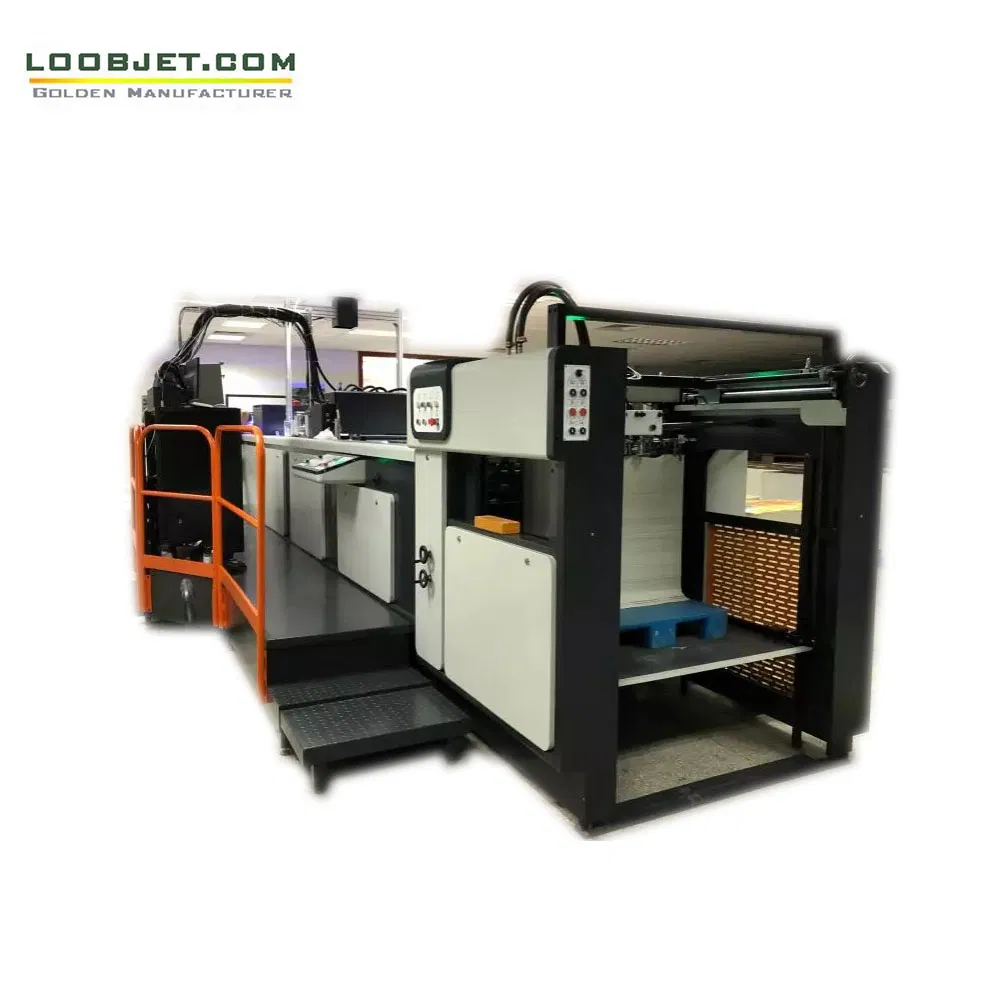

This system is ideal for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for seamless integration into existing transport systems, creating value-added opportunities for digital inkjet printing.
The Printer Control Software (PCS) offers a user-friendly interface for monitoring status and setting options like jetting waveforms and print head temperatures. The system supports Variable Data Printing (VDP) for:

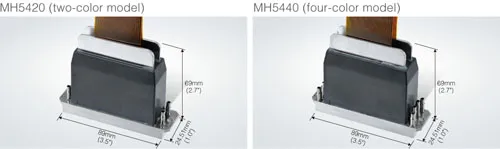

| Print Head Option | Ricoh GN5 / Konica 1024i / Kyocera | Resolution | 600×600, 400, 300, 200 DPI |
| Single Head Width | 54.0mm / 72.0mm / 108mm | Max Width | Up to 24 Seamless Joints |
| Printing Speed | Up to 180m/min (600x200 DPI) | Method | Piezoelectric Ink-jet |
| Drop Size | 5-21 PL | Inks | Original SGS UV Inks |
| Barcode Support | QR, CODE128, EAN, PDF417, etc. | Port | Gigabit Ethernet |

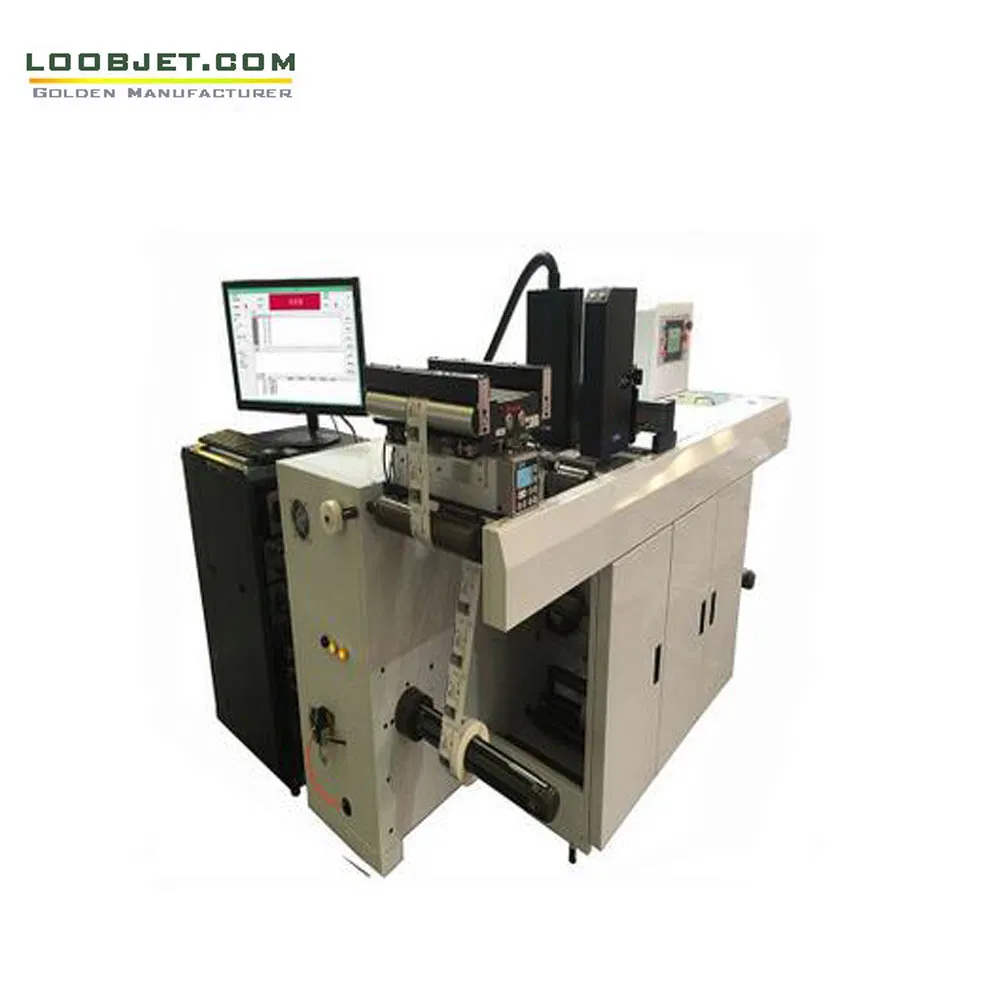

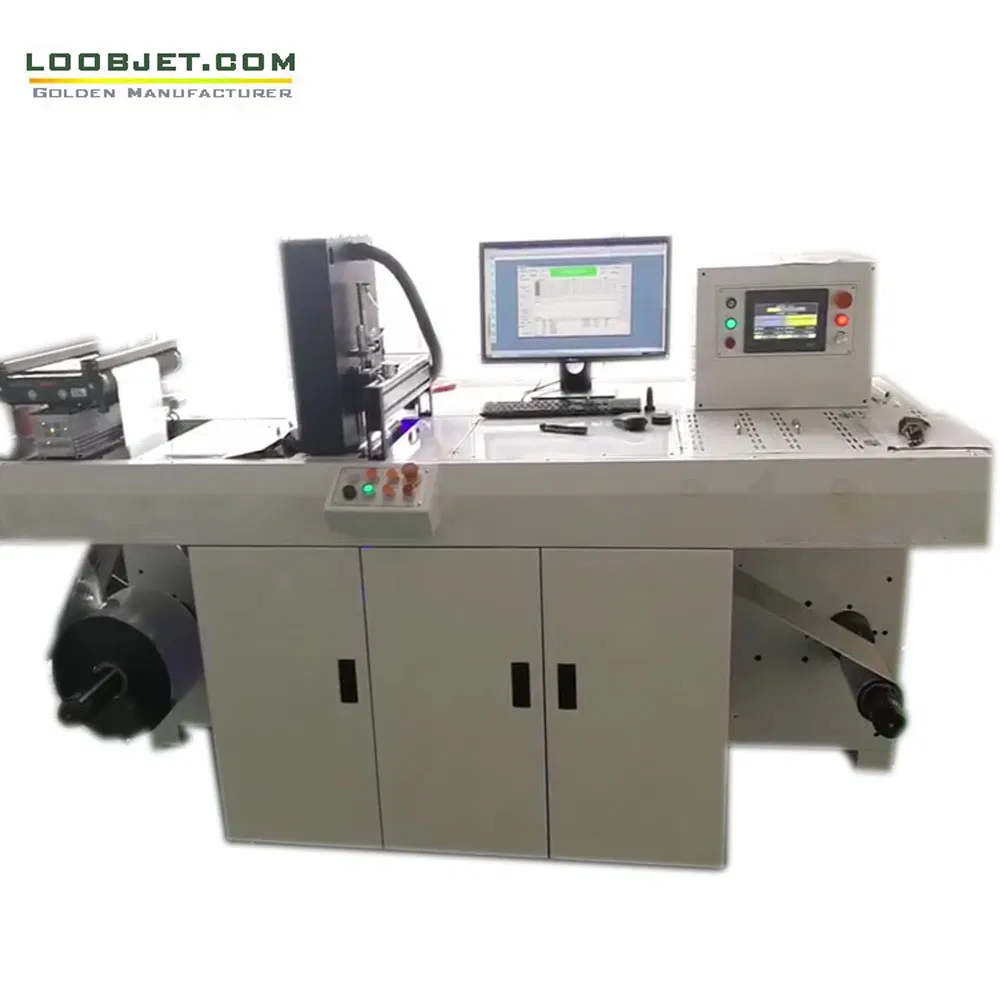

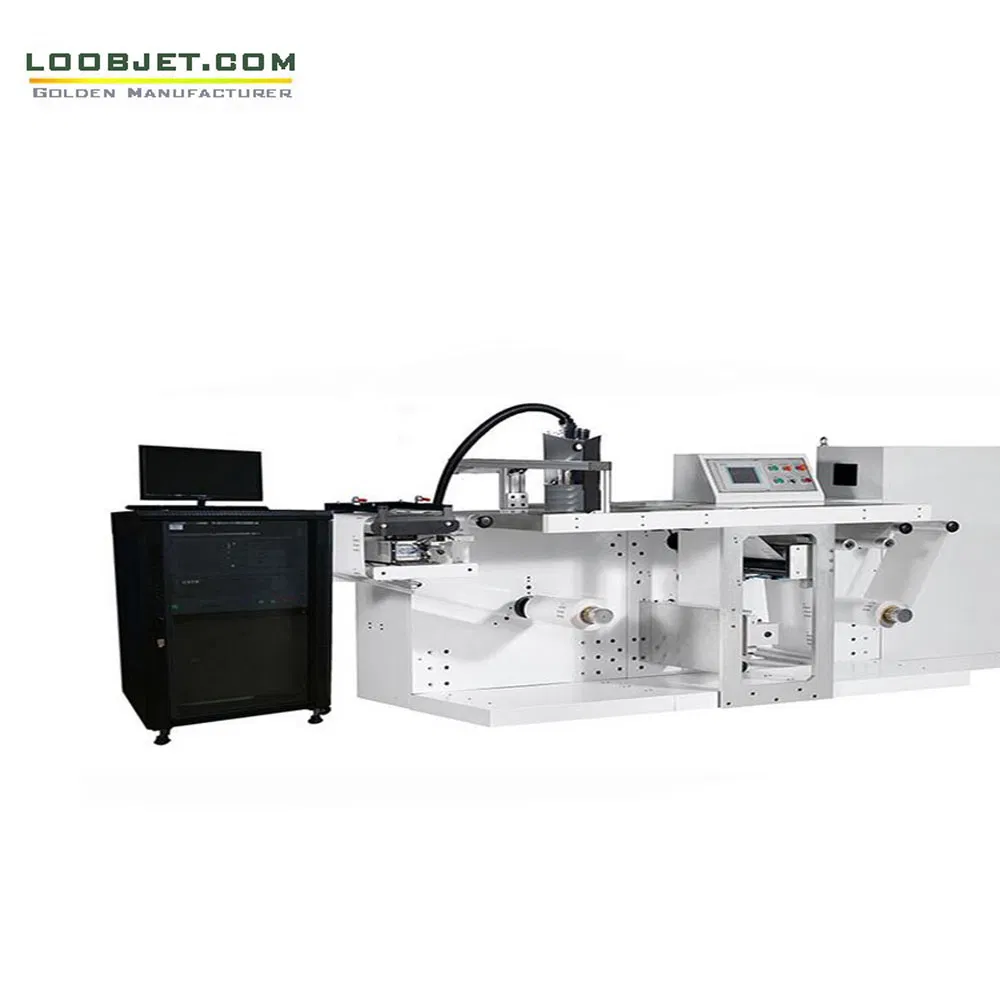

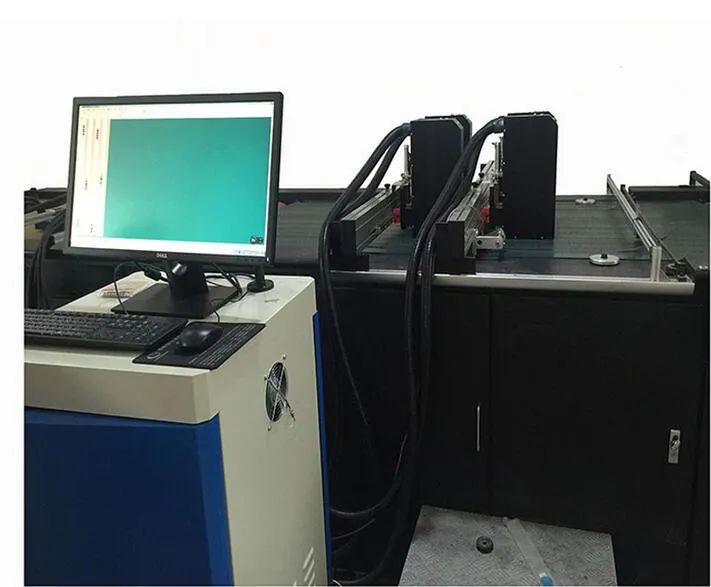

Reference Video & Application: Clothing tag inkjet printing line solutions and web-fed digital demonstrations are available for review.
