UVA 365nm 385nm 395nm 405nm UV LED Spot Curing Systems for Resin Glue Adhesive Curing

Customization:	Available
Usage:	Industrial use
Shape:	Square

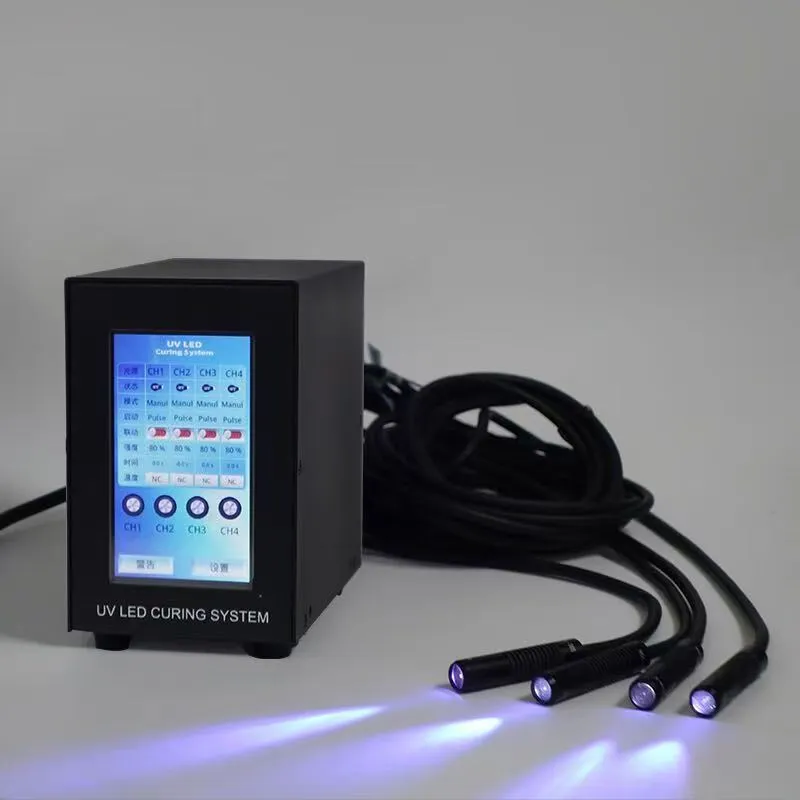

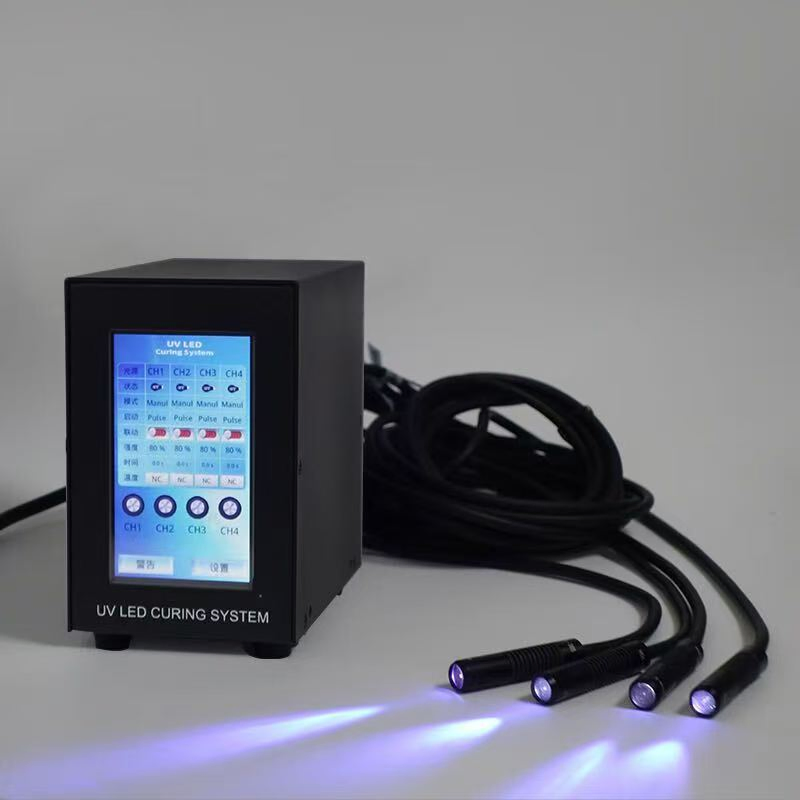

UV LED Spot Curing System

Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, it achieves peak production efficiency and machine utilization, especially in fully automated production lines.

Basic Specifications

Model NO.A1400-TP4

Wavelength365/385/395/405/470nm

Intensity1000-20000MW/Cm2

Input VoltageAC100~240V(50/60Hz)

LED Life> 20,000 Hours

Cooling MethodAir / Fan Cooling

ProtocolRS232

Industrial Applications

UV Adhesive

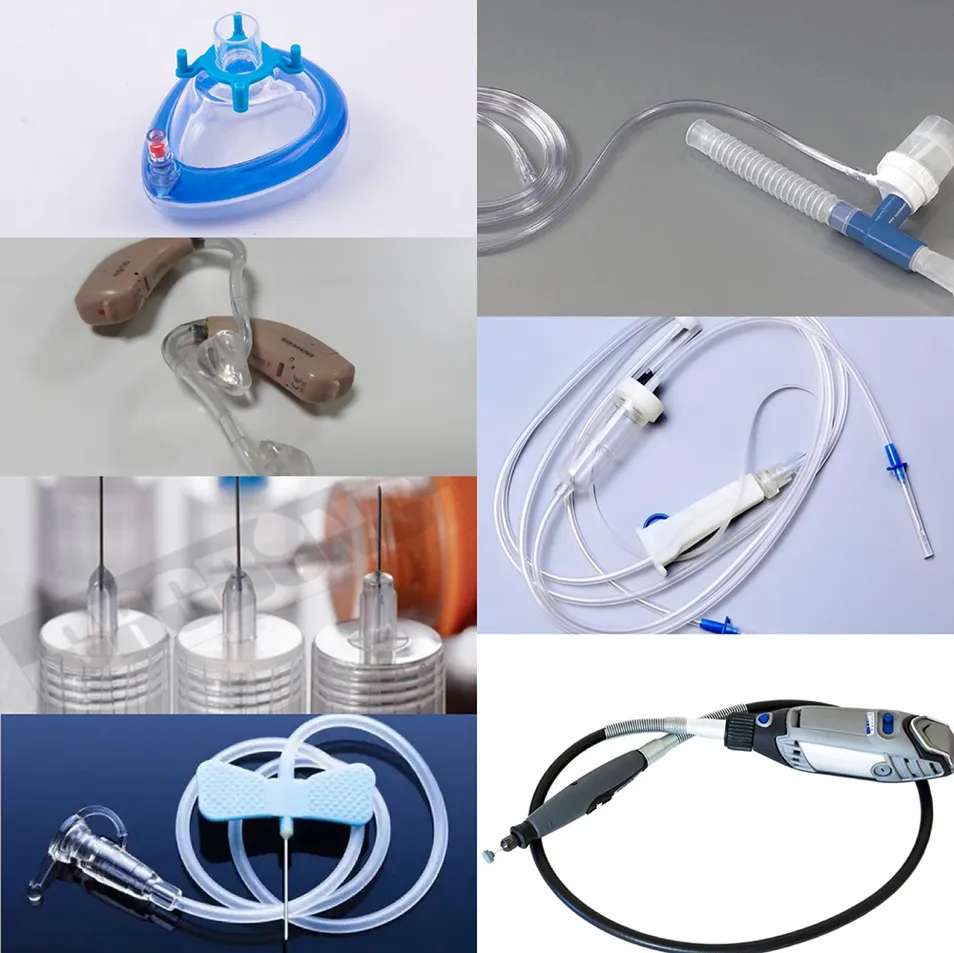

Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.

UV Coating

PCBA, precision machining, Chip packaging, Automotive Industry.

UV Ink

UV printing, 3D printing, and high-precision marking.

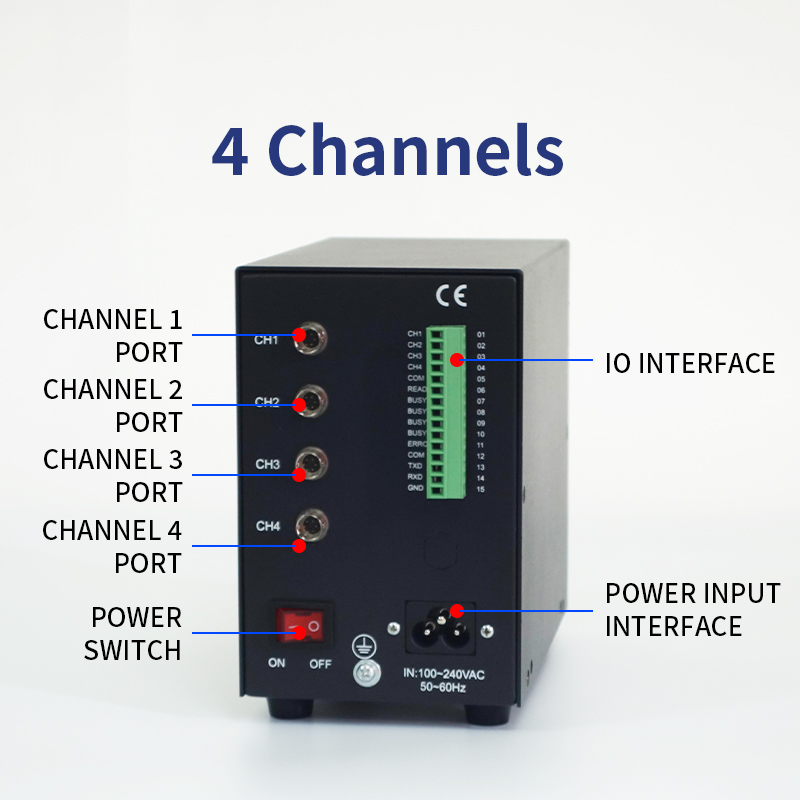

Product Elevation Views

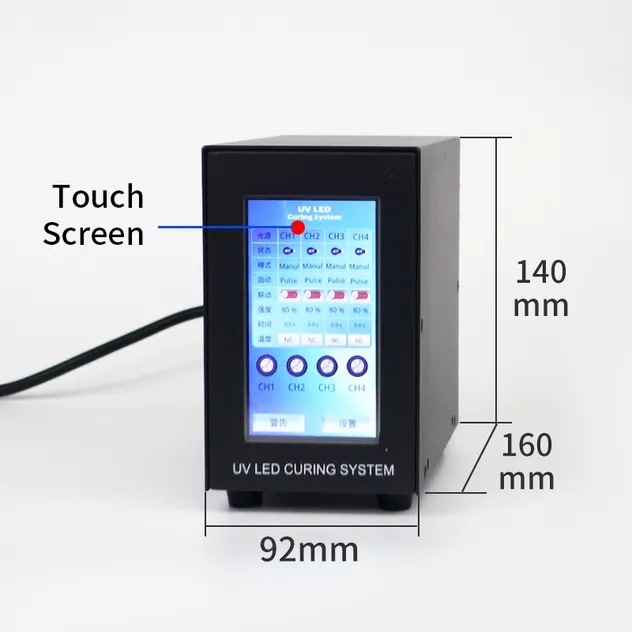

Right Elevation

Left Elevation

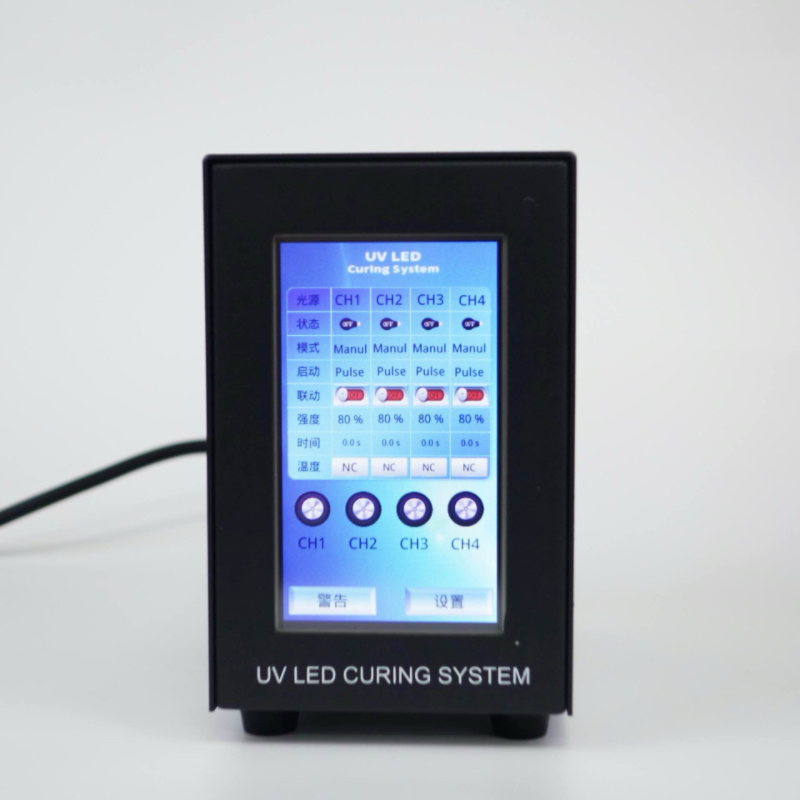

Front Elevation

Key Configurations

1 Smart Controller

Supports multi-language interfaces.
Available for 1-8 independent channels.
Records working time for each LED head.
Built-in warning system for abnormal situations.

2 High-Performance LED Head

Core materials: NICHIA high-level LED + DowCorning + HOYA quartz lens.
Taiyo bending-resistant cable (1000w cycles).
Multiple wavelengths: 365/385/395/405/470nm.

Technical Specifications

Parameter	Details
Model	A1400-TP4
Irradiate lamp heads	1-4 pcs (Independent Control)
Maximum UV Intensity	18000 mw/cm²
Adjustable Power Range	1% - 100%
Control Method	RS232 / PLC / Pedal / Touch Screen
Irradiated Mode	Manual, Automatic (0.1S~999.9S), Step, Cycle Step

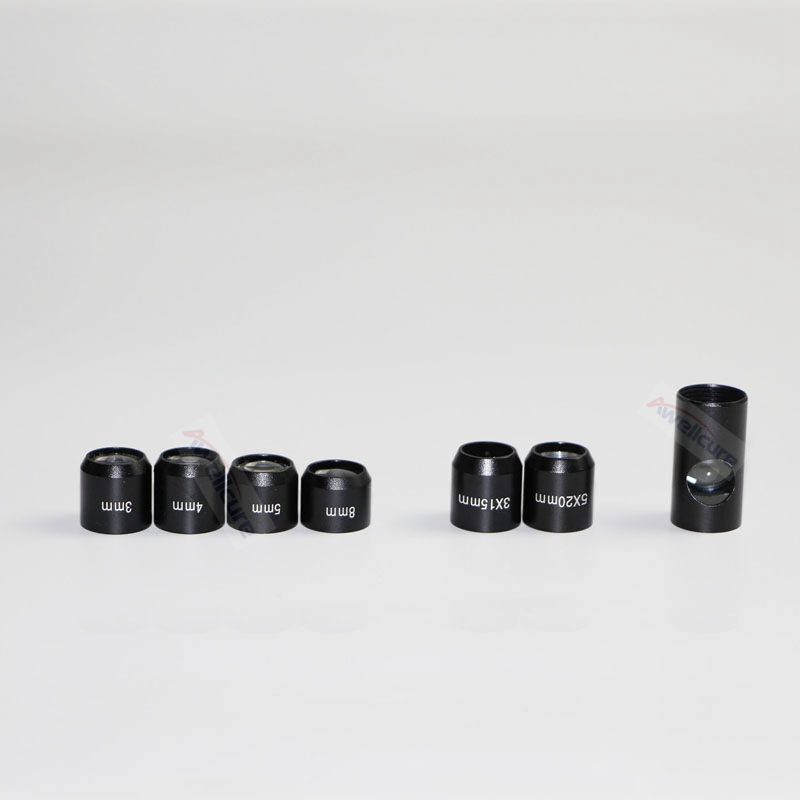

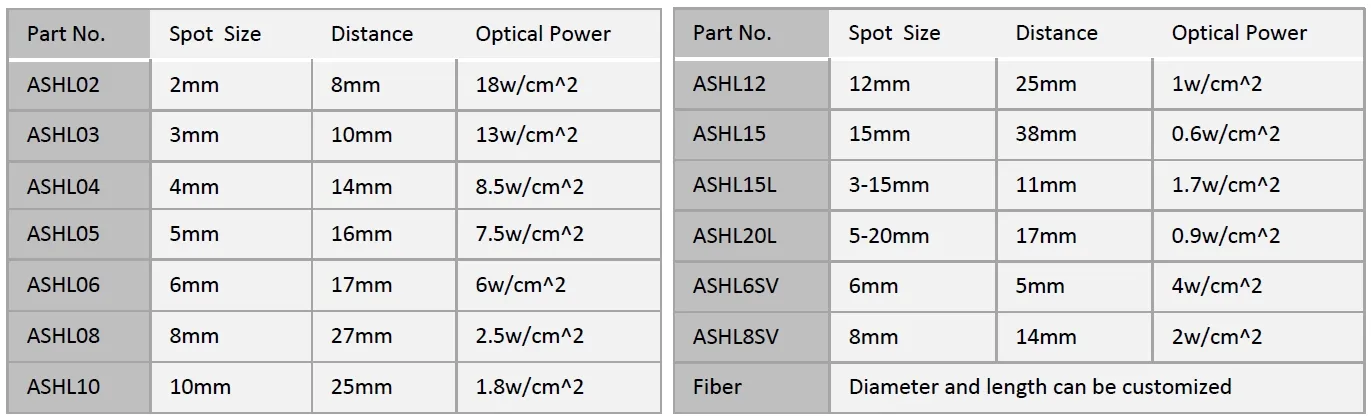

Optional Lens	Standard (2-15mm), Line (3x15mm, 5x20mm), Vertical (6mm, 8mm)
Dimension (LWH)	160 * 92 * 140 mm
Package Size	38 * 21 * 23 cm
Gross Weight	3.50 KG

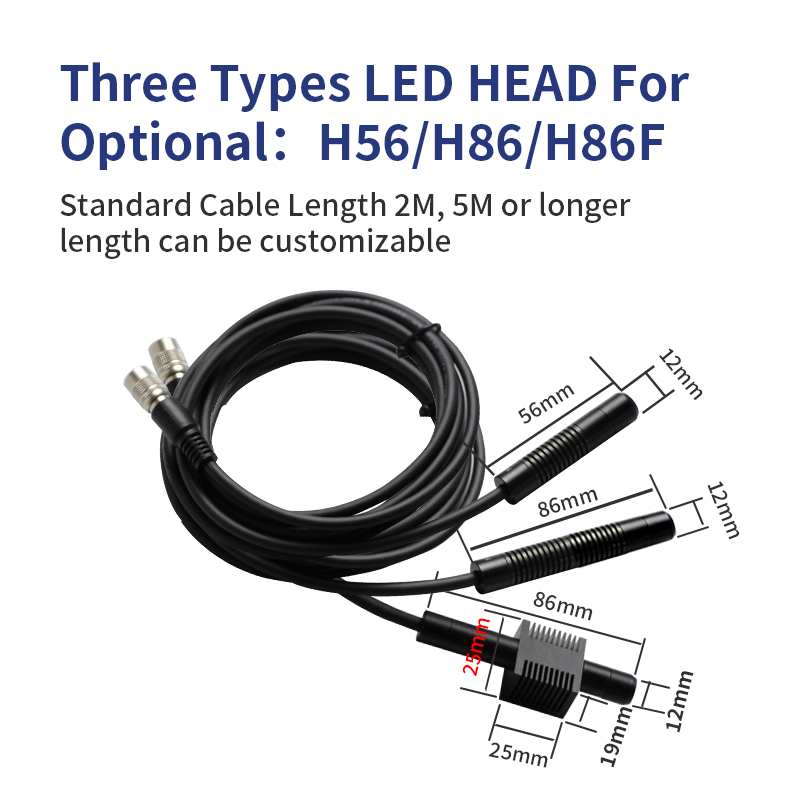

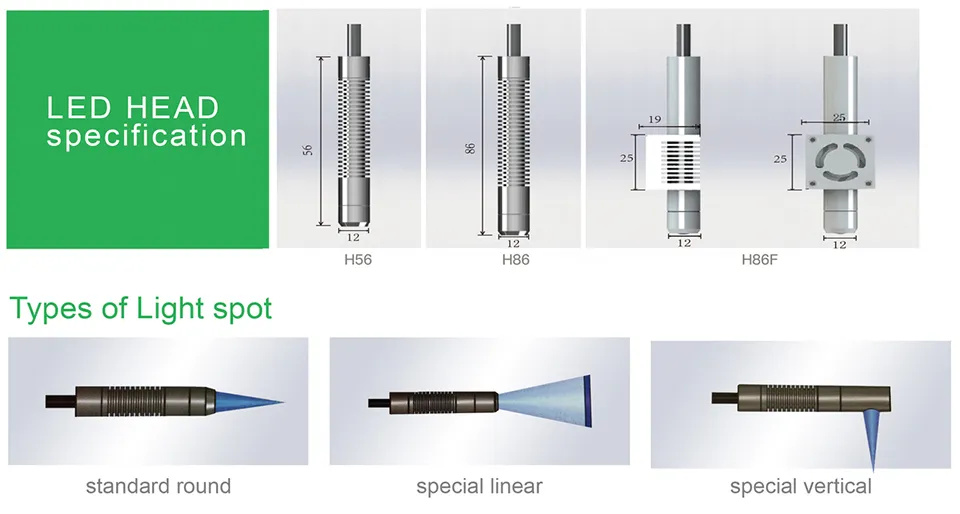

Optional LED Heads

Service & Support

After-Sales Guarantee

Standard Warranty: 12 months.

Extended Warranty: Optional coverage up to 36 months.

Technical Support: 24/7 global assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

Why Partner With Us?

Over 12 years of industry expertise.
Certified with ISO 9001, CE, and RoHS.
Full OEM/ODM capabilities for custom projects.
Exporting to over 50 countries worldwide.
Turnkey solutions for industrial UV curing.

Frequently Asked Questions

? What is the typical lead time for orders?

Standard models are usually shipped within 10–15 days. Customized units or large volume orders require approximately 20–30 days depending on complexity.

? Do you provide overseas technical support?

Yes, we provide 24/7 remote technical assistance and have partnered service centers in key global regions to ensure your production remains uninterrupted.

? Can I customize the UV curing lamp size or wavelength?

Absolutely. We offer tailored attachments, custom lens sizes, and specific wavelengths (365nm to 470nm) to match your specific adhesive or ink requirements.

? What is the expected lifespan of the UV LED heads?

Our high-quality LED heads are designed for a working life of more than 20,000 hours, significantly reducing the need for frequent replacements compared to traditional mercury lamps.

? What documentation is provided for international shipping?

We provide a complete export documentation package, including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

? How can I confirm a purchase and place an order?

You can reach out to our team via inquiry for a formal quote. Once technical specifications are confirmed, the order is finalized through a standard Purchase Order (PO).
