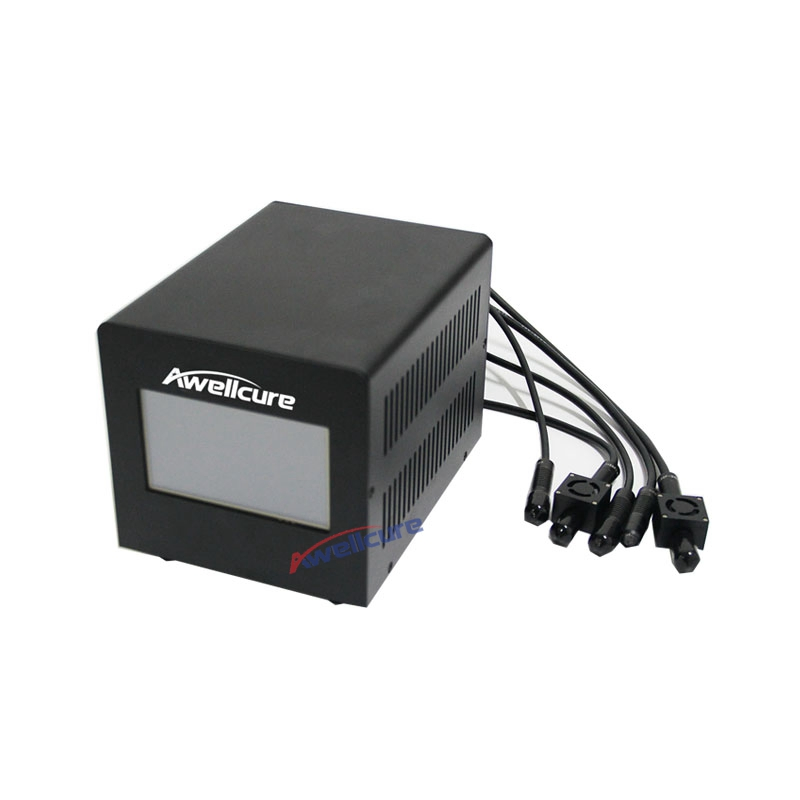

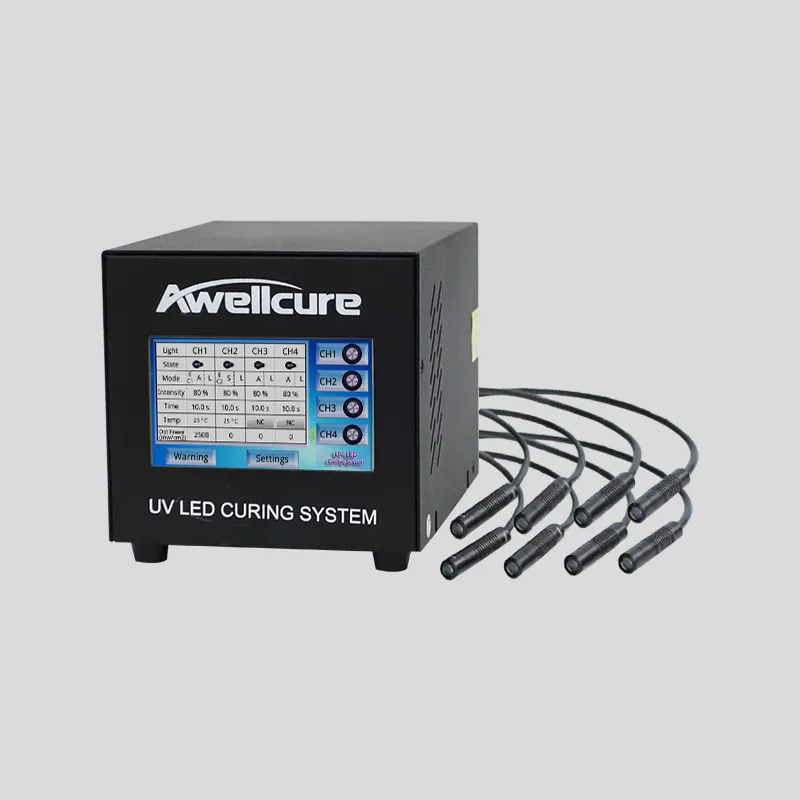

365nm-405nm UV LED Spot Light Curing System
Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, it achieves maximum production efficiency, especially in fully automated production lines.
| Parameter | Details |
|---|---|
| Model No. | A2400-TP8 |
| Wavelength | 365 / 385 / 395 / 405 / 470nm |
| Irradiate Lamp Heads | 1-8 channels independent control |
| UV Intensity | Max 18W/cm² |
| LED Life | 20,000+ Hours |
| Cooling Method | Air / Fan Cooling |
| Control Operation | Touch Screen / PLC / RS232 / Pedal |
| Input Voltage | AC100~240V (50/60Hz) |
| Step Irradiation | 1-20 steps programmable |
Controller Features:

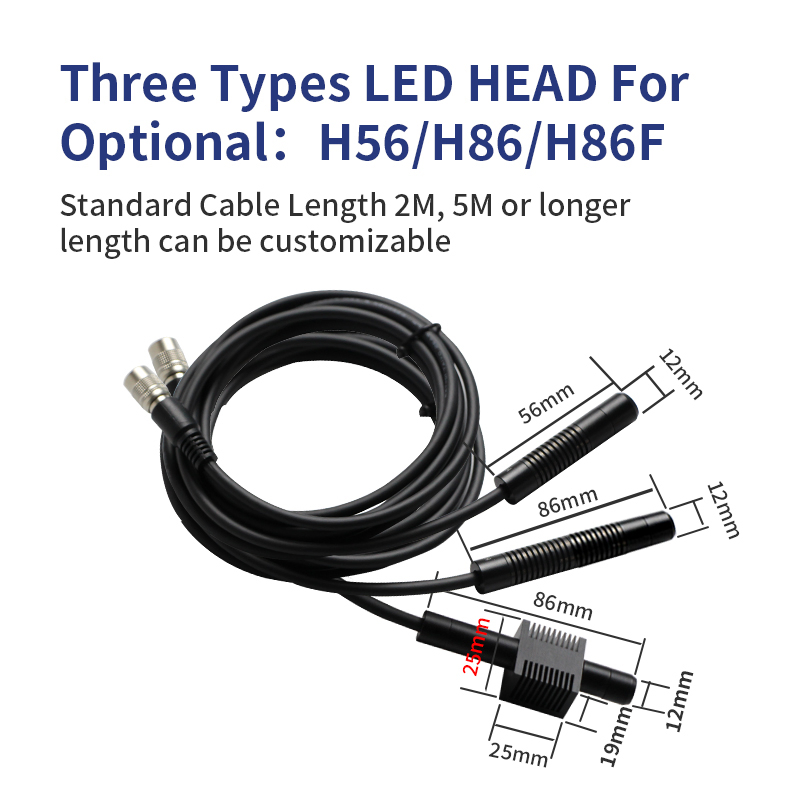

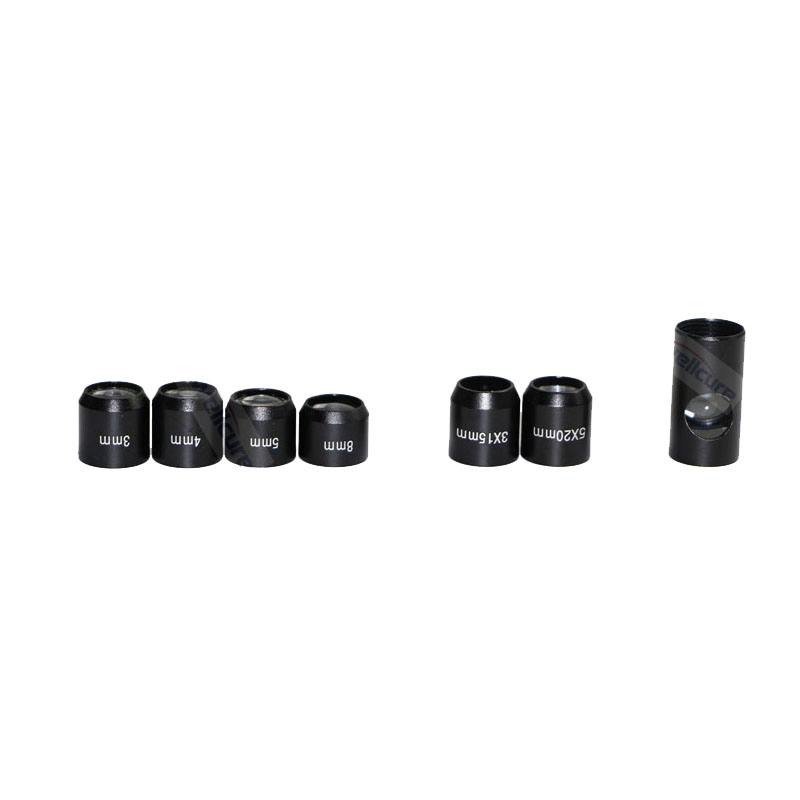

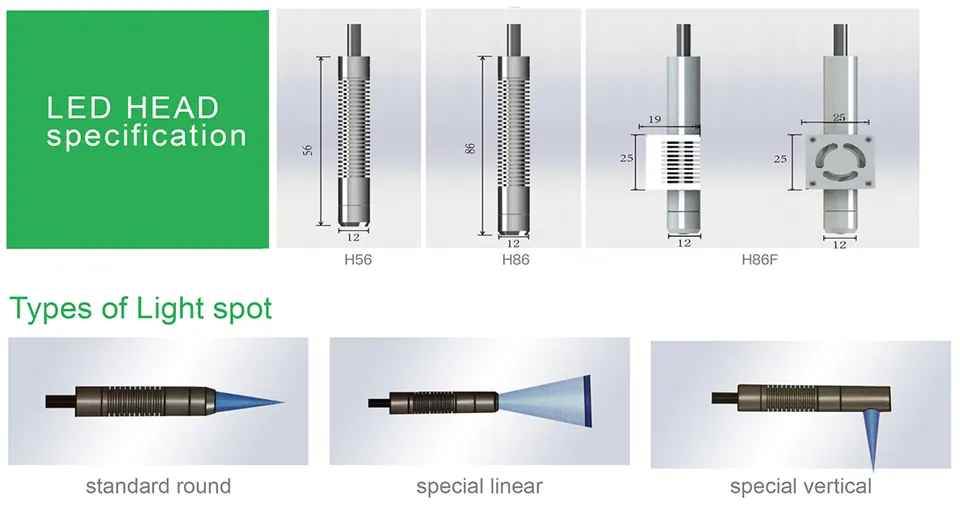

LED Head & Lens:

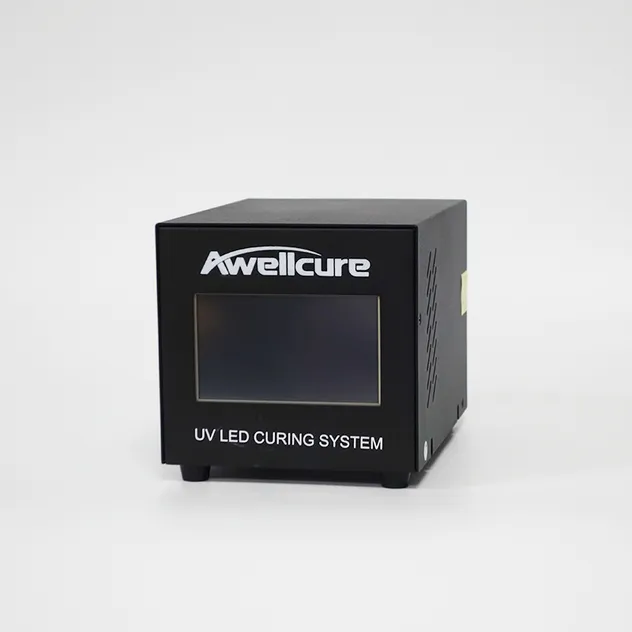

Right Elevation

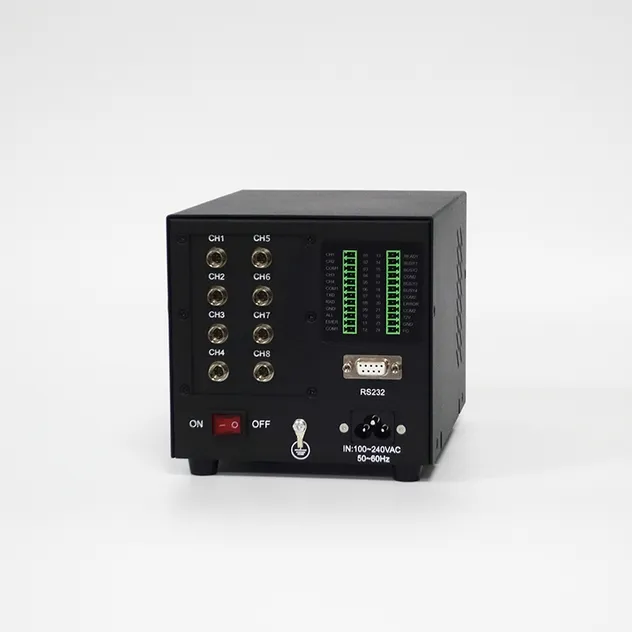

Left Elevation

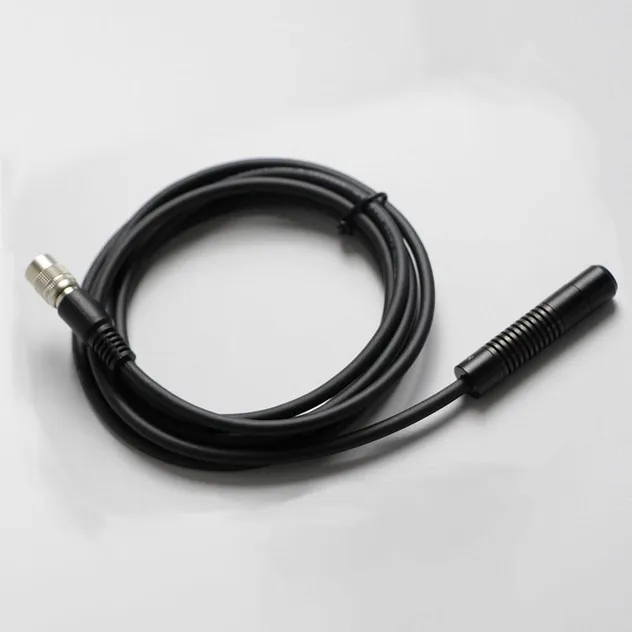

Front Elevation

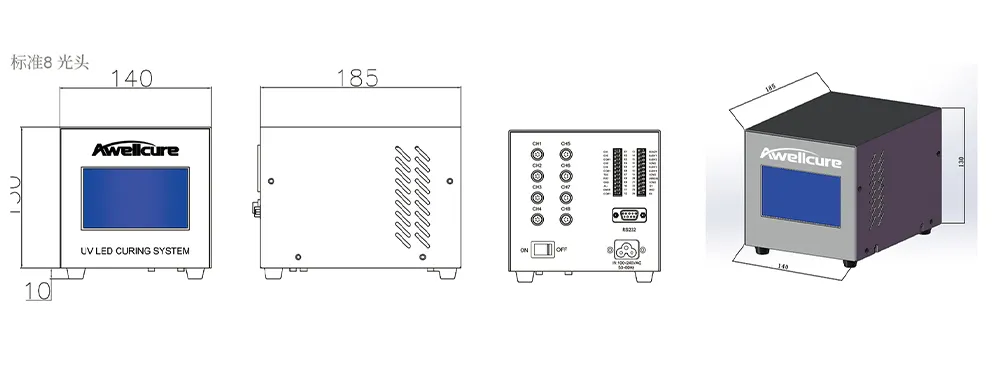

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
Service Commitment:

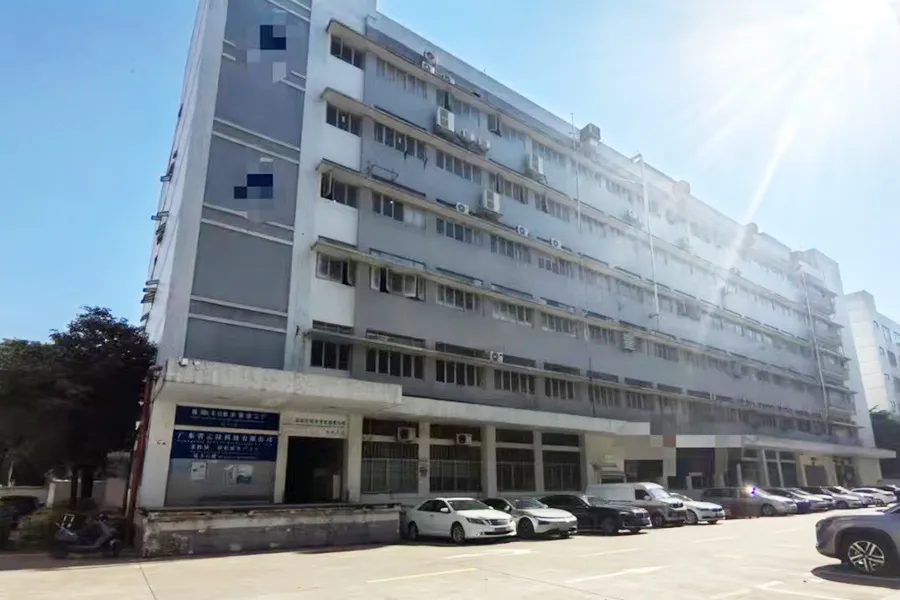

Manufacturing Excellence:
With over 12 years of expertise in UV LED Curing Systems, we are ISO 9001, CE, and RoHS certified. We export to 50+ countries, offering turnkey solutions and robust R&D innovation.
