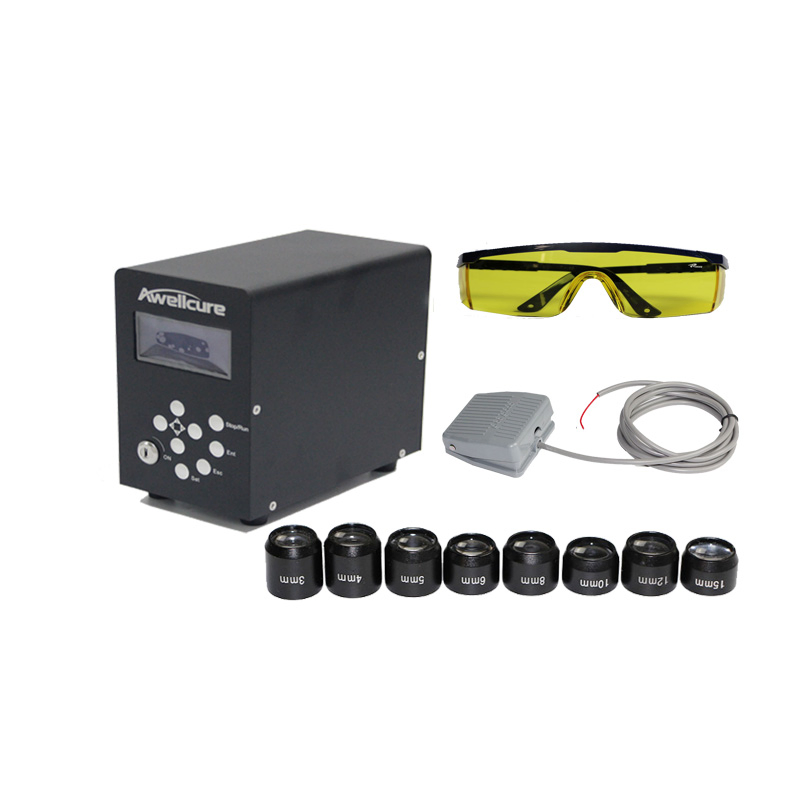

365nm 385nm 395nm 405nm UV LED Spot Curing System for PCB UV Paint Curing

Customization:	Available
Usage:	Industrial use
Shape:	Square

Overview

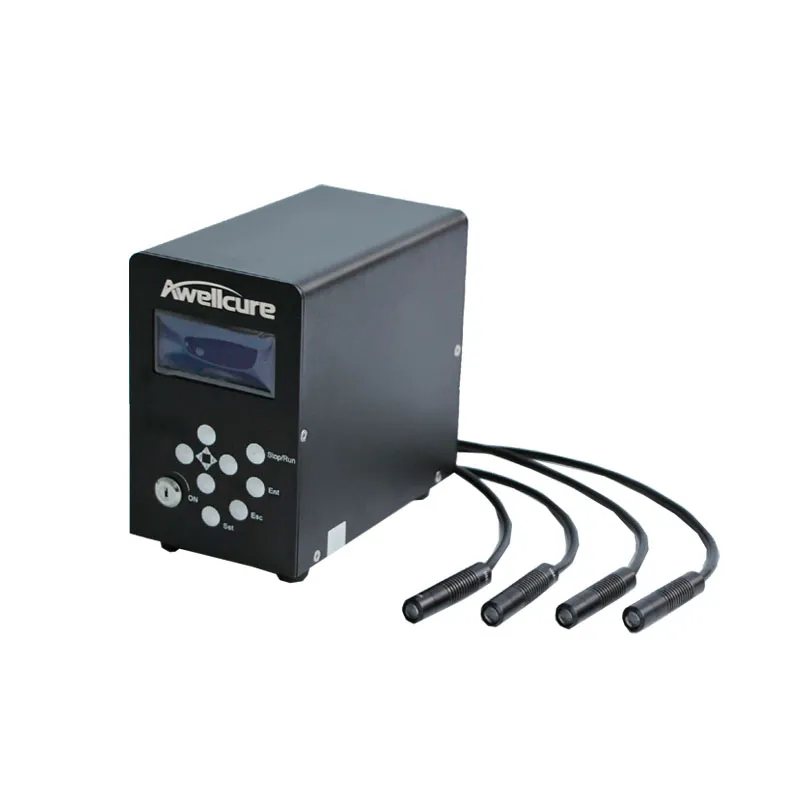

365nm 385nm 395nm 405nm UV LED Spot Curing System for PCB UV Paint Curing

Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, irradiation processes can be achieved with different intensities and times, optimizing production efficiency especially in fully automated lines.

Model NO.

AS01-4

Wavelength

365/385/395/405/470nm

Material

Aluminum

Certification

CE

Input Voltage

AC100~240V(50/60Hz)

Cooling Method

Air / Fan Cooling

LED Life

20,000 hrs

Control Method

RS232/Pedal/PLC

Product Specifications

🚀 Applications

UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.
UV Ink: UV printing, 3D printing.

⚙️ Key Configurations

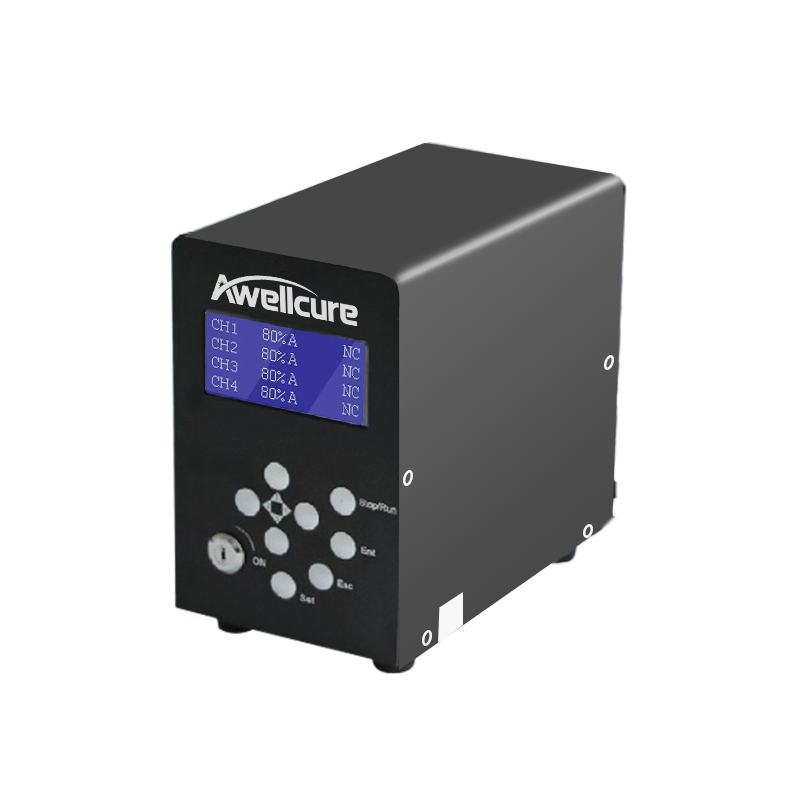

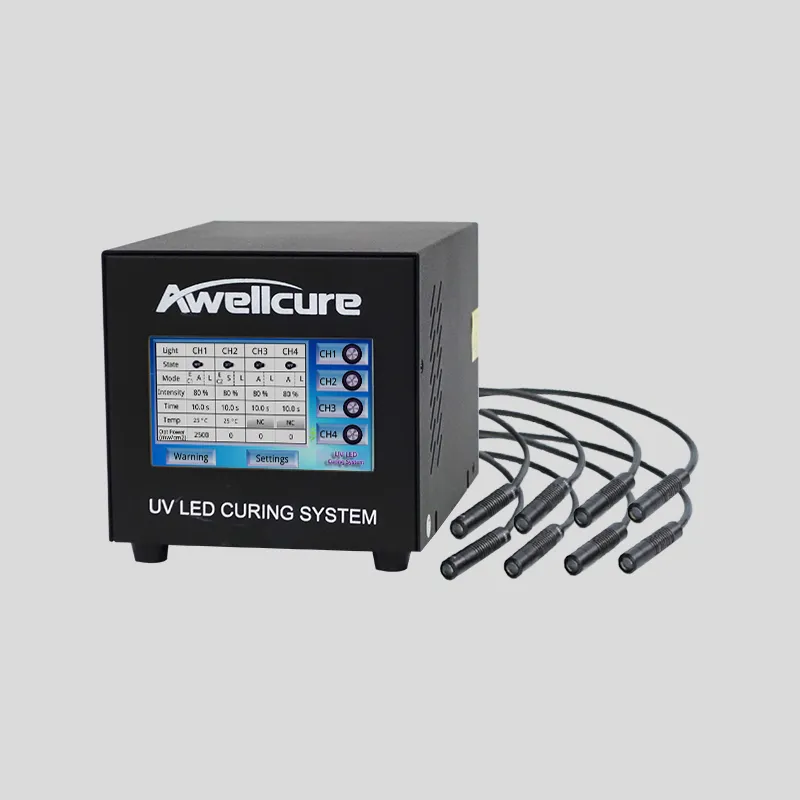

Controller Features:

Supports multi-language interfaces.
Available for 1-8 independent channels.
Compact size and portable design.
Records working time and maintenance reminders.
Automatic warning for abnormal operations.

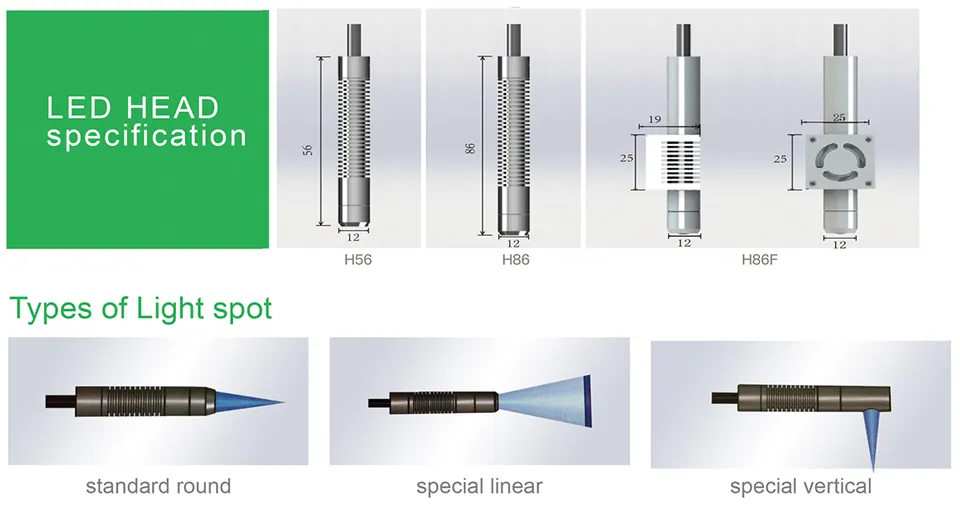

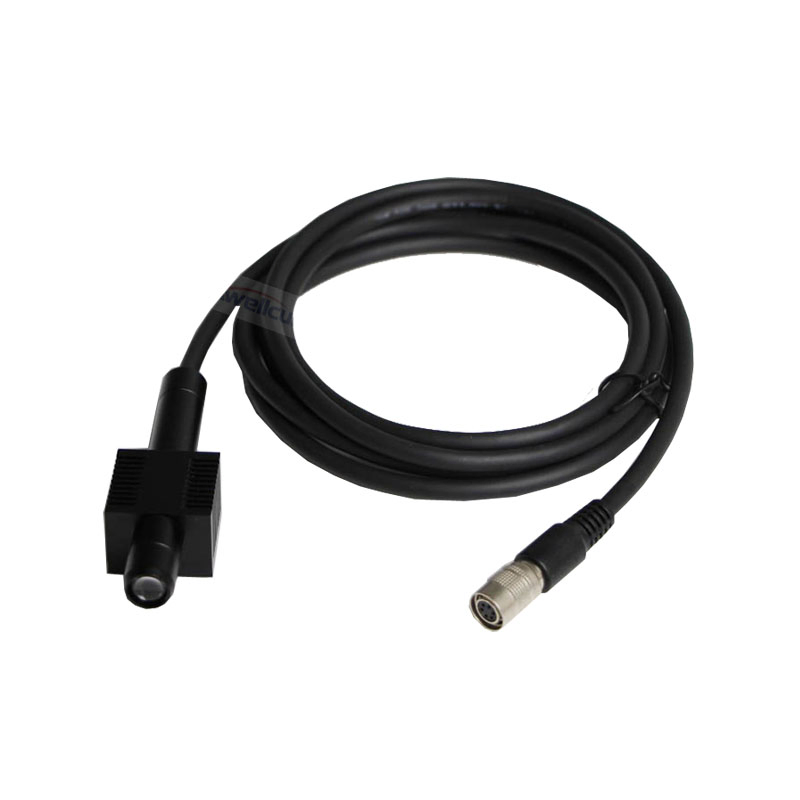

LED Head Features:

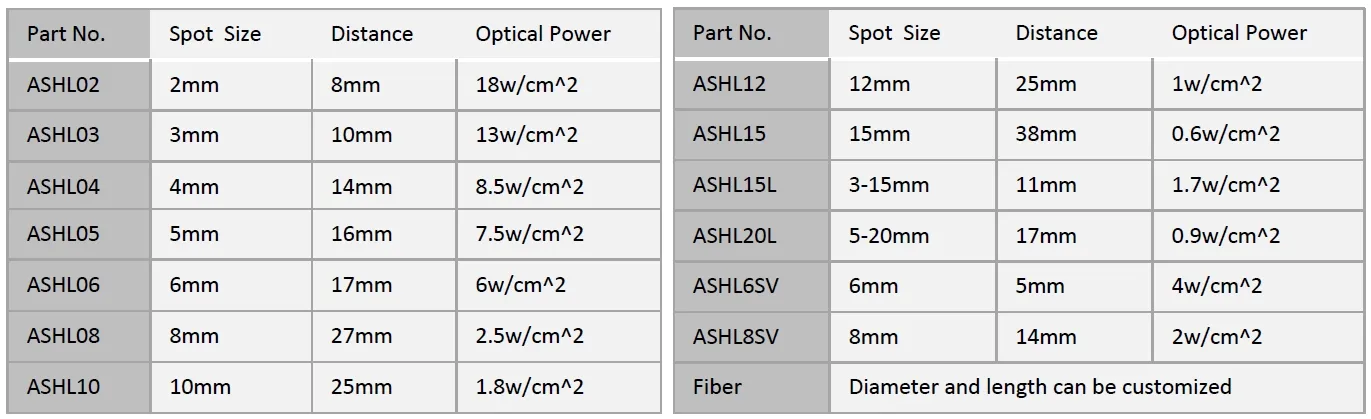

Highest output power up to 18W/cm².
High-level LED chips with quartz lens.
Taiyo bending-resistant cables (10 million cycles).

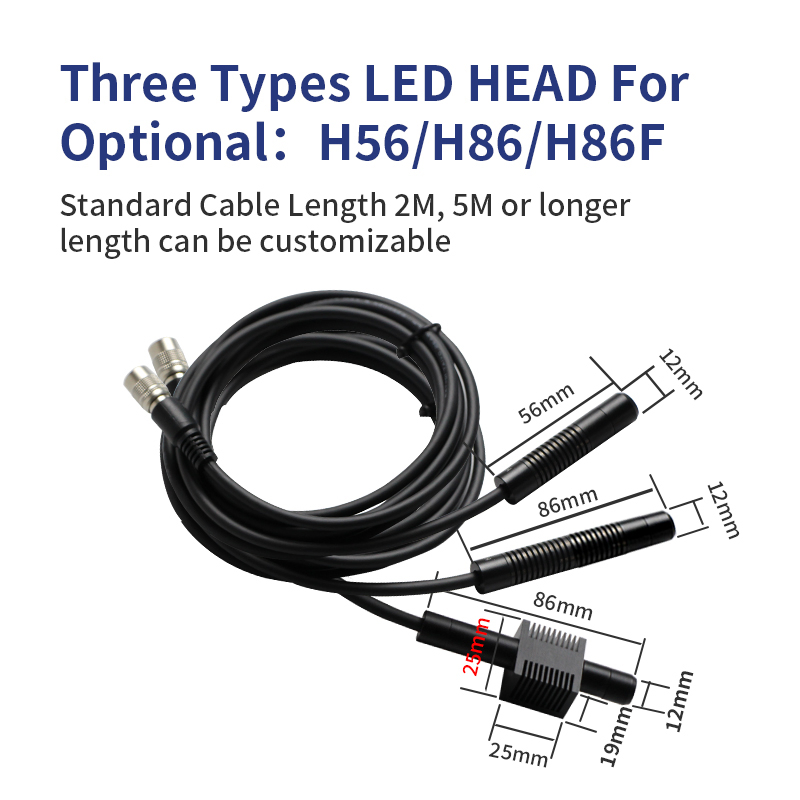

Standard cable lengths: 2m/3m/5m (customizable).

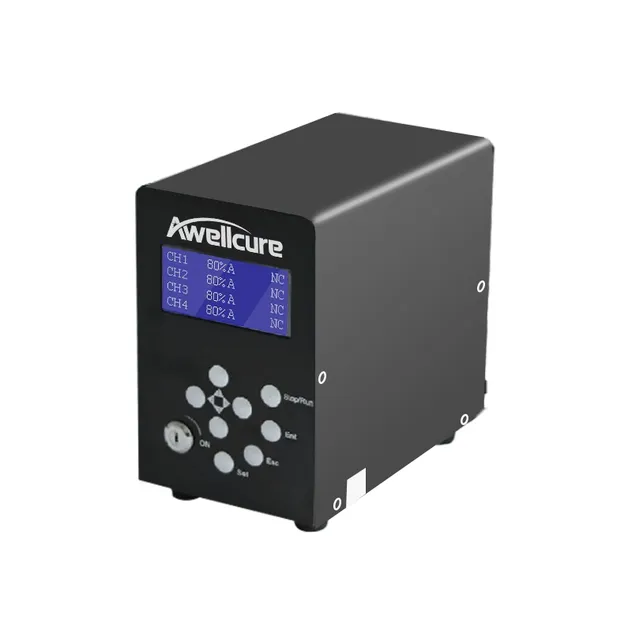

Right Elevation

Left Elevation

Front Elevation

Parameter	Details
Model	AS01-4
Wavelength	365nm, 385nm, 395nm, 405nm, 470nm
Lamp Heads	1-4 pcs
Max UV Intensity	18000 mw/cm²
Power Range	1% - 100% Adjustable

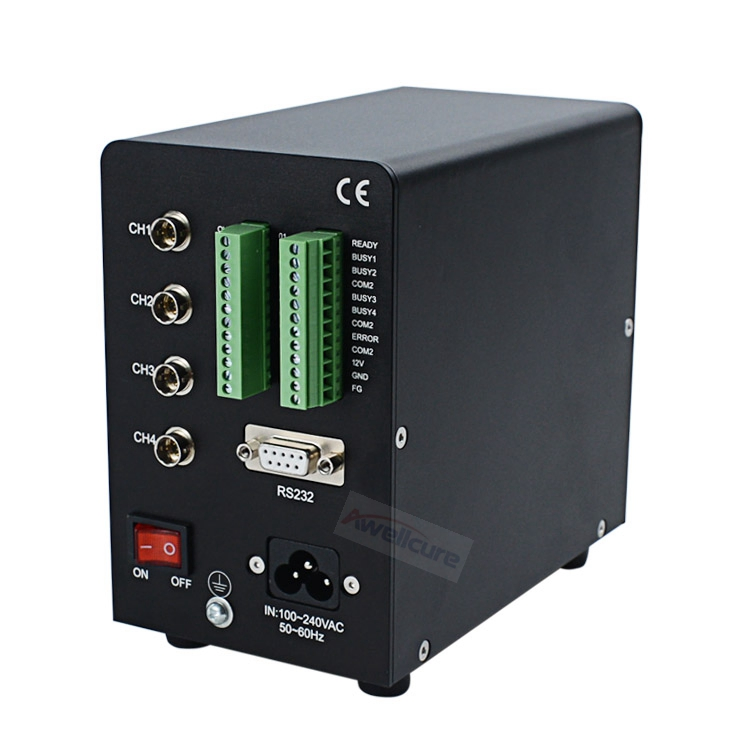

Control Method	RS232 / PLC / Pedal / Touch Screen
Irradiation Mode	Manual, Automatic (0.1S~999.9S), Step (1-20 steps), Cycle
Cooling	Natural or Fan Cooling
Dimensions	185 * 40 * 130mm

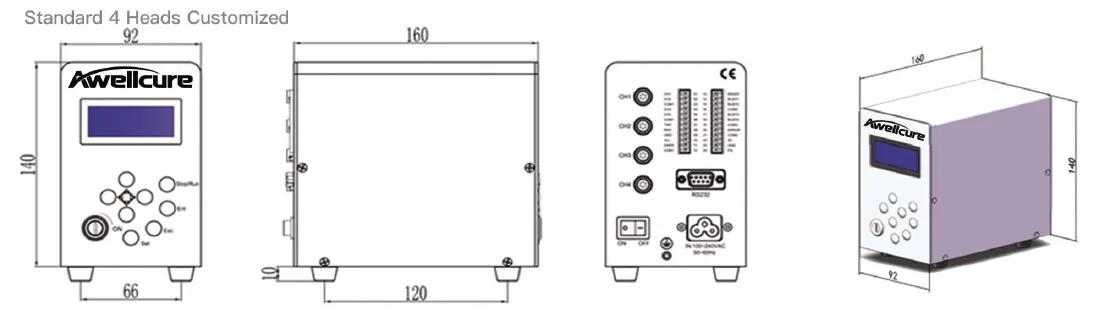

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 12 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

Company Profile

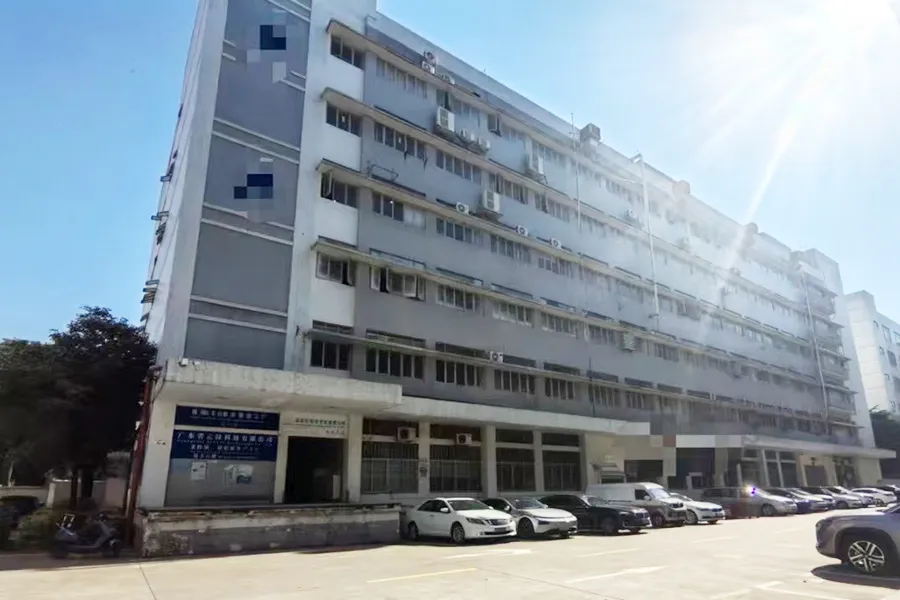

We are a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we export to 50+ countries, offering reliable curing machines backed by R&D innovation and strict quality control. We operate dedicated R&D centers, sales centers, and manufacturing facilities.

Main Products:

UV-LED Spot, Line, and Area curing systems
UV-LED Oven and Conveyor systems
UV-LED Measuring systems

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs support
Turnkey project solutions

Frequently Asked Questions

Q: What's the lead time for orders? A: Standard models typically ship in 10–15 days; customized units require 20–30 days.

Q: Do you provide after-sales service overseas? A: Yes, we provide technical support globally and have partnered service centers in key regions.

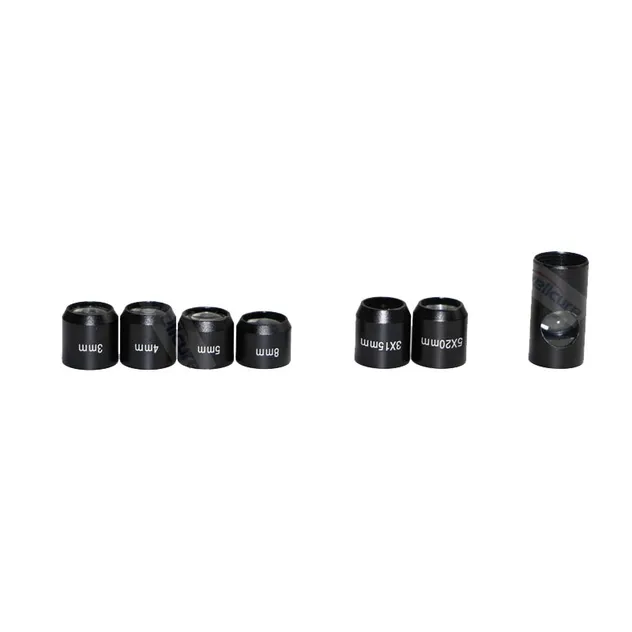

Q: Can I request a customized curing lamp size? A: Absolutely! We offer tailored attachments and customized lens sizes to fit your specific needs.

Q: What documents do you provide for export? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.

Q: How do I place an order? A: Please contact our sales team for a formal quote, and once confirmed, you can proceed with a Purchase Order (PO).

Q: What is the lifespan of the UV LED heads? A: The working life of our UV LED heads is greater than 20,000 hours, eliminating the need for frequent lamp replacement.
