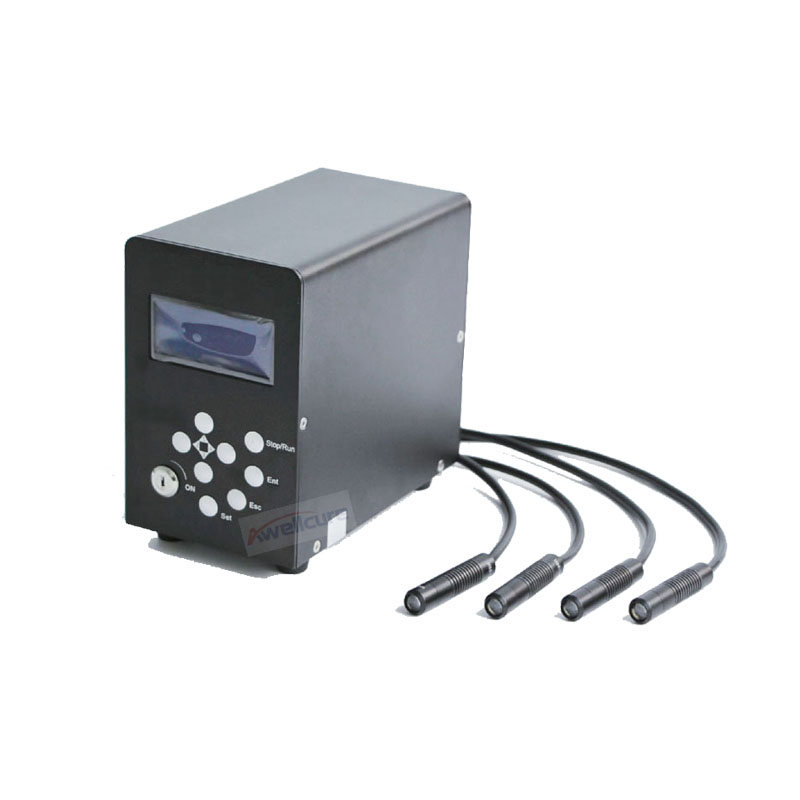

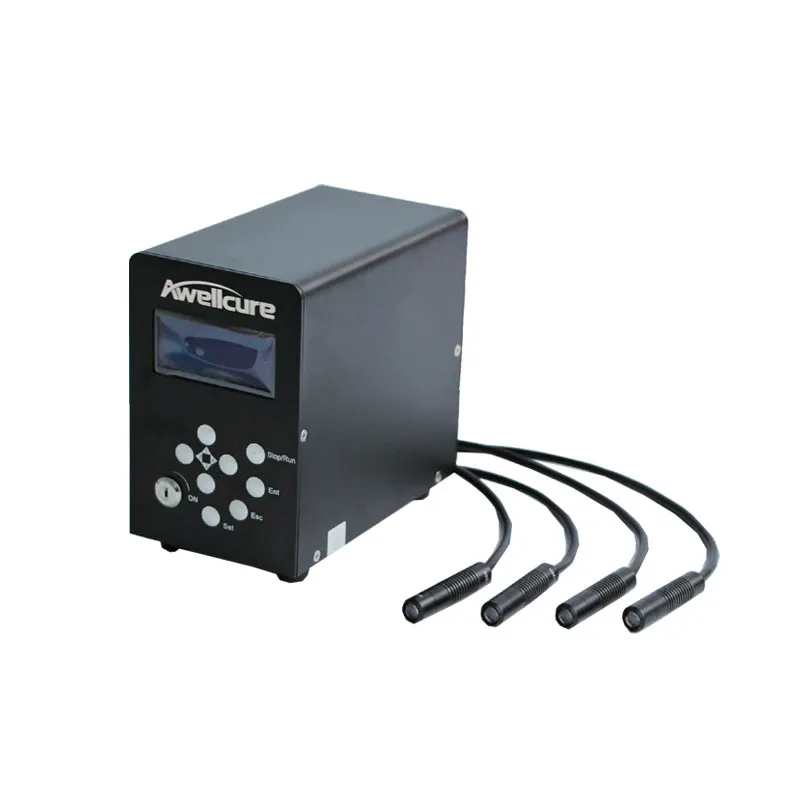

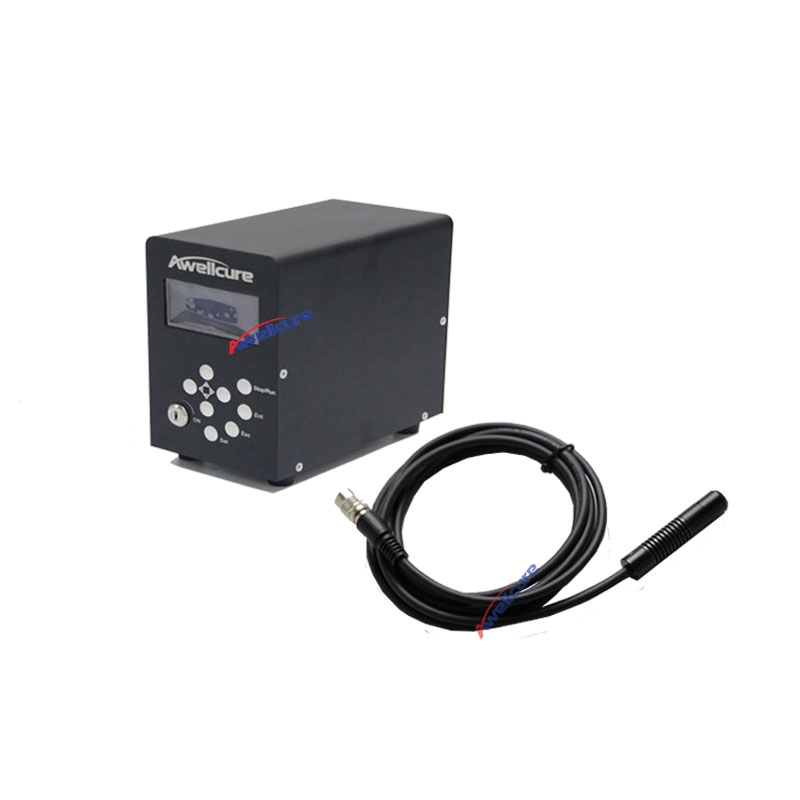

UV LED Spot Curing Light Source System for Medical PCBA Camera Optical

Customization:	Available
After-sales Service:	Free Replair and Replacement in Warranty
Warranty:	12 Months

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.AS01-4

ApplicationIndustry, School, Lab, Medical, Optical

CertificationCE, ISO, RoHS

MaterialAluminum

TypeUV Curing Device

Input VoltageAC100~240V(50/60Hz)

LED Life20000hrs

Cooling MethodAir / Fan Cooling

💎

Product Description

Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, it allows for precise irradiation processes with different intensities and times, achieving optimal production efficiency especially in fully automated production lines.

Key Applications

UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.
UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry
UV Ink: UV printing, 3D printing

⚙️

Key Configurations

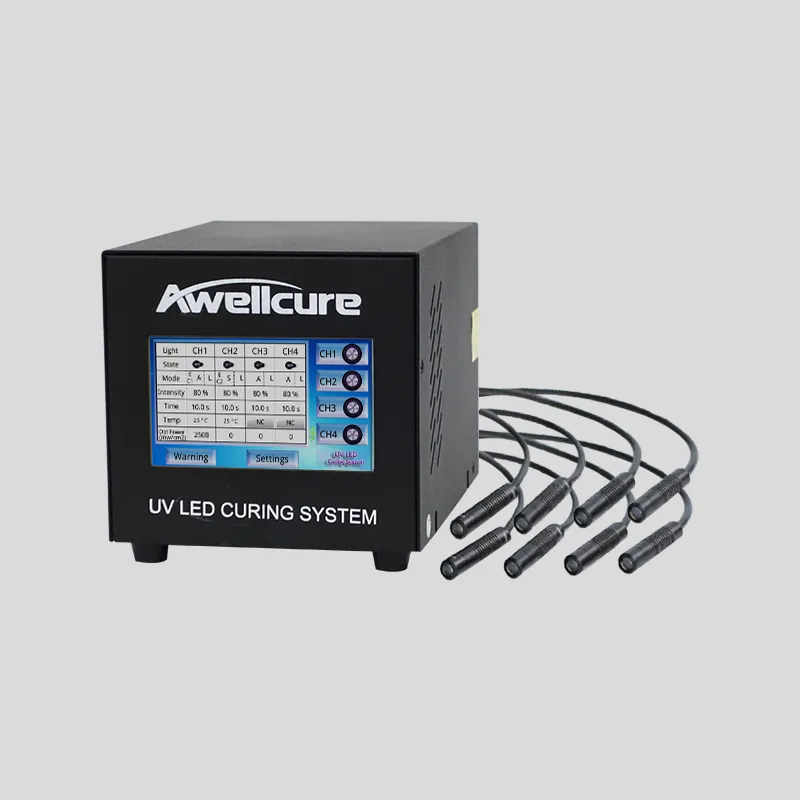

Controller Features

Support multi-language interface
Available for 1-8 channels
Small size and portable design
Independent control for multi LED heads
Working time recording and replacement reminders

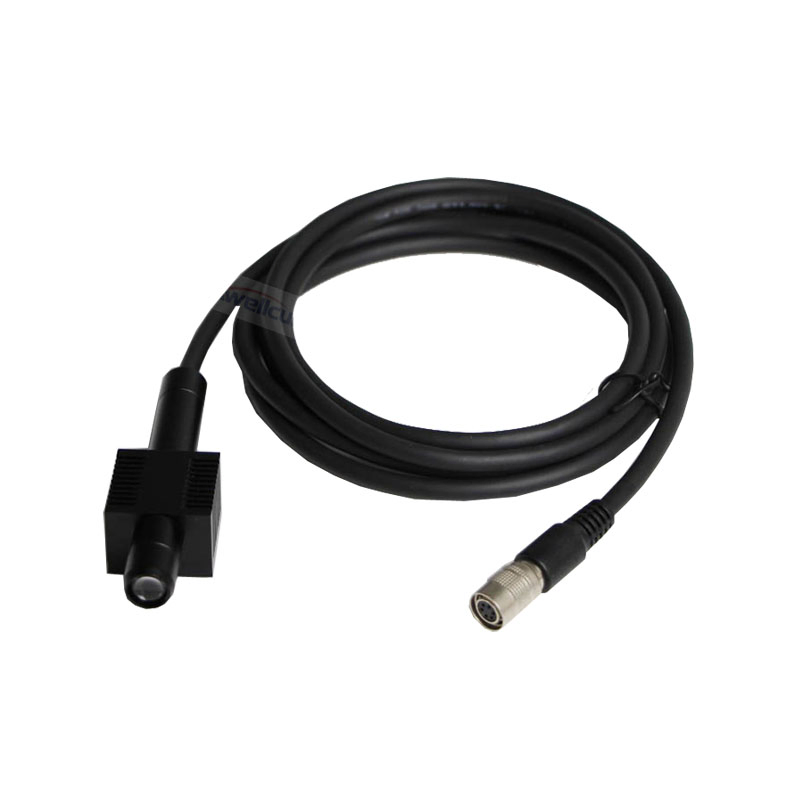

LED Head Technology

Available Wavelengths: 365/385/395/405/470nm
Output optical power up to 18W/cm²
High-level LED chips and quartz lenses
Bending-resistant cables (up to 1000w times)

📊

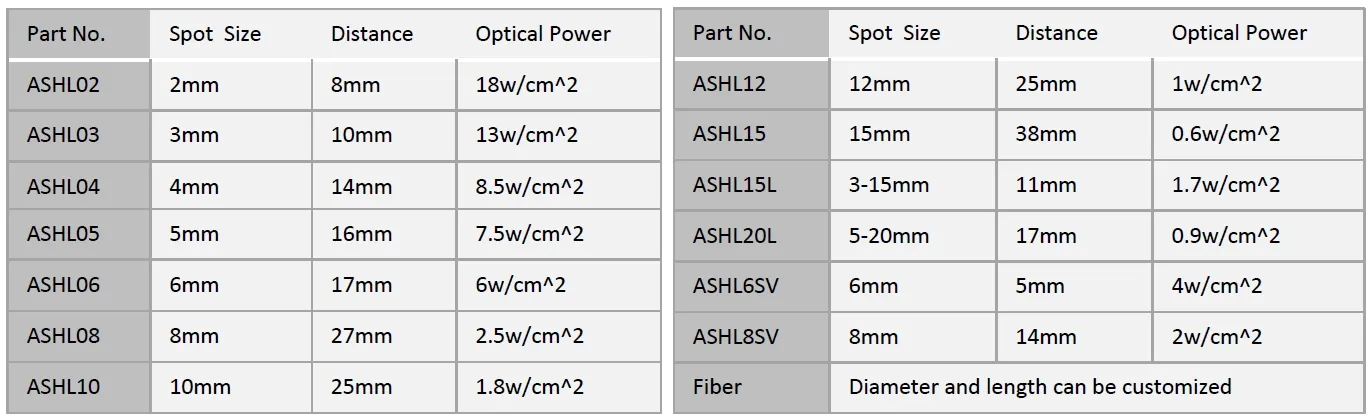

Technical Specifications

Model	AS01-4
Wavelength	365nm, 385nm, 395nm, 405nm, 470nm
Irradiate Lamp Heads	1-4 pcs
Maximum UV Intensity	18000mw/cm²

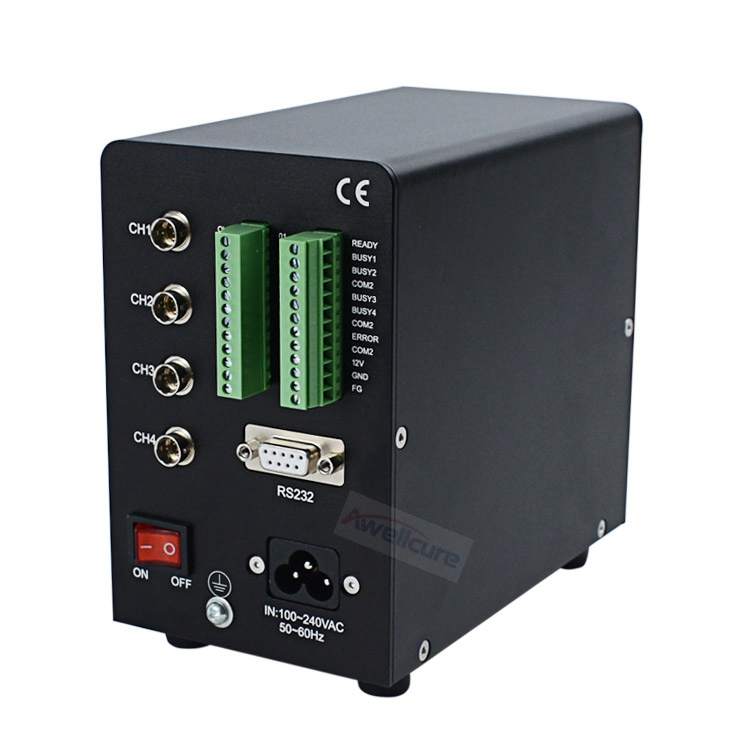

Control Method	RS232 / PLC / Pedal / Touch Screen
LED Life	20,000 Hours
Irradiated Mode	Manual, Automatic (0.1S~999.9S), Step (1-20 steps)
Outer Dimension	185 * 40 * 130mm

📐

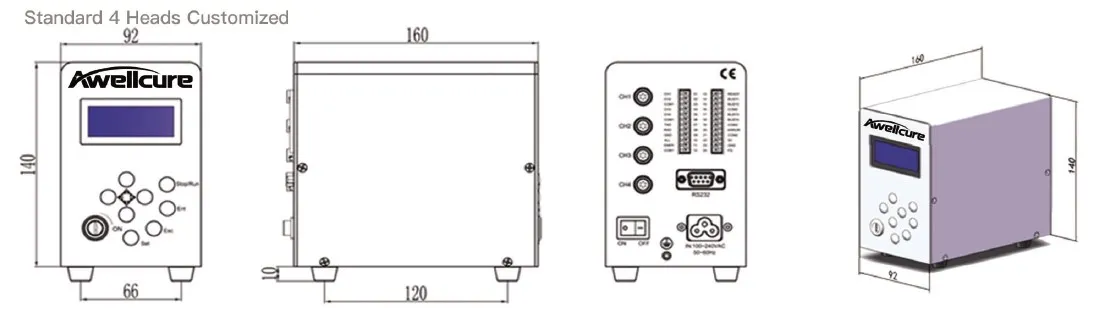

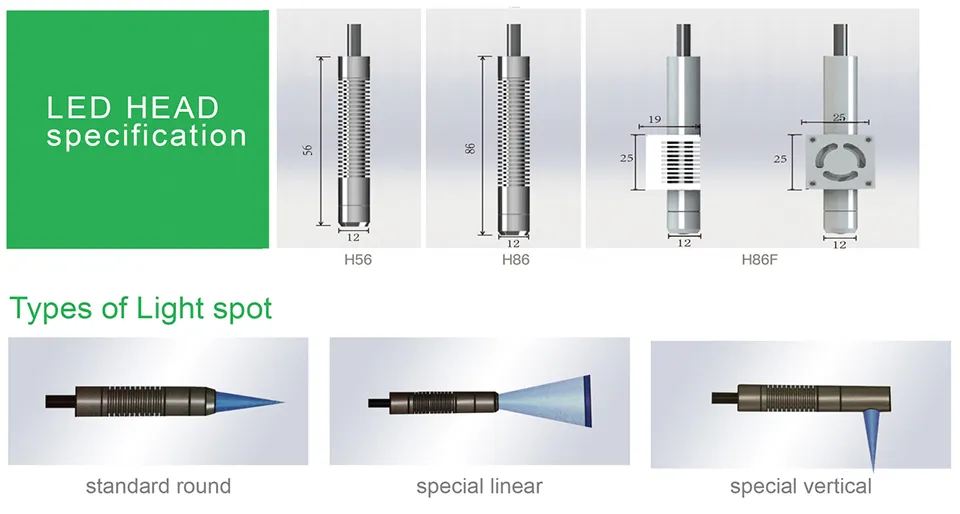

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

🛠️

After Sales Service

Standard Warranty: 12 months quality guarantee.
Extended Warranty: Optional coverage available up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: Comprehensive on-site or remote operation and maintenance training.

🏢

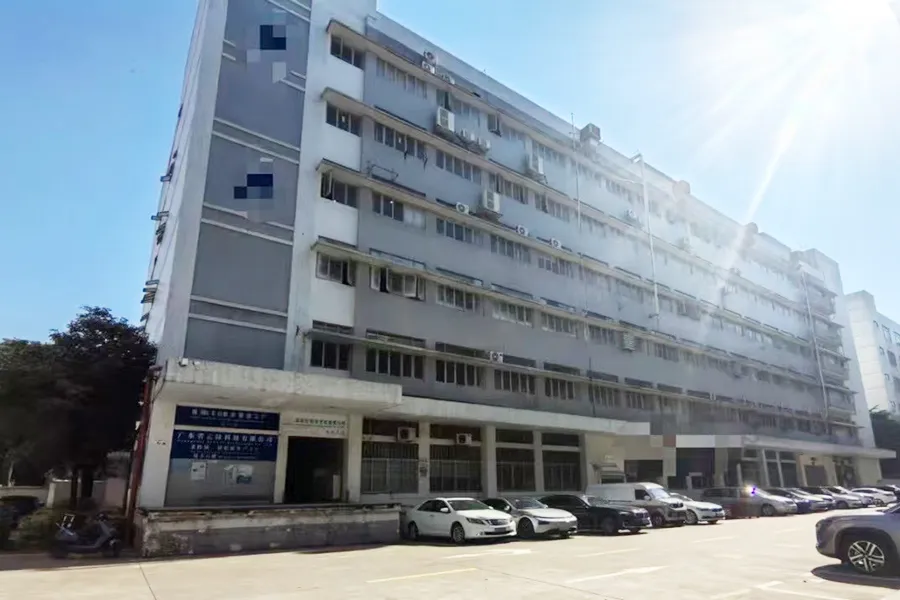

Manufacturer Profile

We are a leading manufacturer of UV LED Curing Systems with over 12 years of specialized expertise. Certified with ISO 9001, CE, and RoHS, we export to over 50 countries, offering reliable UV curing solutions backed by R&D innovation and strict quality control.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs support
Turnkey project solutions

Product Range

UV-LED Spot/Line/Area Curing Systems
UV Curing Ovens & Conveyors
UV Measuring Systems

Frequently Asked Questions

Why choose this UV LED curing system?

Our team has over 12 years of combined experience in the UV LED industry, ensuring we meet specific client requirements with proven reliability and innovation.

What are the main applications for this system?

It is primarily used for curing UV glue, UV ink, UV adhesives, paints, and other UV-sensitive materials in electronics, medical, and optical industries.

What are the advantages of UV LED over mercury lamps?

UV LED systems offer a longer service life (20,000+ hours), significant energy savings, instant on/off capabilities, and are environmentally friendly without ozone or mercury.

Can I customize the emitting window and peak irradiance?

Yes, we provide full customization for the size of the emitting window and the peak irradiance levels to match your specific production line needs.

What control methods are supported?

The system supports multiple control interfaces including RS232, PLC, Foot Pedal, and a built-in Touch Screen for manual or automated integration.

How do I determine the power intensity required for my project?

The required intensity depends on your specific UV-sensitive materials and your desired production efficiency. Our engineers can help you calculate the optimal parameters.
