365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics
365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics
365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics
365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics
365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics
1 / 5
365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics
365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics
365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics
365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics
365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics

365nm 405nm UV Lamp Spot Curing Systems Used for Medical Devices, Electronics and Optoelectronics

Customization: Available
Usage: Industrial use
Shape: Square
Send Inquiry

Product Description

UV LED Spot Curing Systems Overview

365nm 405nm UV Lamp Spot Curing Systems are specifically designed for high-precision applications in medical devices, electronics, and optoelectronics. These high-intensity systems are engineered for durability and efficiency in UV glue, UV ink, and UV coating projects.

Advanced software programmable control allows for irradiation processes with varying intensities and times, optimizing production efficiency and machine utilization for fully automated production lines.
Technical Specifications
ModelAS01-4 / AWM1-S4
Wavelength365nm, 385nm, 395nm, 405nm, 470nm
Irradiate Lamp Heads1-4 pcs (Independent control)
Maximum UV Intensity18000 mw/cm²
Adjustable Power1% - 100%

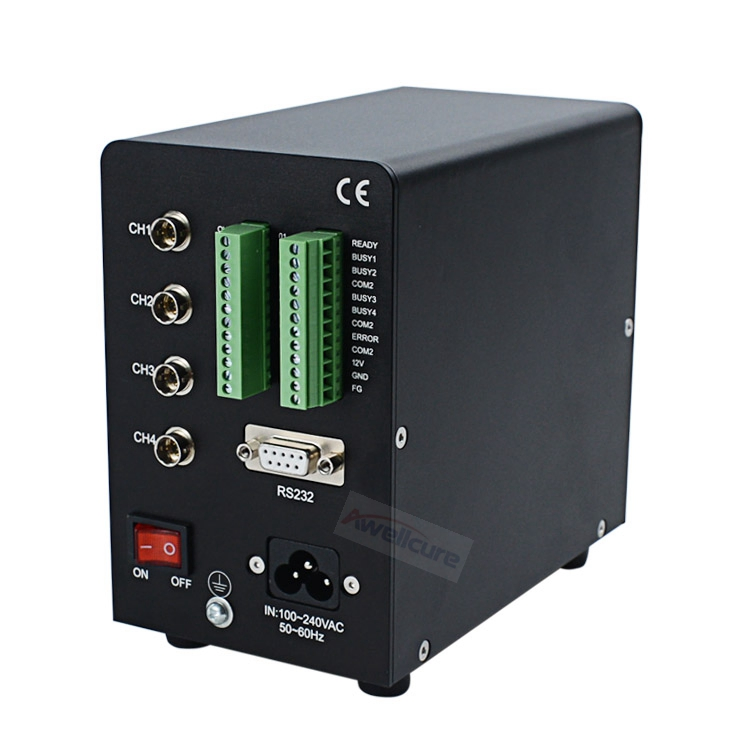

Control MethodRS232 / PLC / Pedal / Touch Screen
LED Life20,000 Hours
Cooling MethodNatural Cooling or Fan Cooling
MaterialAluminum
CertificationCE
Input VoltageAC100~240V (50/60Hz)
Product Presentation

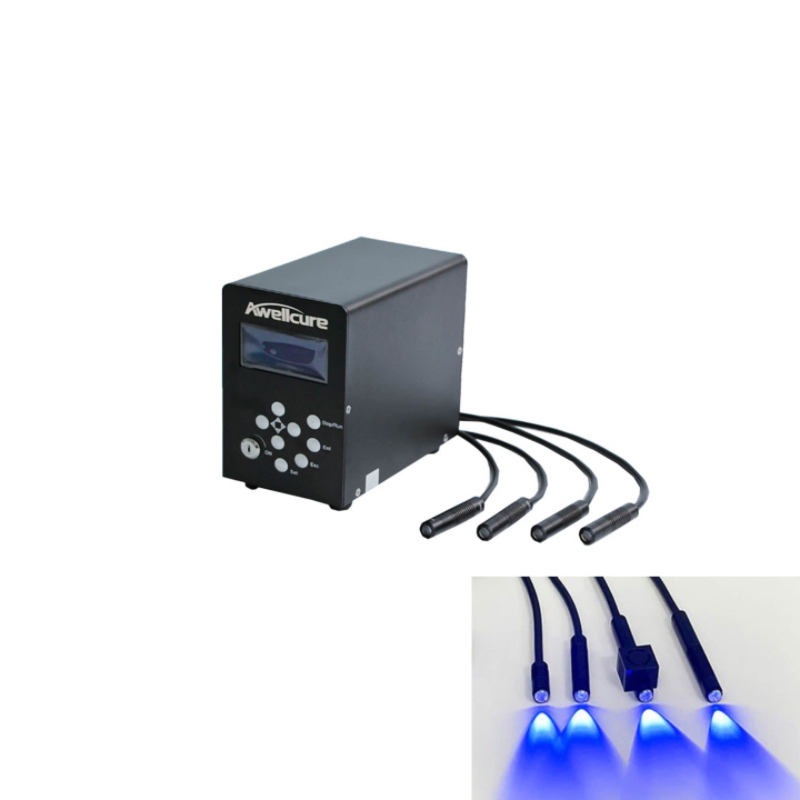

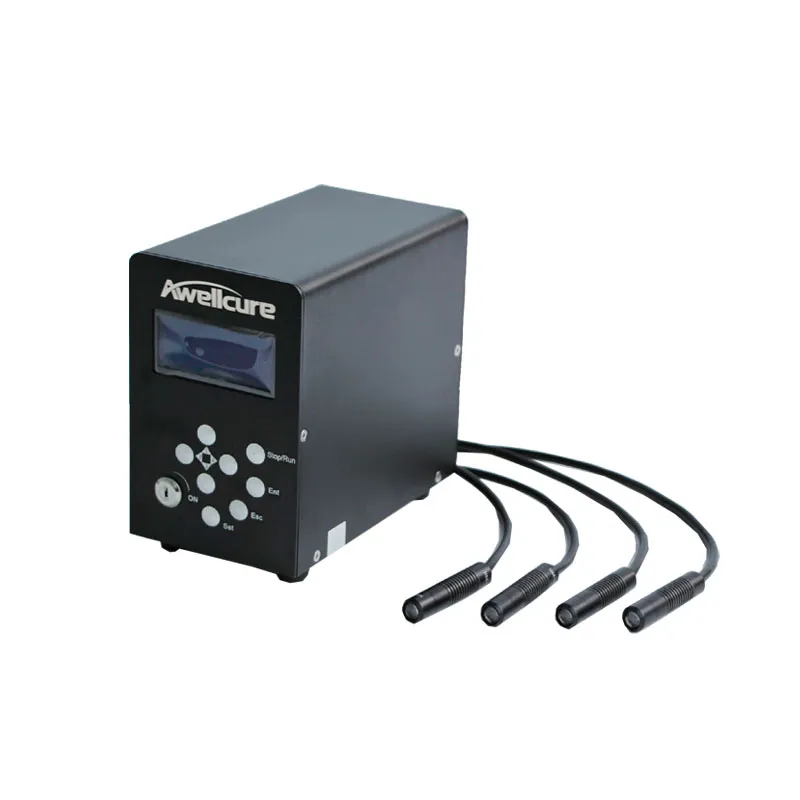

UV Lamp Spot Curing System

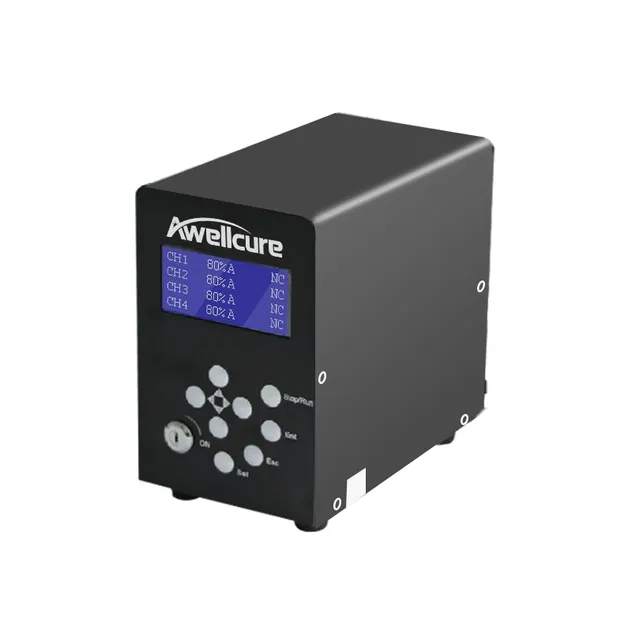

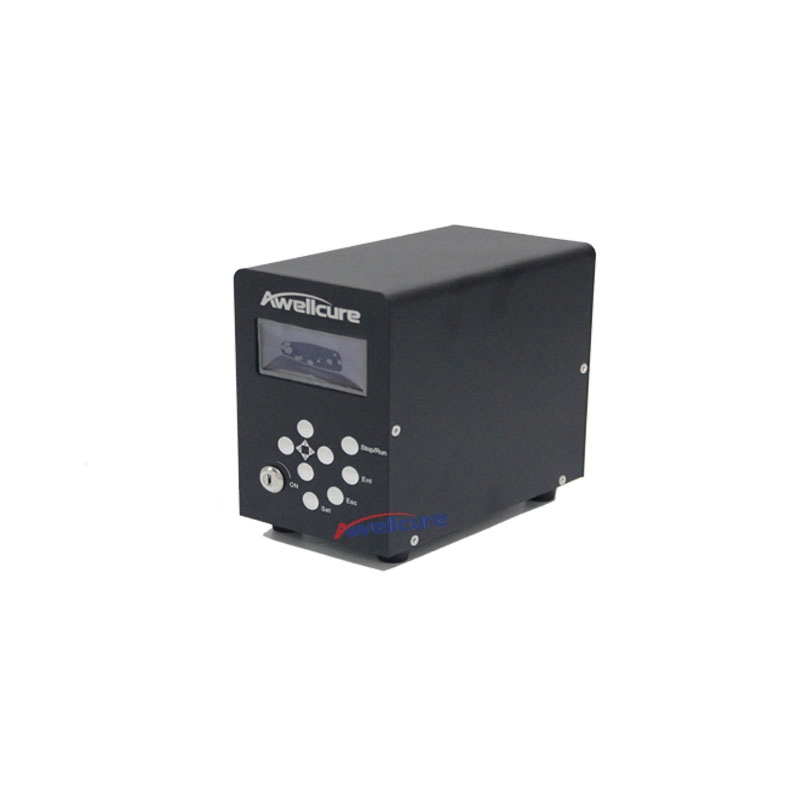

Main System Unit
Right Elevation
Right Elevation
Left Elevation
Left Elevation
Front Elevation
Front Elevation
Applications
UV Adhesive Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
UV Coating PCBA, Precision Machining, Chip Packaging, Automotive Industry.
UV Ink UV Printing, 3D Printing.
Key Configurations

Controller Features:

  • Supports multi-language interfaces.
  • Available for 1-8 independent channels.
  • Real-time working time recording and maintenance reminders.
  • Automatic warnings for abnormal operation.

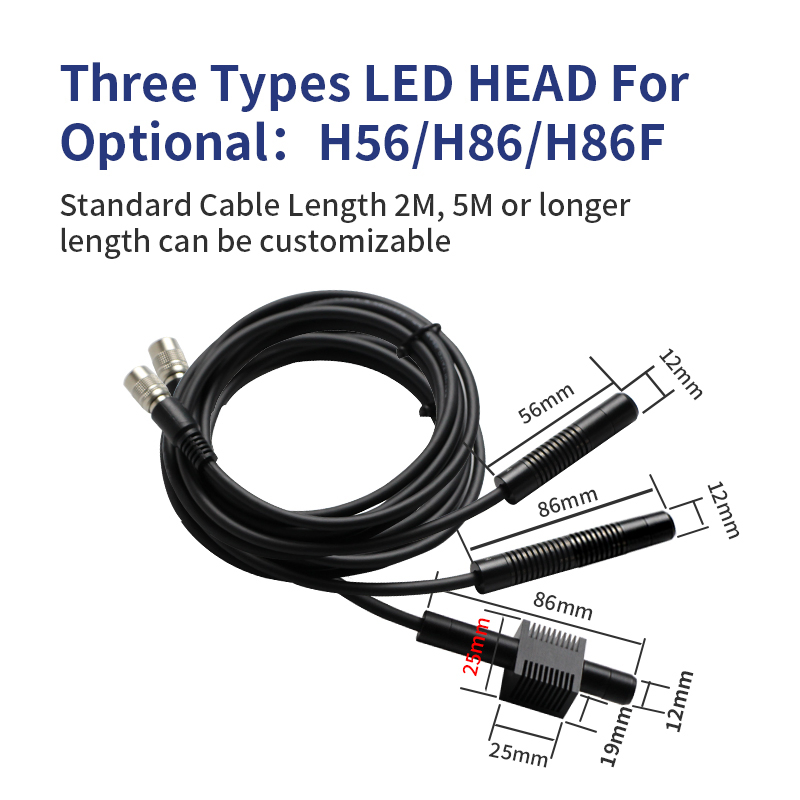

LED Head & Lens:

  • High-level NICHIA LED chips with HOYA quartz lenses.
  • Optical power up to 18W/cm².
  • Bending-resistant cables (tested for 10 million cycles).

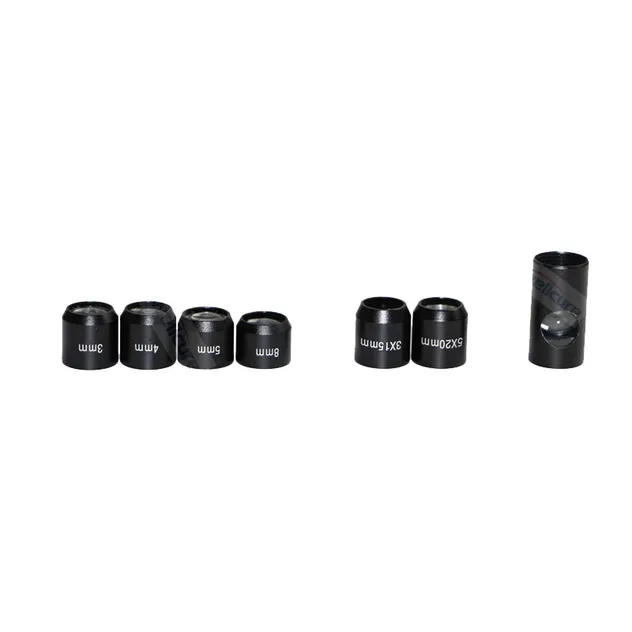

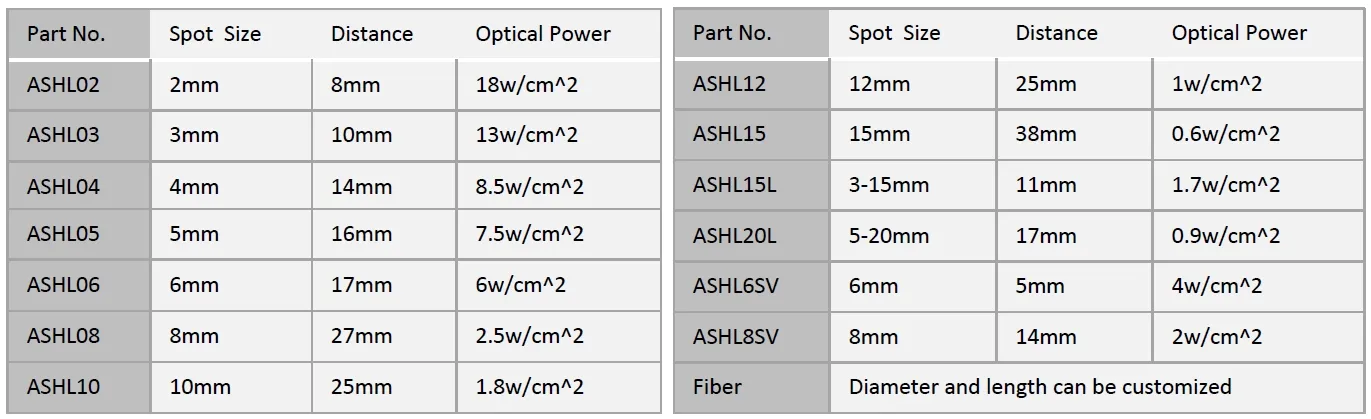

  • Wide variety of lens sizes: 2mm to 15mm, plus line and vertical options.

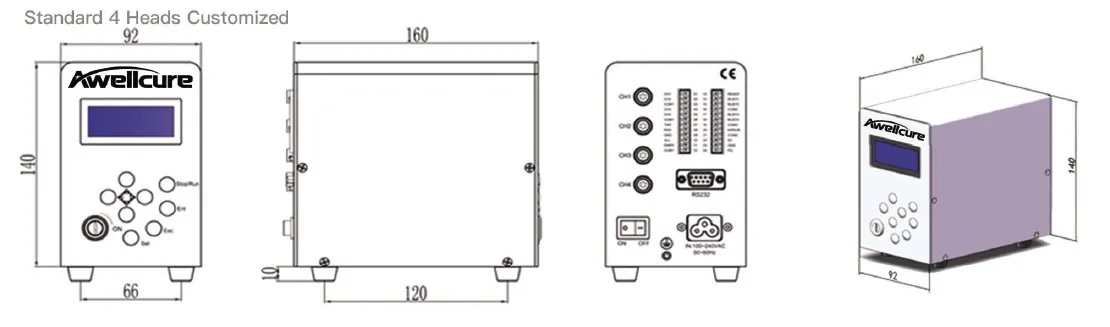

Dimensional Drawings
Dimensional Drawing 1
Dimensional Drawing 2

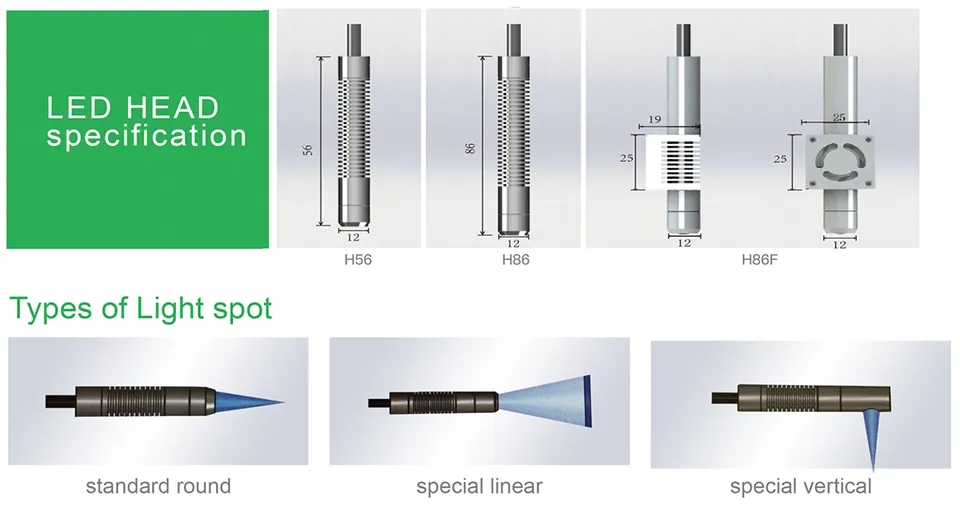

Technical Layout
Service & Support
After Sales Service - Standard Warranty: 12 months.
- Global Support: 24/7 technical assistance.
- Training: On-site or remote operation training.
Why Partner With Us? - OEM/ODM capabilities tailored to requirements.
- ISO 9001, CE, and RoHS certified quality.
- Export experience to 50+ countries.
Frequently Asked Questions (FAQ)
What's the lead time for orders?
Standard models typically ship within 10–15 days. Customized units or large volume orders require approximately 20–30 days.
Do you provide after-sales service overseas?
Yes, we provide 24/7 technical assistance and have partnered service centers in key regions to support our global clients.
Can I request a customized curing lamp size or wavelength?
Absolutely. We offer tailored attachments, different lens sizes, and specific wavelengths (365nm-470nm) to meet your project requirements.
What documents do you provide for export?
We provide a full export documentation package, including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
What is the lifespan of the UV LED heads?
The LED heads are designed for a working life exceeding 20,000 hours, significantly reducing the need for frequent lamp replacements compared to traditional mercury lamps.
How do I place an order?
Please contact our sales team via email or phone to receive a formal quote. Once details are confirmed, you can proceed by issuing a Purchase Order (PO).
