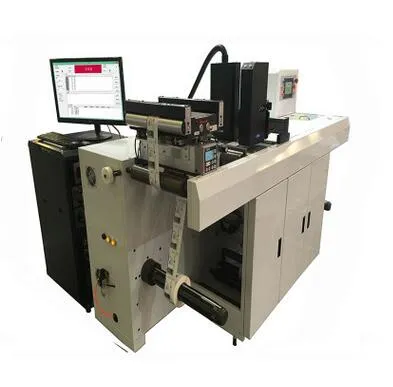

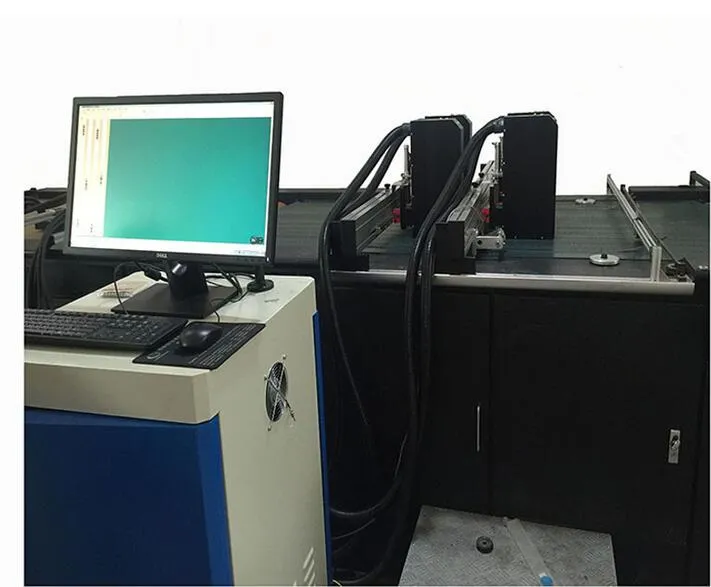

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.
Our Printer Control Software (PCS) offers a user-friendly interface to interactively control the printer, monitor status, and set options such as jetting waveforms and temperature for each print head.

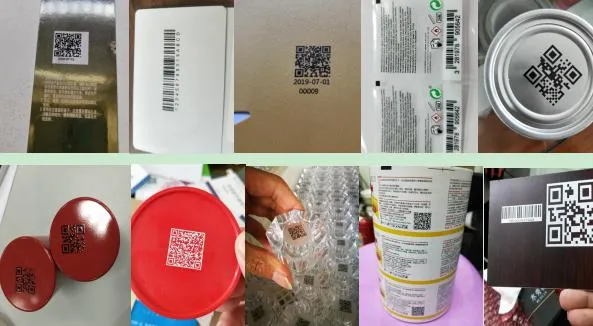

Variable Data Printing: Supports text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files.
| Model | VDG540/VDK720/KY108 | Print Head | Rico GN5/Konica 1024i/KY |
| Resolution | 600×600, 400, 300, 200 DPI | Single Head Width | 54.0mm / 72.0mm / 108mm |
| Printing Speed | Up to 180m/min (600×200dpi) | Max Width | Up to 24 Seamless Joint units |
| Drop Size | 5-21PL | Method | Piezoelectric Ink-jet |
| System Port | Gigabit Ethernet (Real-time) | OS | Windows 7 |
| Formats | Excel, TXT, PDF, BMP | Barcode | QR, CODE128, EAN13, PDF417, etc. |
