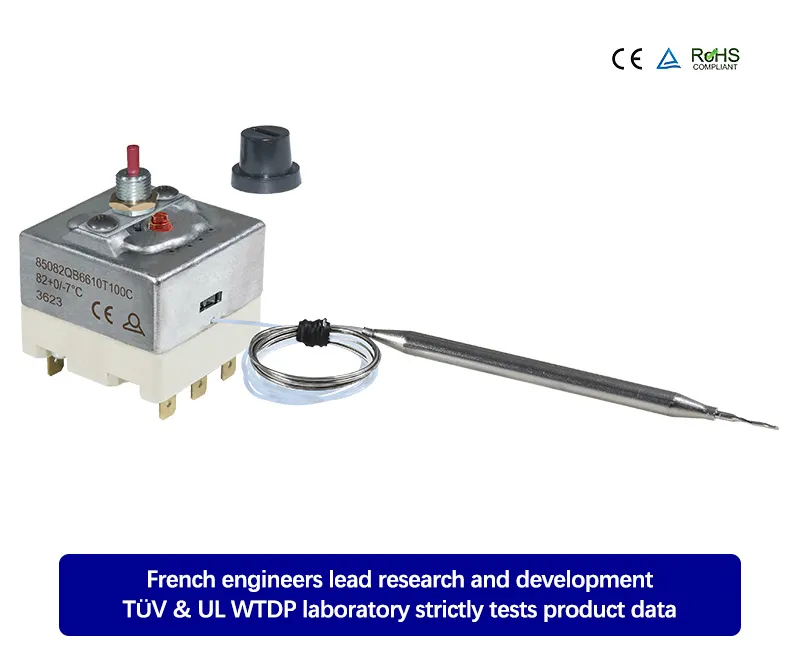

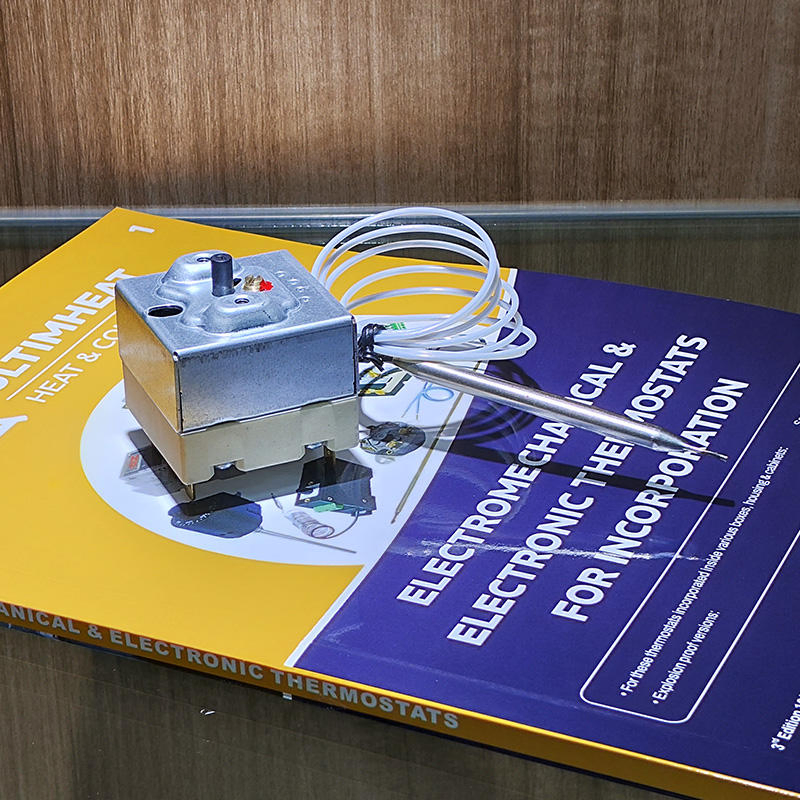

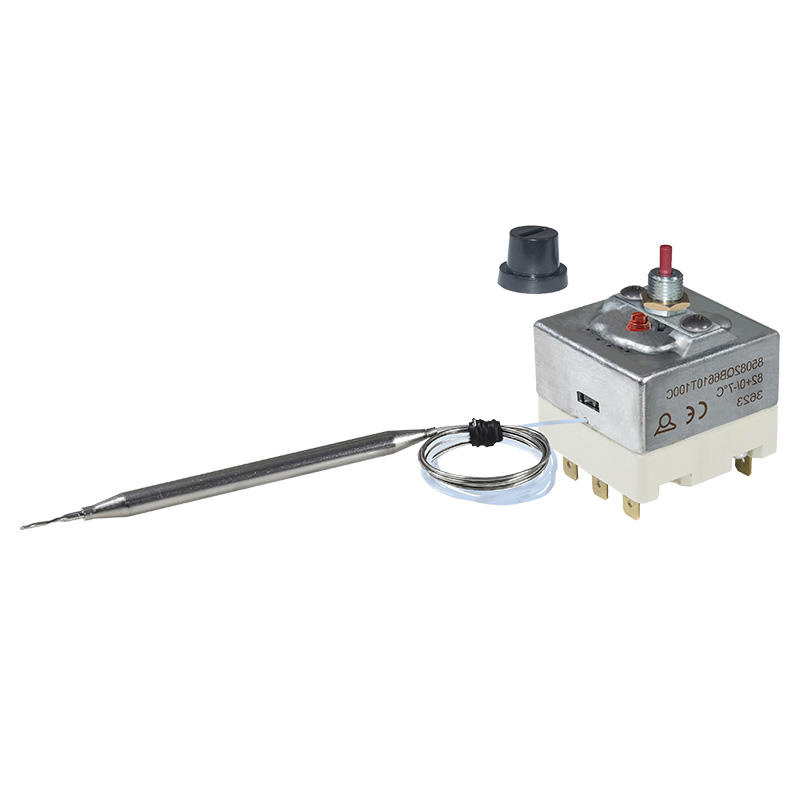

| Vantage | 3 poles manual reset, fail safe |
| Rating | 30A 250/400VAC resistive |
| Temp Range | Non-temperature adjustable, 80...300°C |
| Model Calibration | 300+0/-20°C (572+0/-36°F) |

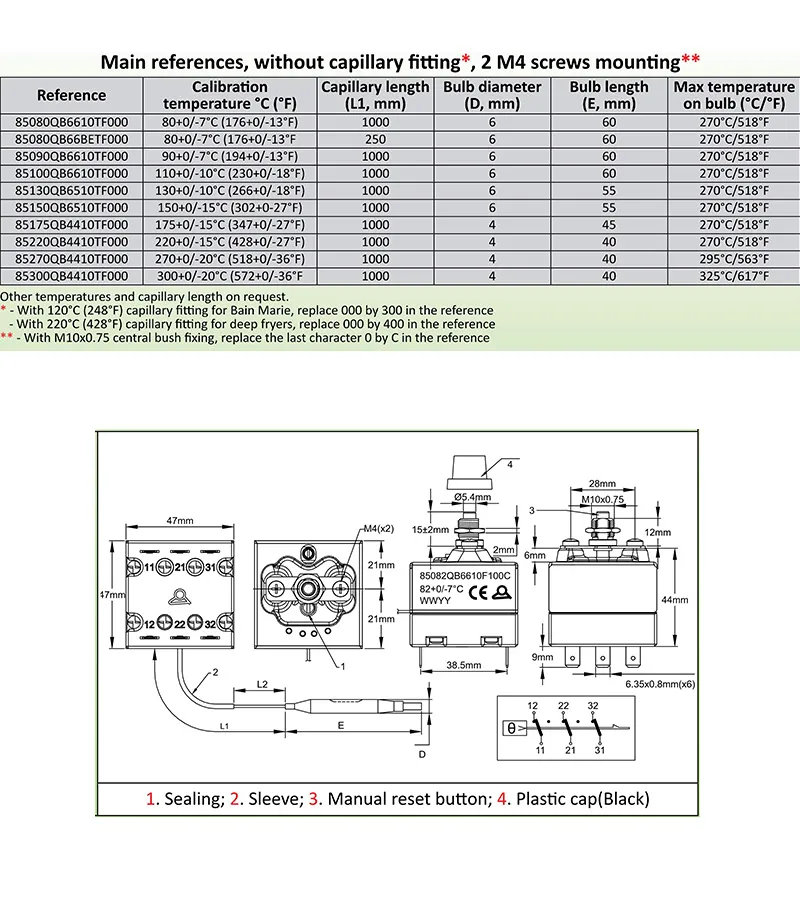

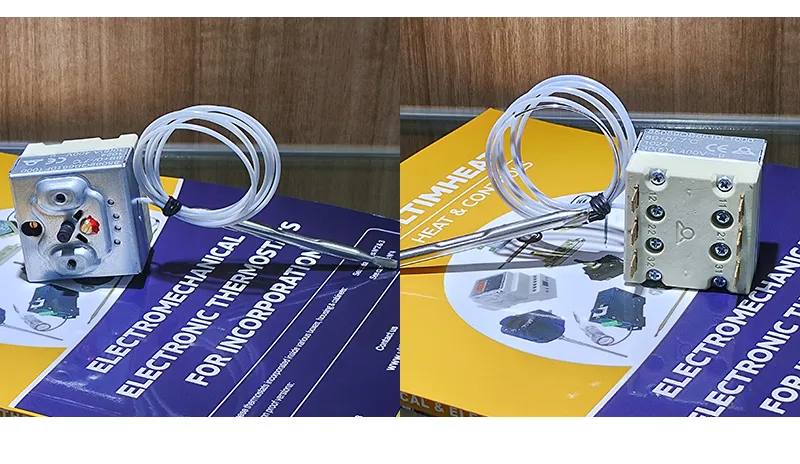

Housing dimensions: Two M4 screws, 28mm distance mounting: 47 × 47 × 43mm (terminals not included). Type with M10 central bush mounting: 47 × 47 × 56mm.
Bulb and capillary: Stainless steel, capillary length 250mm to 1,500mm with 150mm long FEP sleeve. Capillary minimum bending radius 5mm.
Temperature sensing element: Liquid filled bulb and capillary.
Manual reset: Fail safe, fixed setting, front access reset button. Temperature under -15°C (5°F) will trigger the manual reset as a safety failure protection.
Established with roots going back to 1972, the company specializes in the design and production of mechanical thermostats, safety devices, and electric heating systems for domestic and industrial use. With a production area of 30,000 square meters and over 300 employees, we produce more than 6 million products annually across 10,000 different models.

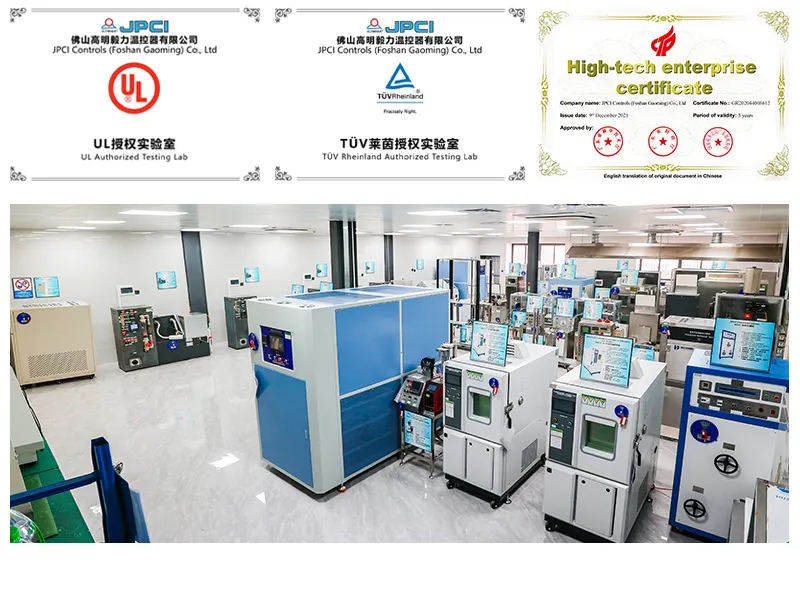

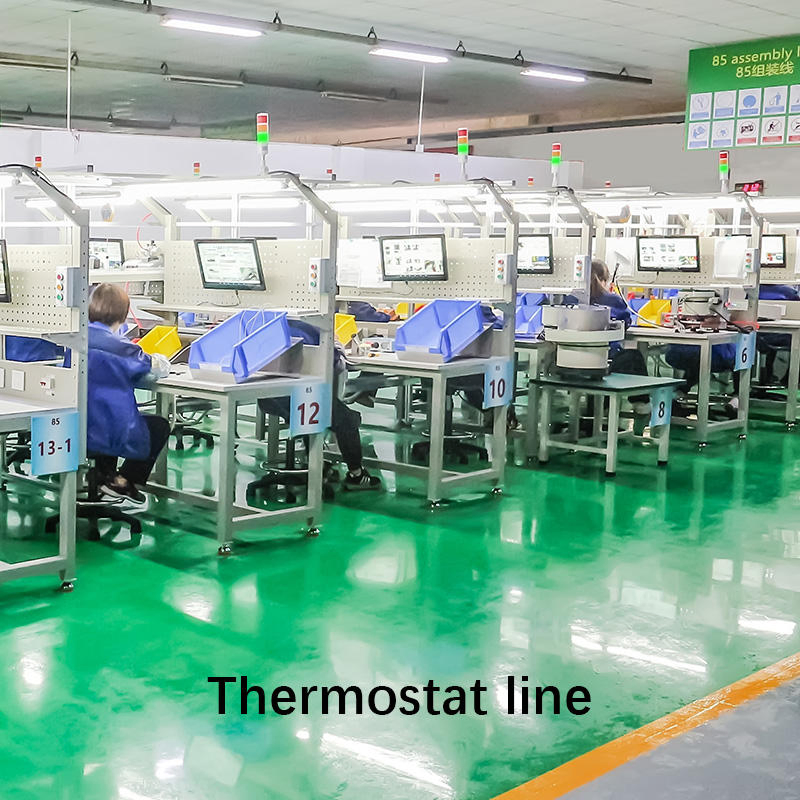

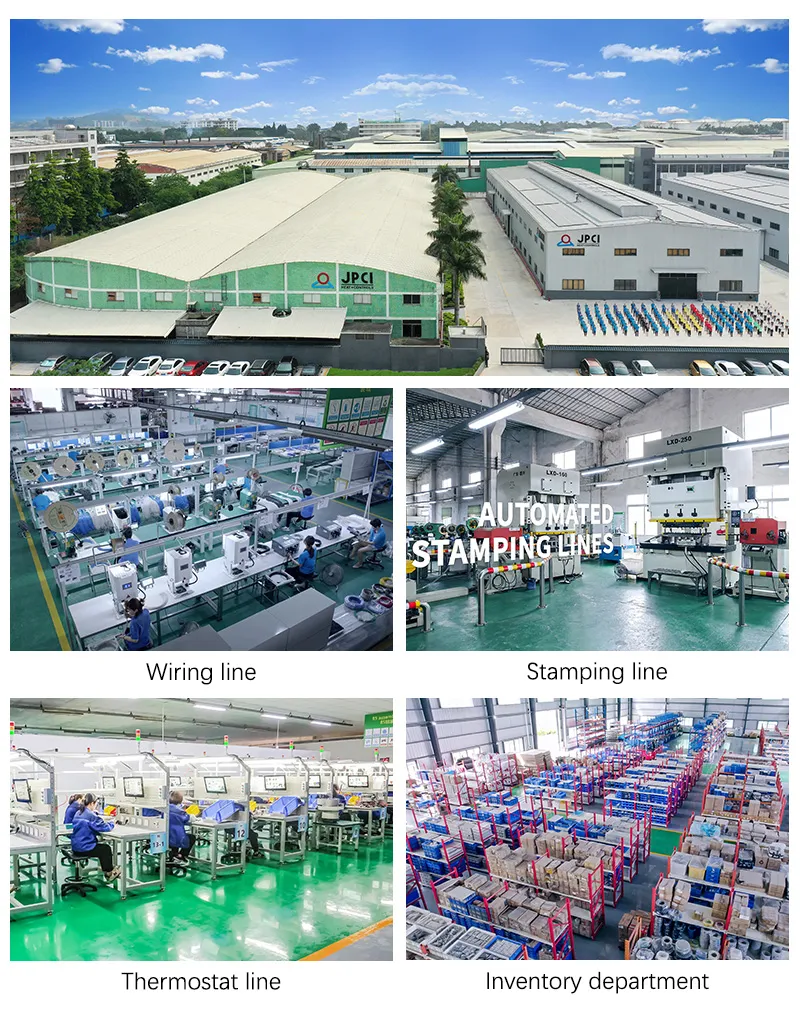

Our production features full vertical integration, ensuring quality control at every stage. We utilize over 1,000 sets of testing equipment, including ultraviolet aging machines and hydraulic bursting testers, to strictly monitor product performance.
