Single-Pass Digital Inkjet Printing Machine
Single-Pass Digital Inkjet Printing Machine
Single-Pass Digital Inkjet Printing Machine
Single-Pass Digital Inkjet Printing Machine
Single-Pass Digital Inkjet Printing Machine
1 / 5
Single-Pass Digital Inkjet Printing Machine
Single-Pass Digital Inkjet Printing Machine
Single-Pass Digital Inkjet Printing Machine
Single-Pass Digital Inkjet Printing Machine
Single-Pass Digital Inkjet Printing Machine

Single-Pass Digital Inkjet Printing Machine

Customization: Available
Plate: Variable Data
Structure: Inkjet Printing
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
HSJET
Color & Page
Single-Colour Printing Press
Usage
Paper, Label, Card, Cloths Printer
Automatic Grade
Automatic
Printing Interface
RS232
Printing Speed
100m/Min
System Supported
Windows
Resolution
150-600dpi
Ink Solution
Porous, Semi-Porous and Non-Porous
Power
AC 90V-240V/50-60Hz
P

Product Description

QR Codes Digital Label Press

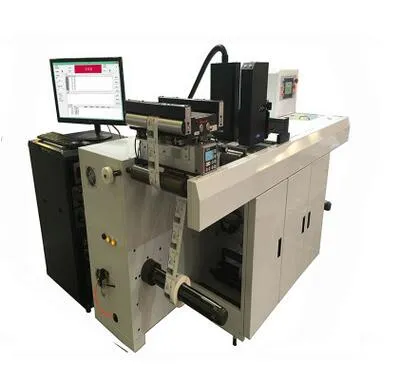

Digital Inkjet Printing Machine
Single-Pass Printer

Introduction: The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with high-resolution and high-speed industrial print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications. It is suitable for web printing, sheet-fed, and both online and offline target printing.

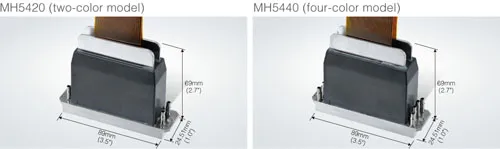

Inkjet System Components

Technical Details:

  • Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles.
  • Lifespan: Over 3 years (10 billion printing times).
  • Width: Single nozzle print width 54/72/108 mm; expandable up to 24 groups with seamless jointing.
  • Precision: 600 dpi physical printing precision.
  • Speed: 70 ~ 180 m/min linear speed.
  • Materials: Suitable for paper, plastics, PVC/PP/PE film, and more.
Printing Detail
S

Advanced Software Control

The Printer Control Software (PCS) offers a user-friendly interface to monitor printer status, set jetting waveforms, and manage temperatures for each print head. It supports variable data printing including text, dates, serial numbers, barcodes, and database photo images from .CSV, .XLS, .XLSX, .TXT, and PDF files.

Software Interface
T

Technical Parameters

Print Head Options Ricoh GEN5 / Konica 1024i / Kyocera Resolution Up to 600×600 dpi
Printing Speed 180m/min (600x200dpi) / 75m/min (600x600dpi) Drop Size 5-21 PL
Max Width 54/72/108mm x 24 (Seamless Joint) Inks Original SGS UV Inks / Water-based
Supported Codes QR, DATAMATRIX, CODE128, EAN13, PDF417, etc. Interface Gigabit Ethernet (Real-time printing)

Clothing tag inkjet printing line

?

Frequently Asked Questions

Q1: What materials can this digital press print on? A: It is highly versatile and suitable for all kinds of paper, plastics, and films such as PVC, PP, and PE.
Q2: What is the maximum printing speed of the HSJET system? A: The linear speed ranges from 70 to 180 m/min depending on the resolution settings (e.g., 180m/min at 600x200dpi).
Q3: Does the software support variable data printing? A: Yes, it supports variable text, dates, serial numbers, barcodes, and even database photo images from formats like CSV, Excel, and PDF.
Q4: What are the print head options available? A: You can choose from industrial-grade Ricoh GEN5 (54mm), Kyocera (108mm), or Konica 1024i (72mm) nozzles based on your requirements.
Q5: What is the expected lifespan of the print nozzles? A: Under normal conditions, the industrial piezoelectric nozzles have a lifespan of more than 3 years or approximately 10 billion printing times.
Q6: Which languages does the printer control system support? A: The system supports multiple languages including English, Spanish, German, French, Portuguese, Russian, and Chinese.
