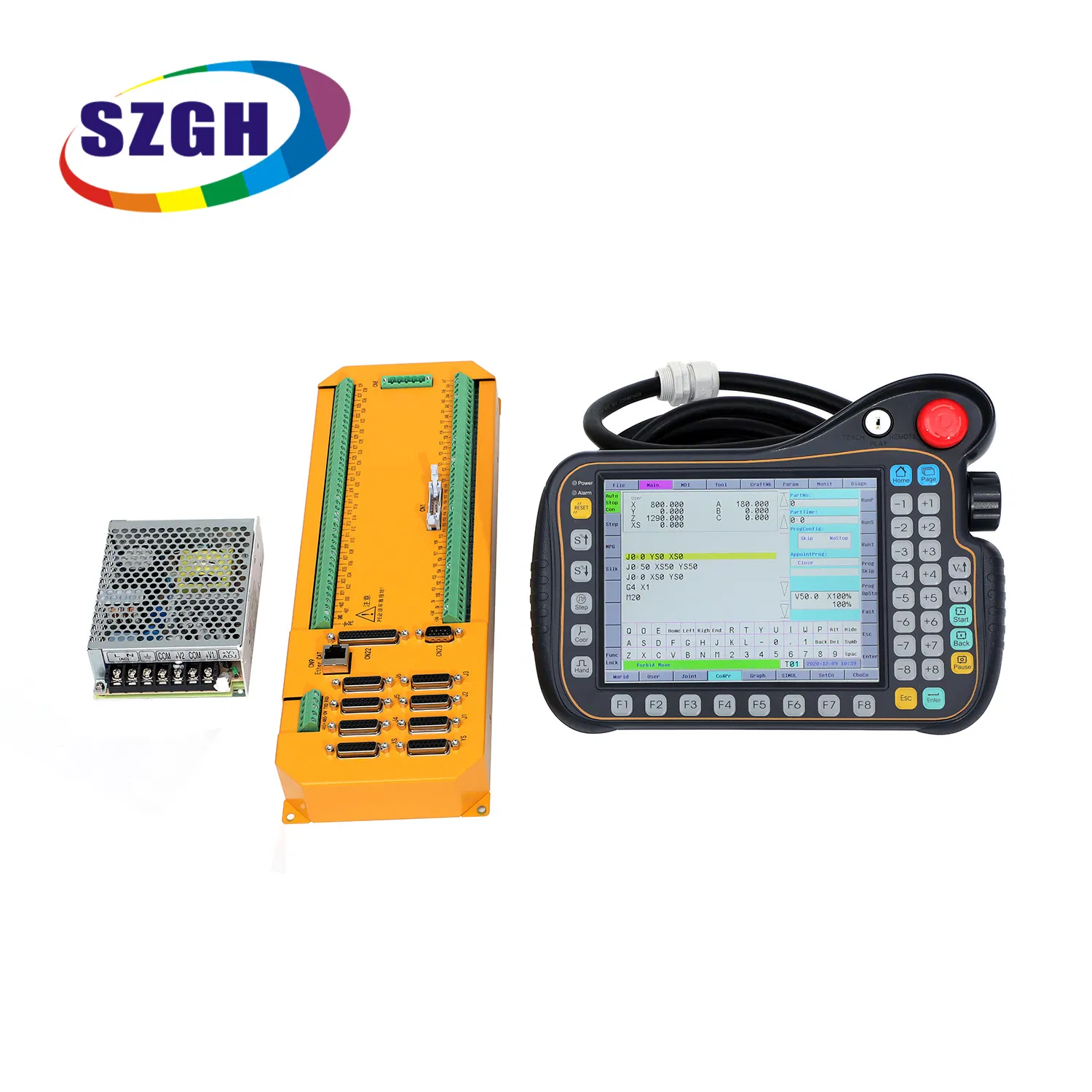

The Intelligent Industrial Grade CNC Robot Controller adopts an international open and flexible software and hardware platform. It is configured with a special multi-axis motion control card, DA card, and security interfaces.

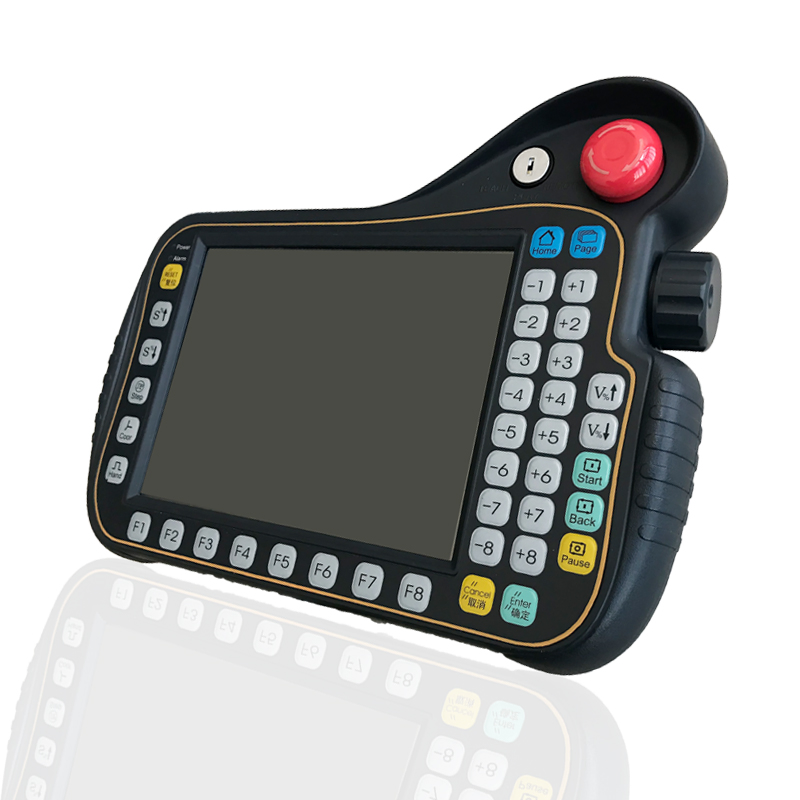

The controller features an entirely new appearance and structure, constructed with high-strength engineering plastics and one-time injection molding. It is equipped with an E-Stop button and Safe-Start switch. With its Color LCD touch screen and MPG, users can easily perform manual operation, Teach-In, Remote control, and playback.

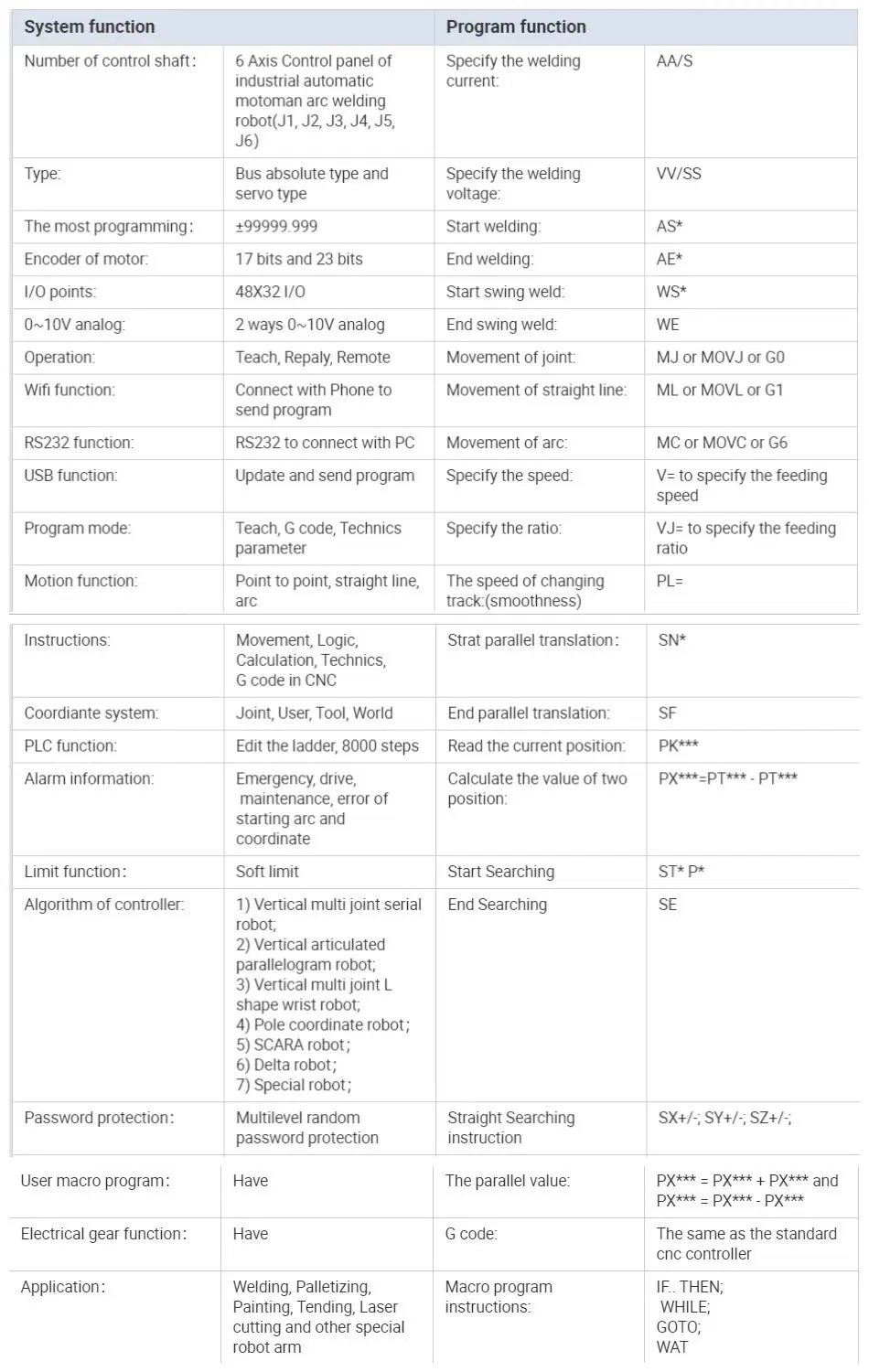

| Display | 8 inch color screen |
| Interface | USB+RS232 Communication Port |
| Support | Built-in standard PLC Program, customizable |
| Basic I/O | 48*32 |

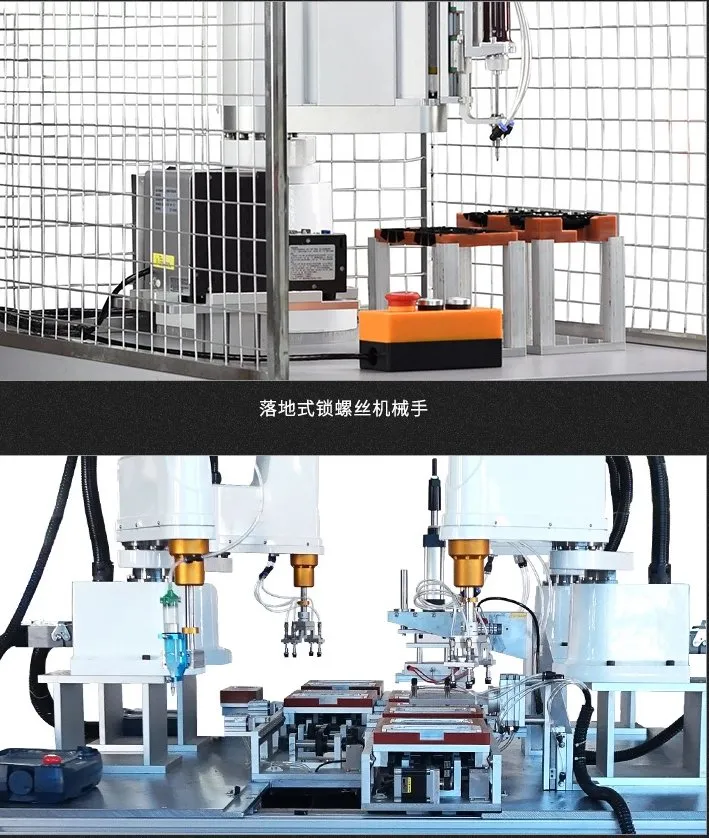

| Function | Welding, palletizing, painting, tending |
| Supports | Video technical support, Online support |
| Control Axis | Standard 6-axis + 2-axis |

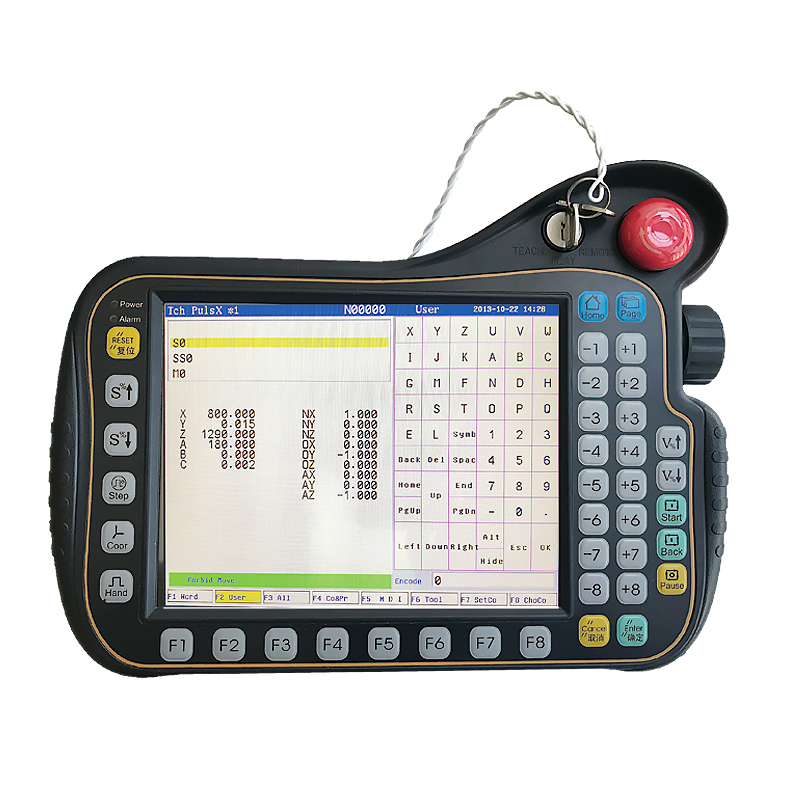

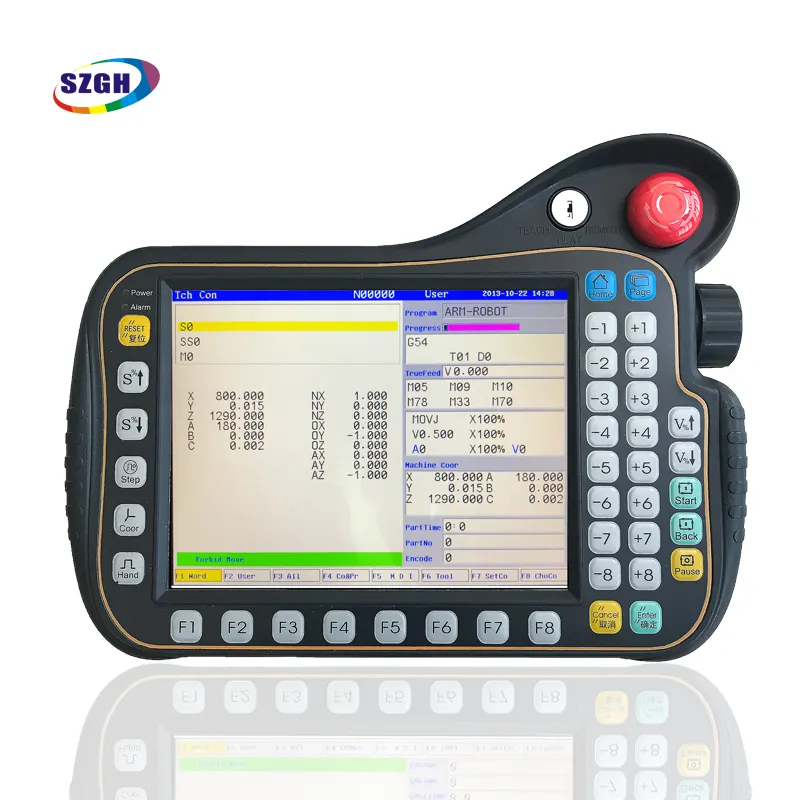

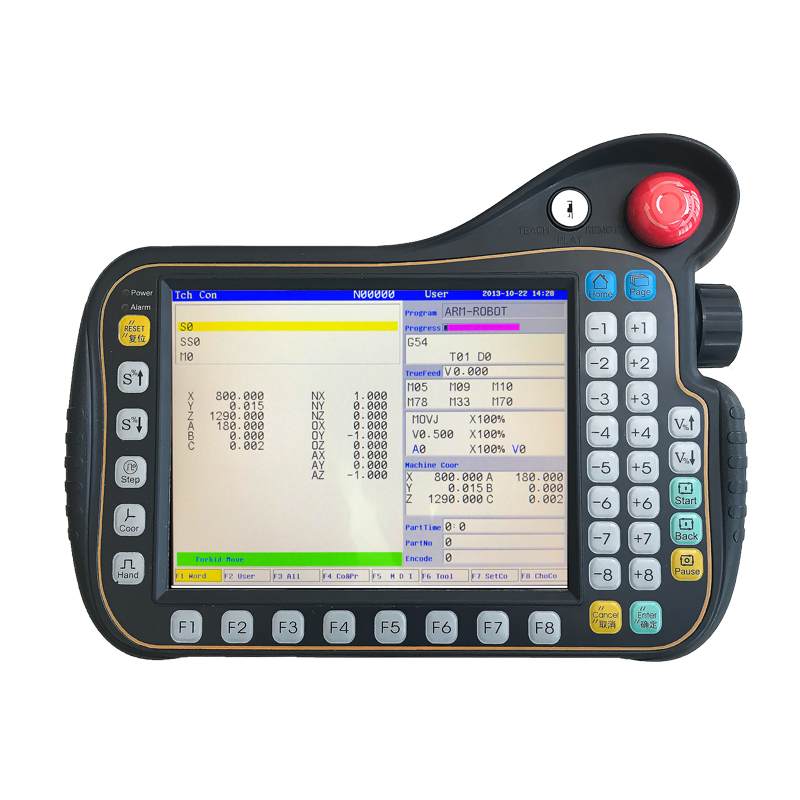

| Teaching Box | 8-inch TFT-LCD, touch screen, mode switch, emergency stop |
| Servo Motor | Bus absolute encoder motor |
| Analog Output | 2-way 0-10V analog output |
| Motion Function | Point to point, straight line, arc |
| Coordinate Systems | Joint, User, Tool, World coordinates |
| Robot Types | Vertical multi-joint, SCARA, Delta, Polar, Special purpose robots |

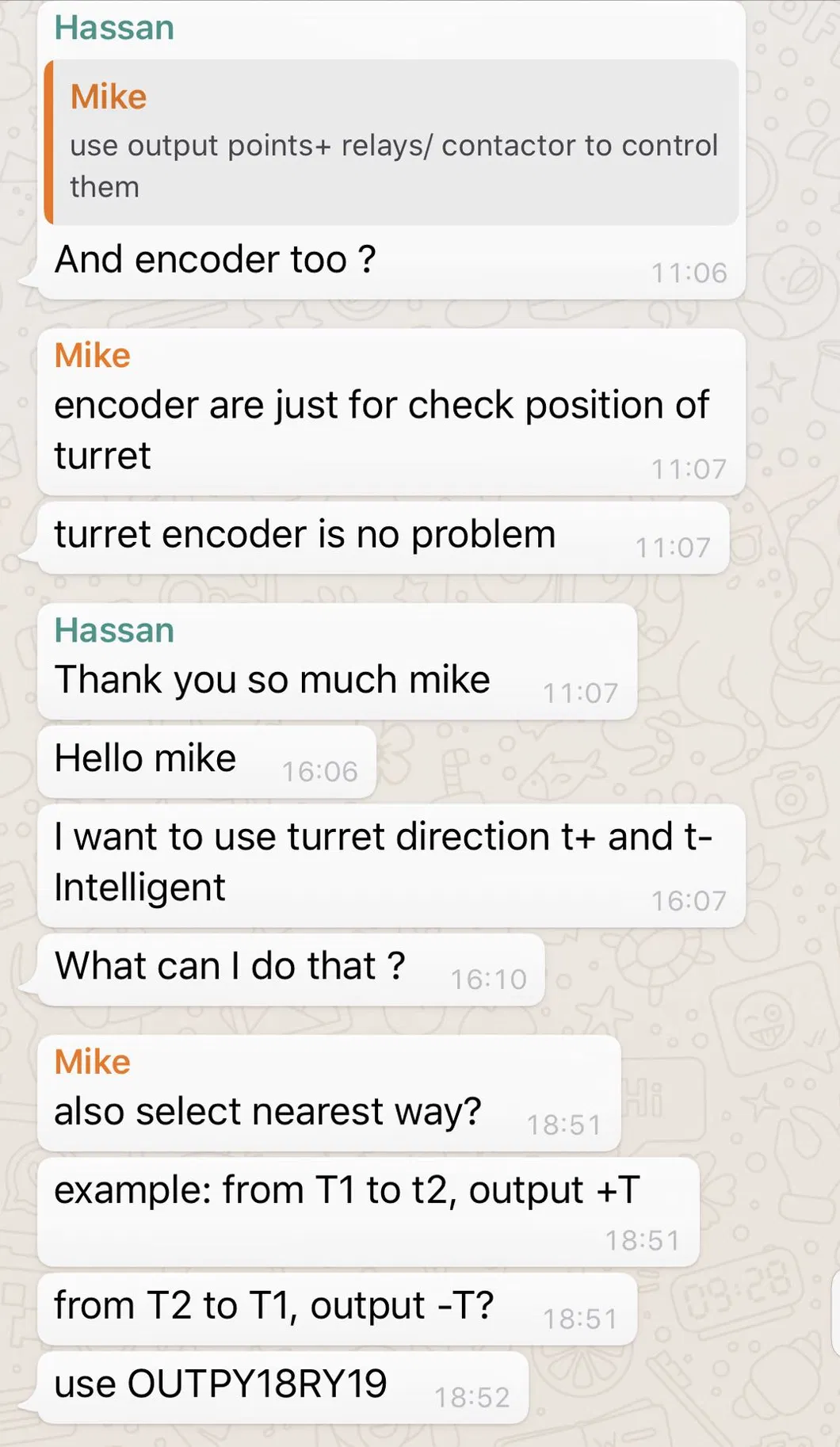

Professional Support Team
