Product Description

Basic Specifications

Model NO.
VDG540
Type
Ink Jet
Plate
Variable Data
Structure
Inkjet Printing
Color & Page
Multi-Colour Printing Press
Application
Packing and Printing
Printing Interface
RS232
Printing Speed
100m/Min
System Supported
Windows
Resolution
150-600dpi
Ink Solution
Porous, Semi-Porous and Non-Porous
Production Capacity
500 Sets/Year

Packaging & Delivery

Package Size
150.00cm * 120.00cm * 120.00cm
Gross Weight
120.000kg
Transport Package
Box/Pallet

Product Description

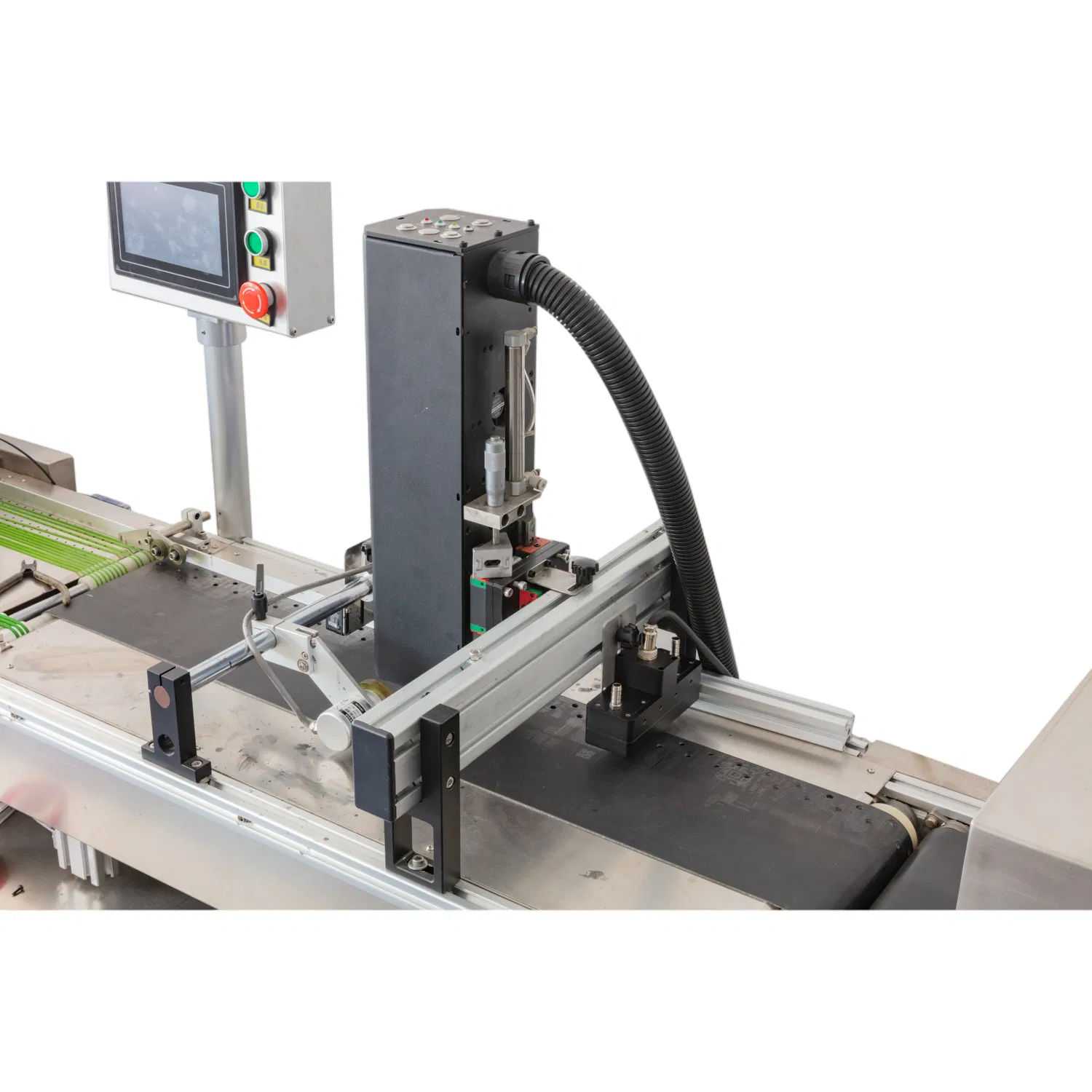

RFID Card Tag Encoding and Marking System

A high-performance UV inkjet system designed to fit perfectly on presses, rewinders, or cut-sheet vacuum transports. Features the latest UV Drop-on-Demand (DOD) technology for proven performance and flexible resolutions.

  • 600 dpi across the head (600 to 200 dpi in direction of travel)
  • Cover more than 54mm*24 of variable print with multiple head combinations
  • Adjustable drop size and shaving for highest barcode readability
  • UV curable or water based ink available
  • Internal heaters minimize impact of external temperature changes
  • Integrated head cap and automated service mode reduce maintenance
RFID Card Tag Encoding and Marking System

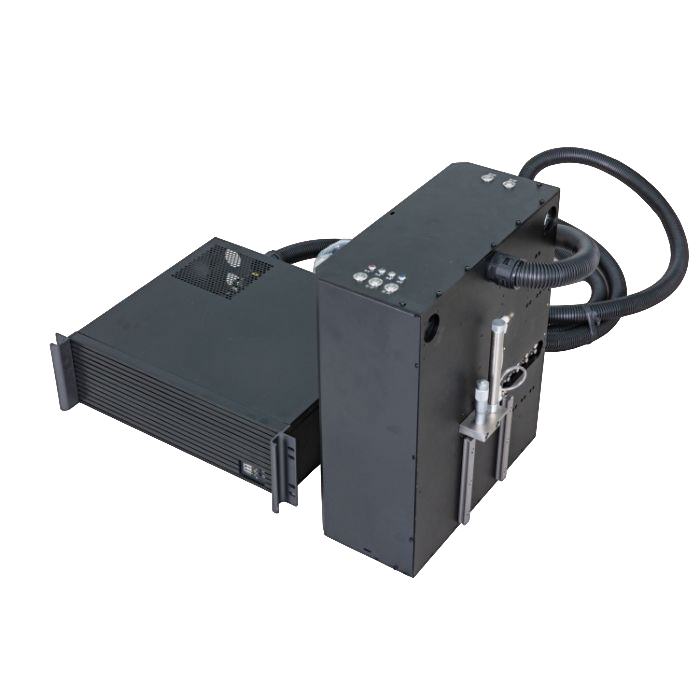

Separate System and Integrated System

Our UV ink is ideal for printing on difficult substrates like films, foils, plastics, coated stocks, and other synthetics.

Key Advantages & Features

Category Technical Highlights
System Intro Consists of high-speed digital inkjet system, UVLED curing system, negative pressure ink supply, and professional software. Suitable for product names, logos, dates, variable barcodes, and QR codes.
Software Ethernet gigabit data transmission. Supports anti-leakage and anti-duplicate code functions. Real-time monitoring of ink temperature, nozzle status, and printing speed.
Hardware All-steel nozzles (Ricoh G5) with strong corrosion resistance. One-button cleaning and evacuation functions. Automatic temperature rise and water flow detection protection.
Printing Adjustable resolution and voltage for optimized ink drop size. Speed ranges from 75m/min (600dpi) up to 160m/min (200dpi).

Frequently Asked Questions

Q1: What is the maximum printing speed of the VDG540?
The system supports high-speed printing up to 180 m/min, with stable performance between 70-180 m/min depending on resolution.
Q2: Which materials are compatible with this inkjet system?
It is ideal for difficult substrates including various films, labels, metals, foils, plastics, and coated stocks.
Q3: What types of codes can the system print?
It supports variable barcodes, two-dimensional (QR) codes, invisible anti-counterfeit codes, product names, numbers, and logos.
Q4: Does the software support data security and monitoring?
Yes, the software includes anti-leakage and anti-duplicate code functions to ensure data integrity during high-speed production.
Q5: What are the maintenance features of the nozzles?
The system features all-steel Ricoh G5 nozzles with a one-button cleaning function and a one-button evacuation mode for long-term idle protection.
Q6: Is the system compatible with existing production lines?
Yes, the high-speed inkjet system can be installed on various intaglio printing machines, flexo printing machines, packaging lines, and rewinders.
