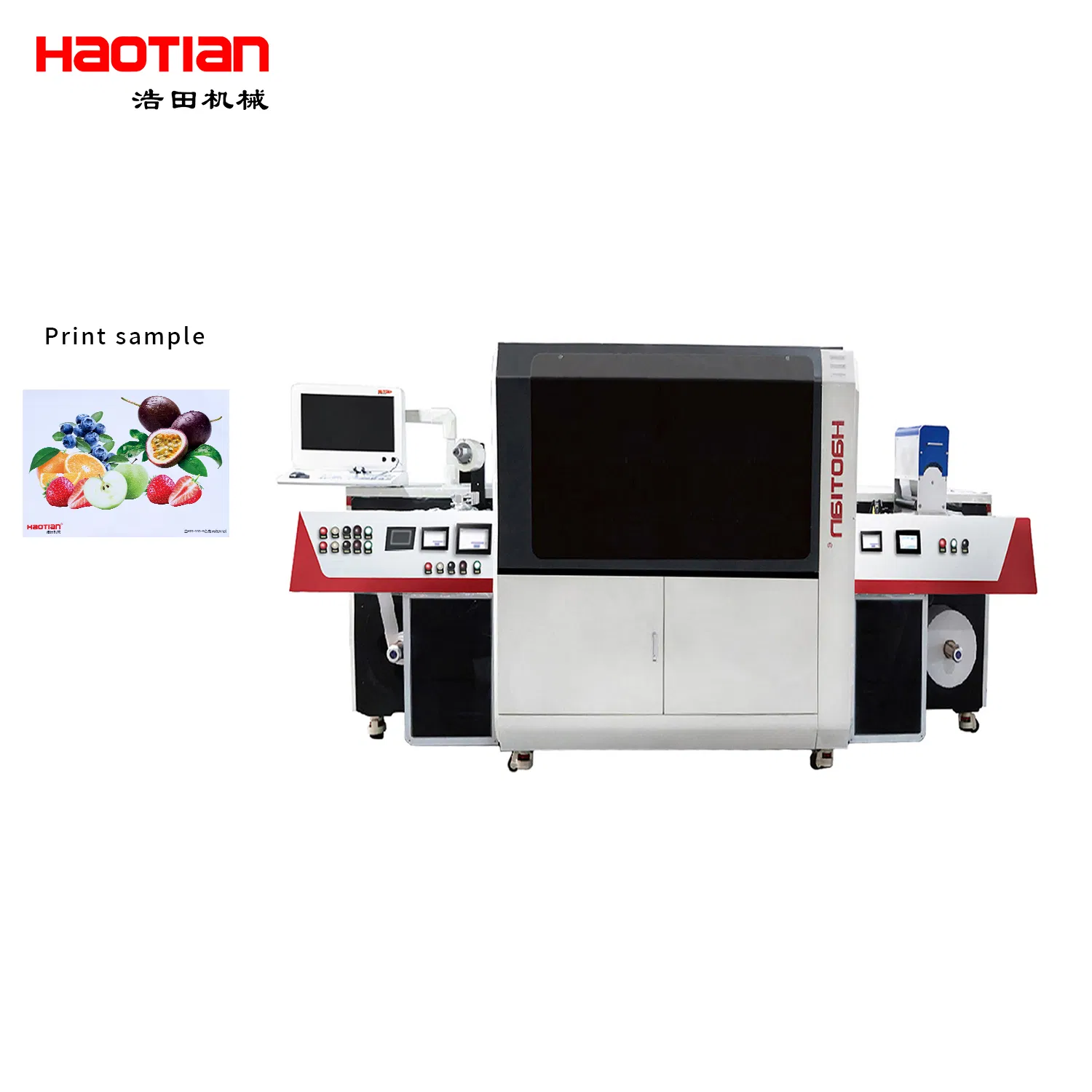

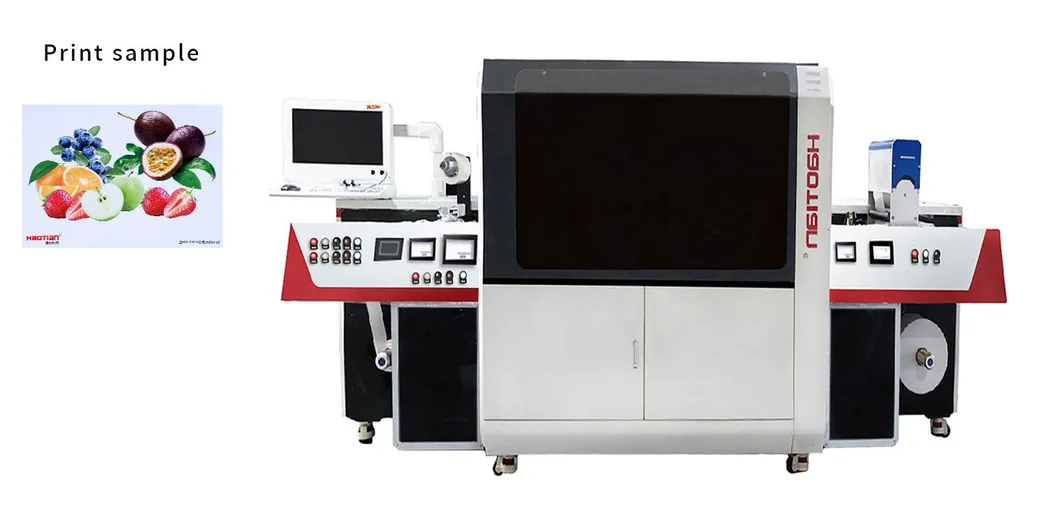

| Model | HTS-220/330-9C | Stack Thickness | Roll materials in 0.04-0.8mm |
| Printing Speed | Max 50m/min | Roll Diameter | Maximum 650mm |
| Temperature Range | 18-30°C | Machine Size | 4230mm x 2060mm x 1820mm |
| Input Power | 3-Phase 380V 10KW | Accepted Formats | PDF, JPEG, BMP and common formats |
| Resolution | 1600x600 dpi / 600x1200 dpi | Material Type | Semigloss, Film, Universal Label Roll PAC |
| Color Cell | CMYK + W + O + V + G + S | Drying Mode | 4 sets of LEDs + 10KW UV Lamp |
A variety of printing modes are available. It can be equipped with up to 9 printing modules, enabling various processes. Supports transparent and non-transparent materials, full-color printing, multi-plate queuing, and variable data functions.
The broader color gamut supports over 95% of Pantone colors. This mode expands the printing scope, reduces ink costs, simplifies the printing process, and greatly improves efficiency.

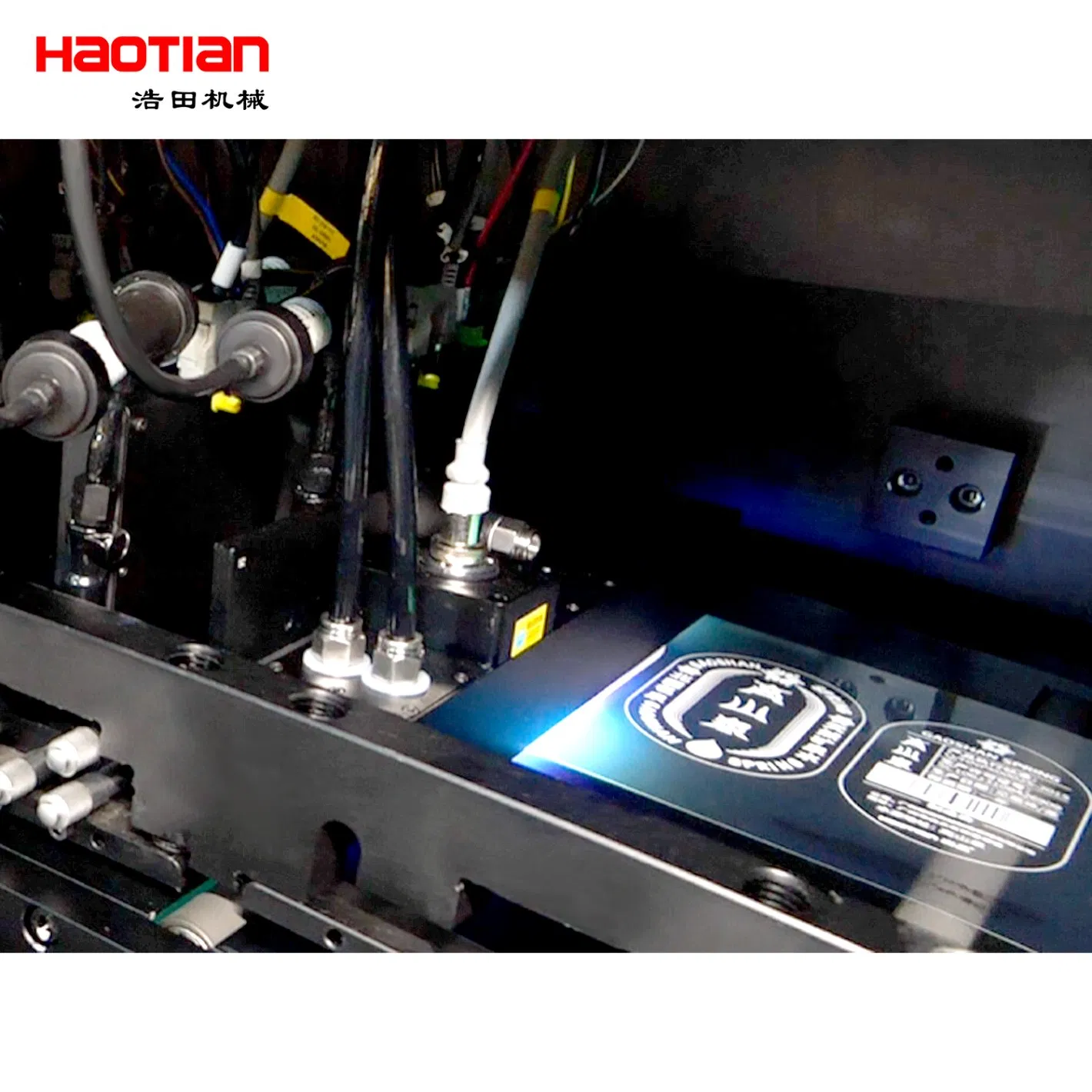

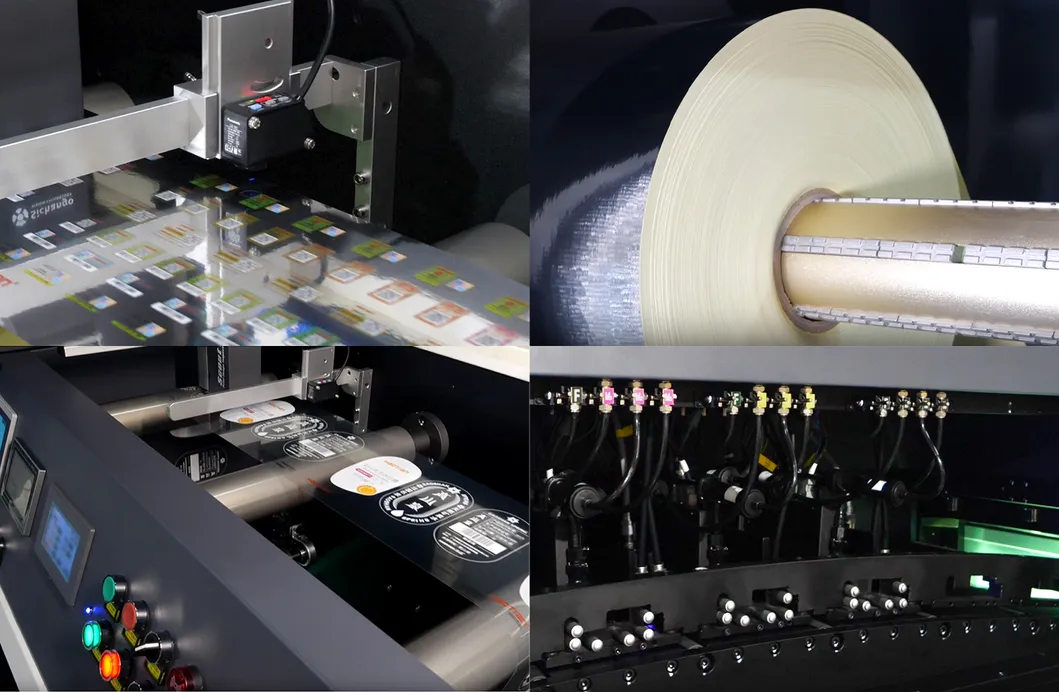

Using world-class industrial on-demand piezo nozzles, speeds reach 50M/min with accuracy up to 600x1200dpi. Features high quality, high precision, and a long service life.

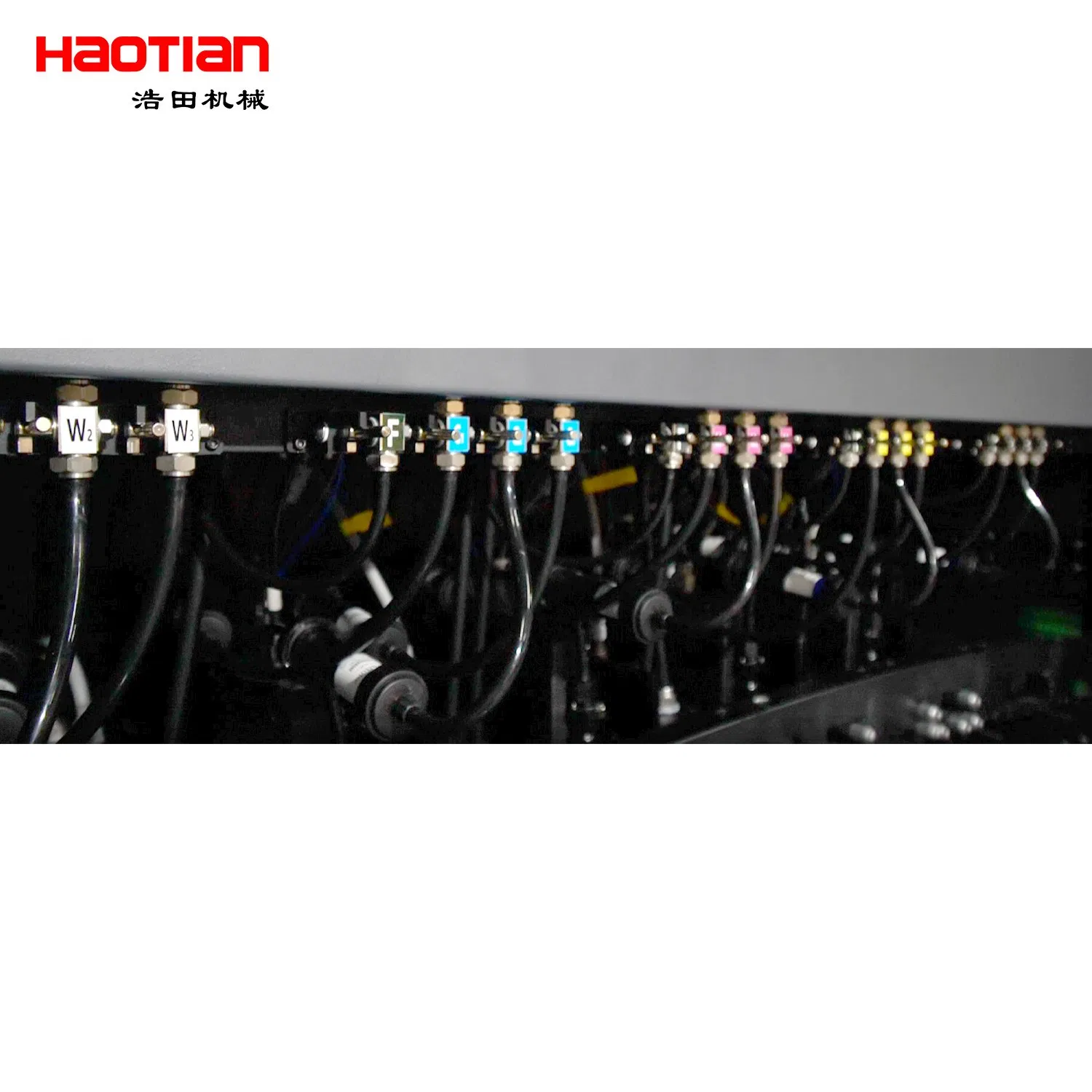

Non-contact inkjet mode requires no pre-coating. Compatible with paper, PVC, PET, PE, BOPP, and gold/silver foil, effectively reducing process steps and production costs.
