Introduction:

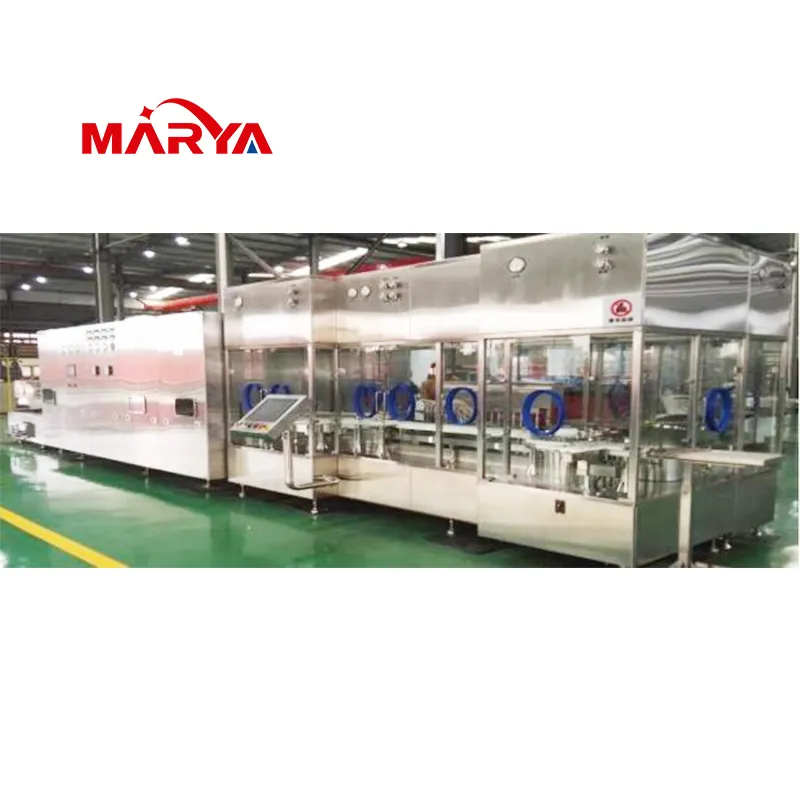

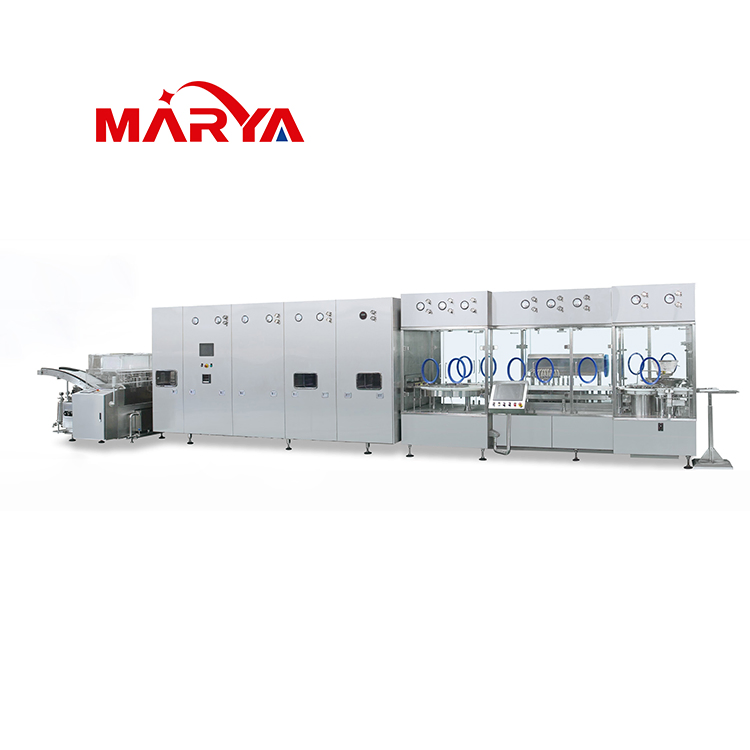

The vial filling production line is a high-efficient, accurate, and safe filling solution widely used in pharmaceutical, biotechnology, food, and cosmetics fields. With mature technology and widespread application, it has passed long-term market testing and is highly recognized by the industry.

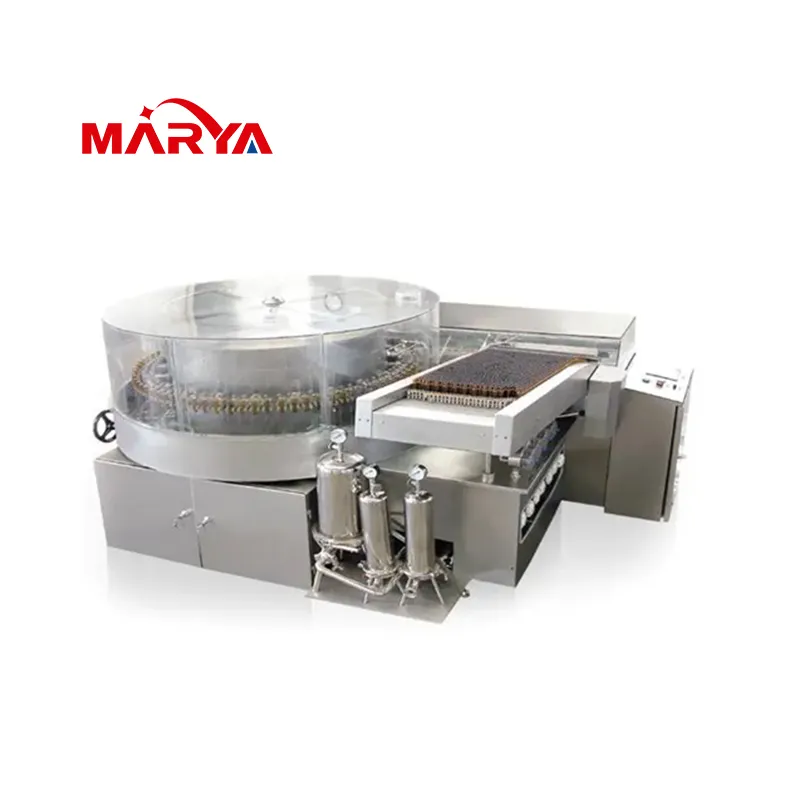

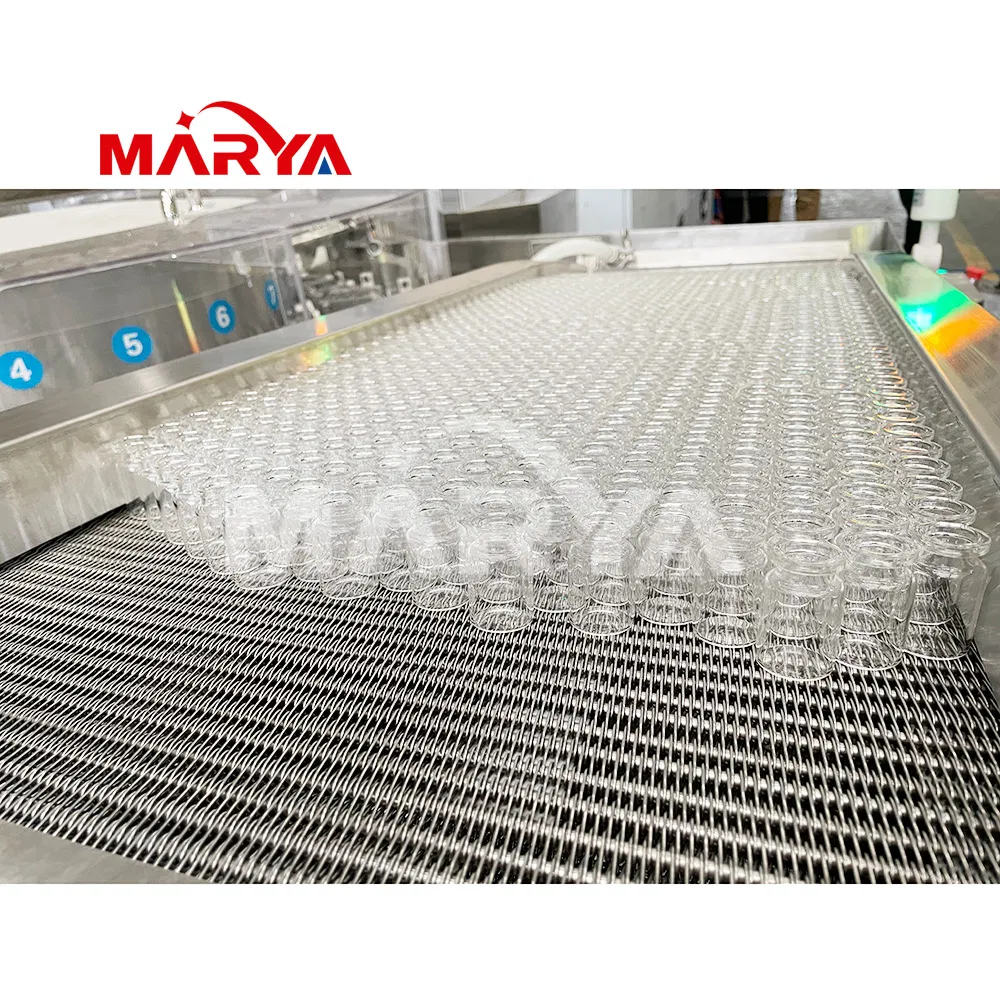

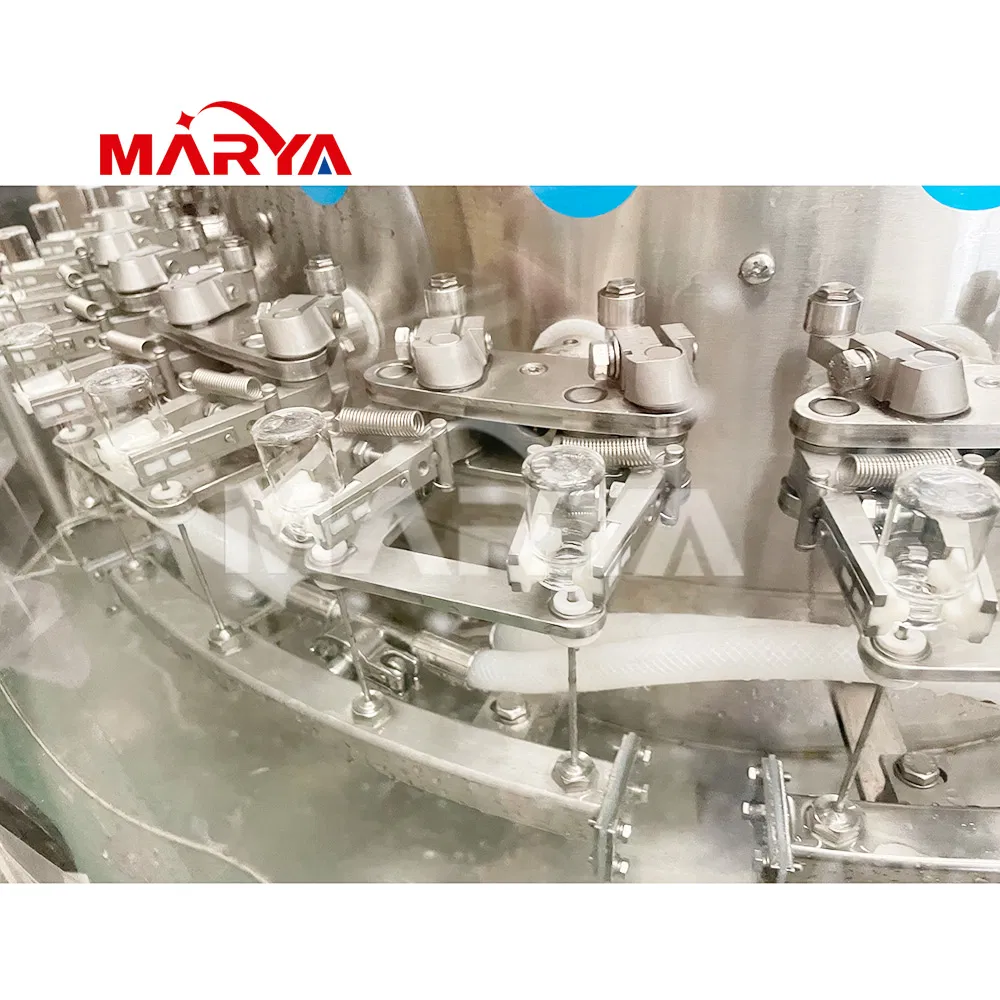

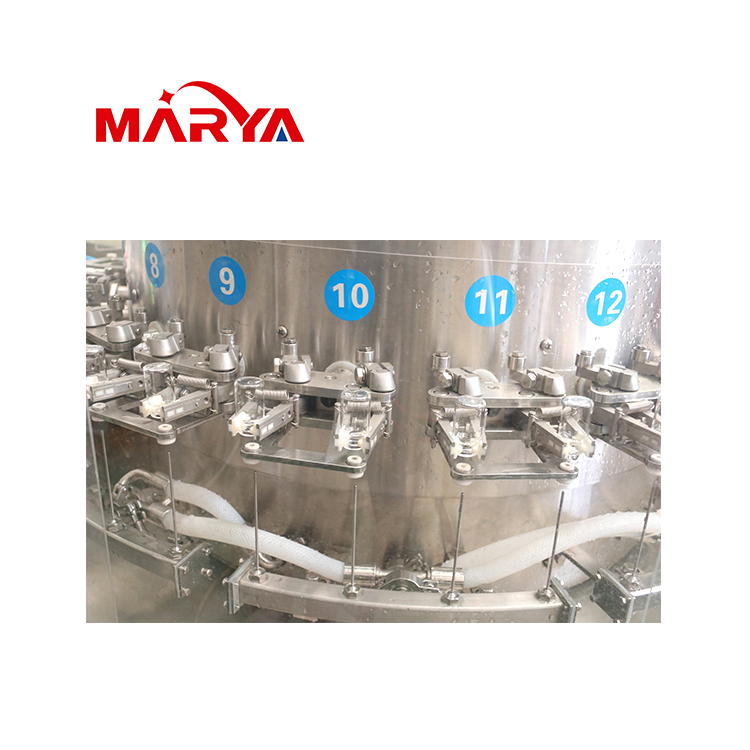

Adopted for cleaning vials, oral liquid bottles, and ampoules. Uses ultrasonic cleaning combined with alternate filtered water and air spraying.
| Capacity | ≥6000 pcs/h (10ml vials) |
| WFI consumption | About 0.5-0.7m³/h |
| Vial breakage rate | <0.05% |

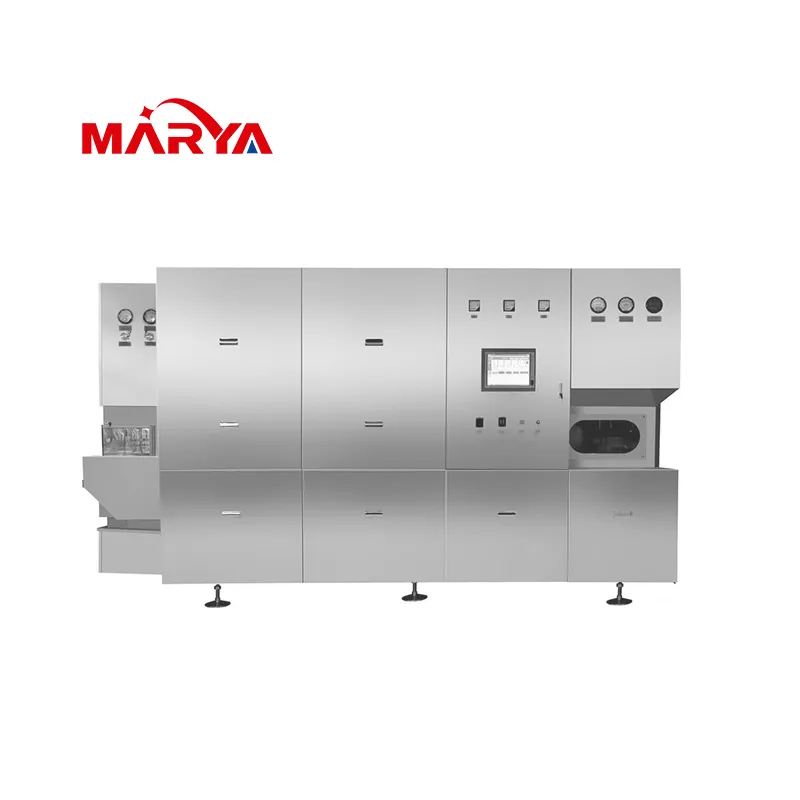

Uses hot air laminar flow to sterilize vials at high temperatures (up to 350°C). Efficient, energy-saving, and equipped with HEPA filters.
| Sterilization temperature | 280ºC-350ºC, adjustable |
| Vial breakage rate | <0.01% |
| Outlet temperature | ≤ Room Temperature + 15ºC |

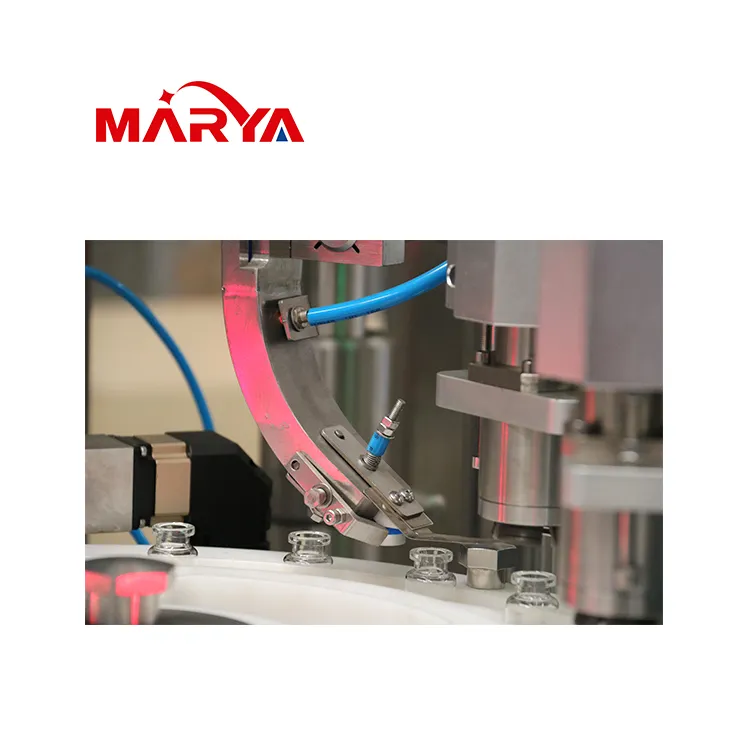

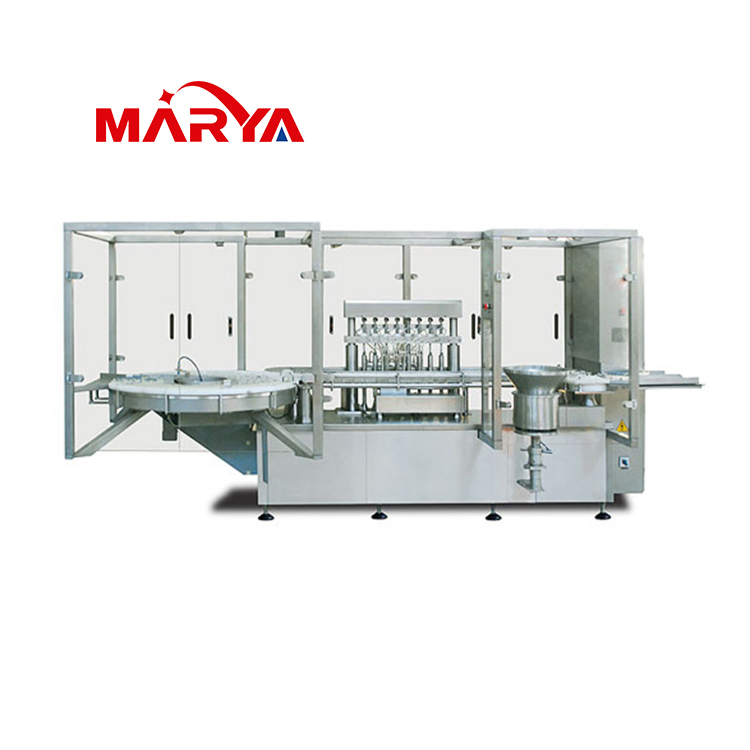

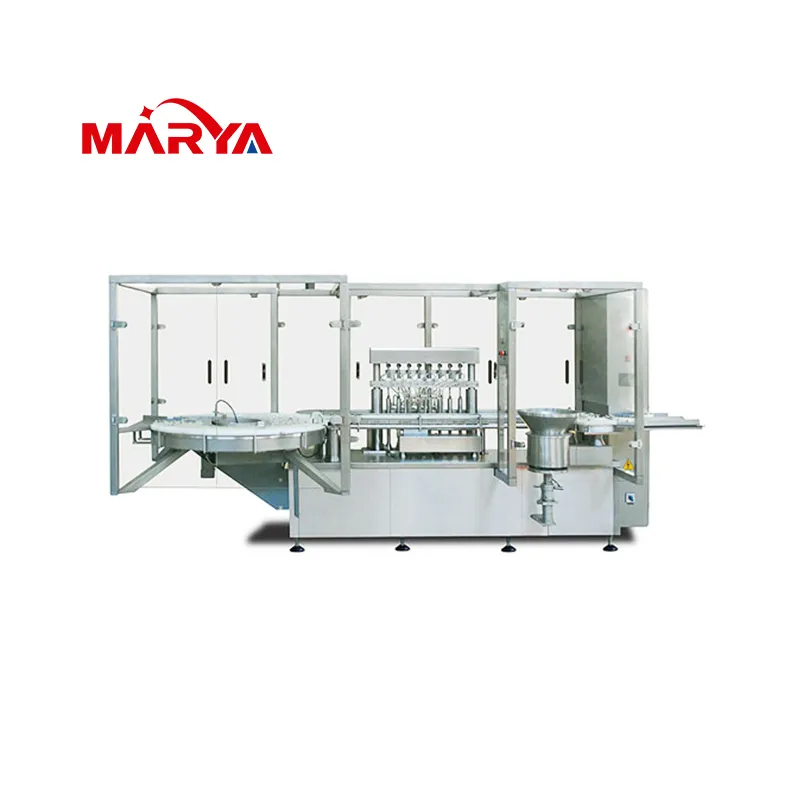

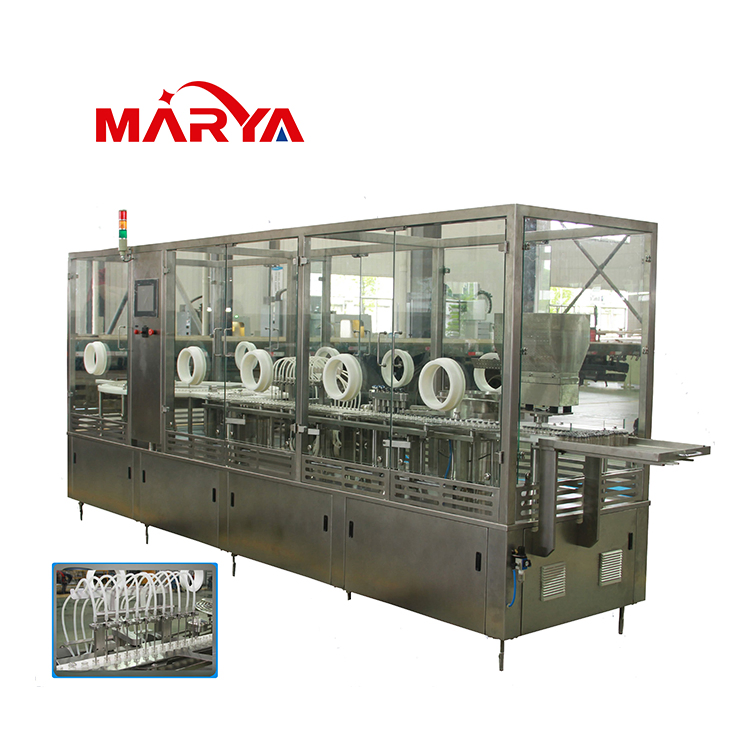

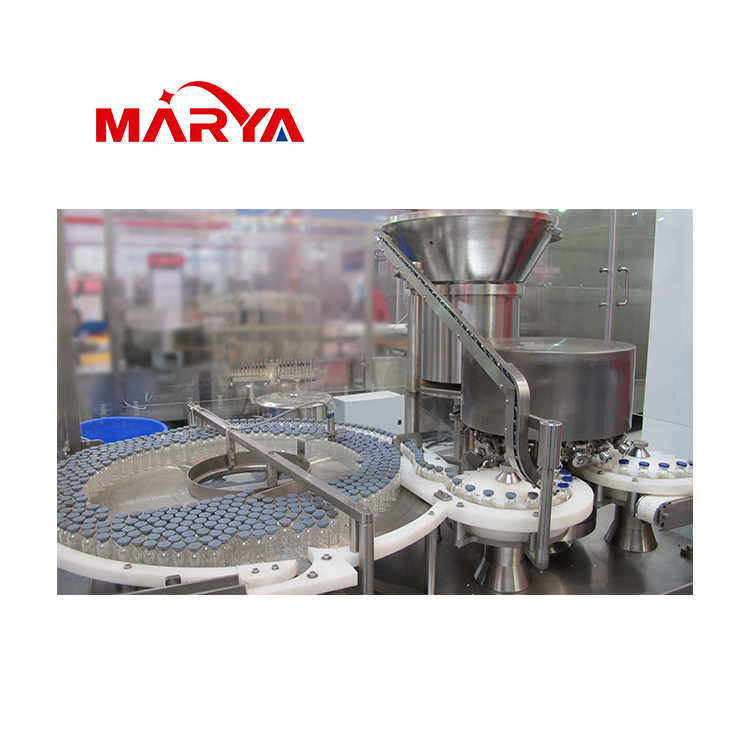

Core equipment featuring high-precision servo control. Includes O-rabs system, Class A laminar flow, and high filling accuracy pumps.
| Capacity | ≥7200pcs/h (2ml vials) |
| Filling Error | ≤±1% (>2ml) |
| Stoppering rate | ≥99.9% |

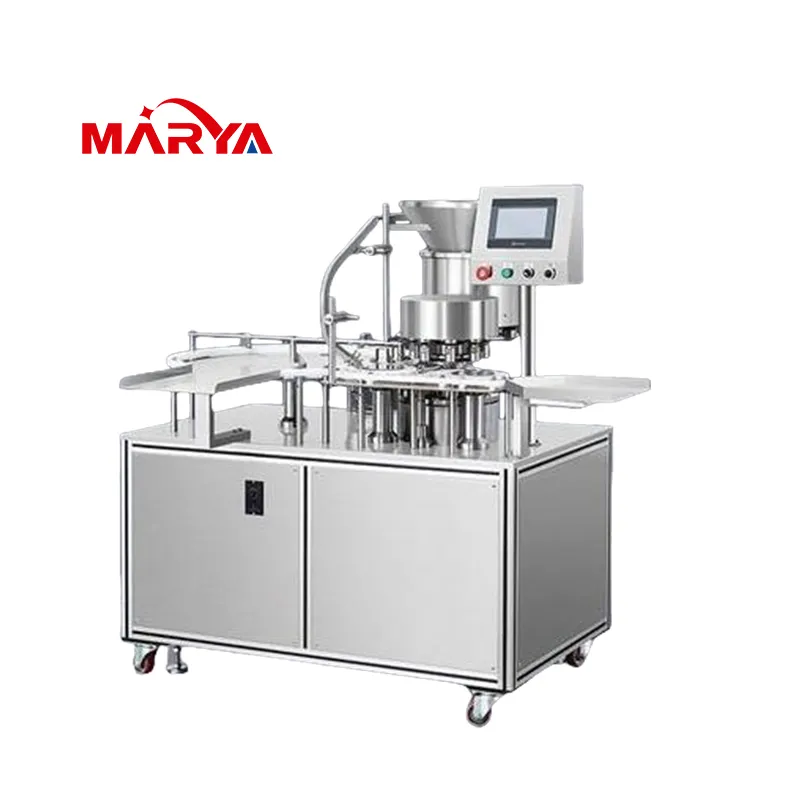

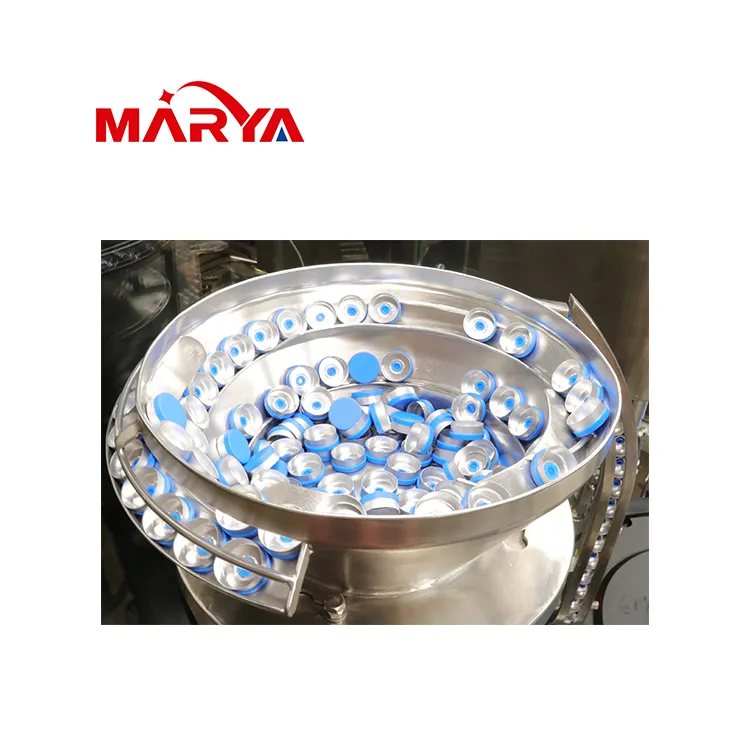

Final sealing process using rotary tracking capping. Features "no bottle no capping" and "no stopper no capping" sensors.
| Capping qualified rate | ≥99.9% |
| Vial breakage rate | <0.05% |
