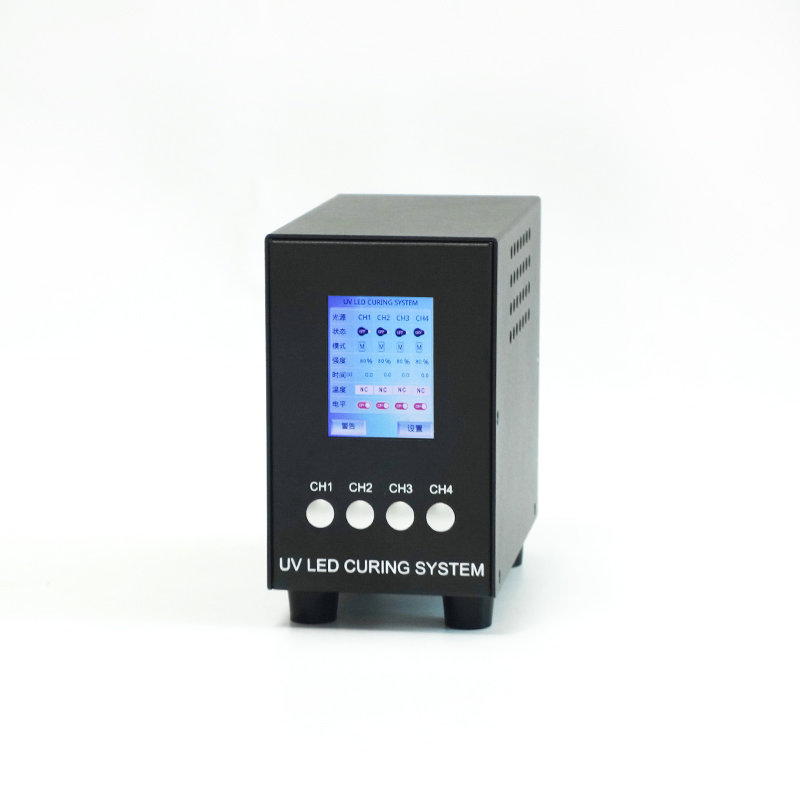

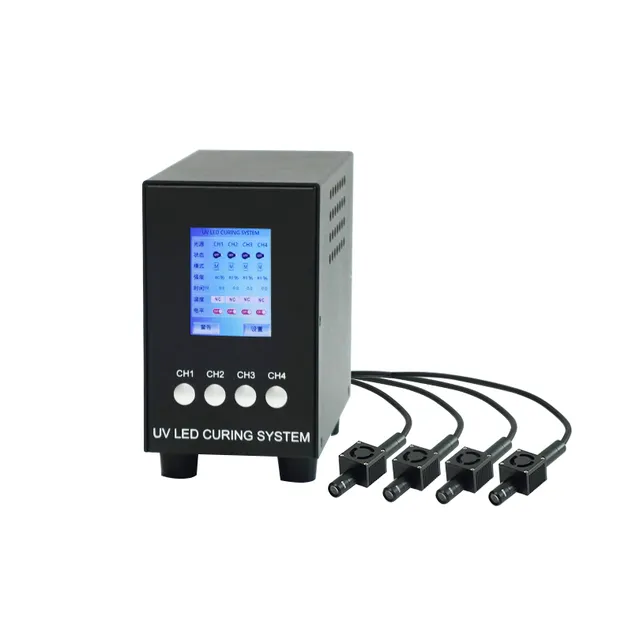

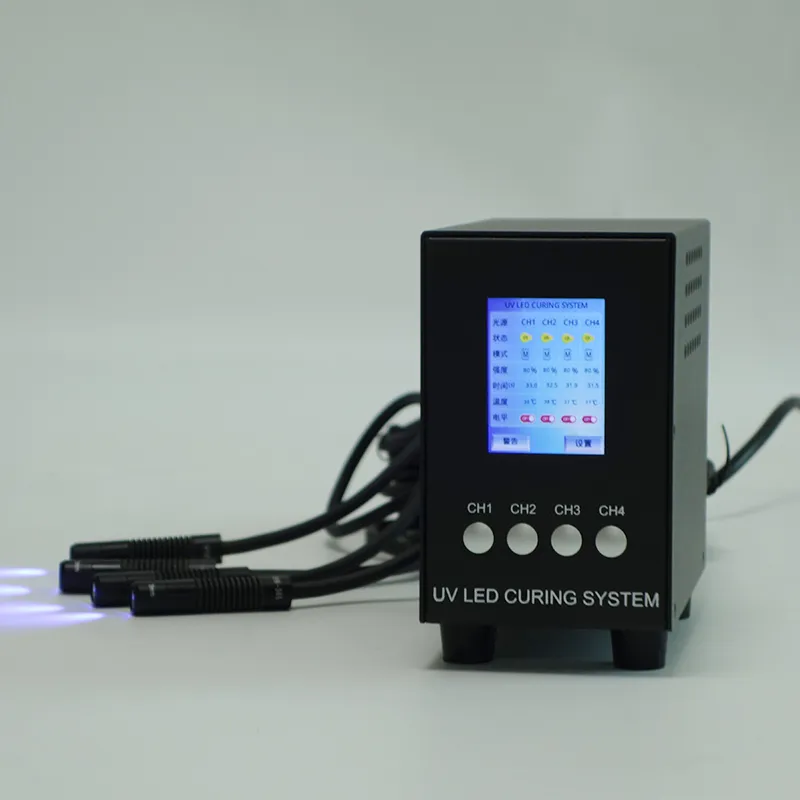

Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, it allows for irradiation processes with different intensities and durations, optimizing production efficiency especially in fully automated production lines.
| Parameter | Details |
|---|---|
| Model | A1400-XTP-S |
| Available Wavelengths | 365nm, 385nm, 395nm, 405nm, 470nm |
| Max UV Intensity | 18000 mw/cm² |

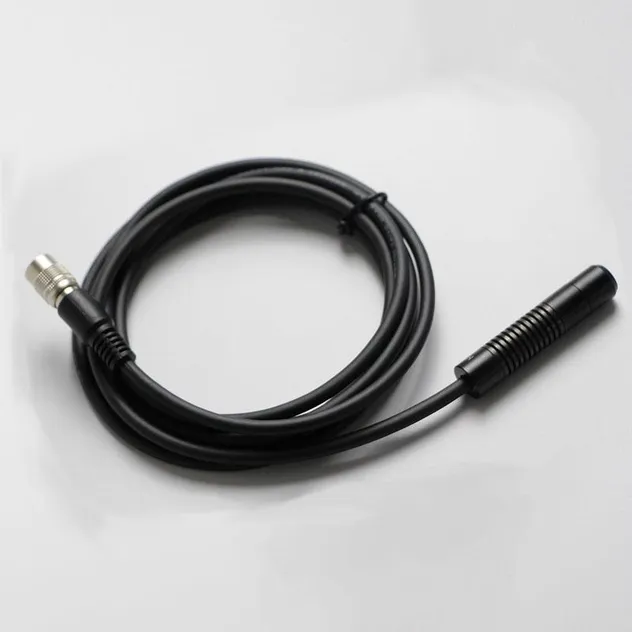

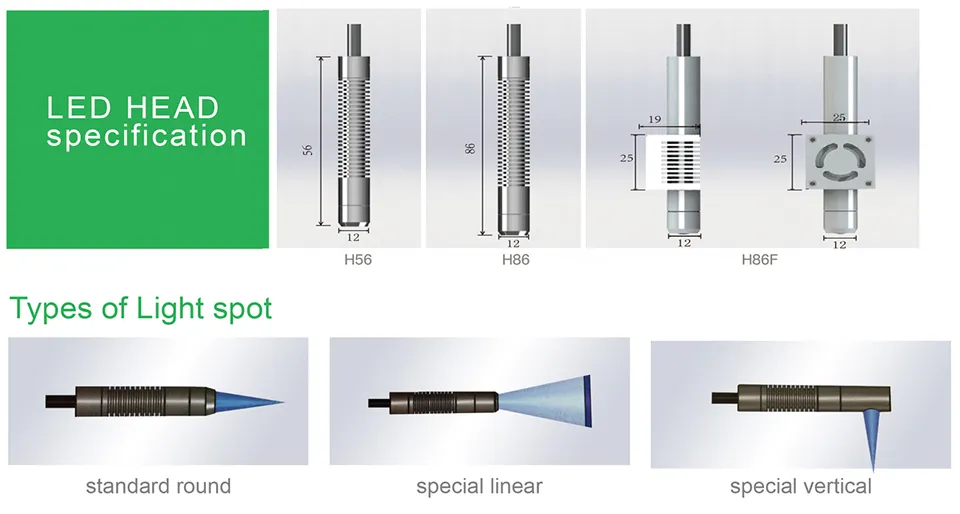

| Irradiate Lamp Heads | 1-4 pcs (Independent control) |
| Power Adjustment Range | 1% - 100% |

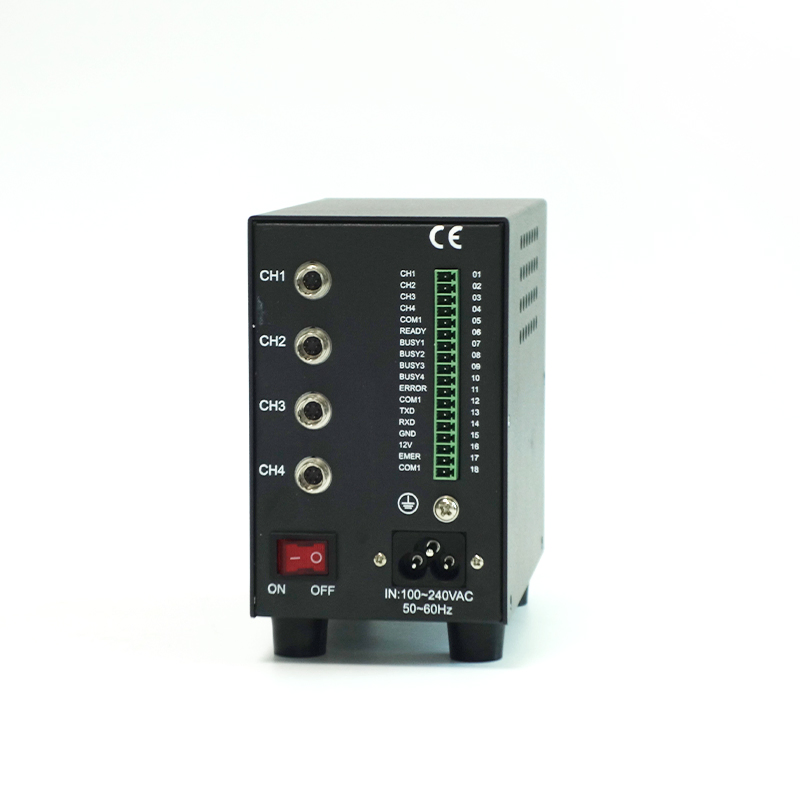

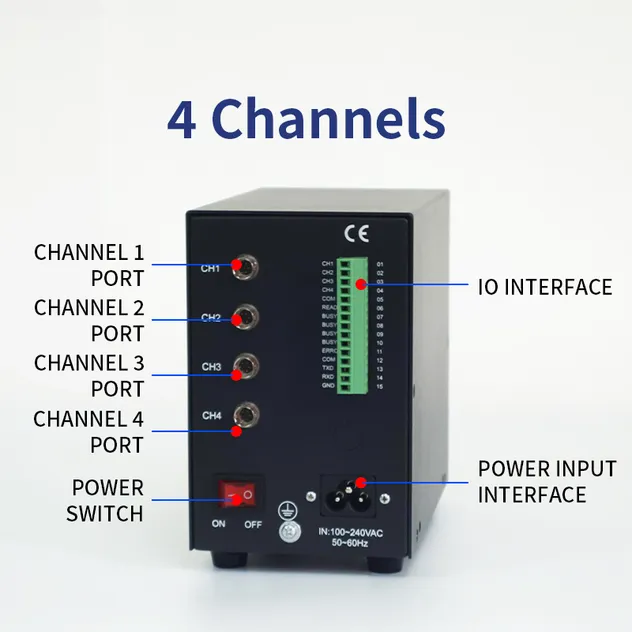

| Control Methods | RS232 / PLC / Pedal / Touch Screen |
| Operating Modes | Manual, Automatic (0.1S-999.9S), Step (1-20 steps), Cycle Step |

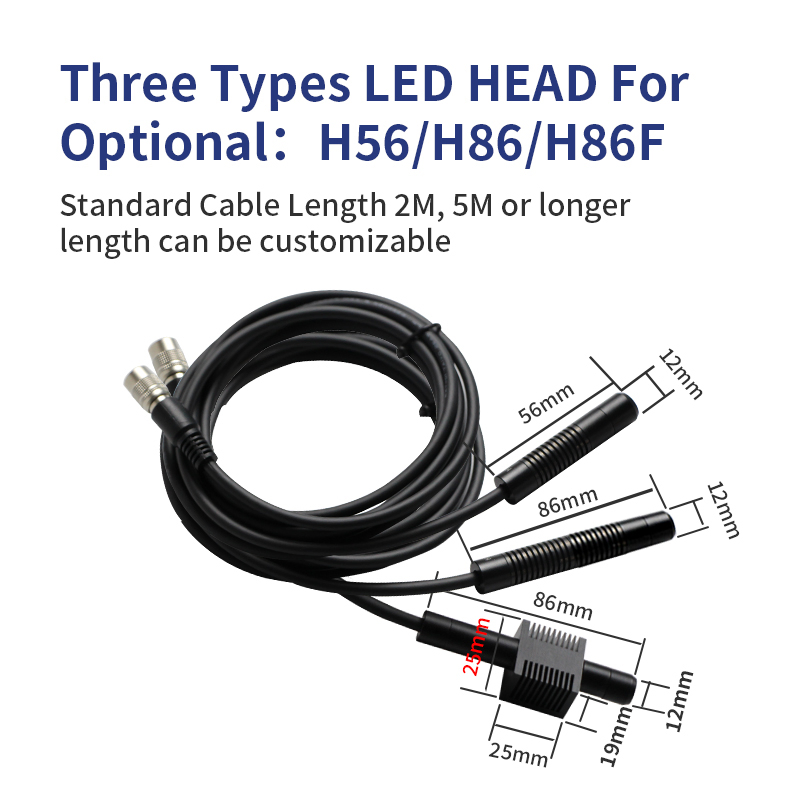

| Standard Cable Length | 2m (Customizable up to 5m+) |

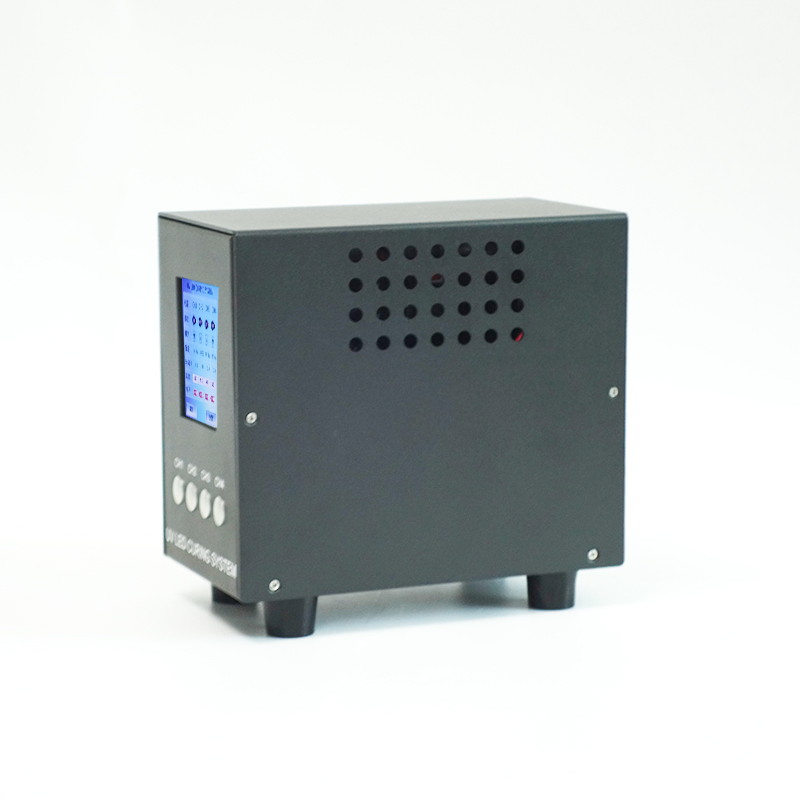

| Outer Dimensions | 160 * 92 * 140 mm |
After Sales Service: We provide a standard 12-month warranty with options to extend up to 36 months. Our global support includes 24/7 technical assistance, spare parts supply, and comprehensive training (on-site or remote).
Quality Assurance: As a leading manufacturer with over 12 years of expertise, we are ISO 9001, CE, and RoHS certified. Our products are exported to over 50 countries, backed by strong R&D innovation and strict quality control.
