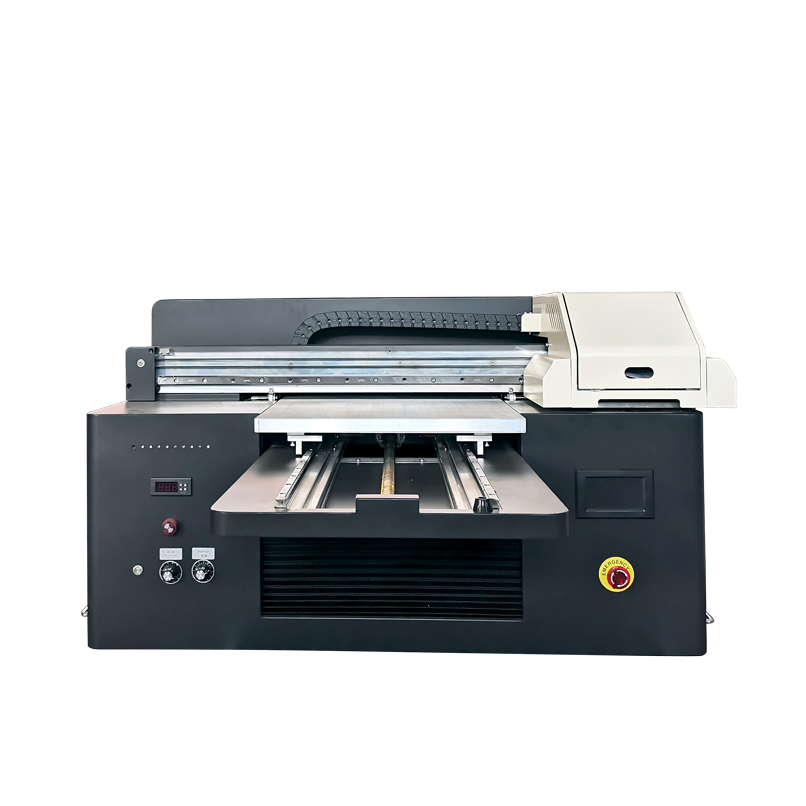

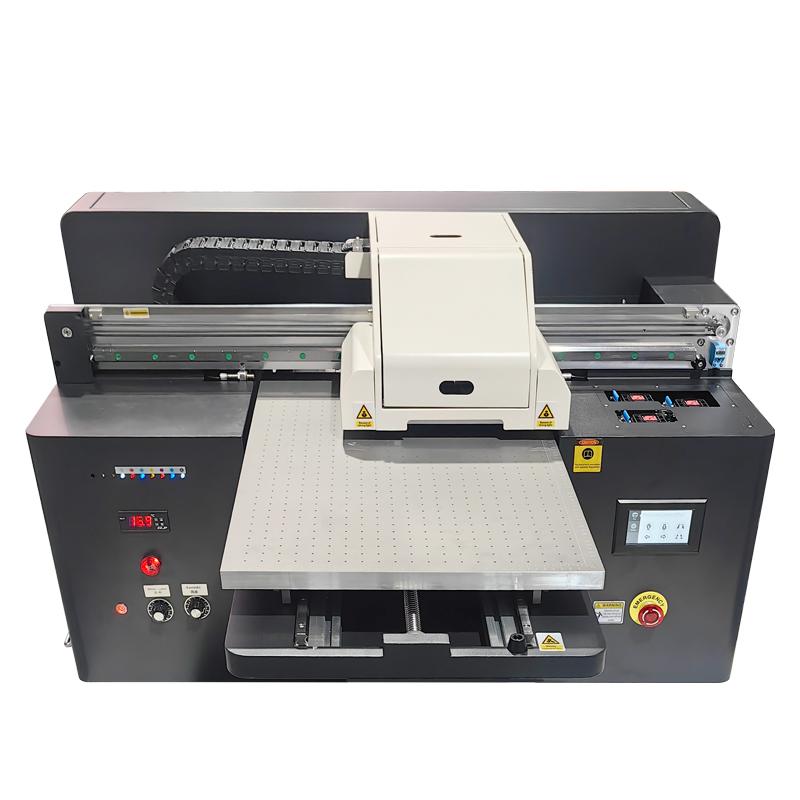

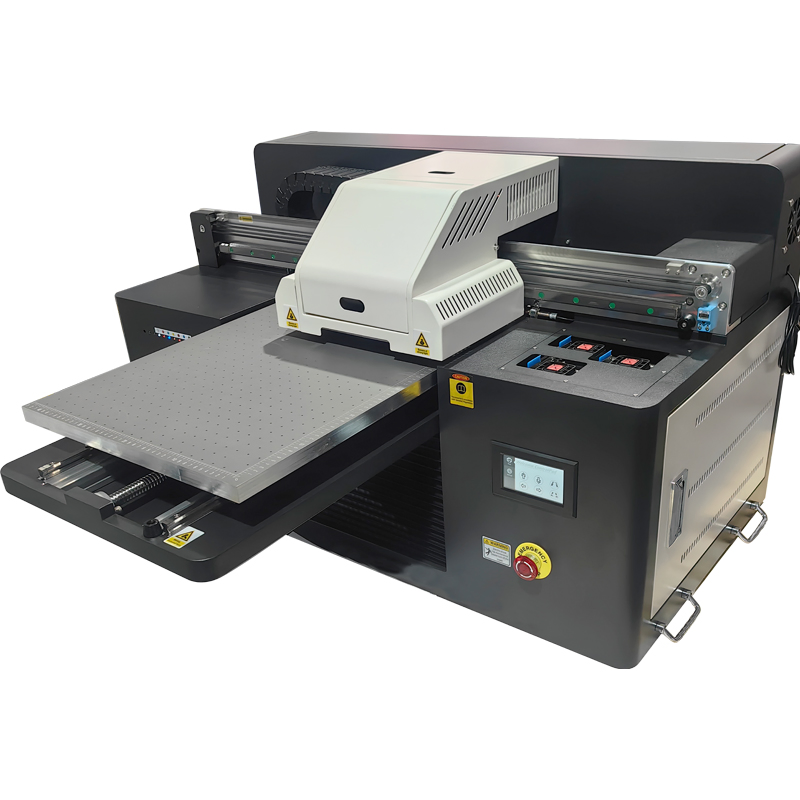

I1600 Dx10 Printheads A2 4060 LED UV Flatbed Printer

1 / 5

I1600 Dx10 Printheads A2 4060 LED UV Flatbed Printer

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.DS-A2U-03

Product NameA2 PRO UV Printer

Printing Size43*60cm (16.9*23.6 Inches)

PrintheadDx8 XP600 Dx7 I1600 G5I I3200

Media Height25.6 Cm / 10 Inch

Ink TypeUV Curable Ink

Color ConfigVarnish + White + KCMY

Printing Speed2sqm/Hour

Dry SystemLED UV Lamp Drying System

Cooling SystemWater Circulation Cooling

Automatic GradeAutomatic

InterfaceUSB 2.0

★

Product Description

High resolution 3 PCs i1600 DX10 Printheads A2 4060 LED UV Flatbed Printer.

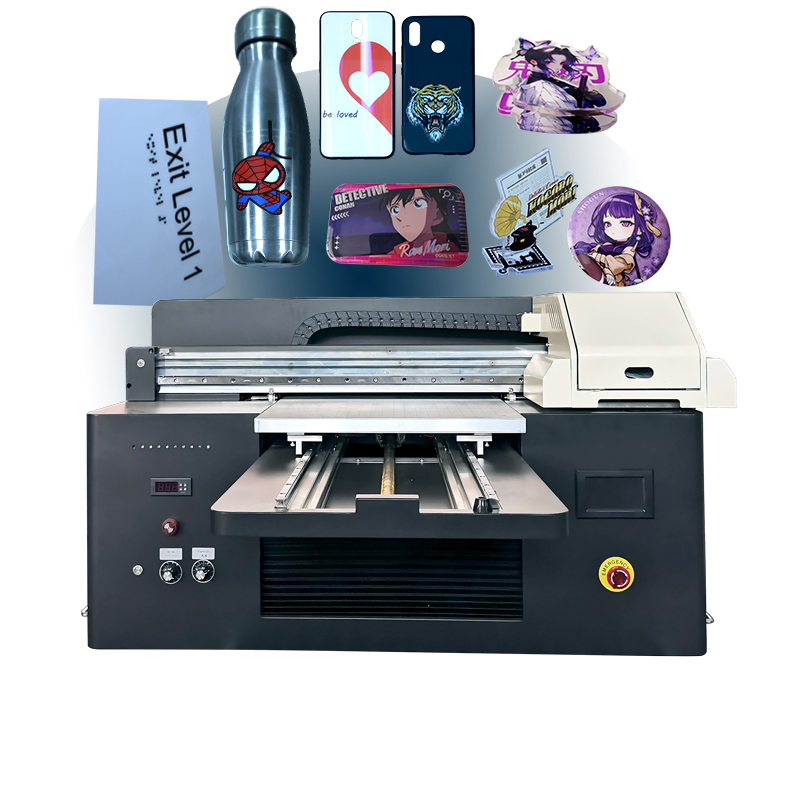

This A2 size printer (43*60cm) with a 25.6 cm (10 inch) thickness capacity is an ideal choice for printing on PVC cards, mobile phone covers, glass, metal, plastic, acrylic, and ceramics. It delivers vivid colors and fast speeds, making it perfect for entry-level professional use or kiosk operations.

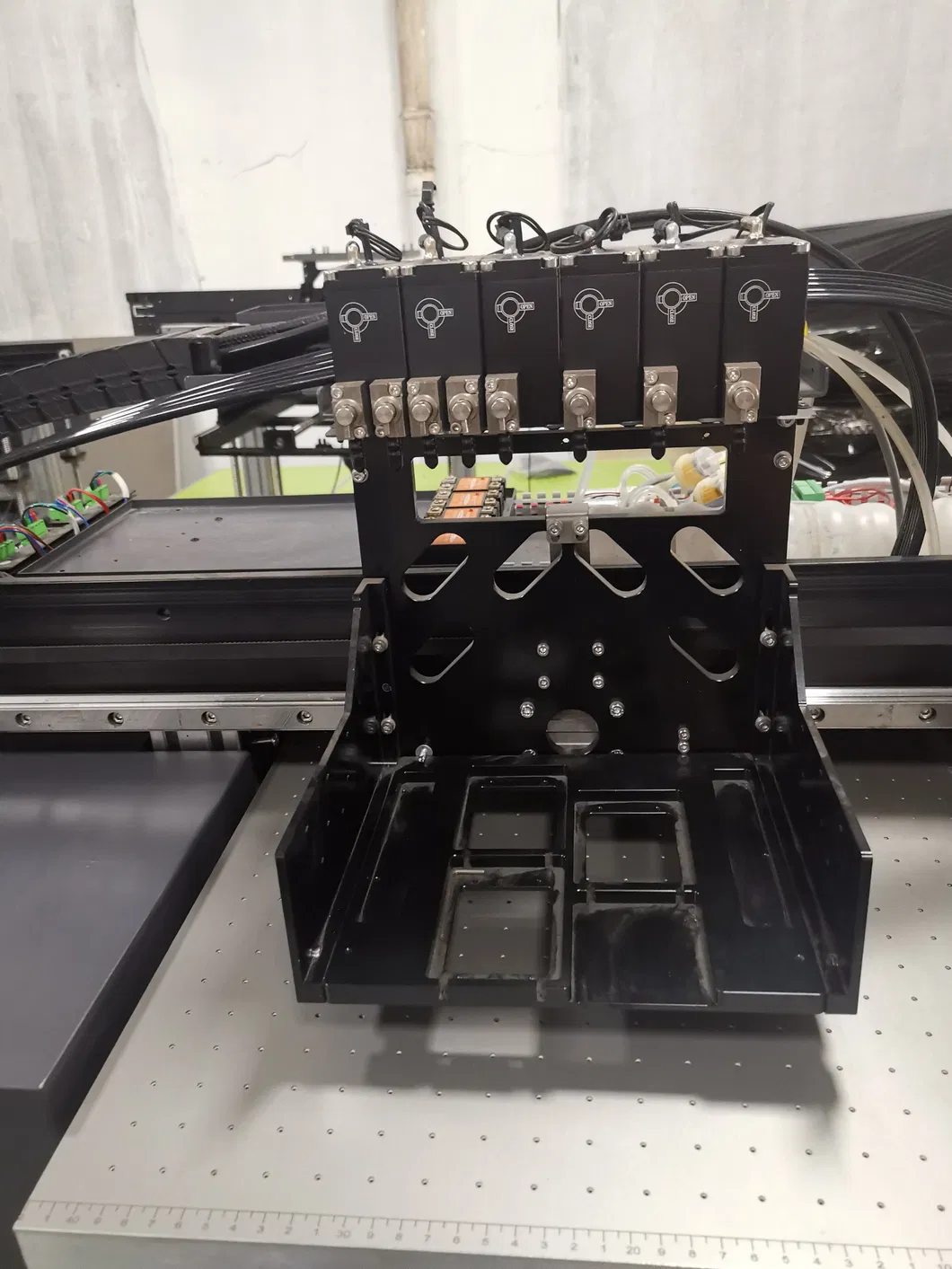

Advanced Board System: Stable Chinese board system supporting 2 or 3 pieces of various printheads.

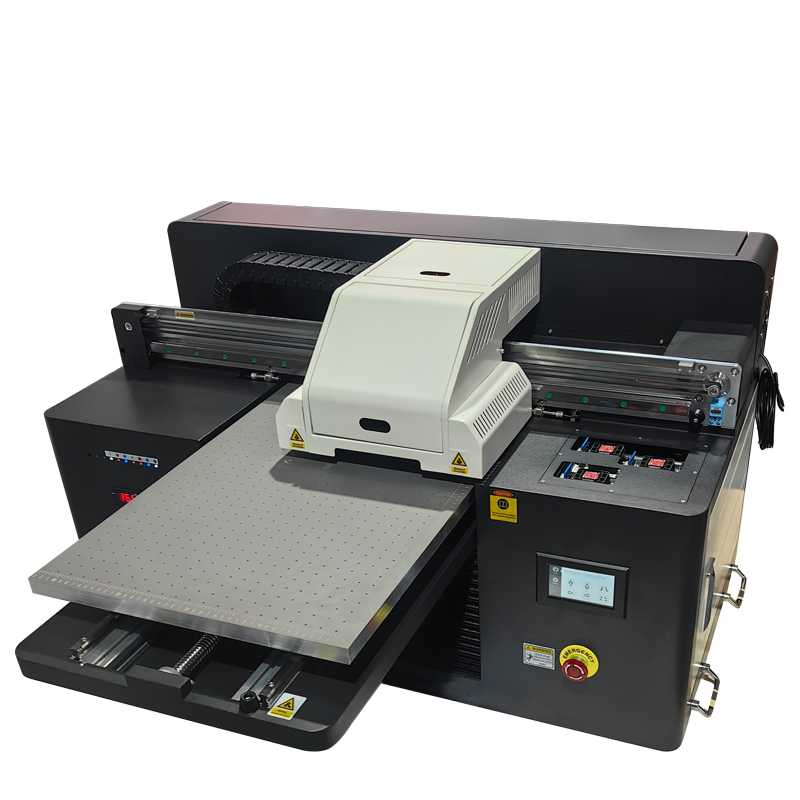

Vacuum Table: Aluminum alloy air vacuum adsorption table ensures materials stay flat during printing.

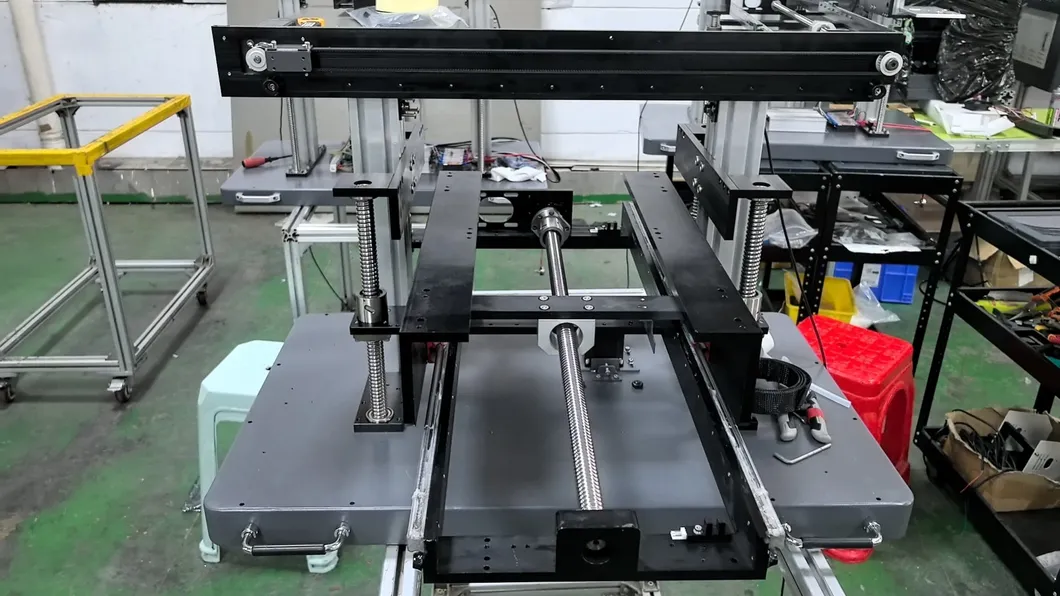

Precision Drive: Uses ball screw drive for Z-axis movement, providing higher resolution than belt drives.

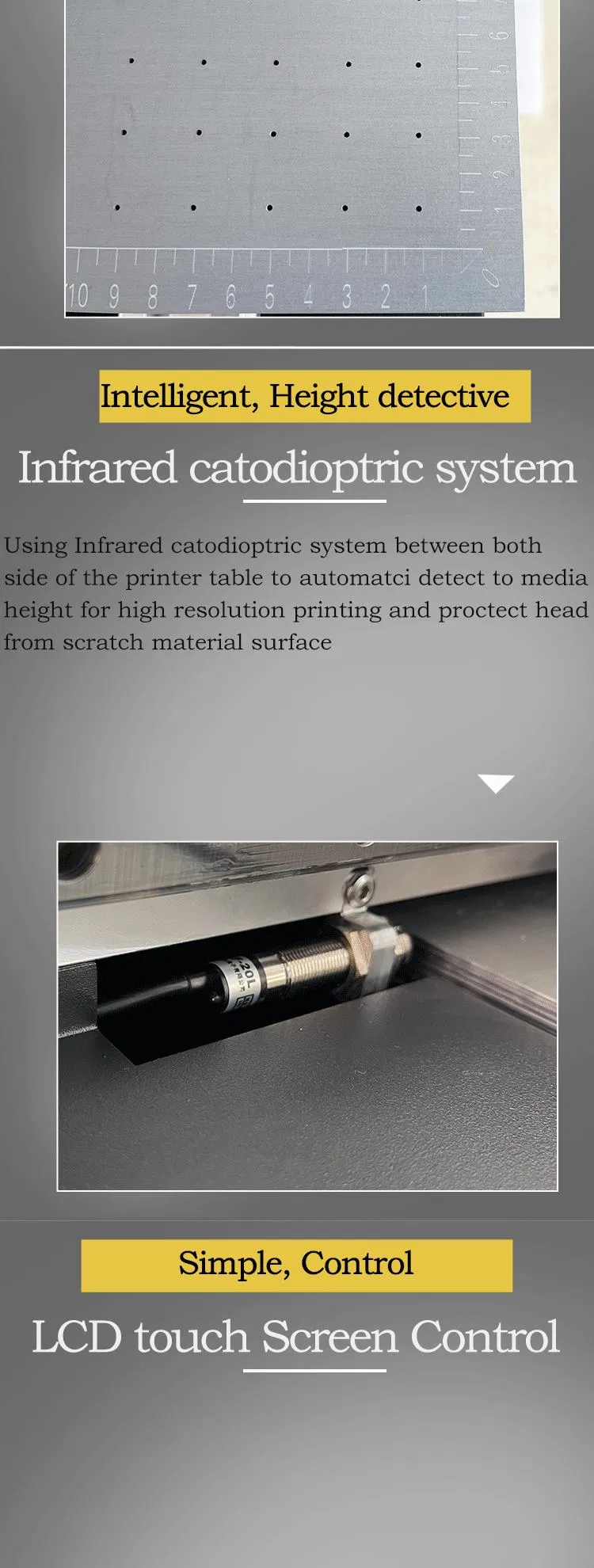

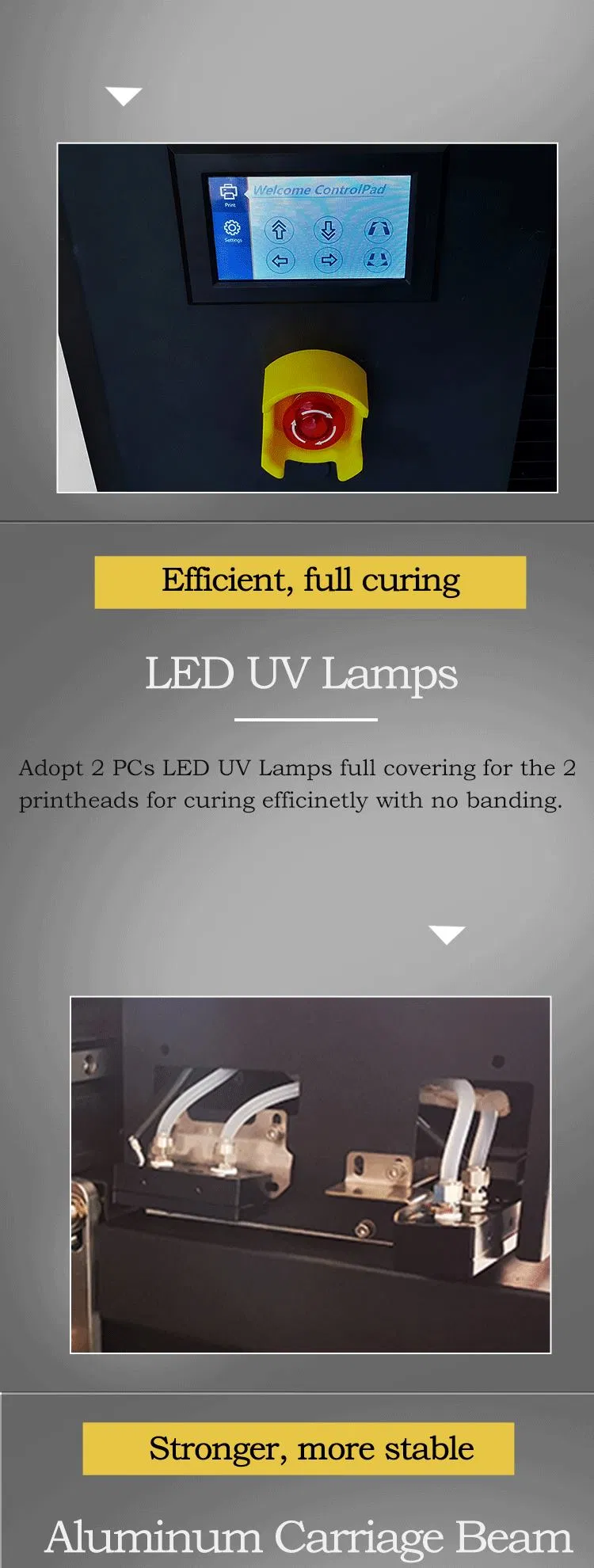

Touch Control: Friendly LED screen touch controller for easy carriage and table movement.

Cooling Technology: Water circulation cooling system extends UV lamp life up to 20,000 hours.

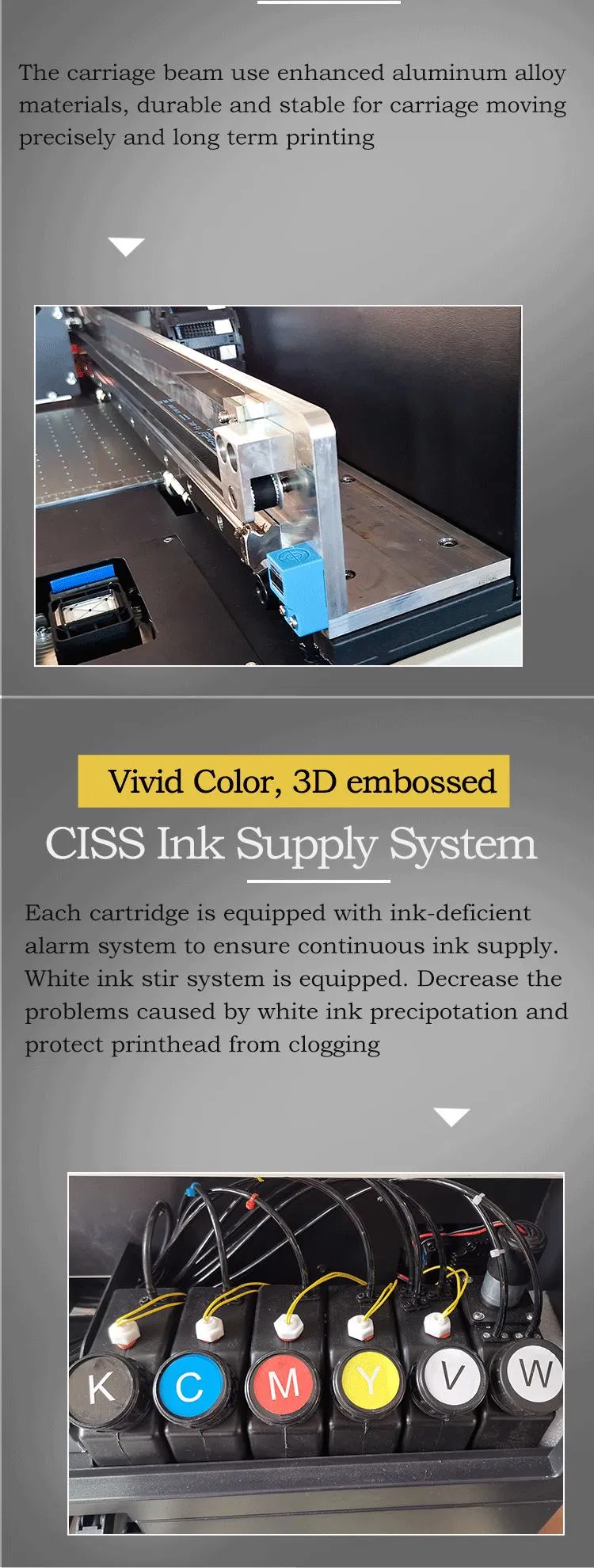

3D Effects: Supports CMYK + White + Varnish simultaneous printing for embossed texture effects.

⚙

Technical Parameters

Printer Model	DS-A2U Plus
Printing Tech	2 or 3 pieces TX800 / XP600 / DX7 / i1600 / I3200 / Ricoh G5I
Resolution	2160 dpi (True Photographic Quality)
Printing Speed	A4 size: 50 seconds (720 dpi) / 100 seconds (1440 dpi)
Ink Colors	C, M, Y, K, White / Varnish
Supported OS	Windows XP / Vista / Win7 / Win10
Machine Size	820mm x 625mm x 430mm
Package Size	128cm x 117cm x 100 cm
Net/Gross Weight	150KG / 200KG
Power Consumption	36 W/ Hour

✔

Applications & Samples

Widely used for rigid PVC boards, glass, plastic, leather, rubber, metal, wood, porcelain, acrylic, marble, and more.

Frequently Asked Questions

How long is the delivery time?

Generally, it takes 5 days to manufacture and thoroughly test the machines before arranging shipment.

How do you ensure product quality?

All products pass through a rigorous series of tests, including printing quality tests and lifespan endurance tests.

Do you offer OEM services?

Yes, we provide professional OEM services to meet specific customer requirements.

What are the accepted payment terms?

For orders under $1000, 100% advance payment is required. For orders over $1000, a 30% T/T deposit is required, with the balance paid before shipment.

Can I request printing samples?

Yes, we can prepare free printing samples. You can send your specific materials to us, and we will demonstrate the results.

What materials can this UV printer handle?

It can print on almost any material up to 25.6cm thick, including wood, acrylic, PVC, metal, glass, leather, and ceramics.
