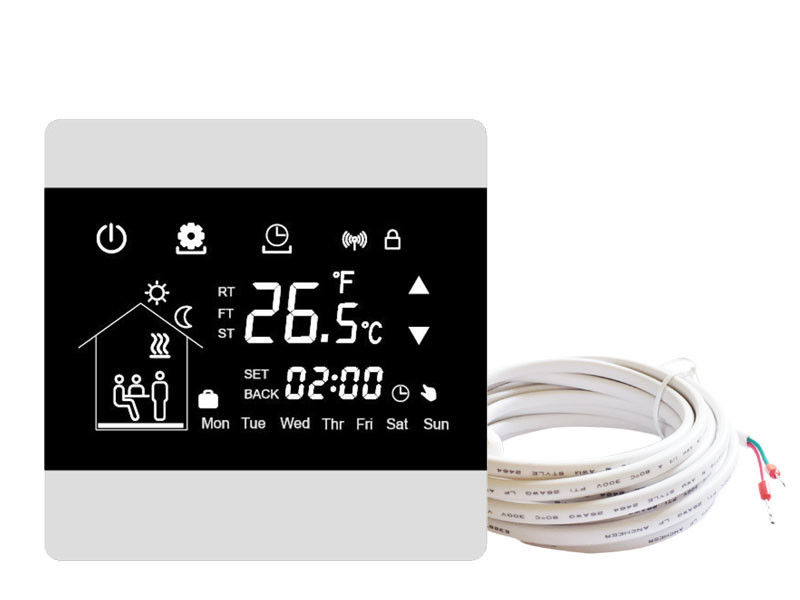

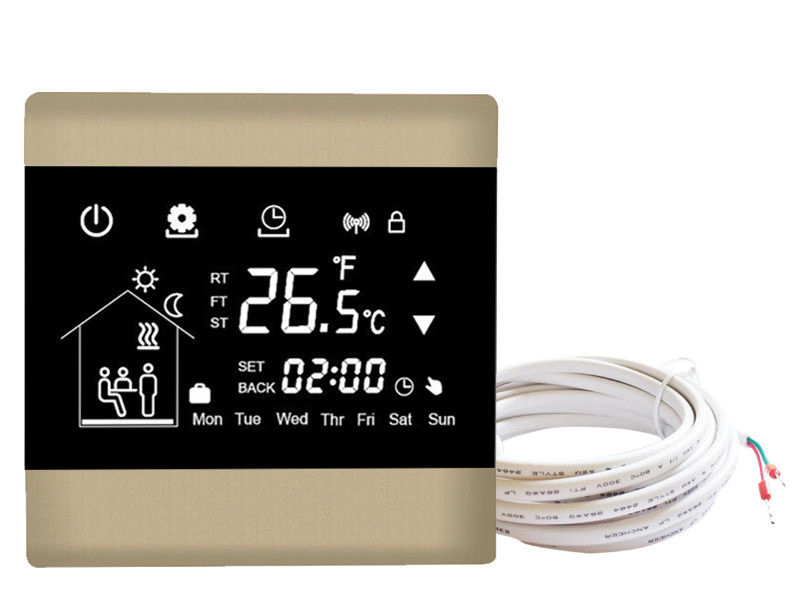

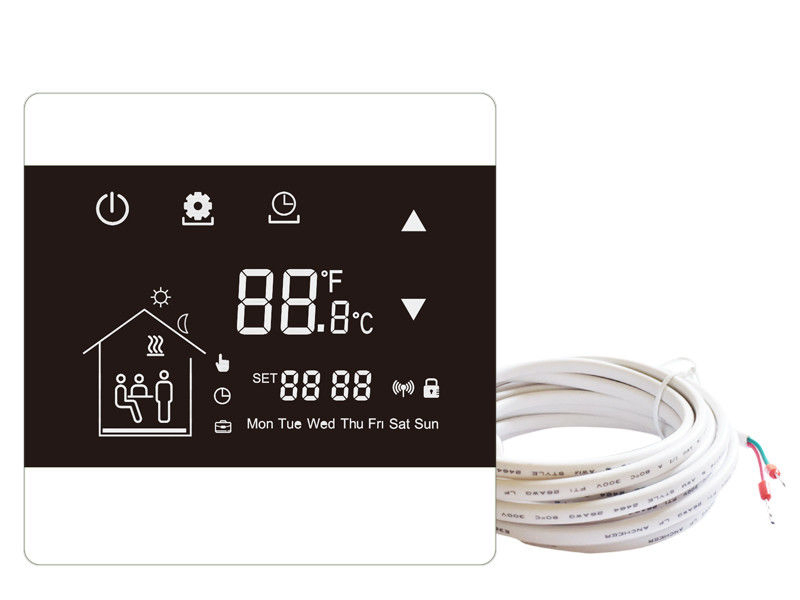

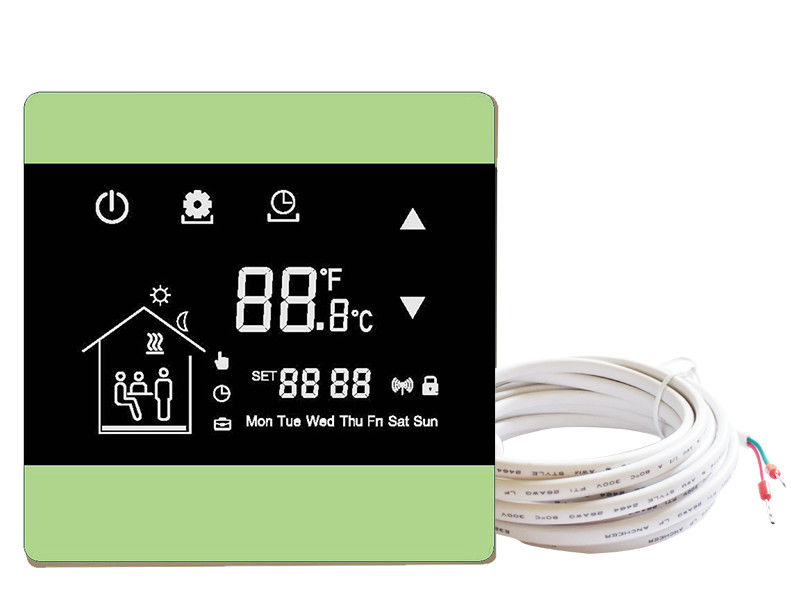

Weekly Circulation Digital Programming Thermostat
Featuring an LCD screen with 6-event daily programming. Easily switch between manual and program modes for ultimate control over your environment.
Designed for warm-water (floor) heating systems and direct electric heating systems in commercial, residential, and light industrial buildings.
| Parameter | Value |
| Power Supply | AC200-240VAC 50/60HZ |
| Accuracy | ±0.5ºC |
| Probe sensor | NTC |
| Power Consumption | <0.3W |
| Load current | 3A (Water), 16A (Electric) |
| Temperature Range | 5°C~60°C (Adjustable) |
| Output | Switch relay |
| Certificates | CE, RoHS |
*Qualified personnel preferred. Hold "M" and "Time" for 5 seconds to enter setup mode when off.
| Symbol | Function | Setting Options |
| 1. ADJ | Calibration | Adjust measured temperature |
| 2. SEN | Sensor Mode | IN (Built-in) / OUT (Floor) / ALL (Both) |
| 3. LIT | Temp Limit | Adjustment range: 5ºC~50ºC |
| 4. DIF | Differential | Adjust switching differential |
| 5. LTP | Antifreeze | Turn on/off Anti-frozen function |
| 6. PRG | Schedule Mode | 5/2 day, 6/1 day, or 7 day modes |
