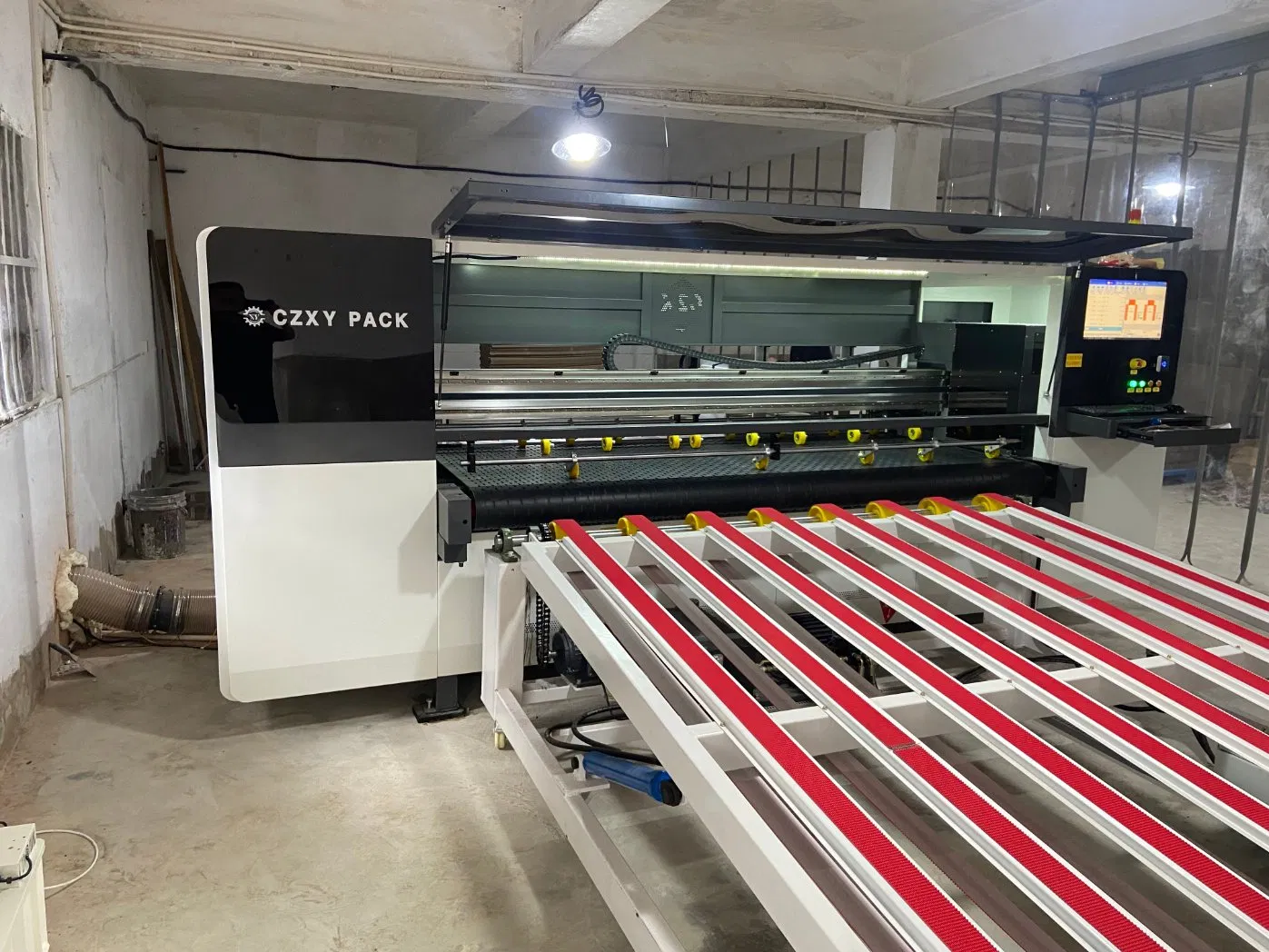

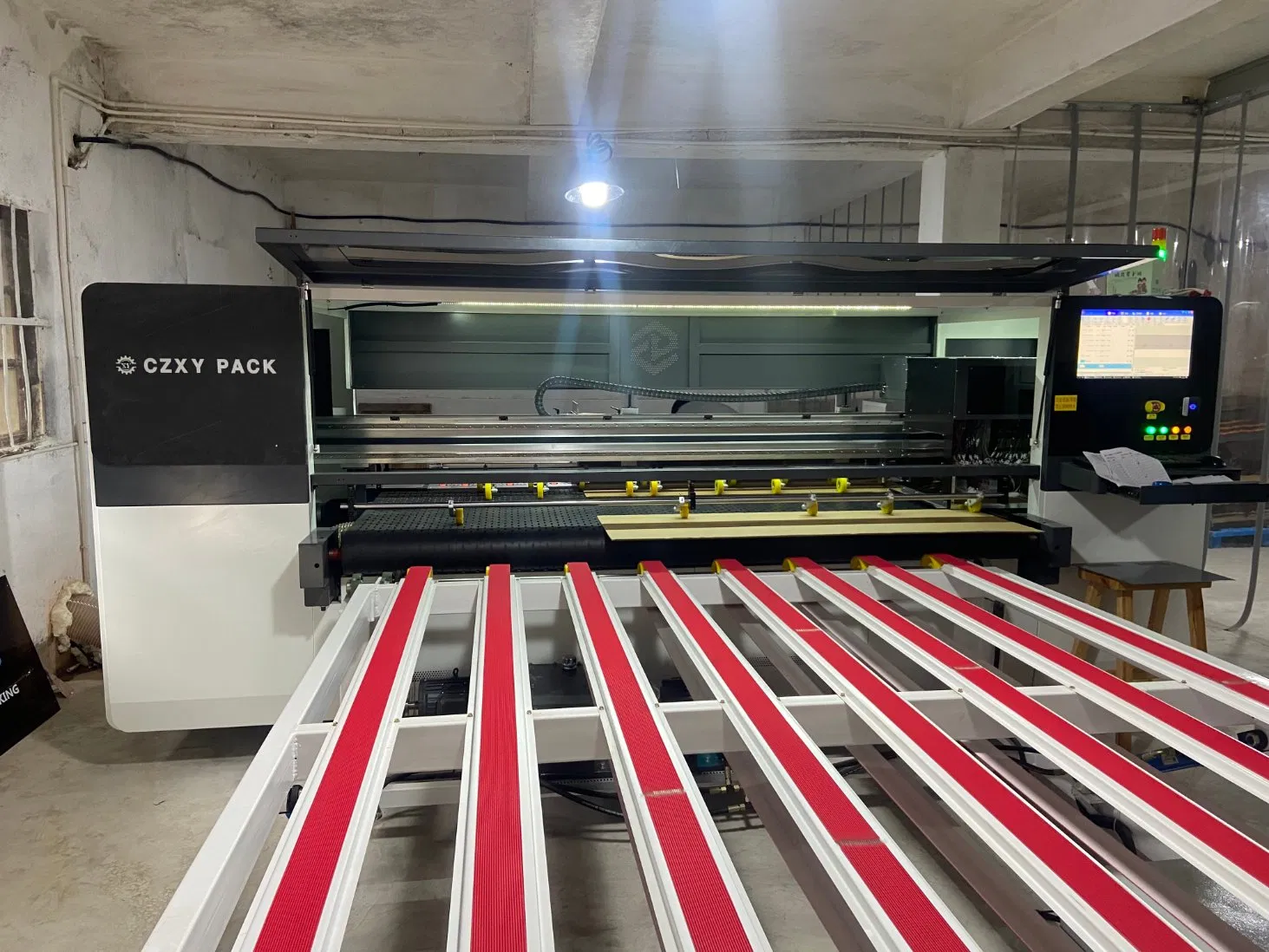

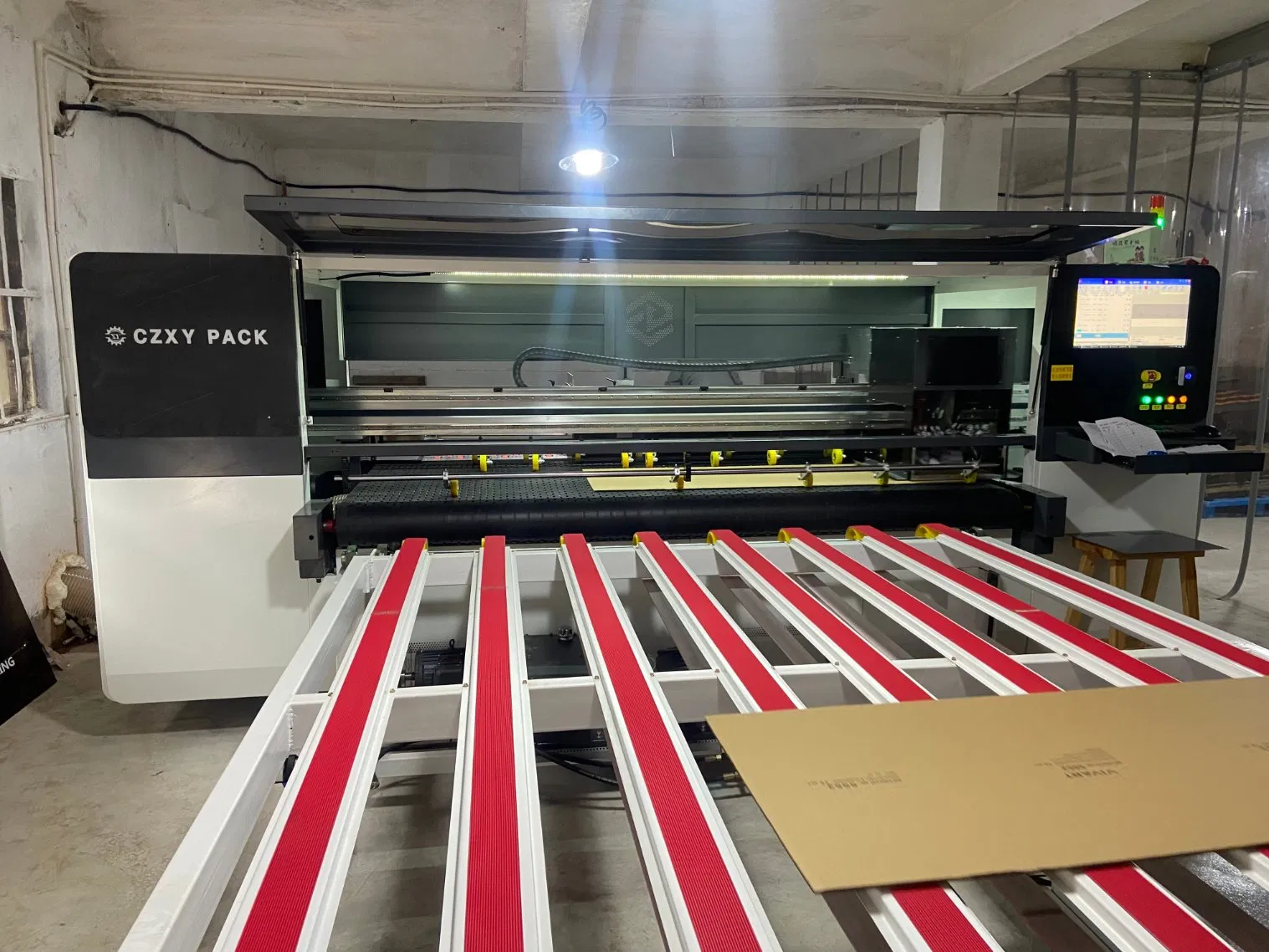

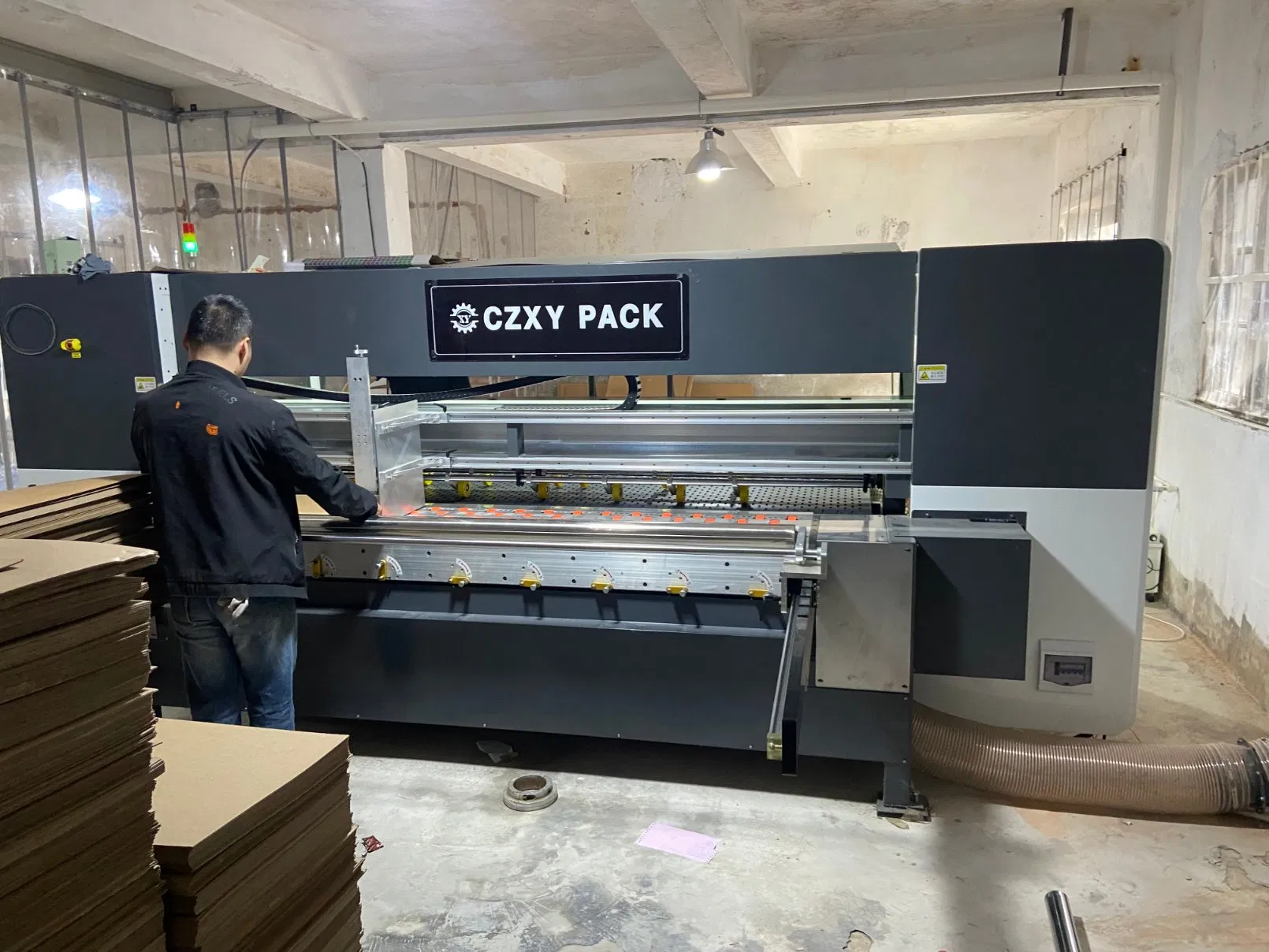

HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine
HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine
HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine
HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine
HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine
1 / 5
HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine
HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine
HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine
HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine
HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine

HP Printhead Single Pass/ Multipass Scanning Digital Inkjet Press Printing Machine

Customization: Available
After-sales Service: 24 Hours
Warranty: One Year
Send Inquiry

Product Description

Scanning Multi-pass Digital Printing Machine

This scanning multi-pass digital printing machine for corrugated boxes utilizes advanced digital inkjet printing technology with special water-based ink. It requires no plate making, offering an environmental protection solution that is both fast and efficient. The machine features an automatic leading edge servo paper feed system, with a printing width reaching up to 2500mm and unlimited length capabilities.

Basic Specifications
Model
2500
Printing Accuracy
1200*600 DPI
Transport Package
Plastic
Dimensions
4m * 2m * 2m
Origin
China

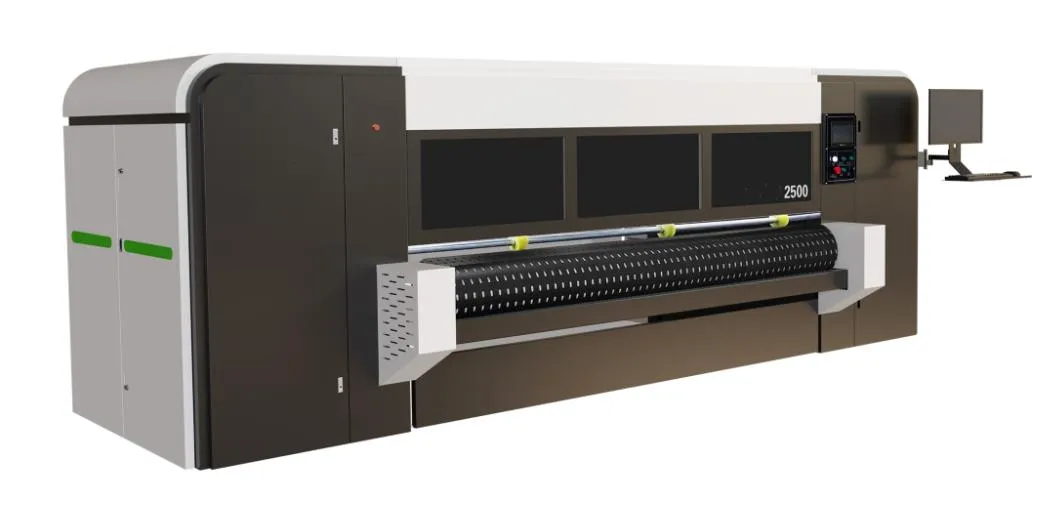

Digital Inkjet Press Printing Machine
Equipment Features
⚙️
Advanced Transmission & Suction The entire machine adopts full adsorption and full servo transmission mode. The paper feeding section uses a fully automatic leading edge structure. The printing platform utilizes a specially designed high-strength industrial conveyor belt for high wear resistance and long service life.
🚀
High Speed & Efficiency Designed for high precision and rapid production, reaching speeds up to 1000 square meters per hour. Hourly production capacity ranges from 1 to 1000 sheets, making it ideal for personalized and customized small to medium-sized orders.
💻
Intelligent Software Control Easy-to-operate software with strong functionality. It supports ERP integration, QR code scanning, paperless data transmission, queue printing, and variable data processing.

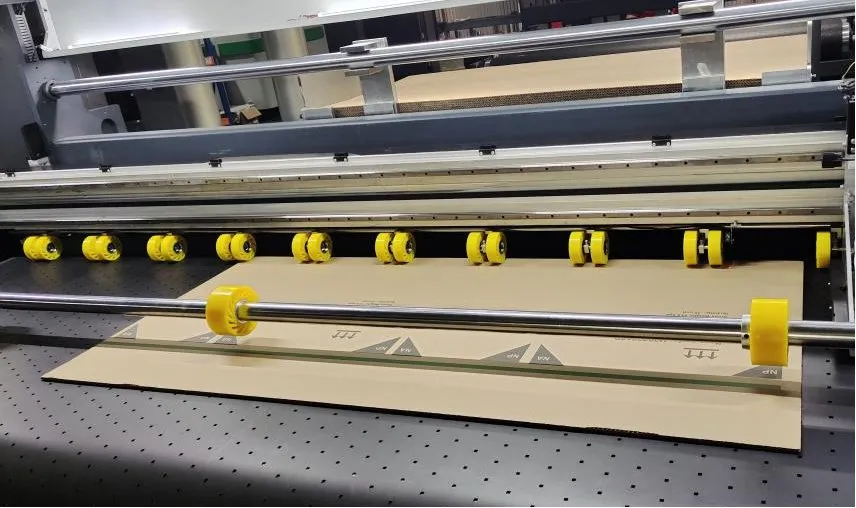

Printing Machine Detail 1
Printing Machine Detail 2
Technical Parameters
Machine Specifications
ModelDP2500
Printhead CategoryEpson I3200-A1
Printhead Quantity16 (Single brush width approx. 520mm)
RIP SoftwareProfessional RIP Software
Printing Speed1-1700 square meters per hour
Output Resolution360*600 DPI (1 Pass) / 360*1200 DPI (2 Pass)
Ink Supply SystemAutomatic continuous ink feeding
Ink Color4 colors: C+M+Y+K (Cyan, Magenta, Yellow, Black)
File FormatJPG, PDF, TIF
Max Feeding SizeW 2500mm * L (Unlimited)
Media Thickness1.5mm - 20mm
Application AreaWhite cardboard, Kraft cardboard
Feeding SystemAuto leading edge feeding with full adsorption transmission
Power ConsumptionOperating power approx. 12KW; AC380 ± 10%, 50-60Hz
Machine Weight4000KG
Overall Dimension4100 * 5300 * 2000 (mm)

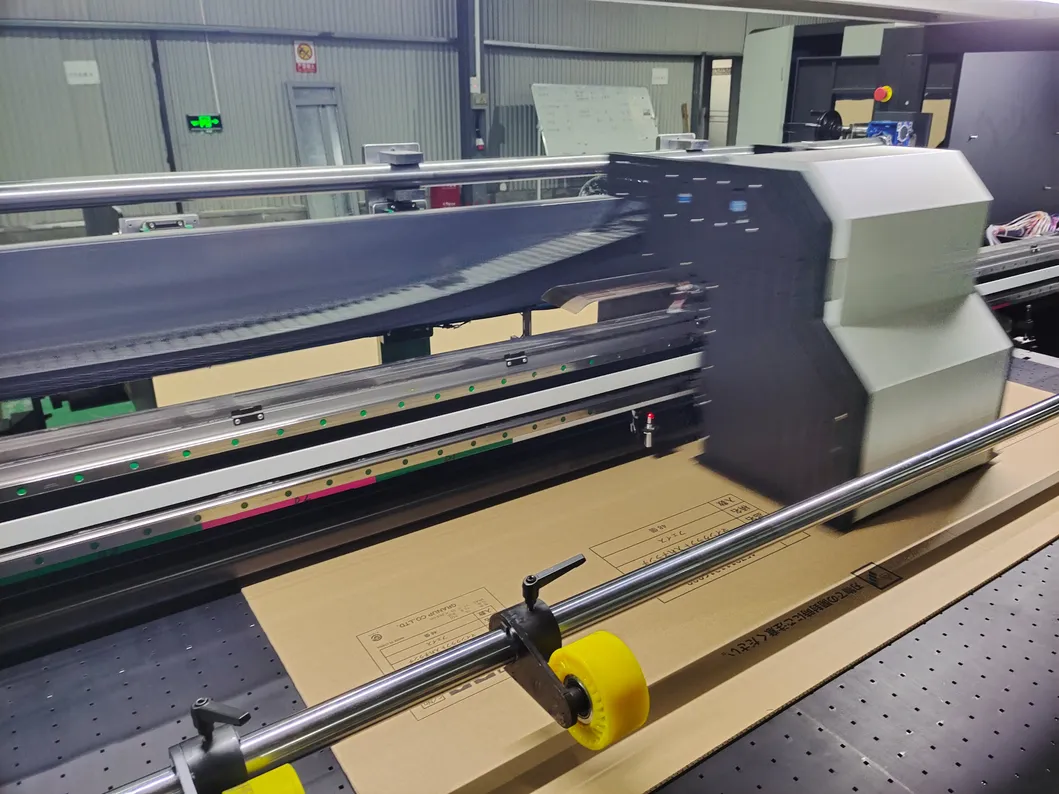

Machine Overview

Frequently Asked Questions

What materials can this machine print on?
The machine is specifically designed for white cardboard and Kraft cardboard, commonly used in corrugated box production.
What is the maximum production speed?
The equipment can achieve a printing speed of 1 to 1700 square meters per hour, depending on the pass settings.
Does it require printing plates?
No, this is a digital inkjet printer that requires no plate making, which significantly reduces setup time and costs for small orders.
What is the range of media thickness supported?
The machine supports materials with a thickness ranging from 1.5mm up to 20mm.
Can the machine handle variable data like QR codes?
Yes, the integrated software supports variable data, QR code scanning, and paperless data transmission for smart manufacturing.
What are the environmental benefits of this machine?
It uses special water-based inks and digital technology, which eliminates the need for traditional plate chemicals and reduces waste.
