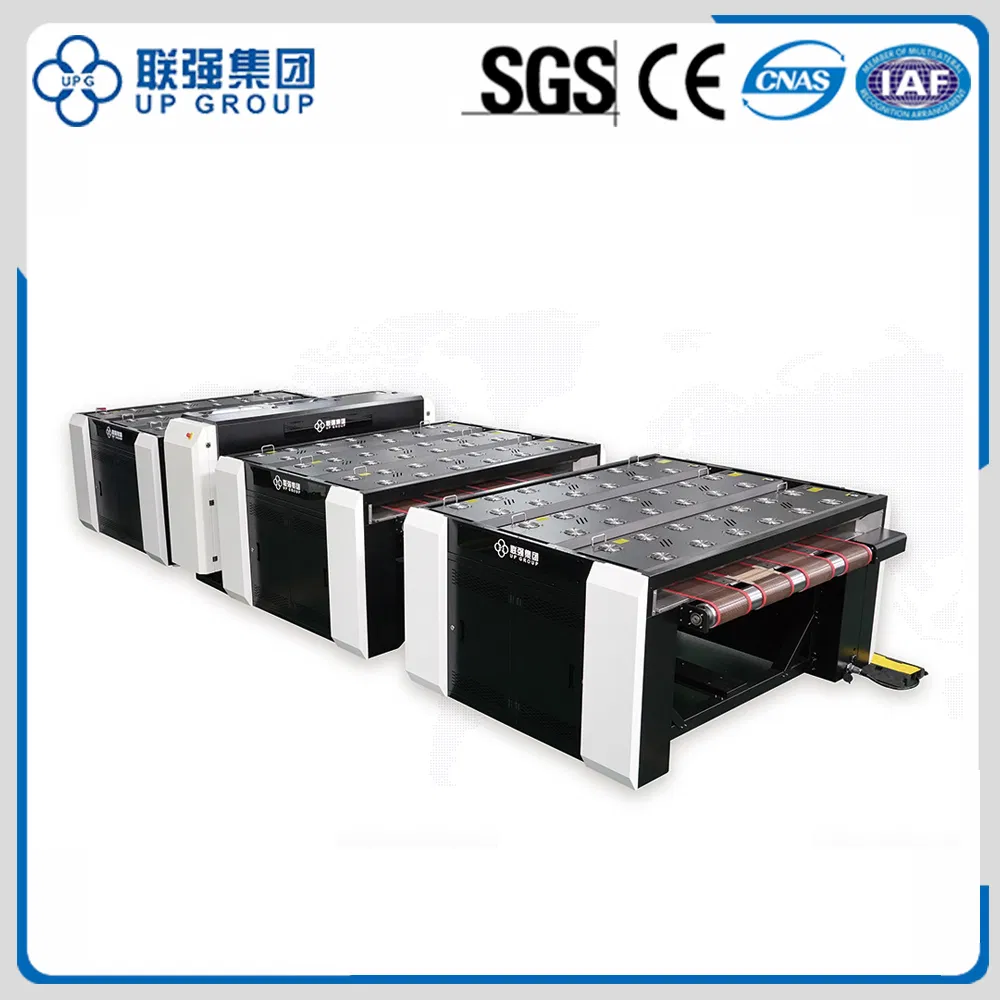

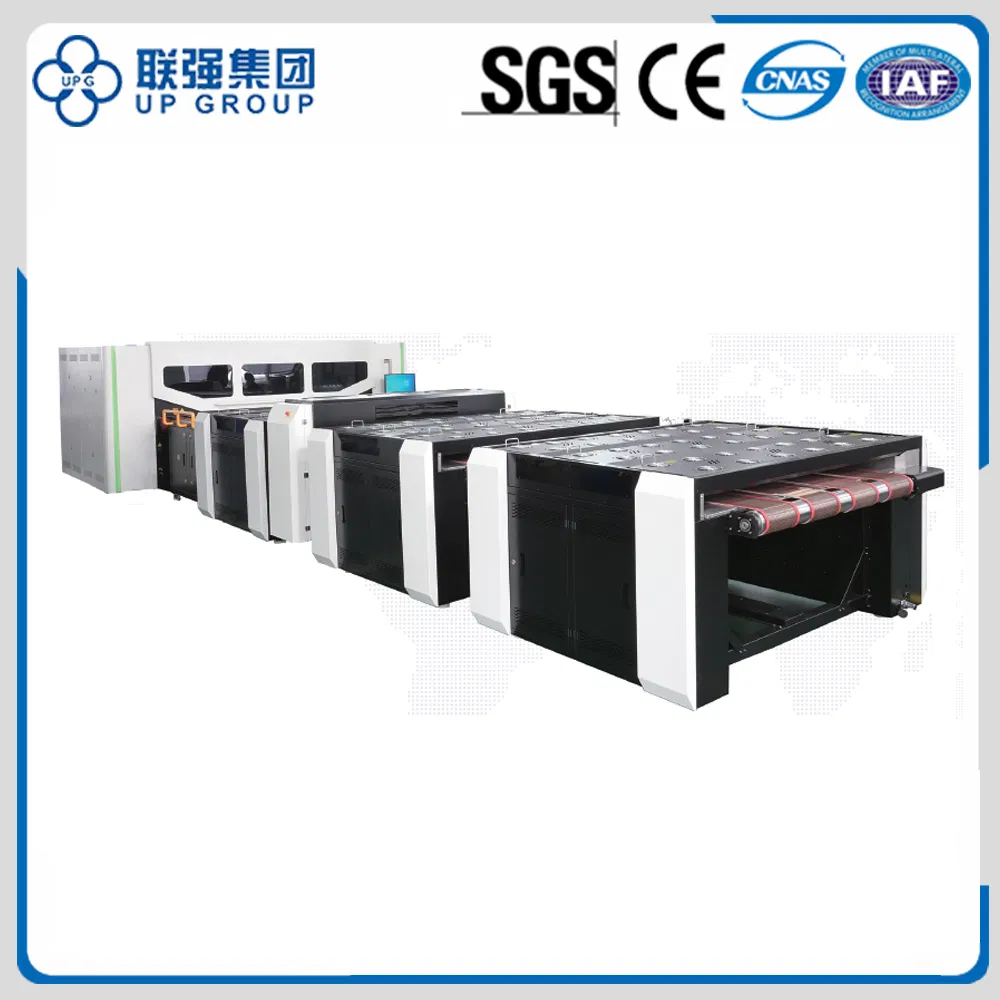

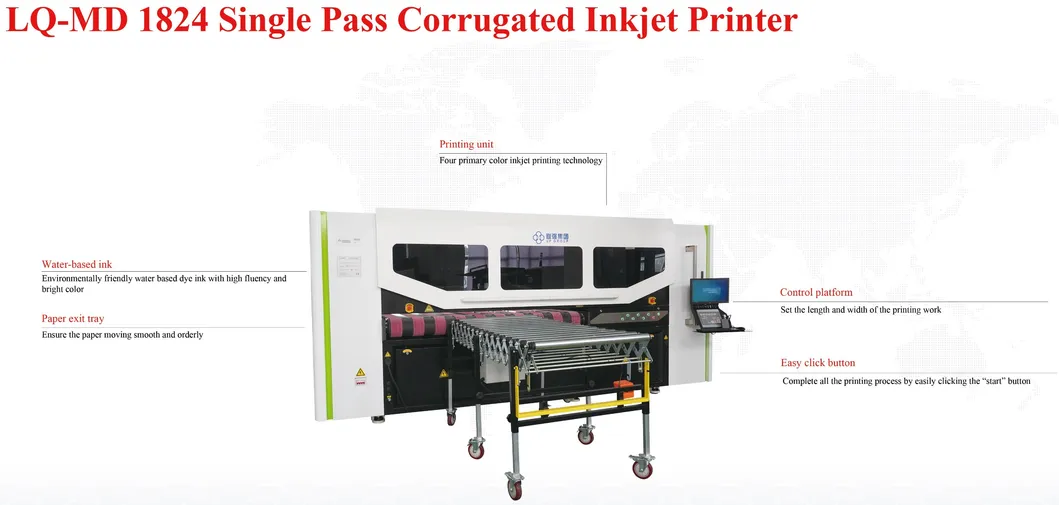

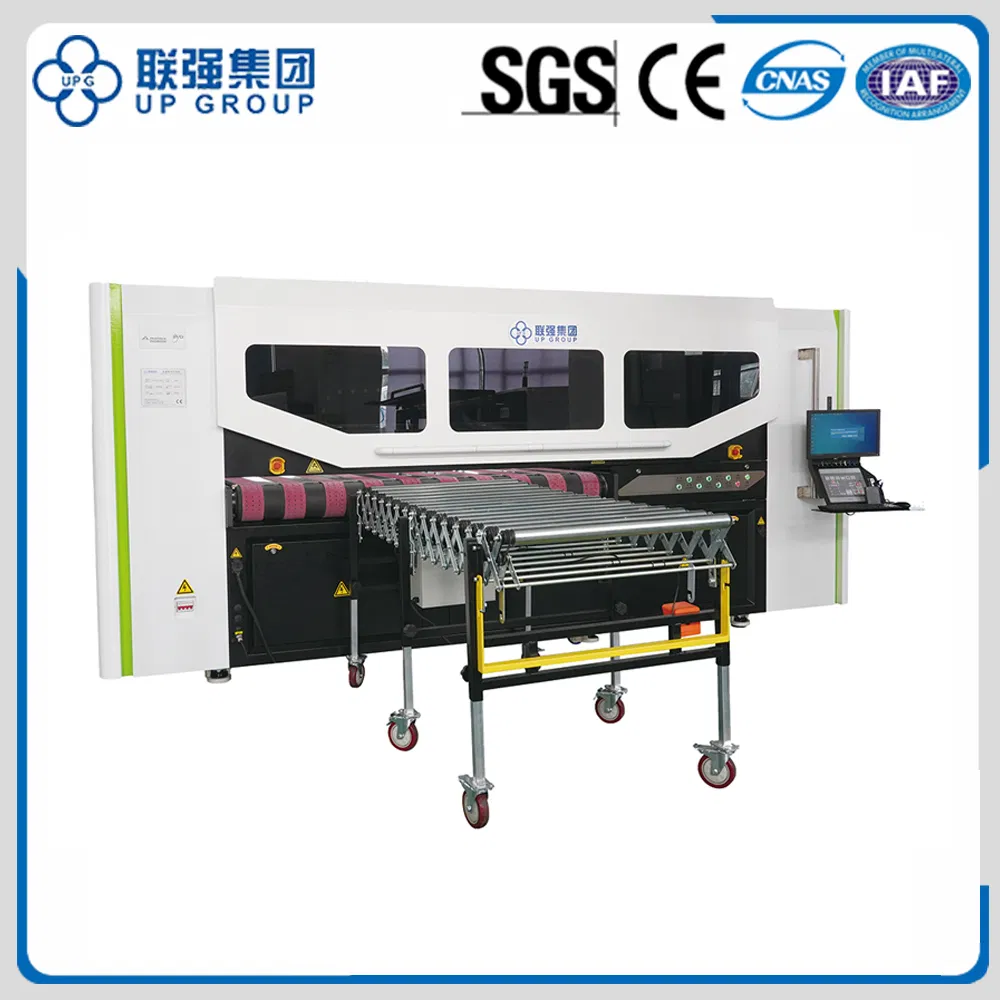

LQ-MD1800 series of Single pass printer is a high speed plateless printer with Epson industrial AlI-MEMS printhead. With 1800mm feeding width, 800mm printing width and unlimited printing length, this series of printer can meet the needs of most printing applications.
The printer uses four primary color inkjet printing technology which doesn't need washing machine. One-click cleaning system can finish printheads maintenance after each boot up, which not only ensures printing quality, but also effectively extends the service life of the printheads.
Using environmentally friendly water based dye ink with high fluency and bright color, optional pigment ink has strong water resistance, high UV resistance and etc. The speed of Singlepass high speed printer is up to 1.5m/s that can meet the mass production order requirement. The machine adopts all computer control to output the picture with no plates.
| Model | LQ-MD 1816 | LQ-MD 1818 | LQ-MD 1824 |
|---|---|---|---|
| Rip software | Maintop | ||
| Picture format | TIFF, JPG, PDF, PNG | ||
| Printhead | EPSON Industrial ALL-MEMS Print Head | ||
| No.s of printhead | 16 | 18 | 24 |
| Ink type and color | CMYK water based ink | ||
| Max. printing width | 533mm | 600mm | 800mm |
| Media thickness | 0.5-20mm | ||
| Max. printing speed | 1.5m/s (300×600 DPI) / 0.8m/s (600×600 DPI) | ||
| Max. feeding width | Standard 1800mm | ||
| Operating system | Windows 7 or Later Version | ||
| Total power | AC220V, 50-60Hz | ||
| Printer weight | 2500kg | ||
Products have been exported to more than 80 countries including Thailand, Indonesia, Singapore, Malaysia, Japan, Korea, Vietnam, India, Saudi Arabia, Germany, Italy, Spain, Russia, USA, Canada, Brazil, and many others. We maintain over 46 stable distributors and partners globally for many years.
Pre-sales Service: We provide comprehensive information and materials to support business development. Samples for printing and packaging are available upon request.
In-sales Service: Delivery time for ordinary equipment is 30-45 days, while special or large-scale equipment typically requires 60-90 days.
After-sales Service: Quality guarantee period is 13 months. We provide installation and training support. During the warranty period, manufacturing failures are repaired or replaced free of charge.
Customized Solutions: We can design special products according to specific requirements regarding style, structure, performance, and color.
