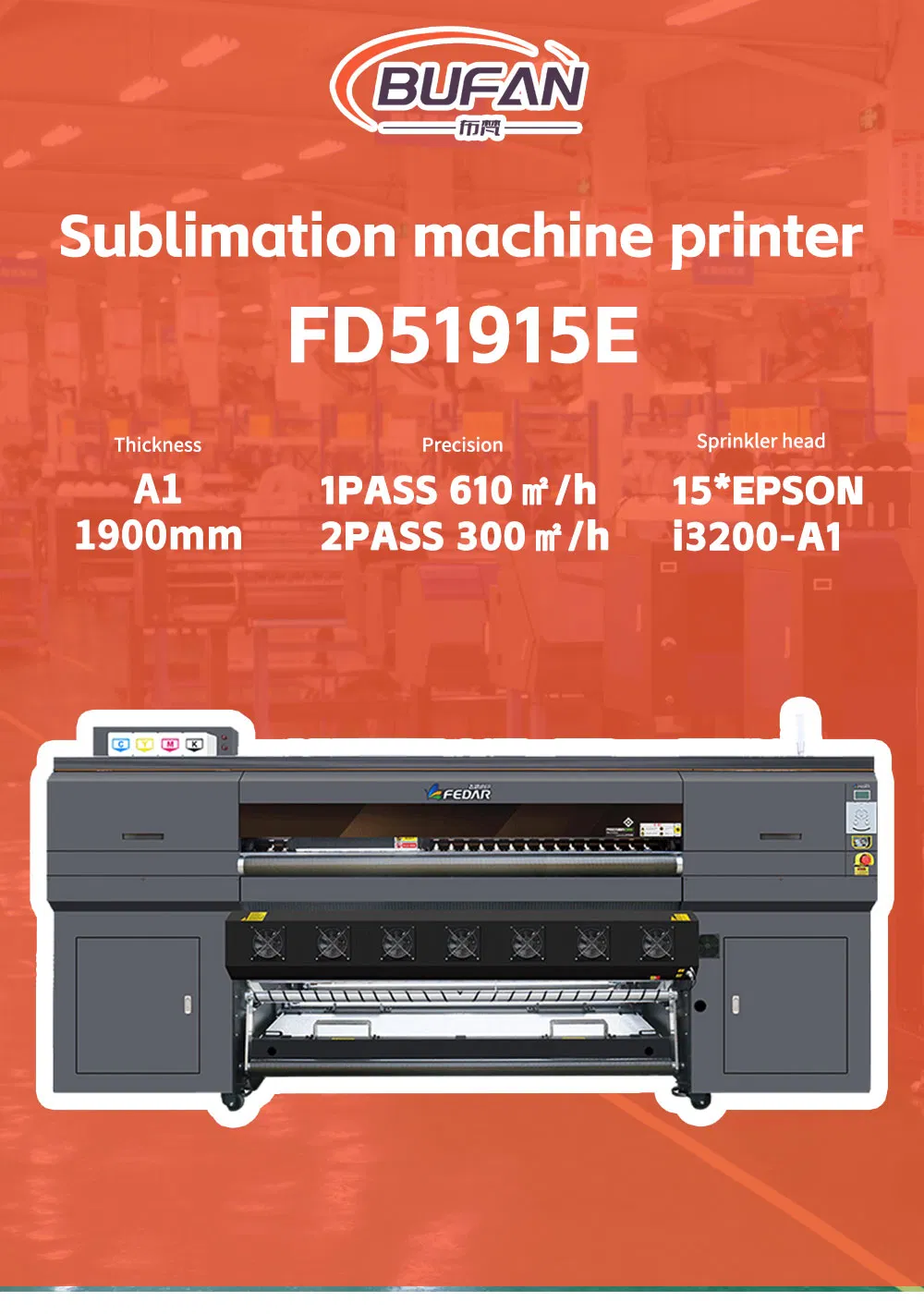

| Model number | FD51915E |

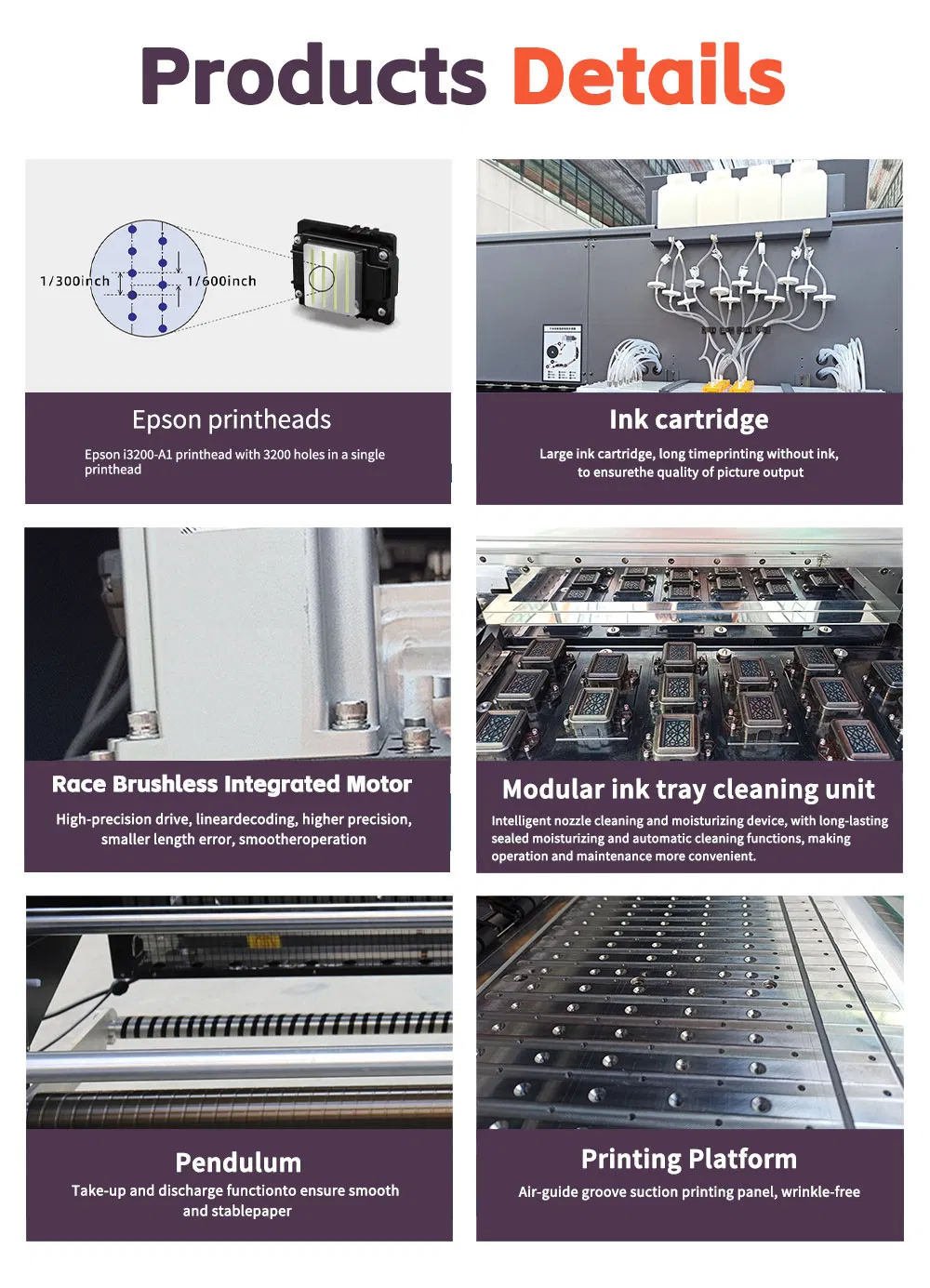

| Printheads | Type: Epson i3200-A1 printhead, Number: 15 Number of nozzles: 3200 Attributes: Automatic cleaning, automatic flash spray moisturizing function |
| Effective width | 1900mm |
| Printing speed | High Speed Mode: 1PASS: 610m²/h, 2PASS: 300m²/h High precision Mode: 1PASS: 430m²/h, 2PASS: 220m²/h |
| Printed material | Thermal transfer paper |
| RIP Software | Supports Maintop 6.1, Photoprint, ONYX, NeoStampa and other software. |
| Inks | Heat sublimation Inks CMYK |
| Moisturizing Mode | Fully sealed for automatic moisturizing and cleaning |
| Computer Configuration | CPU: Intel Quad Core i7 Processor, Hard Disk: 500G or more (SSD recommended), Memory: 8G, System: Win7 64-bit/Win10 64-bit |
| Power | Input Voltage: 210-230VAC, 70A; Total power: 15.5KW; Drying system: 10800W |

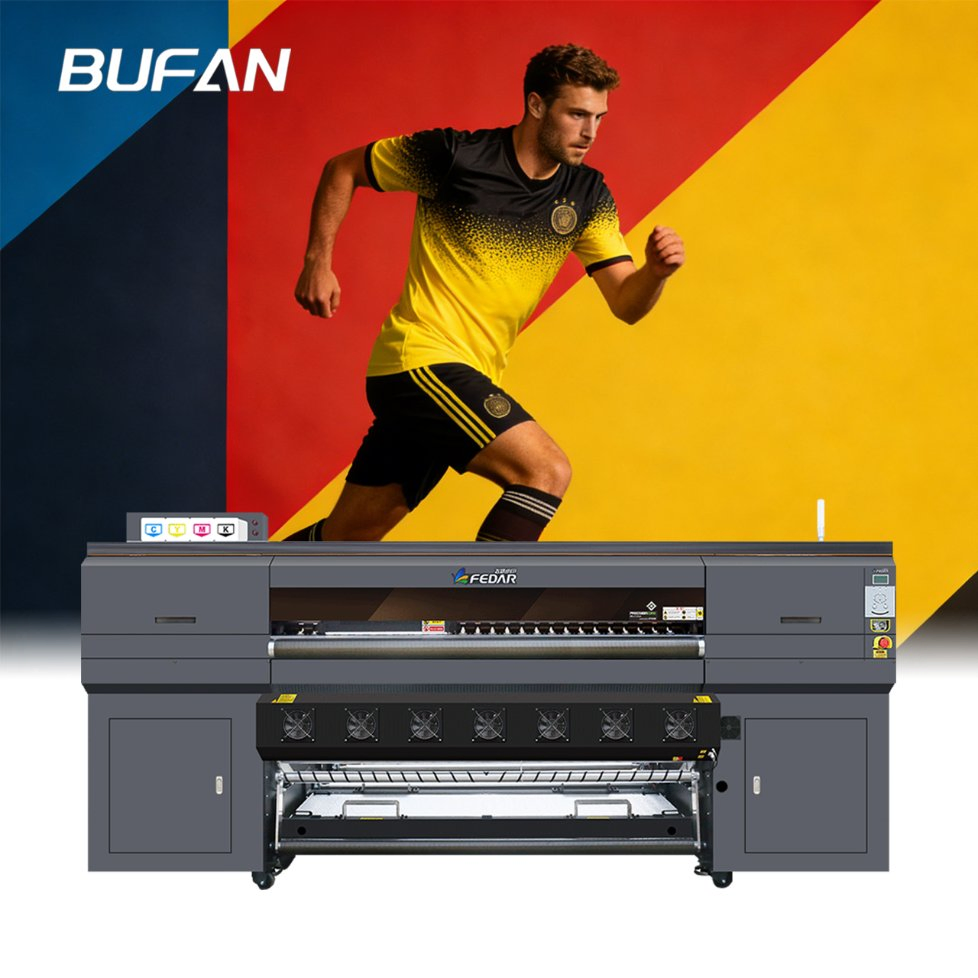

Equipped with 15 Epson printheads to achieve high-speed and high-definition printing that delivers delicate patterns and stable continuous output for industrial mass production. Features a 1900mm super wide print width to fully meet large-format transfer paper printing needs. High-precision technology ensures vivid color restoration and clear pattern transfer.
Comes with an automatic printhead moisturizing and cleaning system that reduces manual maintenance and extends service life. Built-in real-time ink level and waste ink alarm systems avoid sudden production interruption. Integrates an intelligent fast-drying system to eliminate smudging.
Adopts industrial-grade heavy-duty body structure to support 24-hour non-stop stable operation. Full compatibility with mainstream sublimation inks and RIP software. Equipped with high-speed USB3.0 data transmission and wear-resistant industrial-grade guide rails for long-term stability.
Adapts to various thicknesses of transfer paper without frequent parameter adjustment, realizing multi-specification production and improving order adaptation capacity.
