| Model NO. | GZM-1000L |
| Type | Weighing-type Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid |
| Filling Valve Head | Single-Head |
| Dosing Device | Drum Barrel |
| Filling Principle | Pressure |
| Structure | Linear |
| Packaging | Barrel |
| Core Components | Pressure Vessels, Pumps, PLCs, Gears, Bearings |
| Voltage | 220V 50/60Hz |
| Filling Accuracy | 0.2% |
| Filling Mouth Material | SUS304/SUS316/PTFE |
| Optional | ATEX / Ex-Proof Model Available Upon Request |

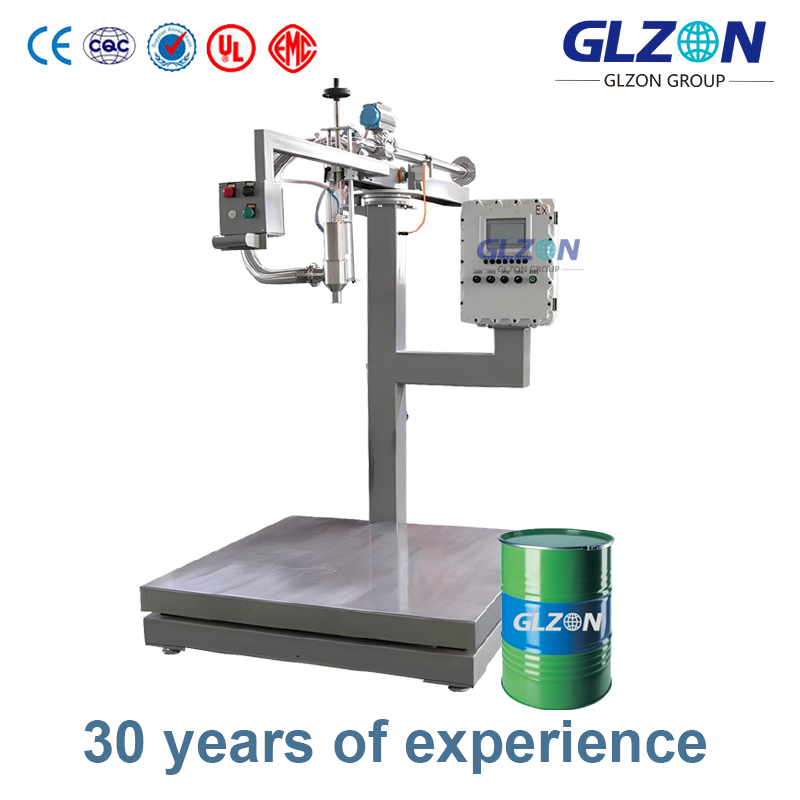

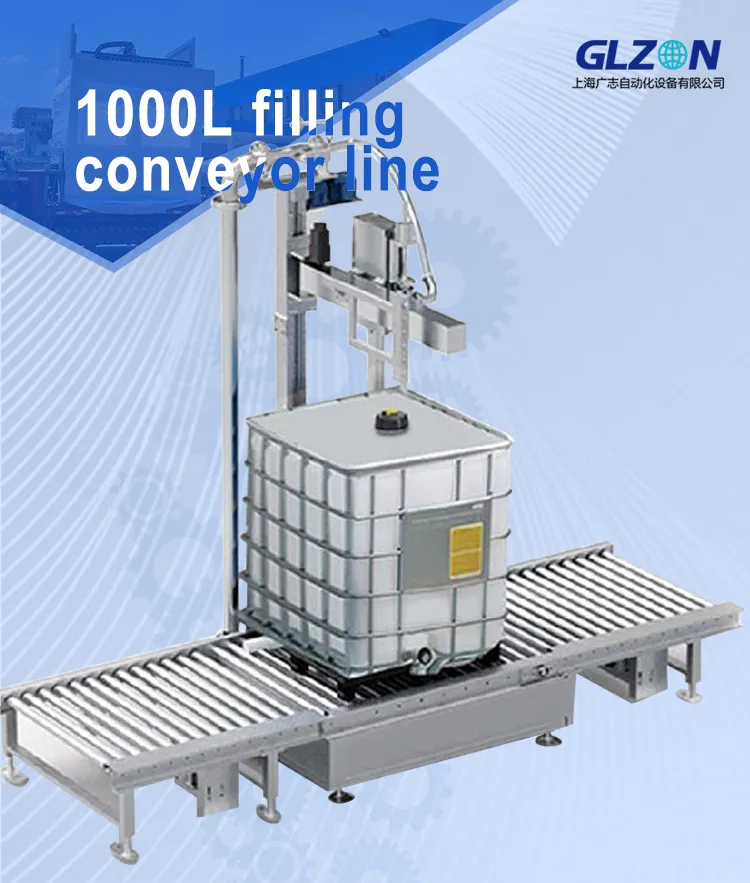

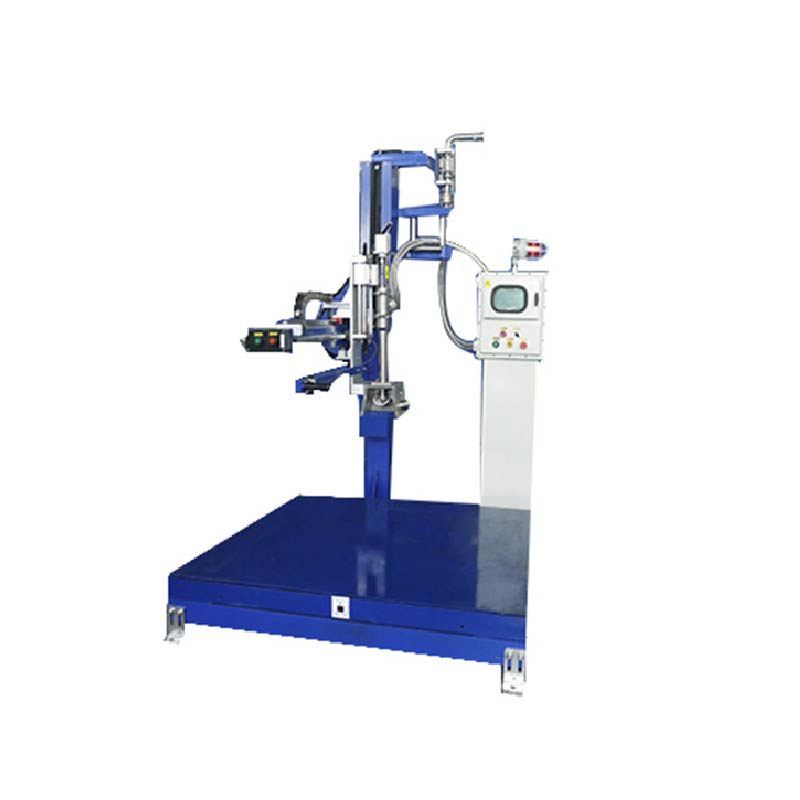

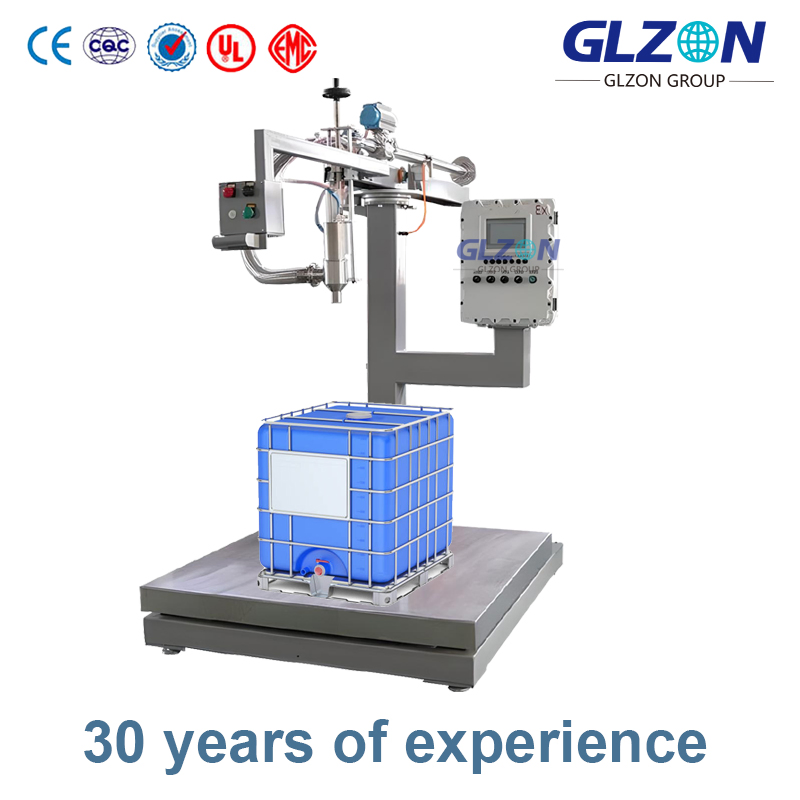

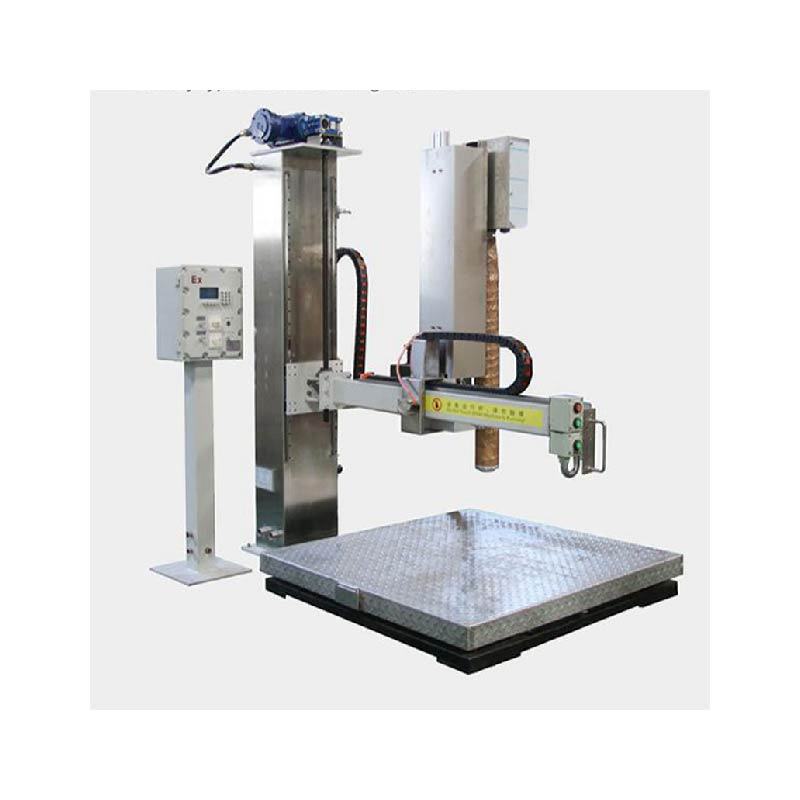

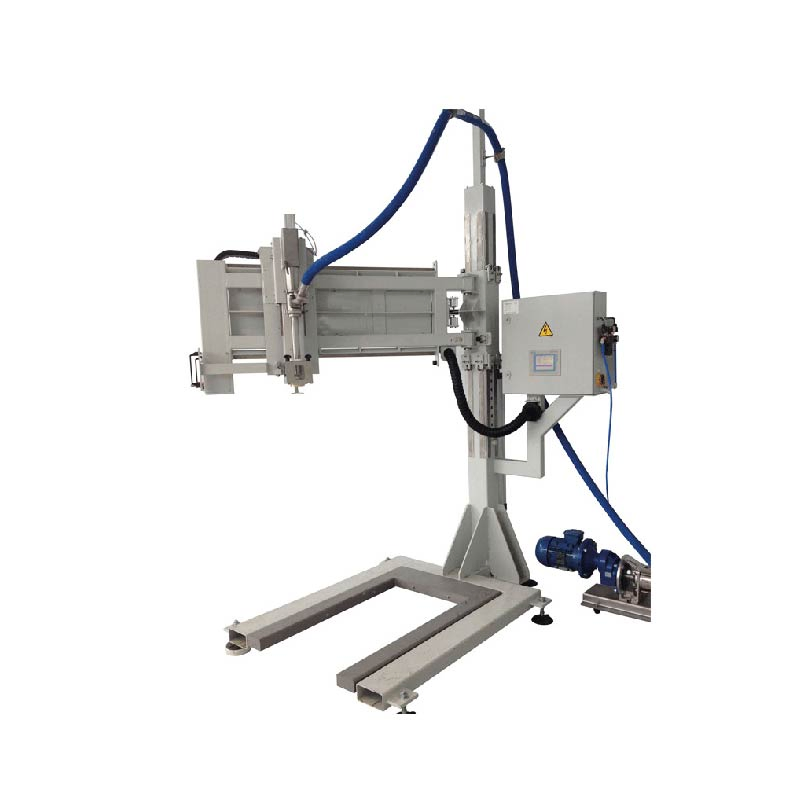

The high-precision filling system is designed for 10L to 1000L containers, providing automated solutions for industrial liquid packaging. It combines weighing and pressure filling principles to ensure maximum accuracy.
| Parameter Item | Specifications |
|---|---|
| Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids |
| Filling range(L) | 100-1000L |
| Power supply | AC220V 50/60Hz |
| Air pressure (Mpa) | 0.6-0.8MPA |
| Filling accuracy (%) | ±0.2% |
| Speed (can/hour) | 30-50 barrels (Depending on material flow rate) |
| Structure Material | SUS304 / SUS316 / Carbon Steel / PTFE |

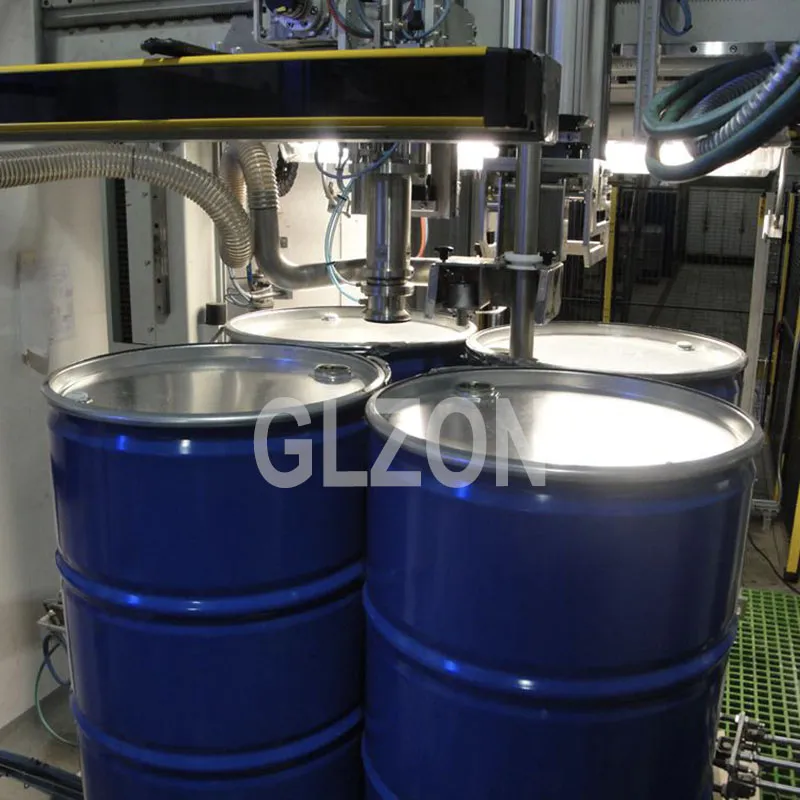

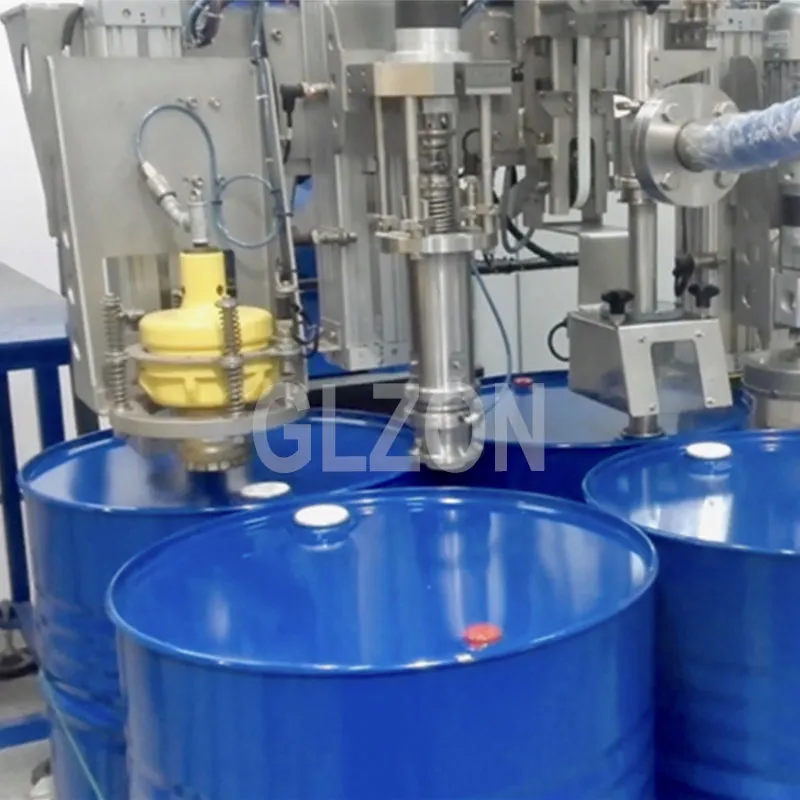

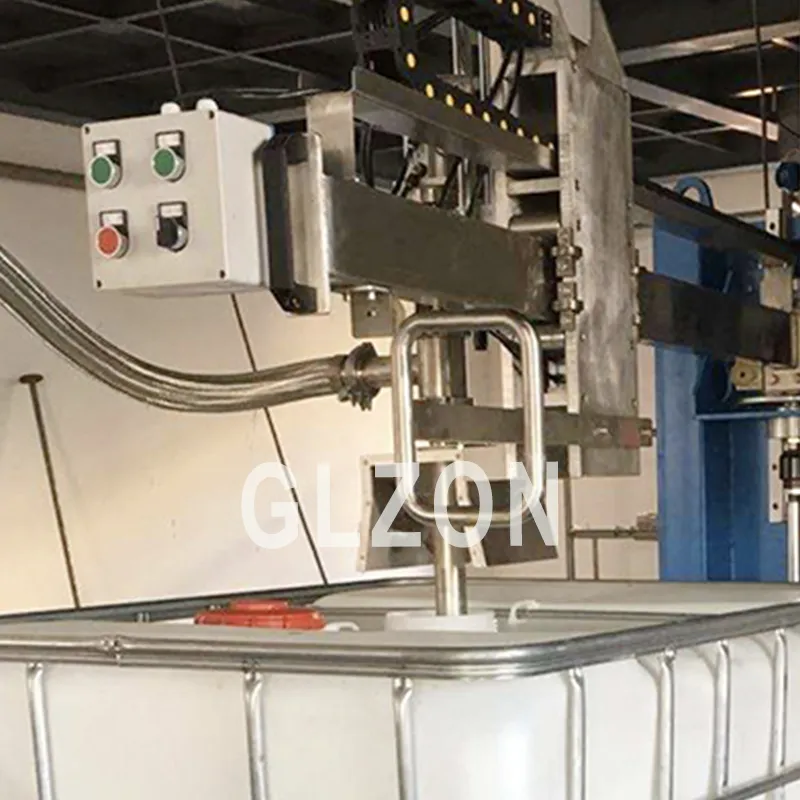

Pneumatic Filling: Features computer weighing, submersible filling, and frequency conversion with three-speed adjustment. The touch screen interface uses C3 level load cells for sampling speeds up to 128 times/second.

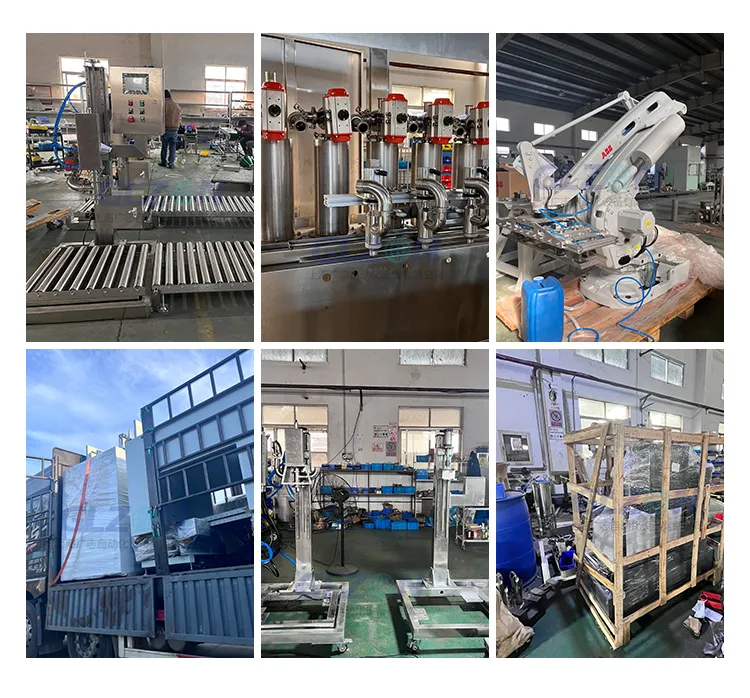

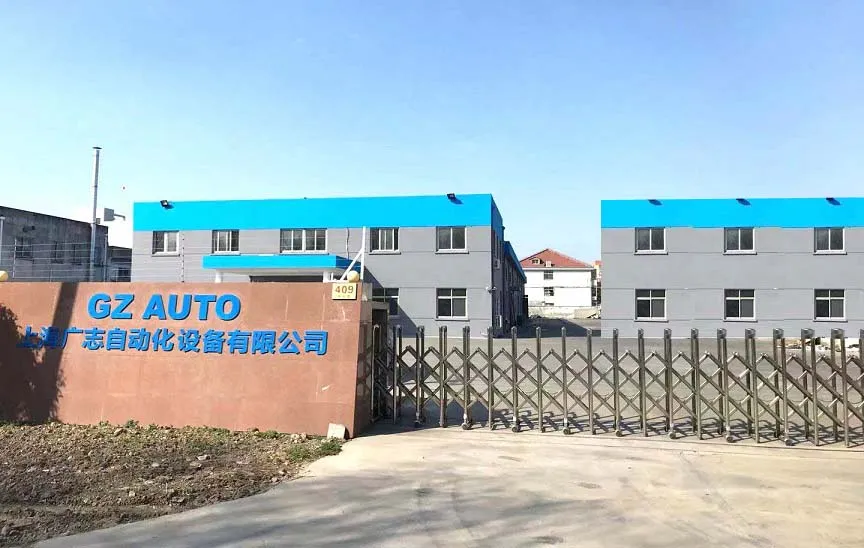

As a domestic high-tech enterprise, the facility is a large-scale equipment manufacturing base certified with ISO9001 and ISO14001 standards. All mechanical equipment is designed to meet high compatibility guidelines.
Note: Product designs and specifications may be updated at any time. The information provided here does not constitute a guarantee or contractual term.
