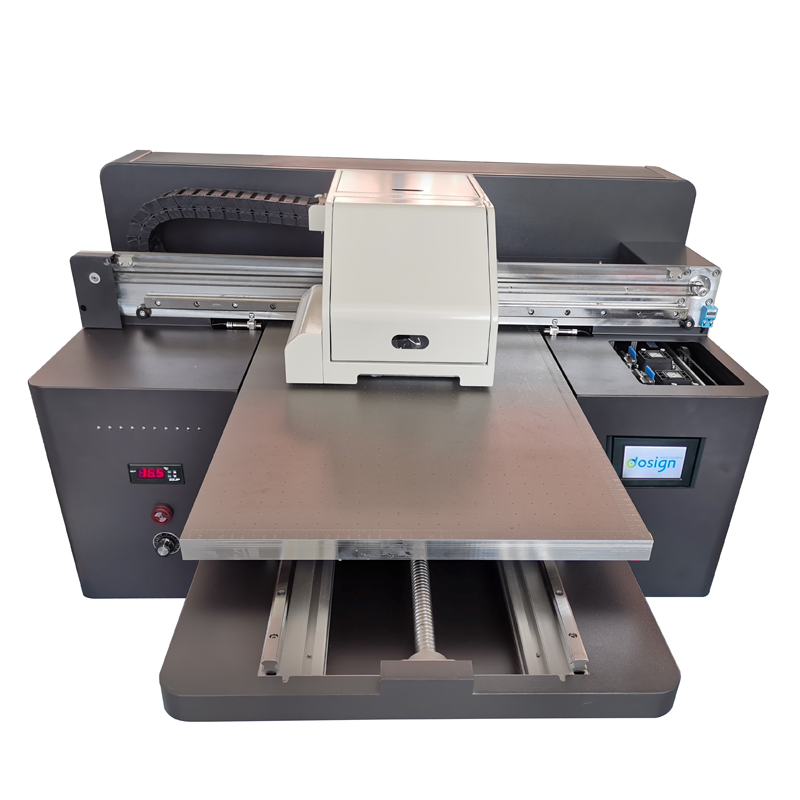

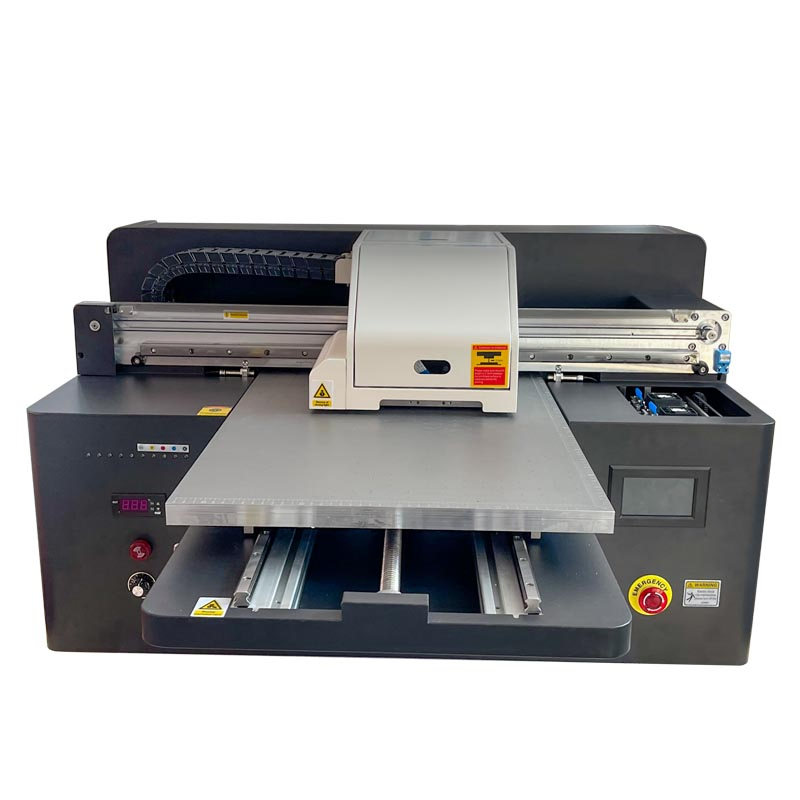

Flatbed 4060 UV Printer A2 Machine 2 Print Head

1 / 5

Flatbed 4060 UV Printer A2 Machine 2 Print Head

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Overview & Basic Info

Model

DS-A2U Plus

Structure

Platen Press

Color & Page

Multi-Colour Printing

Usage

Label Printer, Card Printer

Grade

Automatic

Interface

USB 2.0

Printhead

2 Pieces Dx8 Heads

Ink Type

UV Curable Ink

Printing Size

400*600mm (A2 Size)

Cooling System

Water Circulation Cooling

Media Height

Up to 20cm

Dry System

LED UV Lamp

🛠️ Product Description

The A2 size 4060 flatbed UV printer is a versatile professional machine designed for printing on diverse materials including glass, metal, plastic, acrylic, and ceramics. Featuring vivid color reproduction and high-speed output, it is an ideal choice for entry-level professionals or kiosk operations.

✓

High Performance: Equipped with 2 or 3 TX800 DX8 Printheads, achieving speeds of A4 size in just 50 seconds.

✓

Vacuum Table: Aluminum alloy air vacuum adsorption table ensures materials remain perfectly flat during high-precision printing.

✓

Precision Drive: Utilizes ball screw drives for the Z-axis movement, offering far superior precision compared to traditional belt drives.

✓

Advanced Cooling: Water circulation cooling system extends UV lamp lifespan up to 20,000 hours and ensures stable light output.

✓

3D Effects: Supports simultaneous CMYK, White, and Varnish printing to create stunning 3D embossed textures.

📋 Technical Parameters

Printer Model	A2 UV Printer DS-A2U Plus
Printing Tech	Micro Piezo Technology (2/3 DX8 Heads)
Printing Size	400*600mm (15.7" x 23.6")
Max Resolution	2160dpi
Accepted Height	18cm (7.08")
Printing Speed	720dpi: 50s/A4 \| 1440dpi: 100s/A4
Ink Colors	C, M, Y, K, White, Varnish
OS Support	Windows XP/7/10
Power Consumption	36W / Hour
Machine Dimensions	820mm x 625mm x 430mm

🔍 Detailed Components

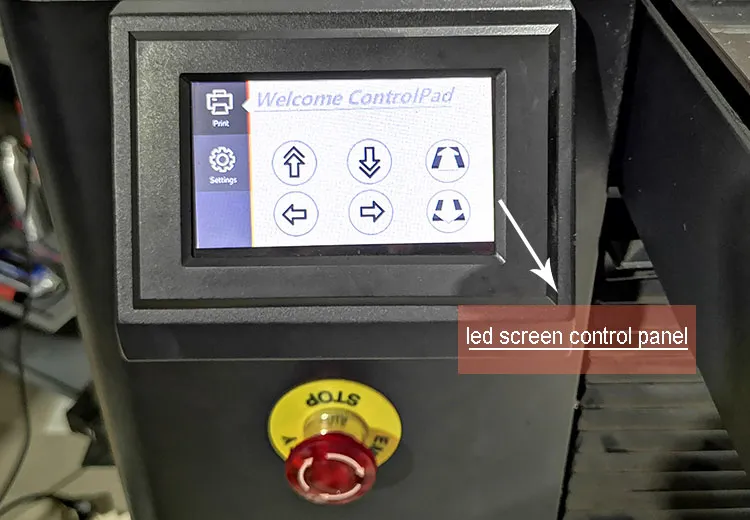

Smart LED Display Control Panel

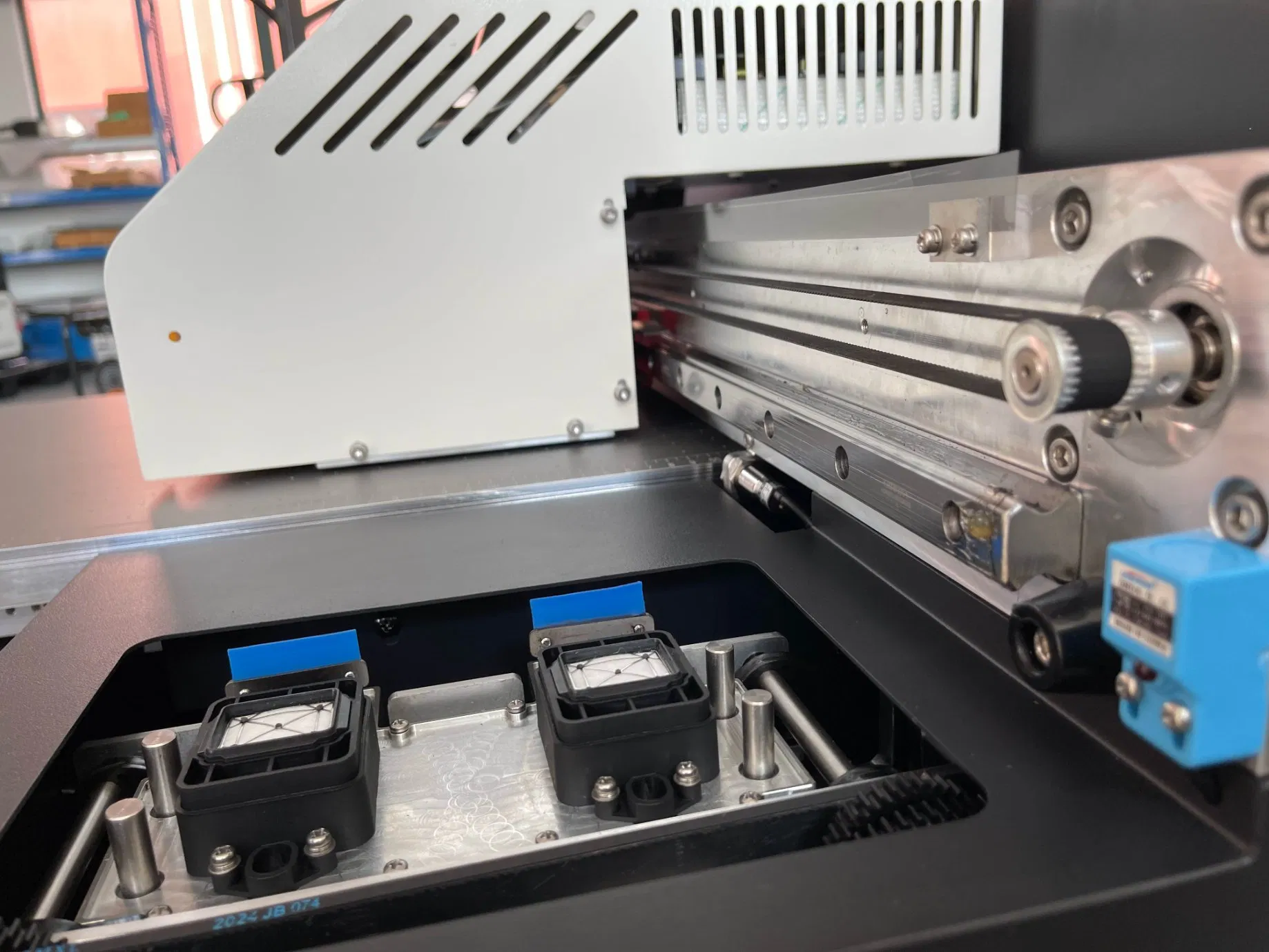

Automatic Lifting & Capping

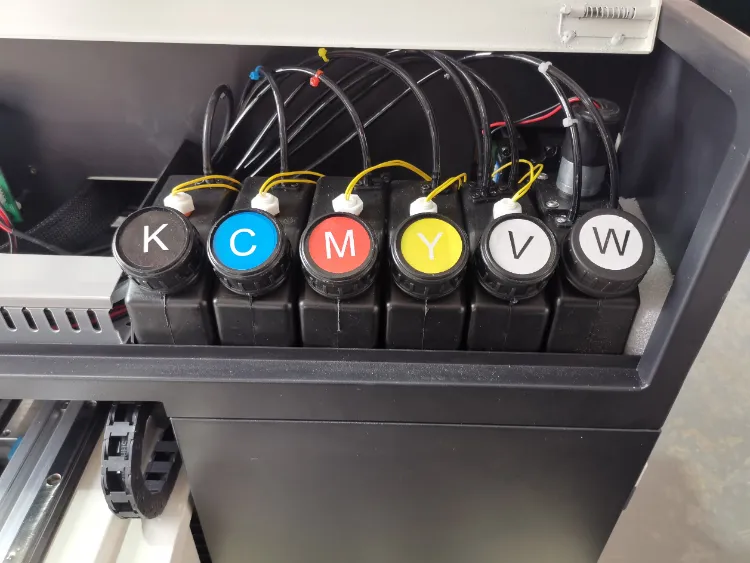

Ink Circulation & Alarm System

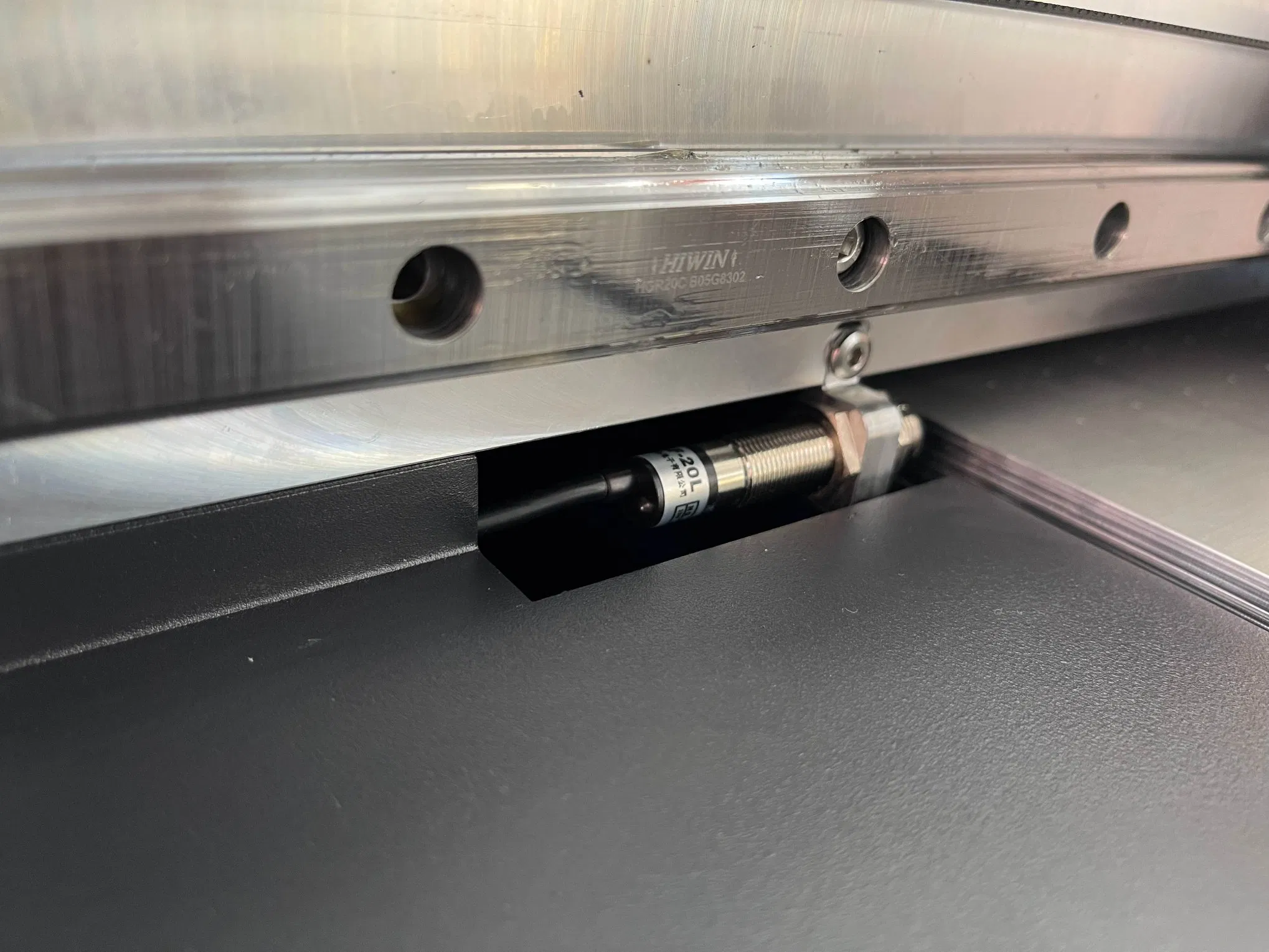

Automatic Media Height Sensor

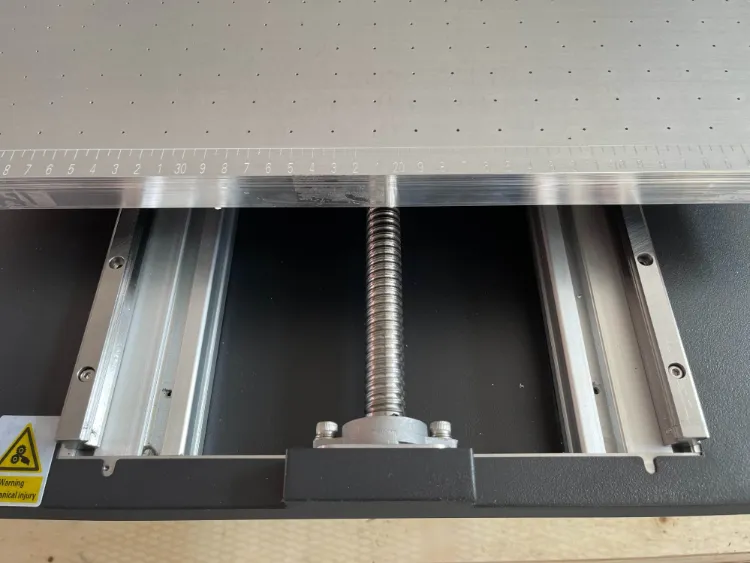

Z-Axis Precision Ball Screw Drive

🎨 Industrial Applications

Frequently Asked Questions

How long is the typical delivery lead time?

Generally, it takes 5 days to manufacture and rigorously test the machine before arranging shipment to ensure optimal performance.

How is the product quality guaranteed?

All products undergo a comprehensive series of quality control tests, including continuous printing tests and mechanical life-cycle evaluations.

What materials can this UV printer handle?

It is compatible with rigid PVC, glass, plastic, leather, rubber, metal, wood, porcelain, acrylic, marble, and even AB crystal stickers or PET films.

What are the available payment terms?

For orders under $1000, 100% advance payment is required. For orders over $1000, we accept a 30% T/T deposit with the balance due before shipment.

Can I request a printing sample?

Yes, we can prepare free printing samples. You may also send specific materials to us for testing; however, courier fees are the responsibility of the customer.

What software is compatible with this printer?

The machine works seamlessly with Maintop, CorelDraw, and Illustrator. We provide free RIP software that allows printing all colors in a single pass.
