Ecoographix Automatic Scanning Inkjet Corrugated Carton Printing Machine

Customization:	Available
Plate:	Lithography Printing
Structure:	Platen Press

i

Basic Specifications

Model NO.

ECOO-FHSJG1050

Color & Page

Multi-Colour Printing Press

Usage

Cardboard/Corrugated Board Printing

Automatic Grade

Automatic

Printing Speed

600 Sqm Per Hour

Printing Head

Industrial Inkjet Kyocera Print Heads

Ink Type

Waterbased Ink

Max Board Width

2400 mm

Resolution

600*300 - 600*1200 dpi

Input Format

JPEG, Tiff, Pdf, Ai, CDR

Capacity

200 Units Per Year

HS Code

844313

★

Product Introduction

Both Spot And Overall Coating Machine - FHSGJ1050

Automatic Scanning Inkjet Corrugated Carton Printing Machine

The FHSJG1050 is a high-performance coating equipment integrating advanced technologies for both spot and overall coating. It offers high working speeds, exceptional gloss, and uniform coating layers, making it ideal for packaging decoration and book covers.

Dual drying systems: Supports both UV and water-based coating.
Versatile substrates: Works on Paper/Cardboard (80-400gsm) and PET/PVC/OPP (0.15mm-0.50mm).
High Precision: Features an Anilox design for accurate varnish application.
Operational flexibility: Allows for both overall and selective spot varnishing.

⚙

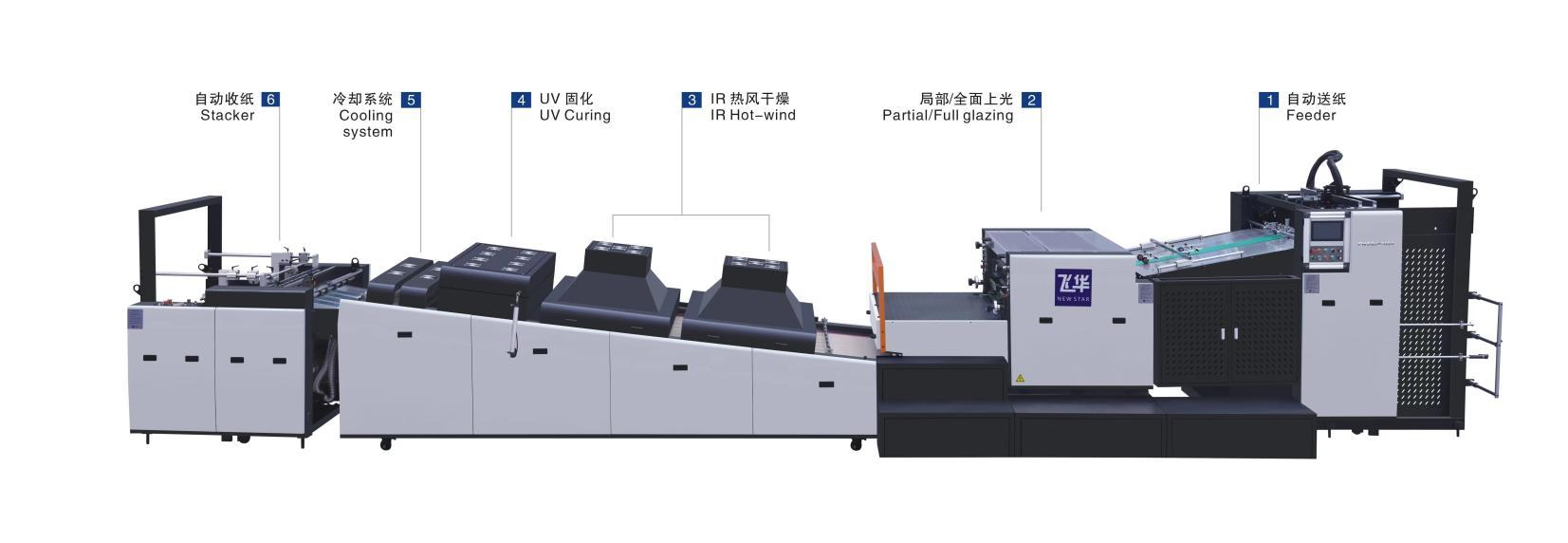

Key Sections & Performance

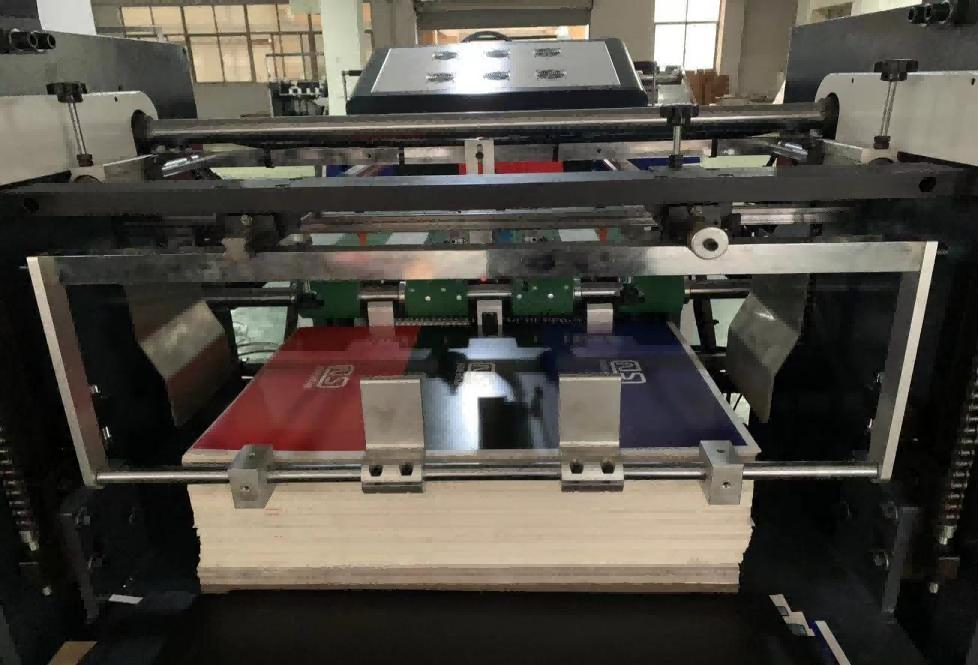

1. Automatic Feeding Section

Adopts a high-speed offset press feeder capable of 12,000 sheets per hour, ensuring fast and stable production flow.

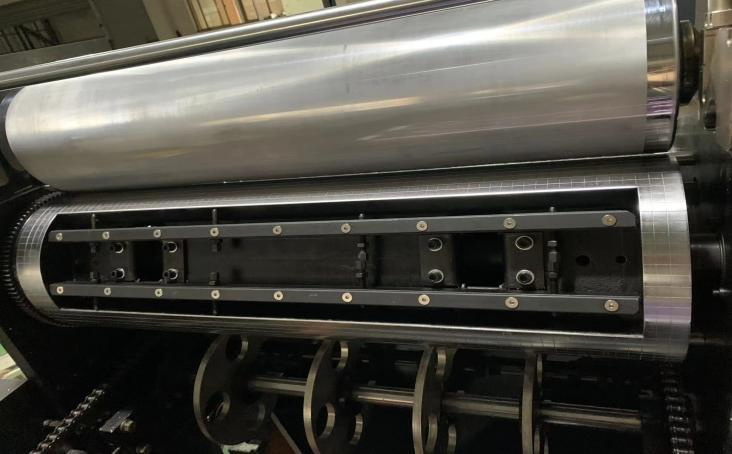

2. Anilox Coating Section

Utilizes anilox rollers (80-120 mesh) for uniform varnish supply. Users can adjust varnish types to achieve 3-10 grams of coating per square meter.

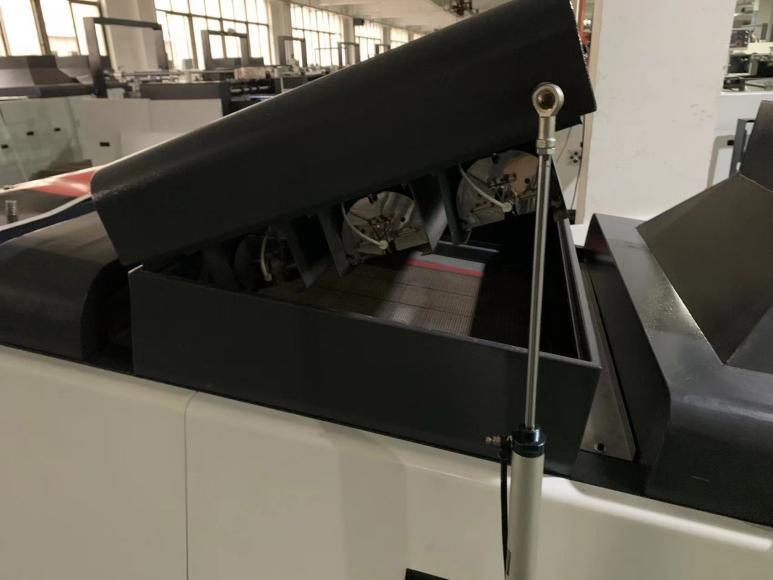

3. Advanced Drying System

Equipped with 18 IR lamps and 3 UV lamps. Designed for longevity with IR lamps lasting up to 2 years and UV lamps providing 800-1000 hours of service.

4. Automatic Delivery System

Features a pneumatic paper flap function with customizable beat frequency and timing to ensure perfectly neat stacking of finished products.

✓

Quality Certification

?

Frequently Asked Questions

1. What are the primary products available?

We specialize in a wide range of printing machines and consumables, covering digital and offset printing, prepress, pressroom, and post-press equipment specifically for packaging and book printing.

2. What kind of substrates can the coating machine handle?

The machine is capable of varnishing paper and cardboard ranging from 80-400gsm, as well as synthetic materials like PET, PVC, and OPP with thicknesses between 0.15mm and 0.50mm.

3. What is the standard warranty period?

We provide a one-year warranty for the machine and the printing head if our specified inks are used. If third-party inks are used, the one-year warranty applies to the machine only.

4. What is the typical lead time for an order?

The standard lead time is usually 30 days, although we strive to meet specific client demands whenever possible.

5. Is technical support available for installation?

Yes, professional engineers are available to assist with installation and provide necessary operational training. We also offer 7x24 hour remote technical support for any inquiries.

6. Can you provide the necessary software for the machines?

Yes, we provide copyrighted third-party RIP software and other necessary digital tools required for machine operation.
