| Parameter | Details |
|---|---|
| Model NO. | GZM_200L |
| Type | Weighing-type Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid |
| Filling Valve Head | Single-Head |
| Dosing Device | Drum Barrel |
| Filling Principle | Pressure |
| Application | Food, Beverages, Daily Necessities, Chemicals |
| Voltage | 220V 50/60Hz |
| Filling Accuracy | 0.2% |
| Specification | 3900*1000*1700mm |

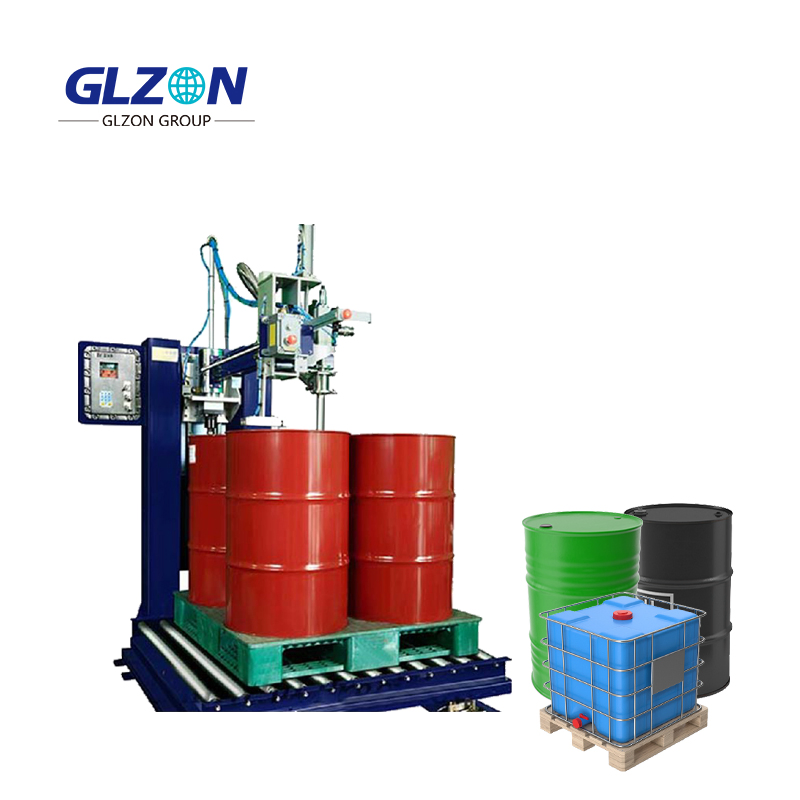

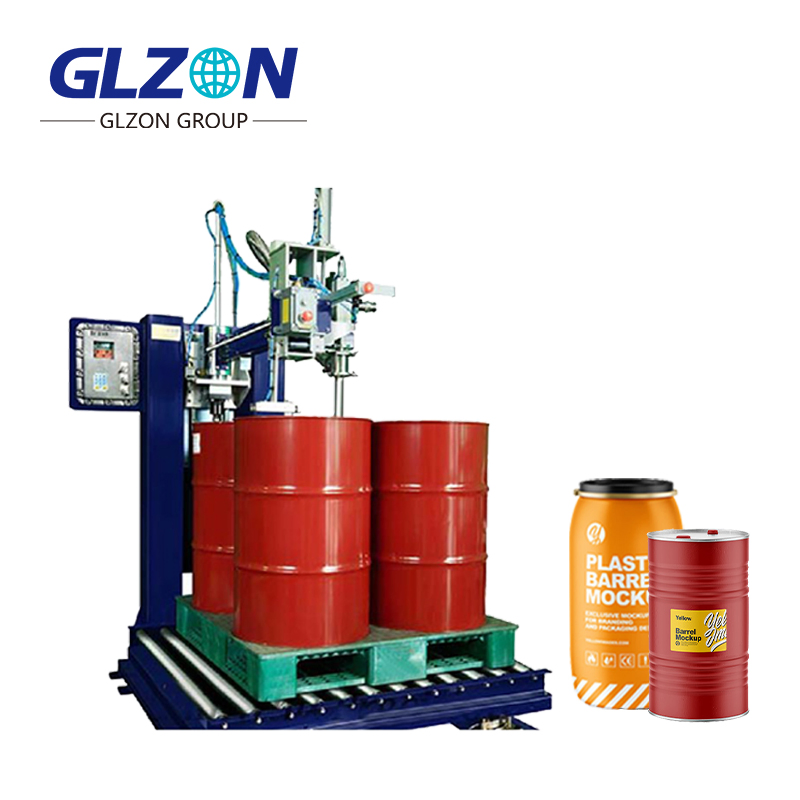

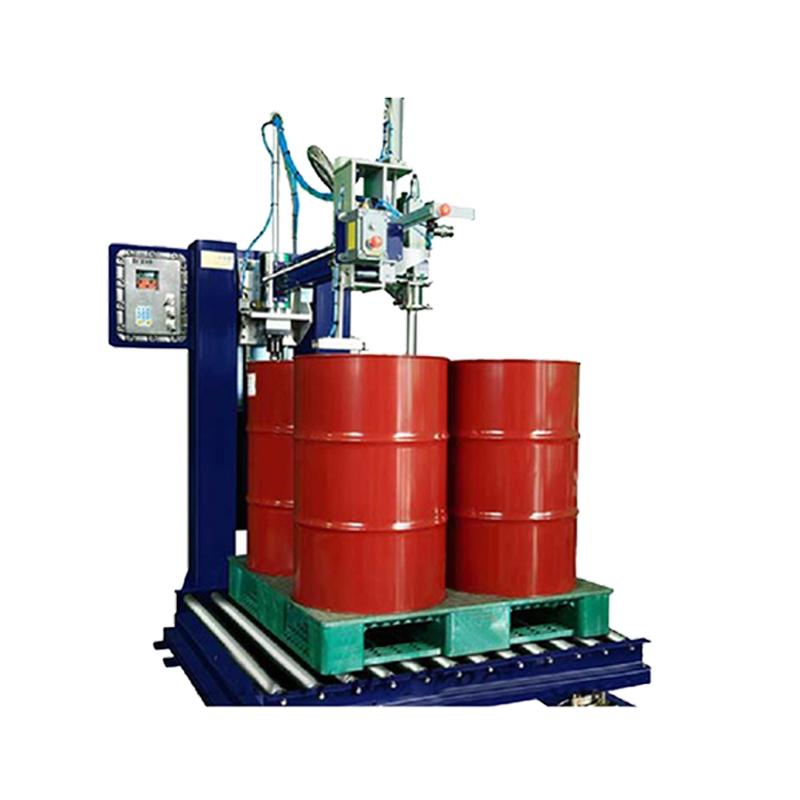

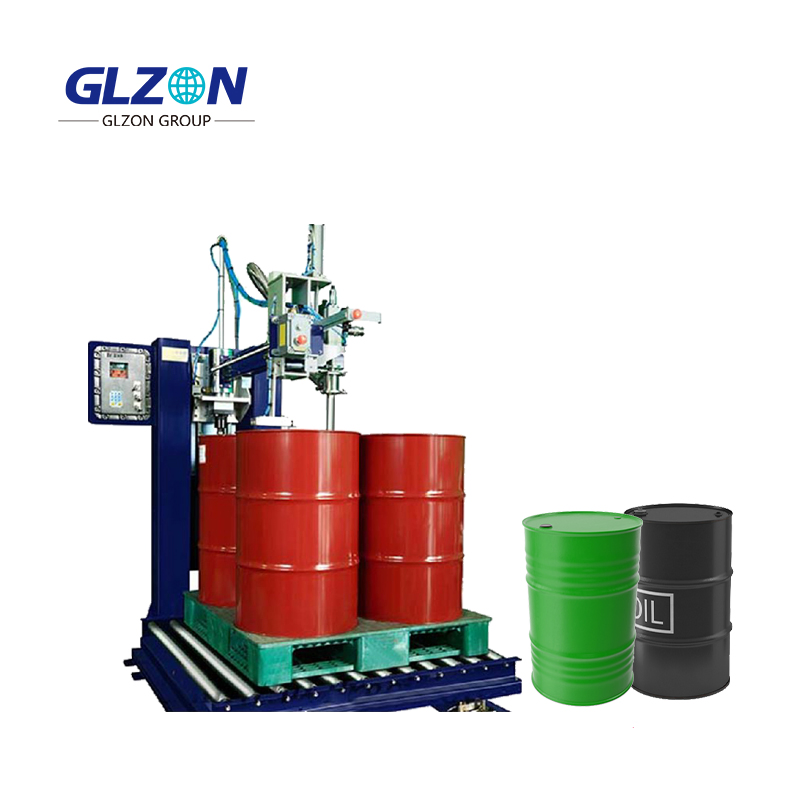

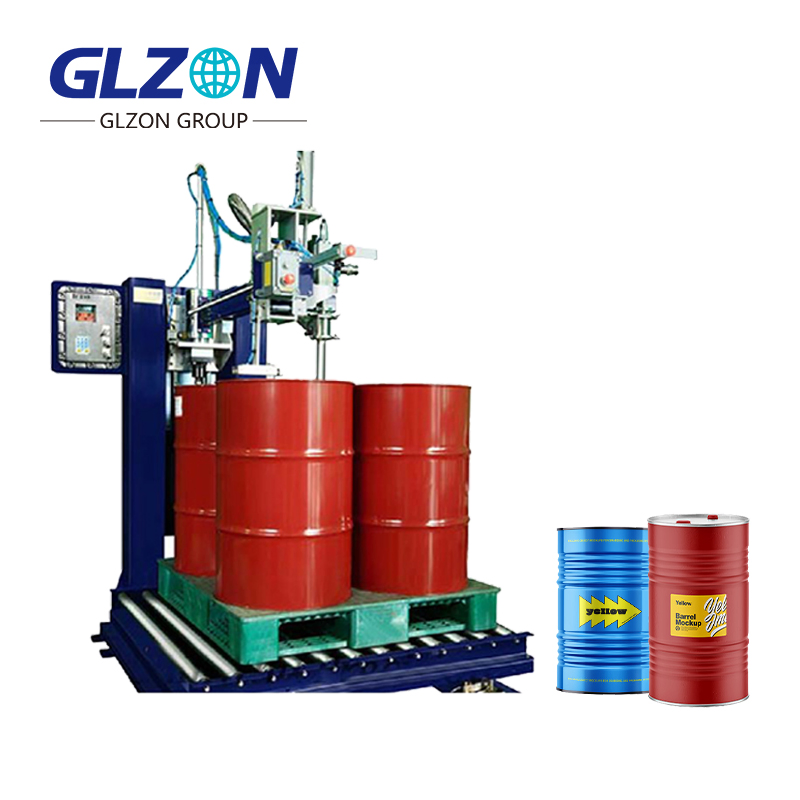

This high-efficiency Drum and Tote Filling System is designed for professional industrial liquid packaging, ensuring precision and reliability in heavy-duty environments.
10L / 30L / 50L
200L / 1000L / IBC
| Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids |
| Filling range(L) | 100-400L |
| Power supply | AC220V 50/60Hz |
| Air pressure (Mpa) | 0.6-0.8MPA |
| Filling accuracy (%) | ±0.2% |
| Speed (can/hour) | 30-50 barrels (Depending on the material flow rate) |
| Material Construction | SUS304 / SUS316 / Carbon Steel / PTFE |

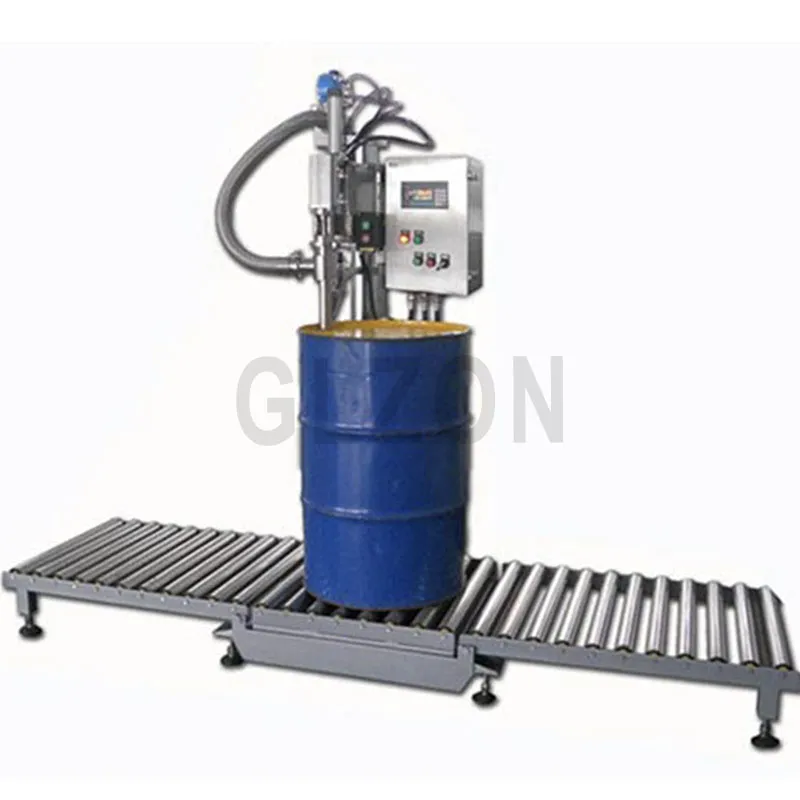

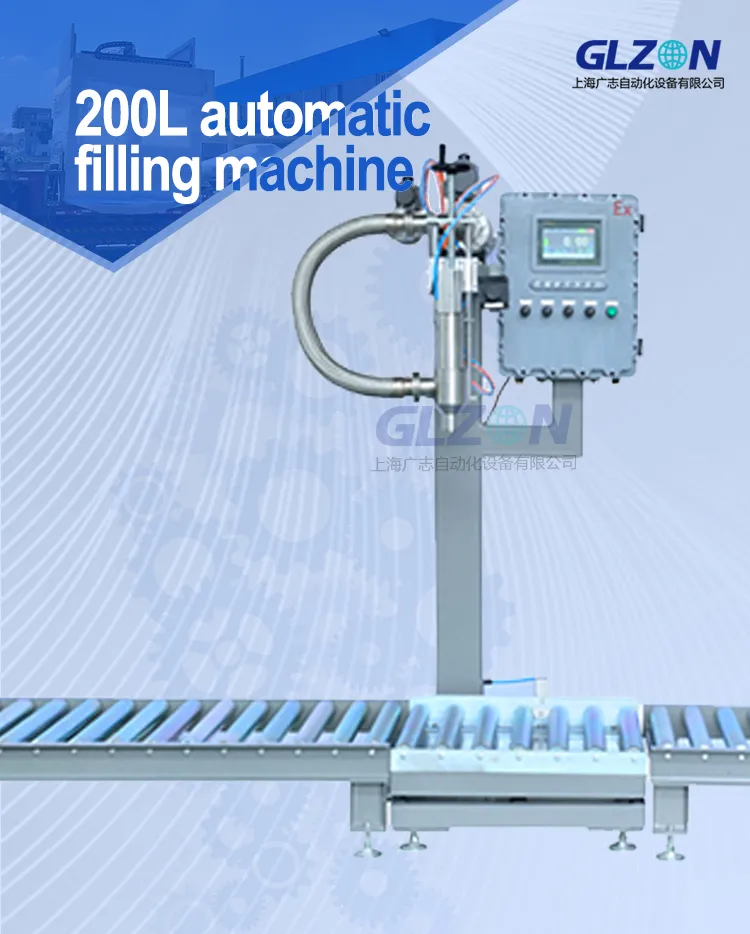

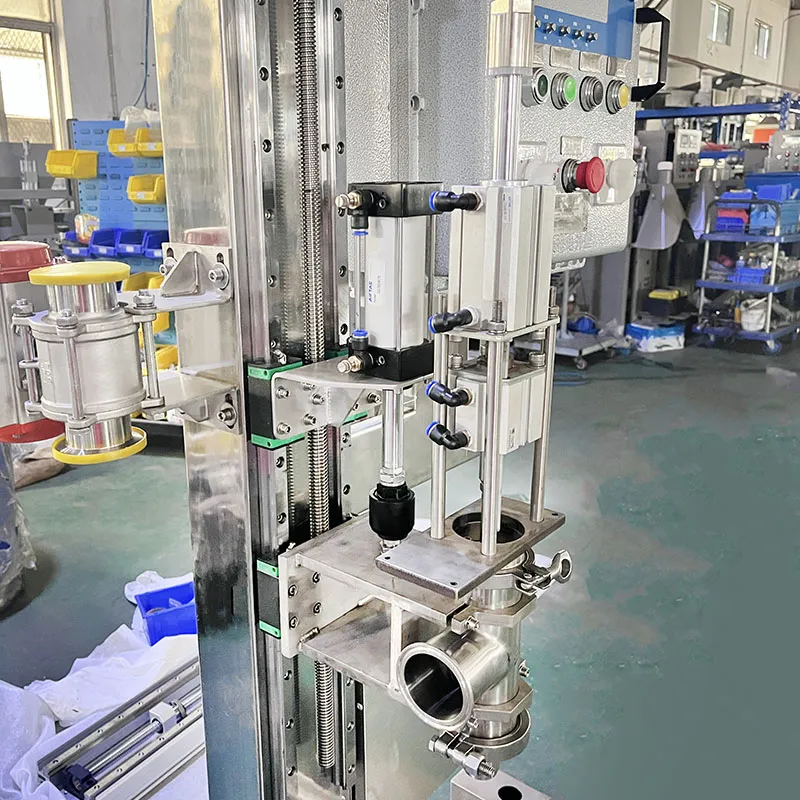

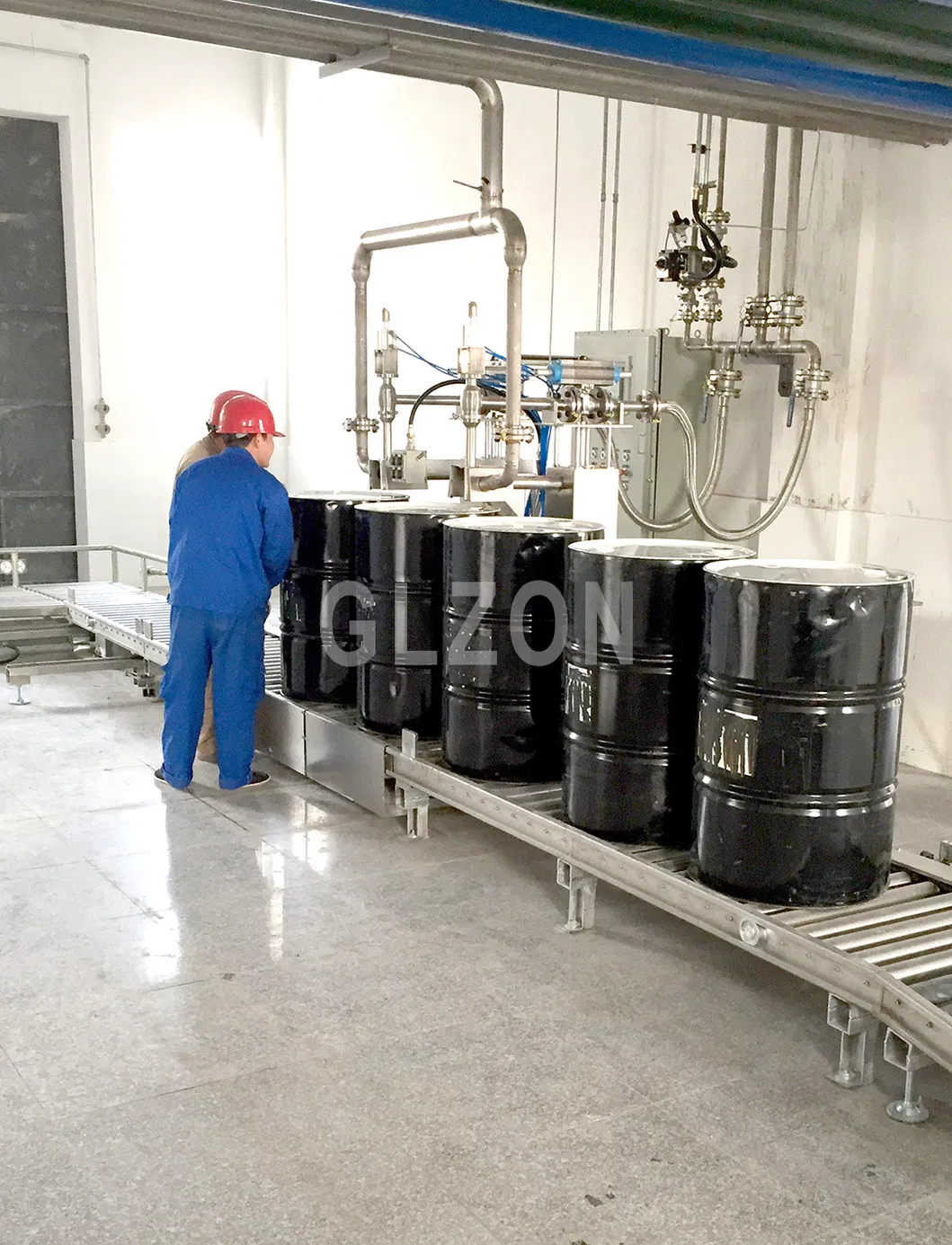

Unique design for 200L single barrel filling. The adjustable pneumatic ball valve increases speed while maintaining accuracy. Air collection hoods protect operators from volatile gases.
Nozzle device automatically positions the barrel. The empty barrel is automatically tared, and specific gravity is determined at dual speeds for precise results.
Features a C3 level load cell and 6-bit high-precision weighing controller (sampling up to 128 times/sec) to ensure top-tier quality.

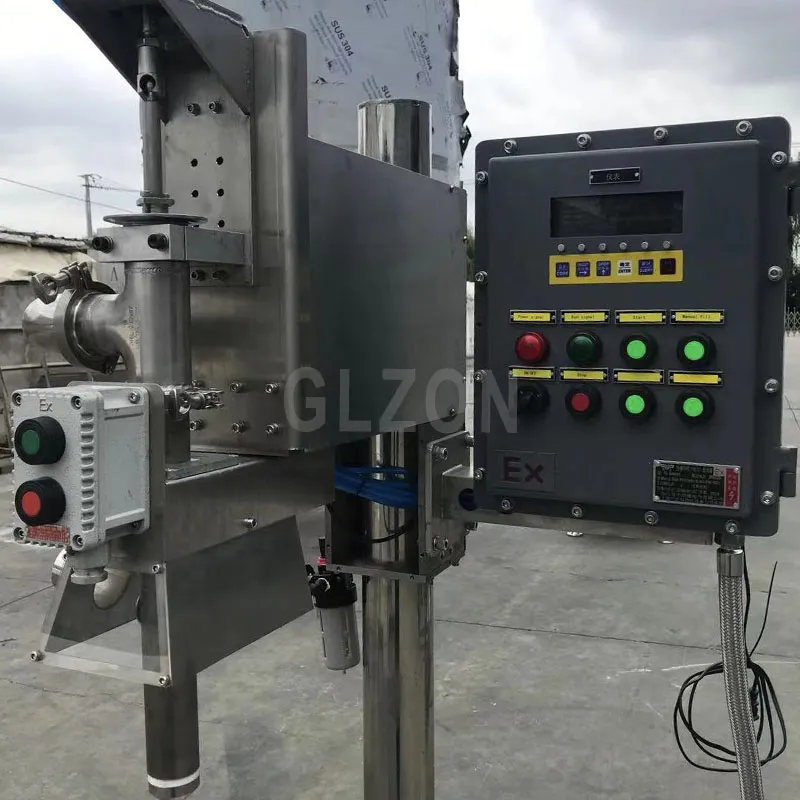

Computer-controlled weighing with frequency conversion adjustment. Direct filling volume setting and gap compensation function.

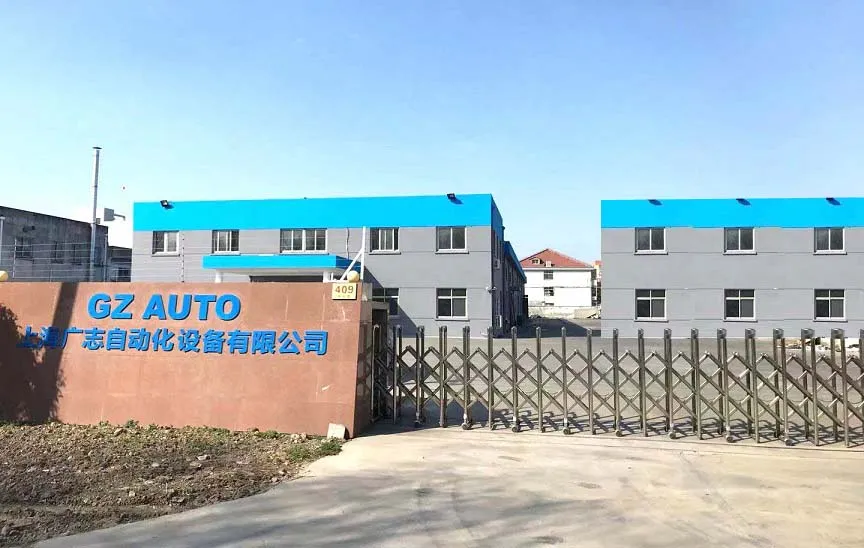

As a certified high-tech enterprise, the facility focuses on "High Excellence and High Compatibility," maintaining ISO9001 and ISO14001 certifications to guarantee industrial-grade performance.
Note: Design and specifications are subject to update at any time. Product information provided here serves as a general description and does not constitute a binding guarantee or contract term.
