| Model NO. | GZM-1000L |
| Type | Weighing-type Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid |
| Filling Valve Head | Single-Head |
| Feed Cylinder Structure | Single-Room Feeding |
| Dosing Device | Drum Barrel |
| Filling Principle | Pressure |
| Packaging Container Lifting Structure | Pneumatic Lifting |
| Structure | Linear |
| Packaging Material | Wood |
| Application | Food, Beverages, Daily Necessities, Chemicals |
| Core Components | Pressure Vessels, Pumps, PLCs, Gears, Bearings |
| Voltage | 220V 50/60Hz |
| Filling Accuracy | 0.2% |
| Package Size | 160.00cm * 80.00cm * 180.00cm |
| Package Gross Weight | 300.000kg |
10L 30L 50L
200L 1000L
| Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids |
| Filling range(L) | 100-1000L |
| Power supply | AC220V 50/60Hz |
| Air pressure (Mpa) | 0.6-0.8MPA |
| Filling accuracy (%) | ±0.2% |
| Speed (can/hour) | 30-50 barrels (Depending on material flow rate) |
| Material | SUS304 / SUS316 / Carbon steel / PTFE |
Automated Precision

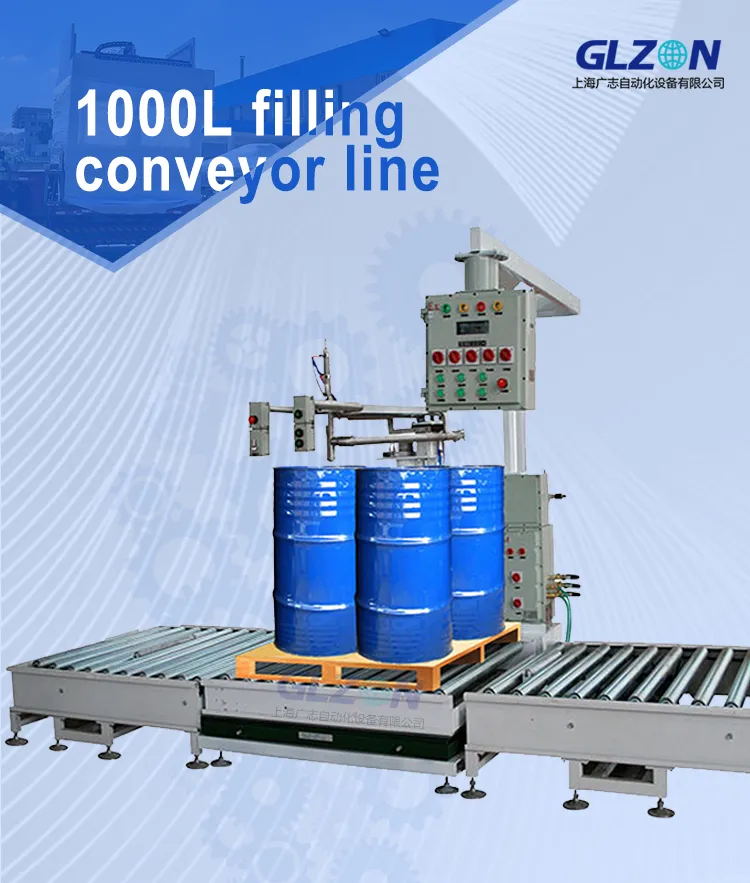

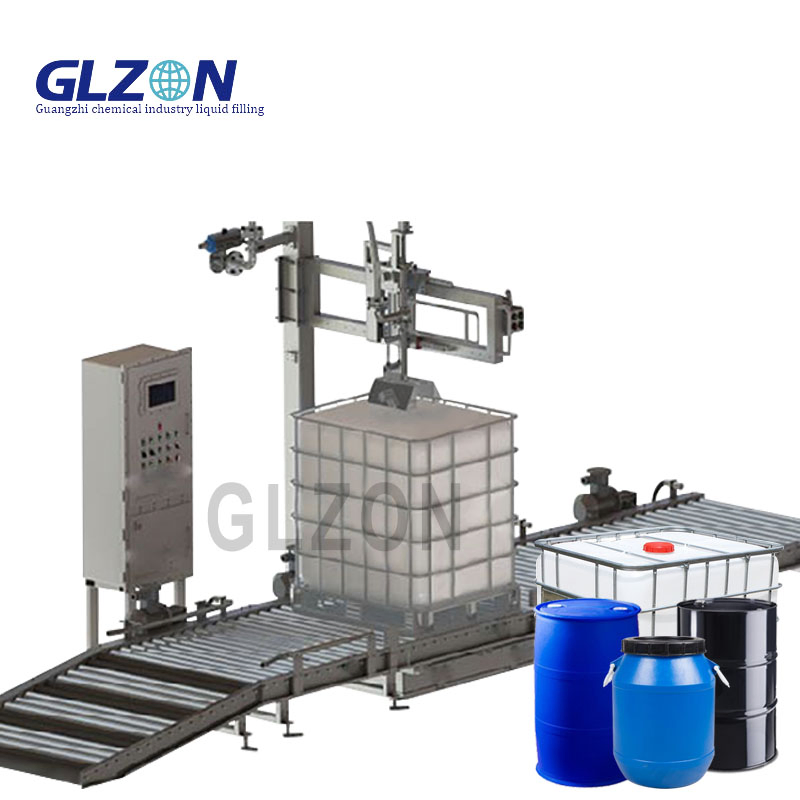

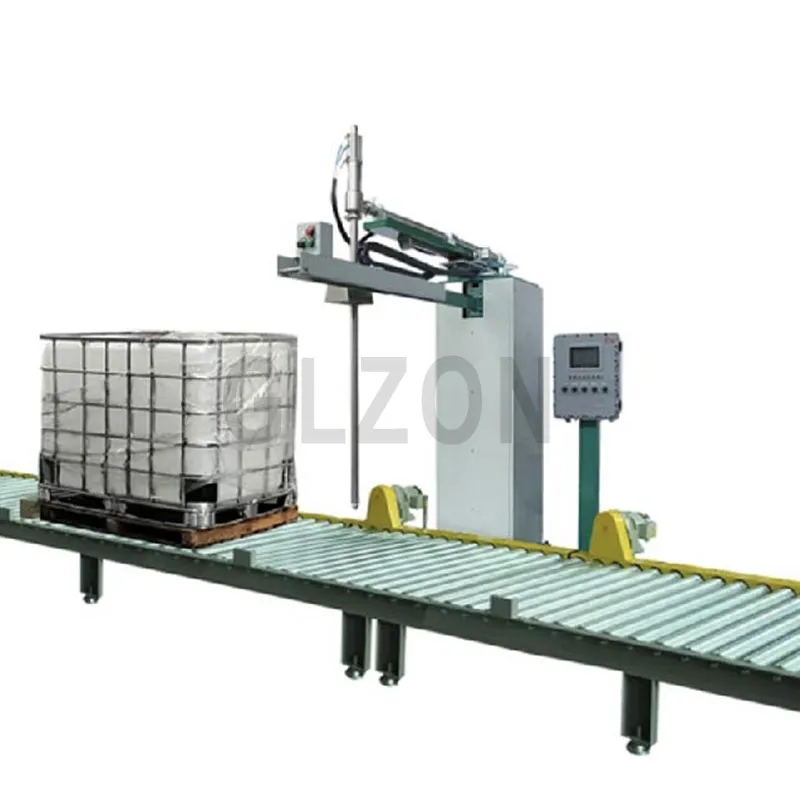

The IBC barrel fully automatic filling line is expertly crafted for 1000L IBC filling, offering seamless integration. From container loading to manual assisted lid operations, every aspect of filling is designed for optimal user experience and efficiency. Automated precision in barrel supply, positioning, filling, weighing, and measuring ensures each step is flawlessly executed.
Operational Process

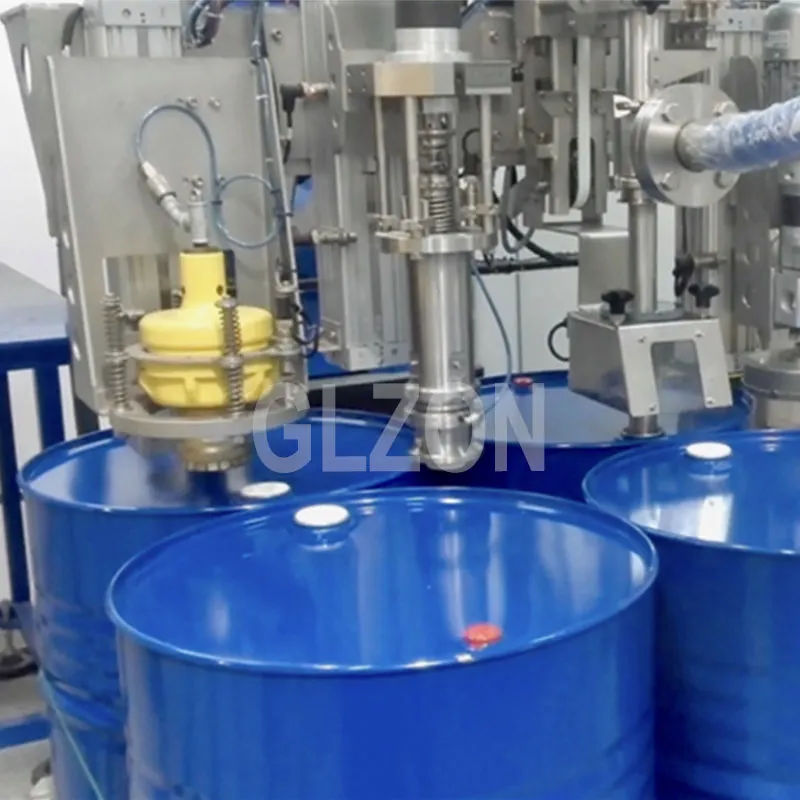

During operation, place the empty barrel on the empty barrel pipeline. The nozzle device intelligently positions the empty barrel, and post entry of the barrel mouth, it is tared automatically. The system facilitates accurate specific gravity determination at dual speeds. The spray valve then seamlessly integrates with the barrel, progressing through to the capping station.

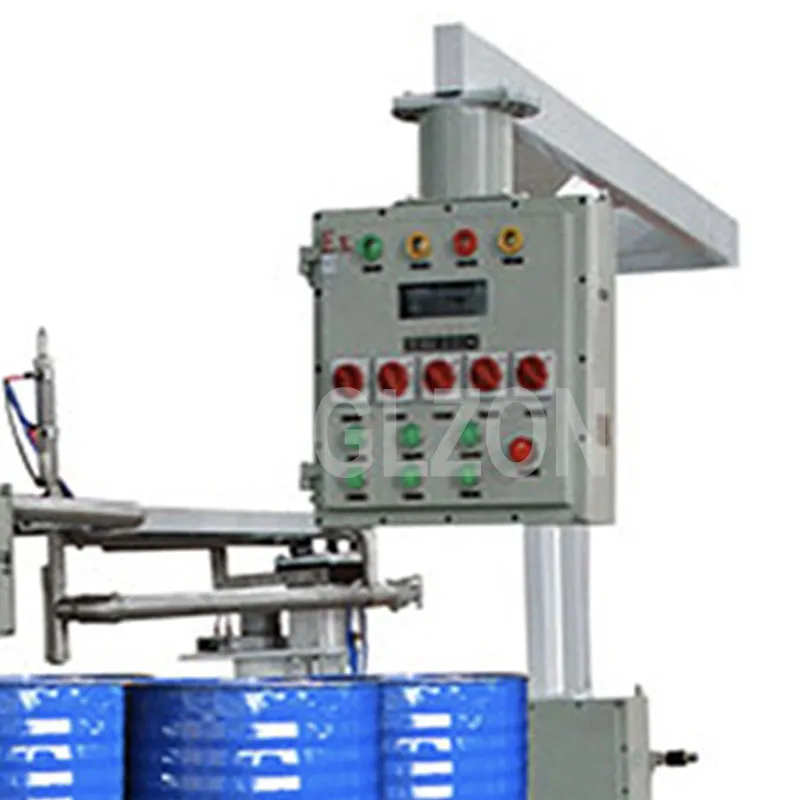

Touch Screen PLC Control
Leverage cutting-edge technology with our user-friendly PLC control interface. Empowered by a touchscreen and C3 level load cell, our system boasts a dual 6-bit high-precision weighing controller with impressive sampling speeds, ensuring top-tier filling accuracy.

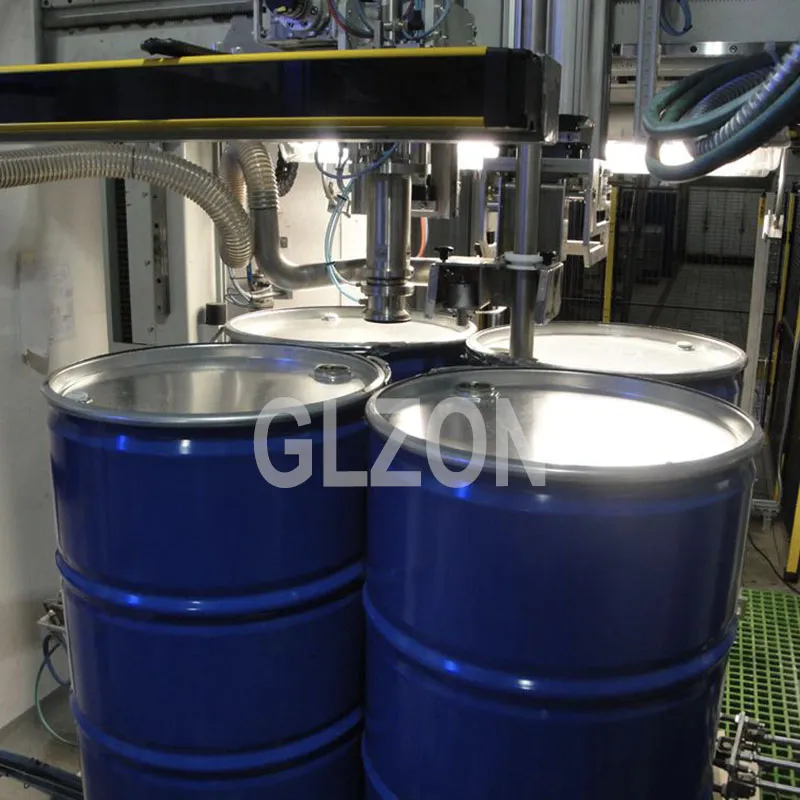

Pneumatic Filling
Experience the sophistication of computer weighing, submersible filling, and variable frequency three-speed adjustments. The filling volume is easily programmable, while the gap compensation feature ensures uninterrupted workflows.
"High excellence and high compatibility" remains the cornerstone of our manufacturing philosophy. We hold the ISO9001 international quality system certification and ISO14001 environmental management system certification. Our machinery is designed for state-of-the-art packaging performance.
Note: Design and specifications are subject to update as needed. Information presented does not constitute a binding warranty or commitment, nor intended to serve as definitive contract terms for products or services.
