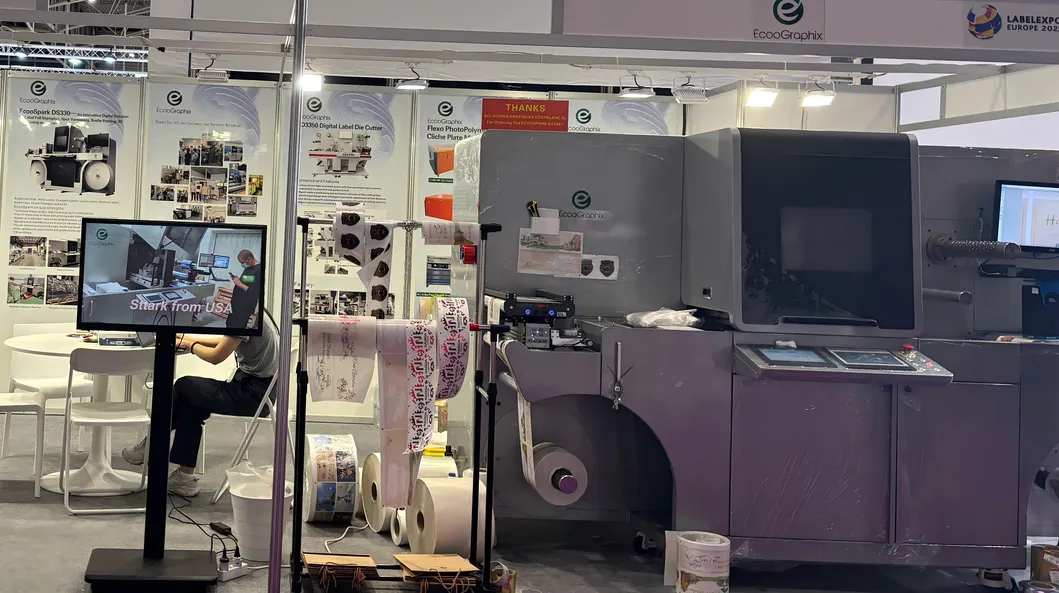

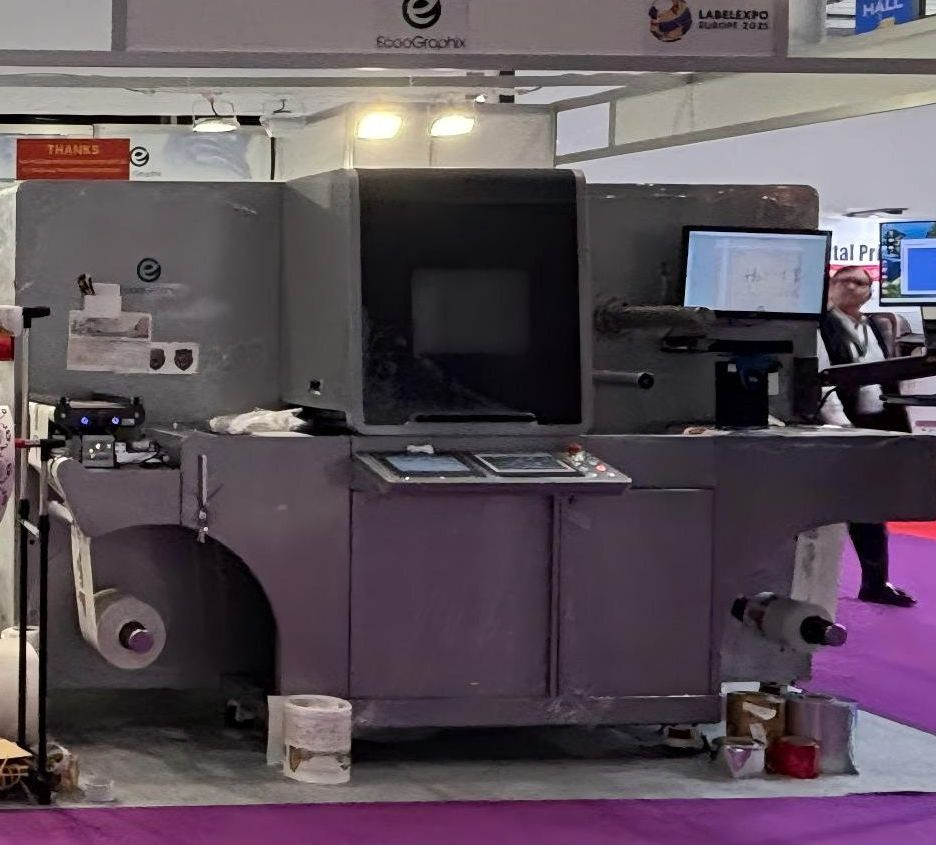

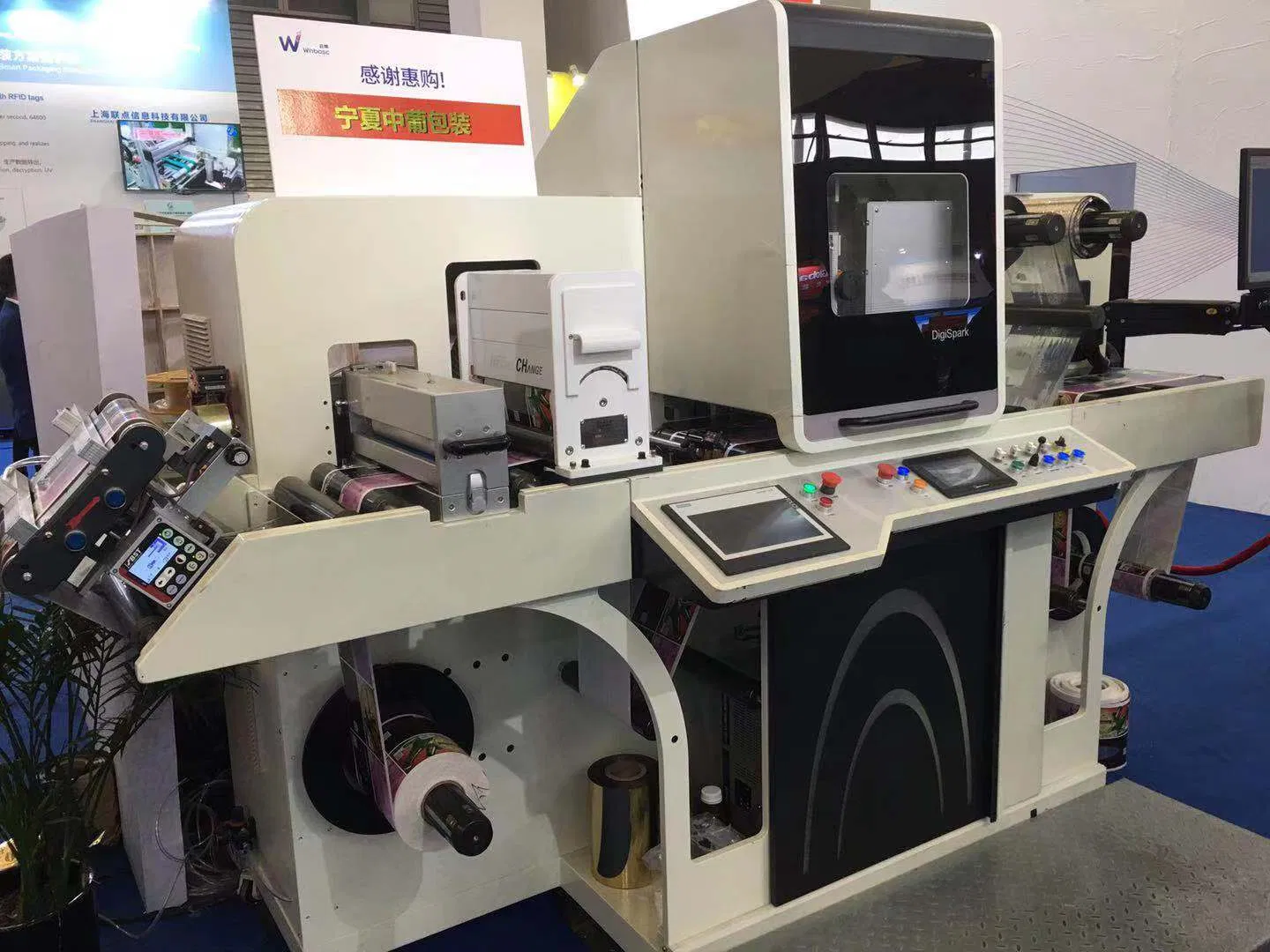

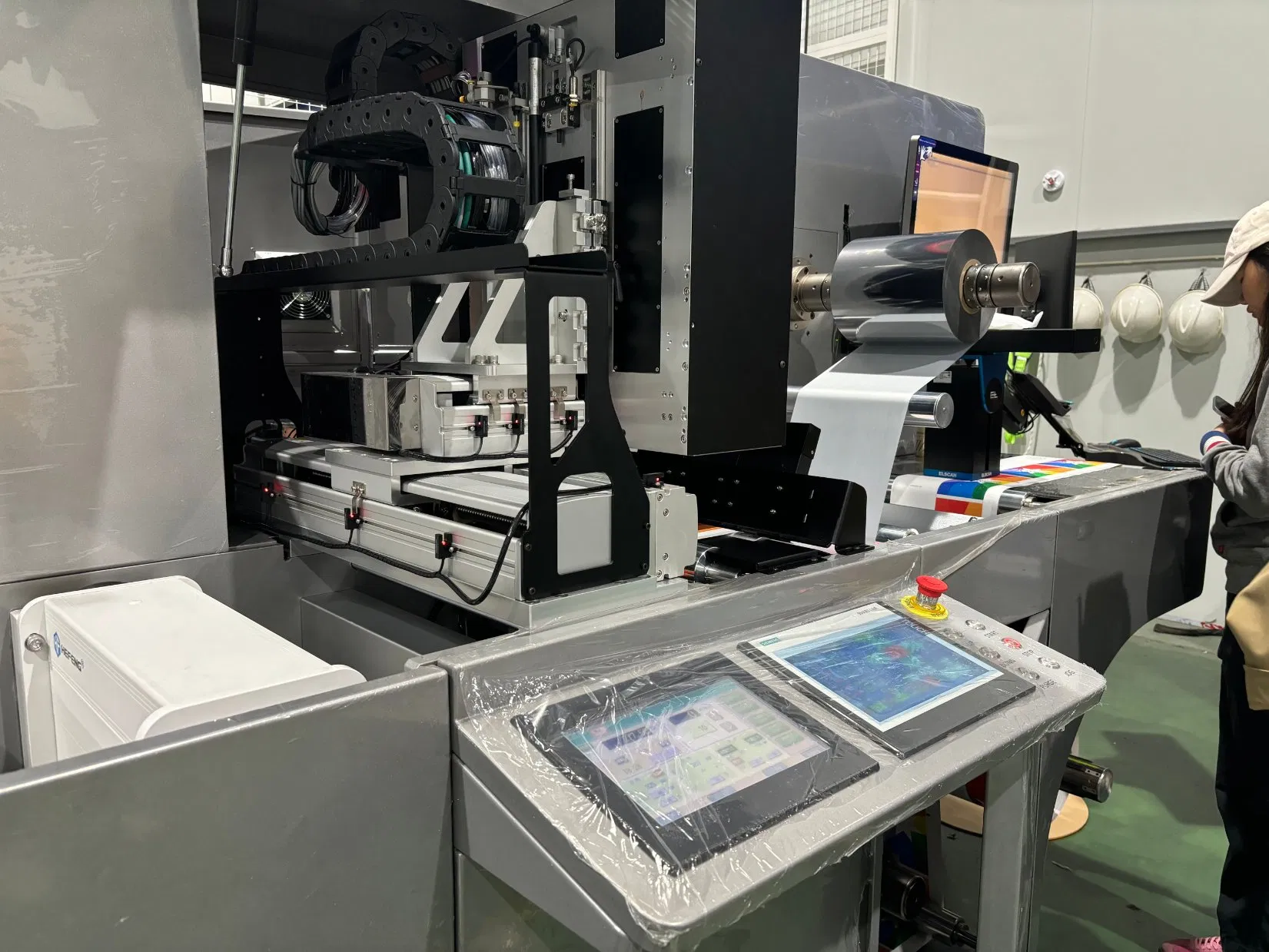

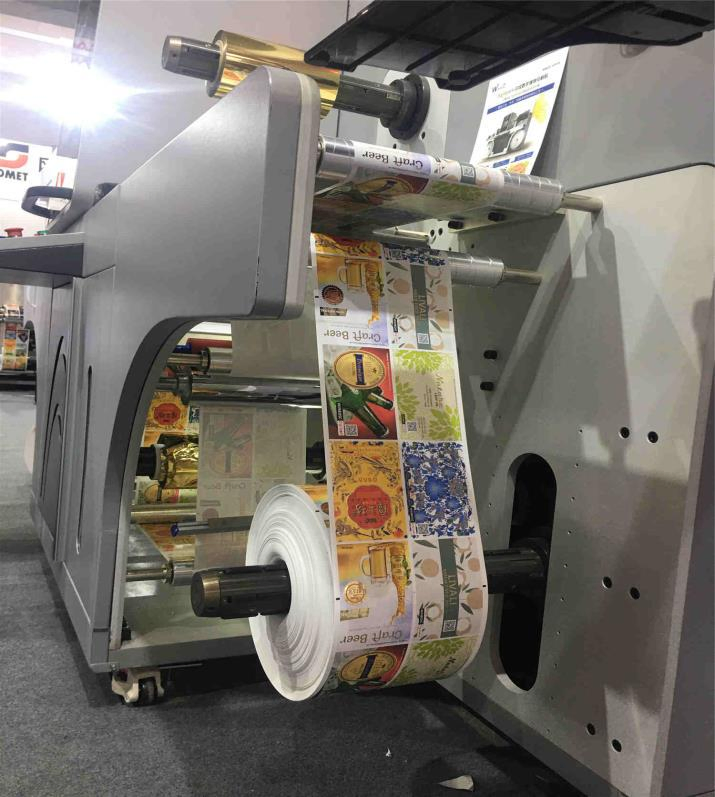

Ecoospark is a digital embellishment machine for label roll-to-roll production. It enables digital cold foil stamping and varnishing using varnish-jet technology. Equipped with Konica Minolta printing heads, the system achieves a varnish layer thickness from 10 microns up to 150 microns in a single pass. For braille or high-relief printing, a two-pass process can reach 300 microns.
Compared with traditional flexo or screen varnishing, digital varnishing offers superior precision for fine details. It is highly efficient for variable data and short-run jobs due to zero plate costs and minimal setup time.
| Digital Varnish-Drop-on-Demand Machine Specification | |
|---|---|
| Printing Technology | UV Piezo DoD (drop on demand)-inkjet |
| Resolution | up to 1440*360 dpi |
| Printing Speed | 10m/min - 60m/min (depend on polymer layer) |
| Variable Image System | PDF, Optimized PDF, Optional barcode system |
| Supported Formats | PDF, PDF/VT, TIFF, JPEG, BMP & database files |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates |
| Printing Image Width | 330mm * 10 m (Length) |
| Polymer Layer Thickness | From 10 up to 180 microns |
| Ink Curing | Inter UV-LED Pre-curing / Full curing by UV-LED |
| Unwinder/Rewinder Dia. | Max. 700mm, Core 76mm |
| Substrates Thickness | 30-400 micro |
| Operating Environment | Temp: 15ºC-30ºC, Humidity: 40%-80% |
| Weight | 2800kg |

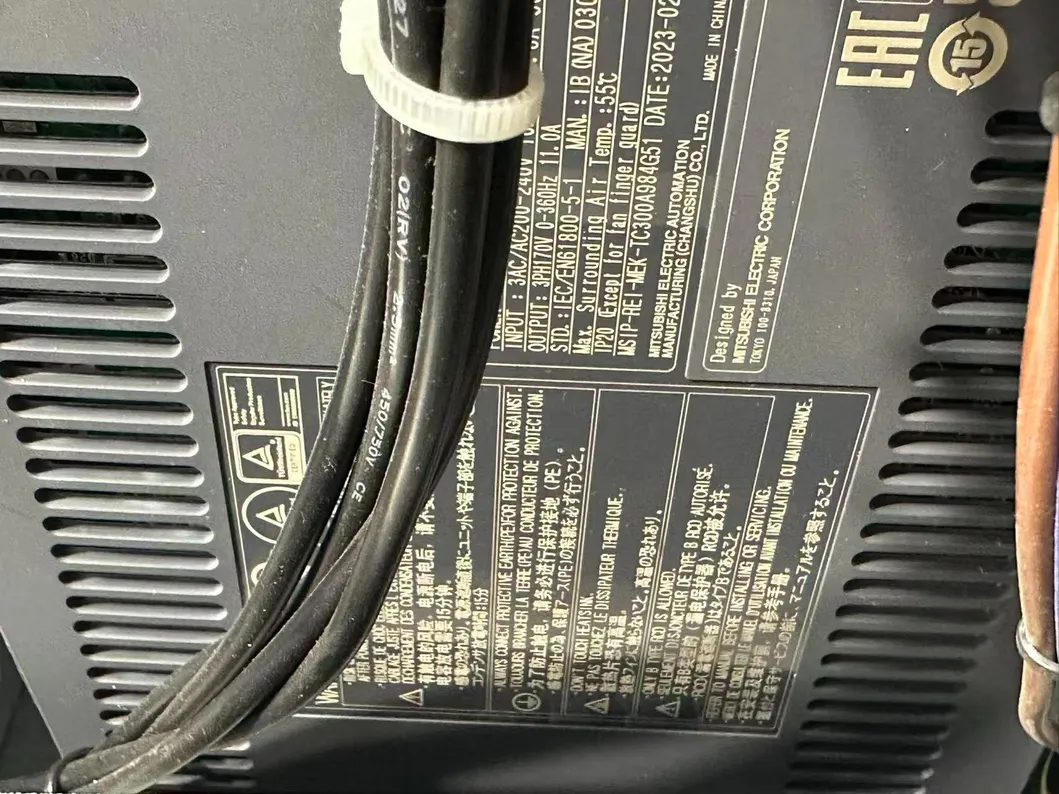

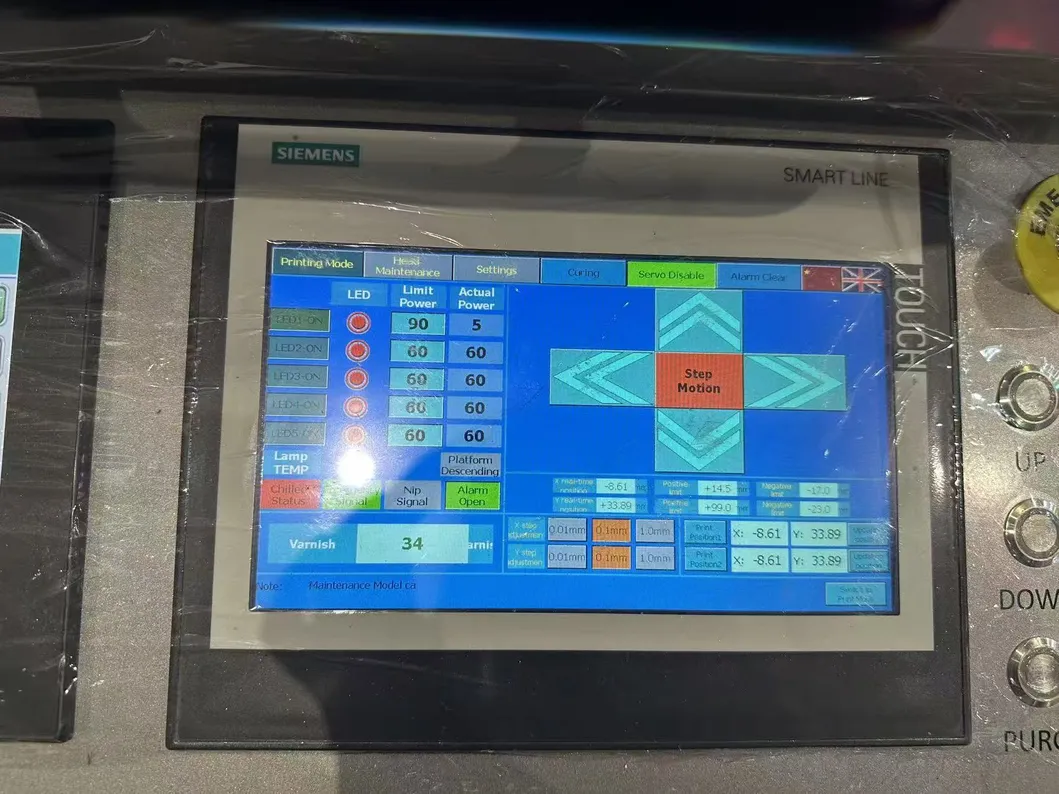

The system integrates high-end Japanese and German components for maximum stability, including Konica Minolta heads, MITSUBISHI servos, Siemens PLC, and ELSCAN monitoring systems. The GIS RIP system ensures high-quality graphic effects.
