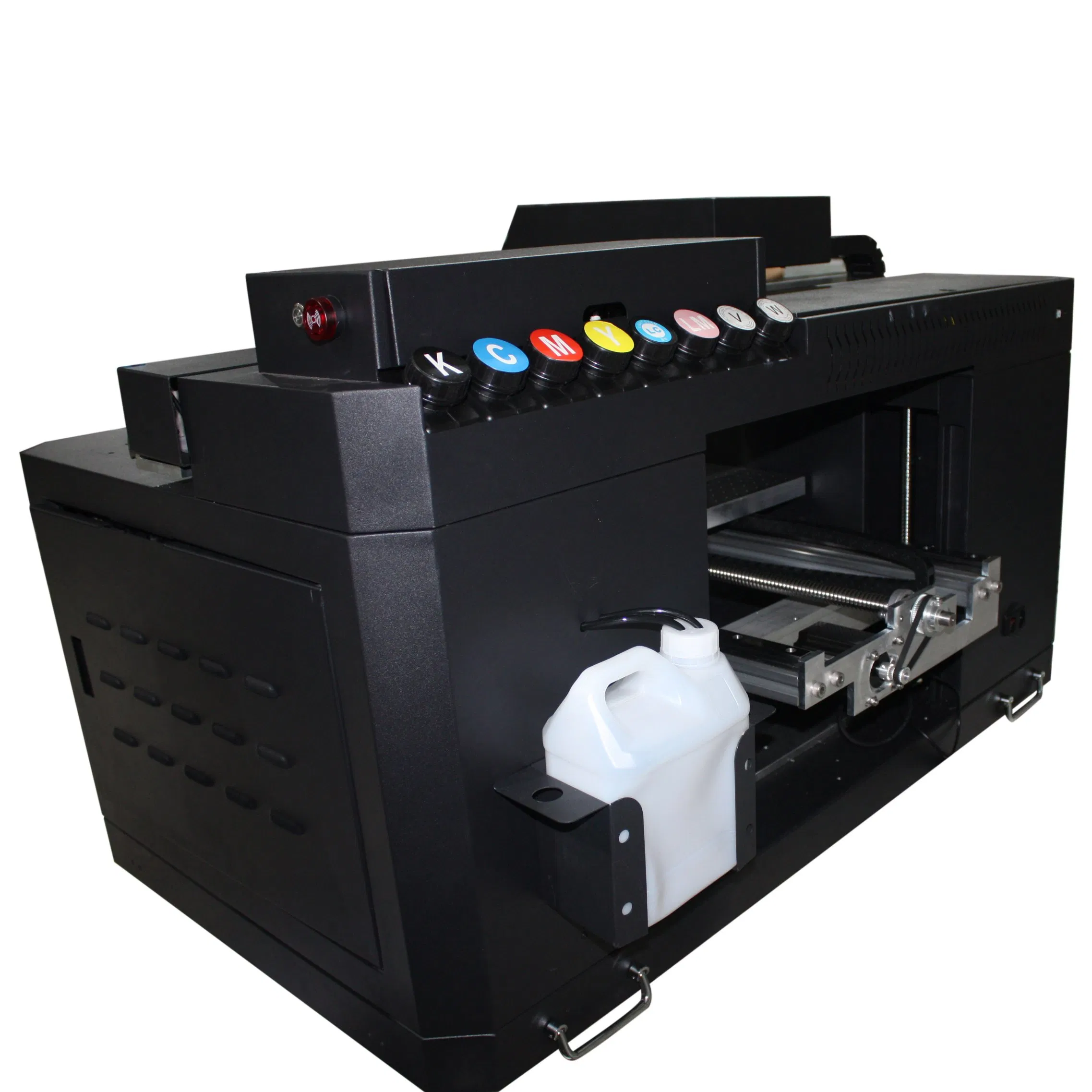

Digital Fatbed Inkjet UV Printer for Print on Wood Pen Ball

1 / 5

Digital Fatbed Inkjet UV Printer for Print on Wood Pen Ball

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

▣ Basic Information

Model NO.

DS-A2U

Color & Page

Multi-Colour Printing Press

Usage

Label Printer, Card Printer, UV Metal Printer

Automatic Grade

Automatic

Printing Interface

USB2.0

Printing Speed

A4 Size / 50secs.

System Supported

WindowsXP/7/10

Printing Type

UV Inkjet Printer

Printhead

2 Pieces Dx8 Heads

Ink Type

UV Curable Ink

Printing Size

A2 Size 400*600mm

Cooling System

Water Circulation Cooling

Production Capacity

20000 set/Year

▣ Product Description

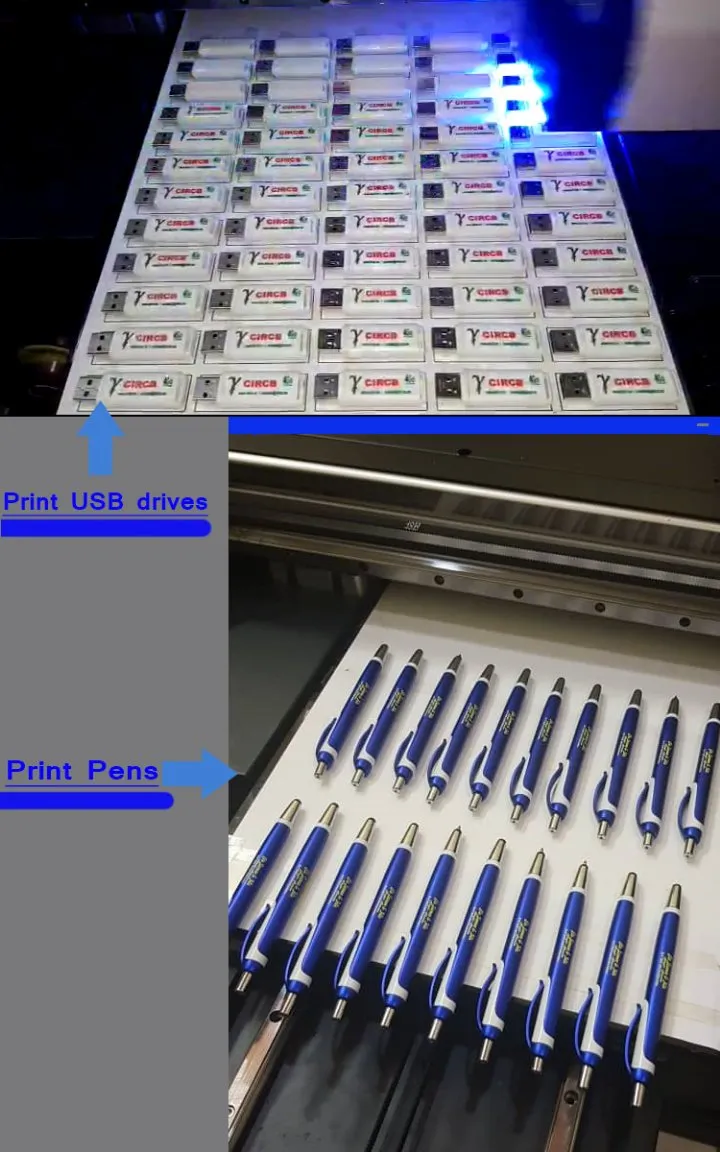

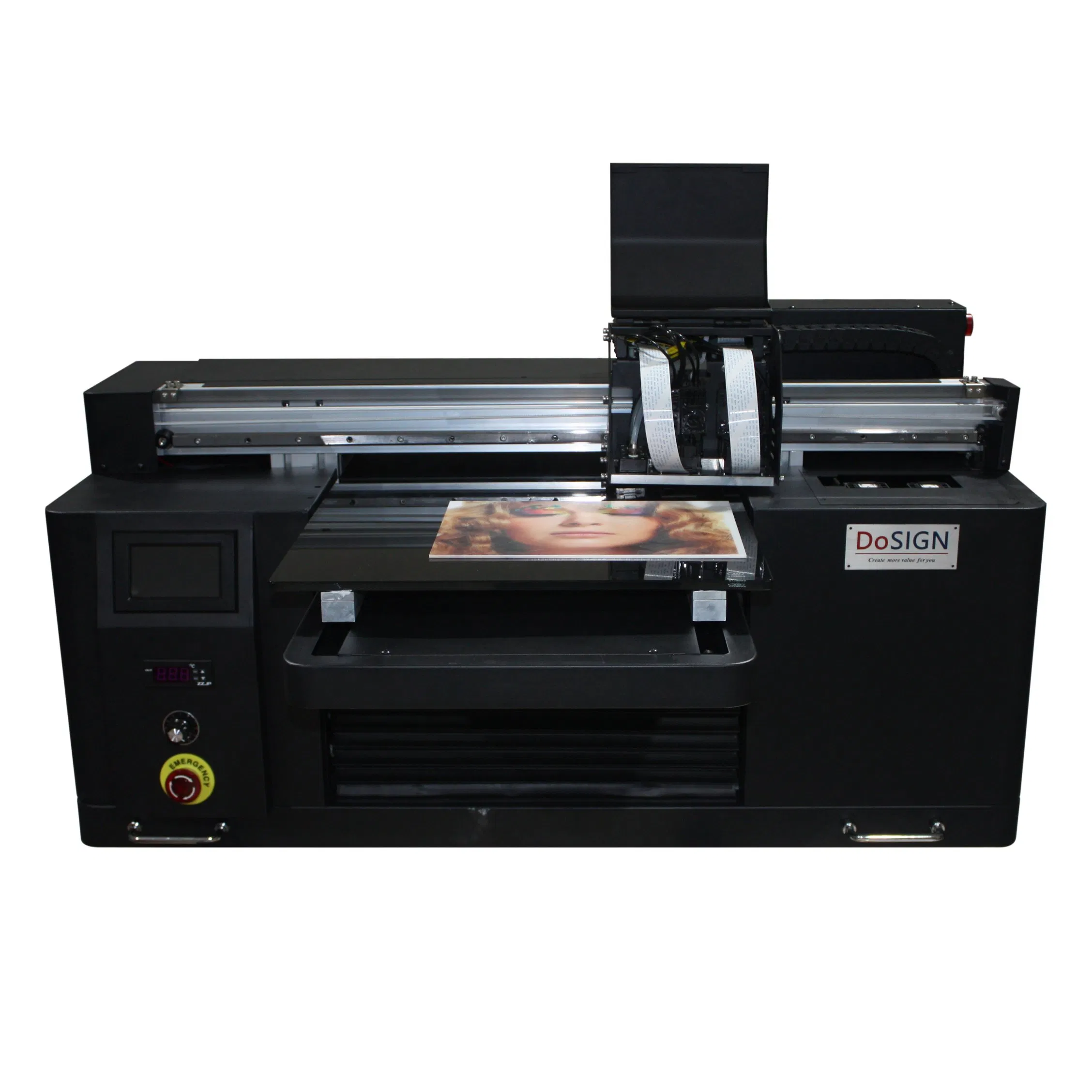

Digital Flatbed Inkjet UV Printer for Wood, Pen, and Ball Printing

This A2 size (4060) UV printer is an advanced digital solution designed for printing on diverse materials including glass, metal, plastic, acrylic, and ceramics. Featuring vivid color reproduction and high-speed performance, it is the ideal choice for entry-level users or kiosk operations.

Built with a stable industrial-grade board system and dual TX800 DX8 printheads, the machine achieves a maximum printing speed of 50 seconds per A4 size. The 6-color model supports high-density white ink printing on dark materials, allowing for full-color output in a single pass using professional RIP software.

▣ Technical Specifications

Printer Model	A2 UV Printer DS-A2U
Printing Tech	Micro Piezo Technology with 2x DX8 TX800 printheads
Printing Size	A2 Size 400600mm (15.7423.6in)
Resolution	720*1440 dpi
Accepted Media Height	20cm
Printing Direction	Smart Bi-directional Printing Mode
Printing Speed	A4 Size: 50s (720 dpi) / 100s (1440 dpi)
Ink Colors	C, M, Y, K, White / Varnish
Ink Supply System	250 ml/bottle with white ink circulation
Power Consumption	36 W/ Hour

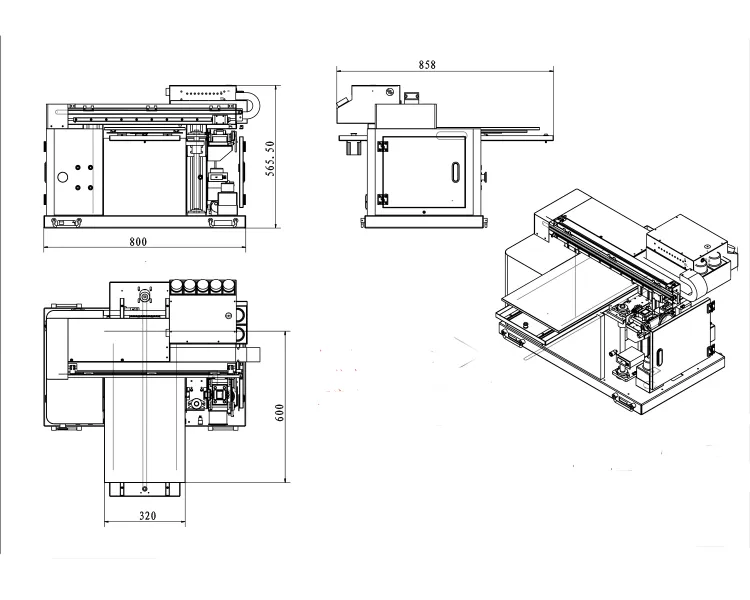

Machine Size	820mm x 625mm x 430mm
Weight (NW/GW)	62KG / 85KG

▣ Key Features & Details

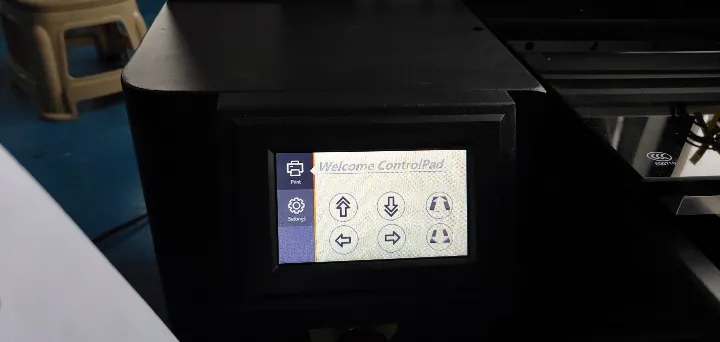

✓ LCD Control Panel: Smart and easy-to-operate display for precise machine control.

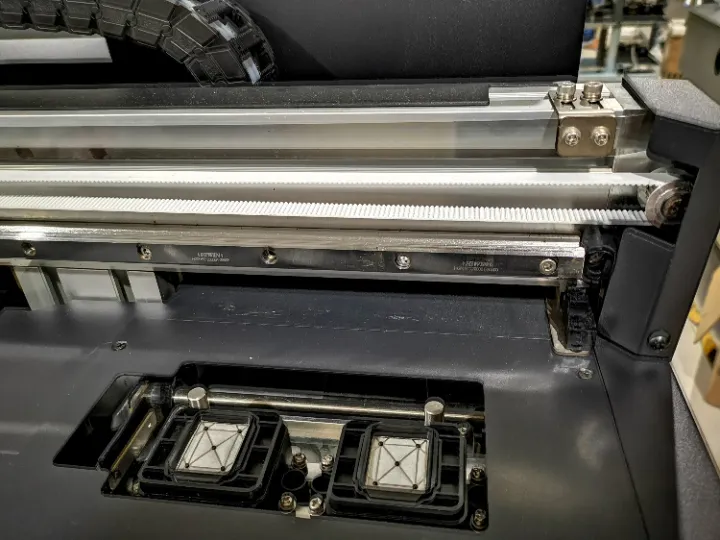

✓ Automatic Maintenance: Features automatic lifting and down-capping system for head protection.

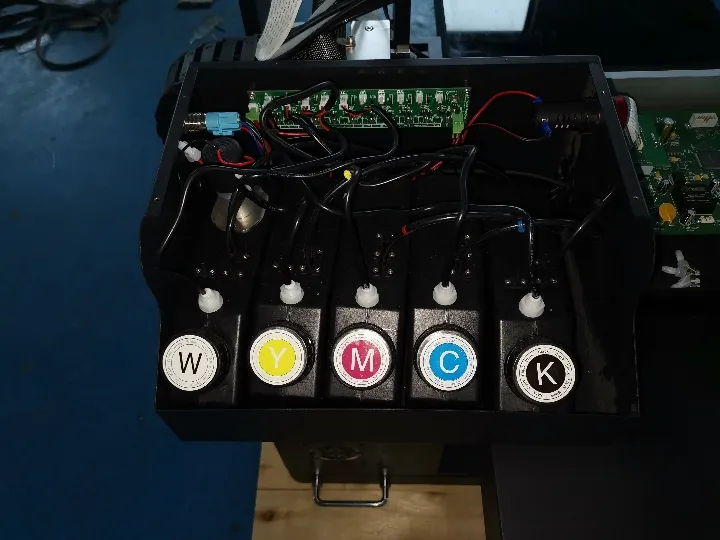

✓ Advanced Ink System: Includes low ink alarming and white ink circulation to prevent clogging.

▣ Industrial Applications

Suitable for: Rigid PVC board, glass, plastic, leather, rubber, metal, wood, porcelain, ABS, acrylic, aluminum, ceramic tiles, marble, granite, and more.

▣ Packaging & Delivery

▣ Global Customer Base

▣ Frequently Asked Questions

1. How long is the delivery time for the A2 UV printer? Generally, it takes about 5 days to manufacture and thoroughly test the machines before arranging shipment.

2. How do you ensure product quality? To ensure superior quality, every printer undergoes a series of rigorous tests, including printing performance and life-cycle endurance tests.

3. Is OEM service available for customers? Yes, we provide professional OEM services tailored to our customers' specific requirements.

4. What are your standard payment terms? For orders under $1000, 100% advance payment is required. For orders exceeding $1000, we accept 30% T/T in advance with the balance due before shipment.

5. Can I request printing samples? Yes, we provide free printing samples. You may send your specific materials to us for testing, and we will prepare the samples for your review.

6. What materials can this UV printer handle? This printer is versatile and can print on wood, acrylic, PVC, metal, glass, ceramic, leather, and various rigid boards up to 20cm in height.
