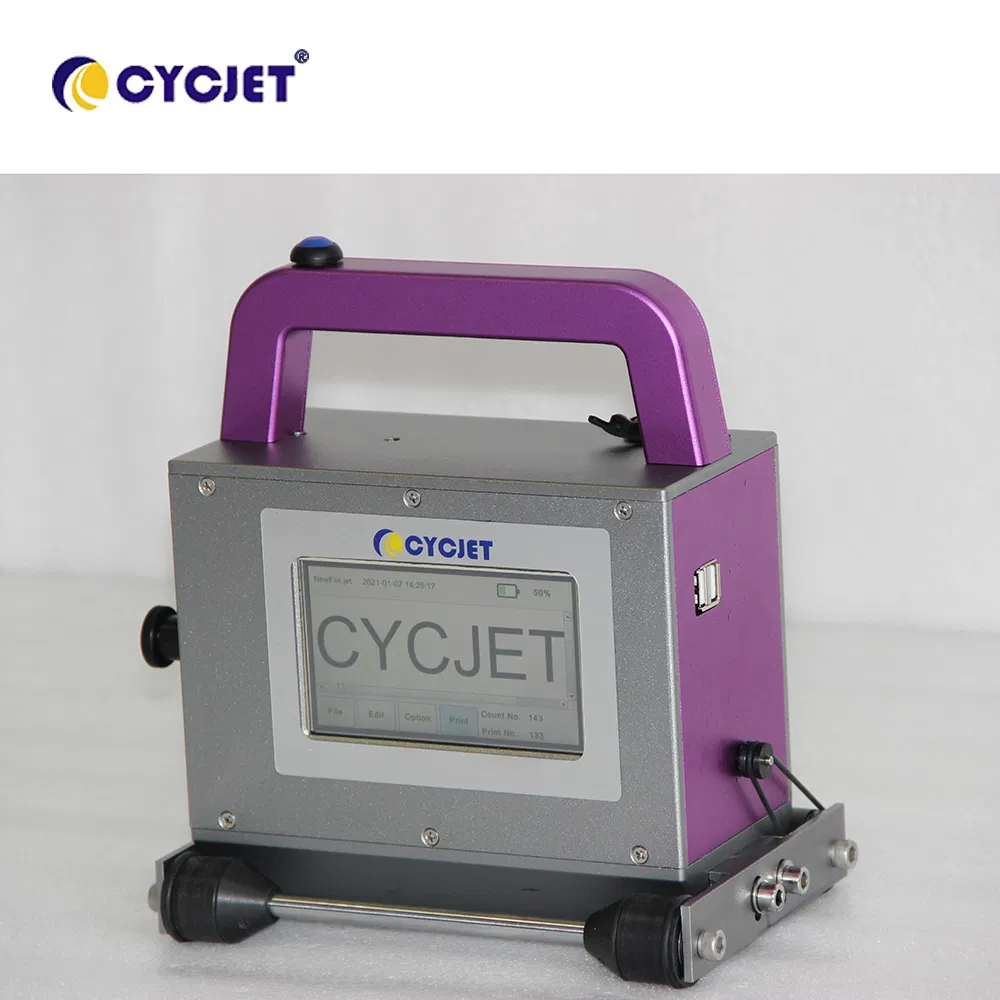

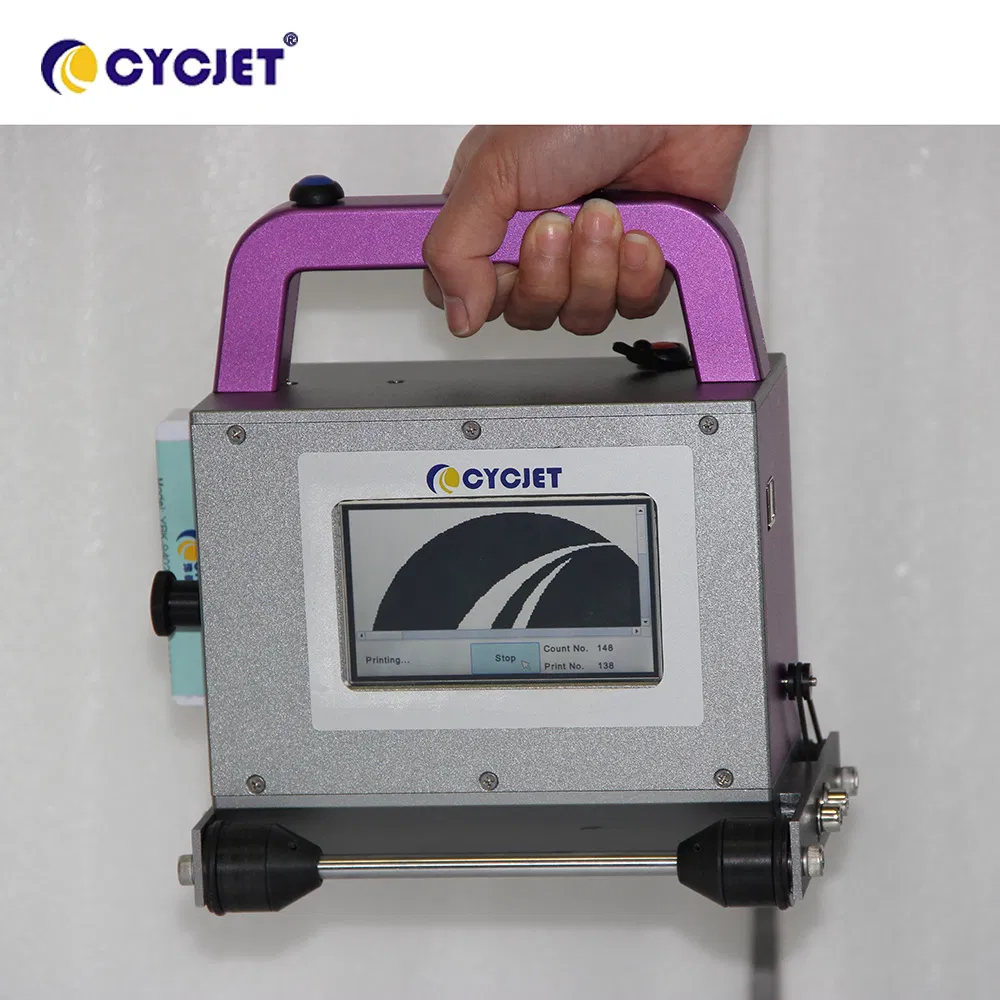

Cycjet CH7 Ai-Driven Inkjet System - Medical, Electronics & Automotive Solutions

Customization: Available
After-sales Service: Online Support
Warranty: One Year

Product Description

1

Product Overview

This coding system brings together many years of professional experience in the development of ink jet technology, providing mature and reliable portable marking solutions to every customer. It is designed for high-resolution printing across various industries.

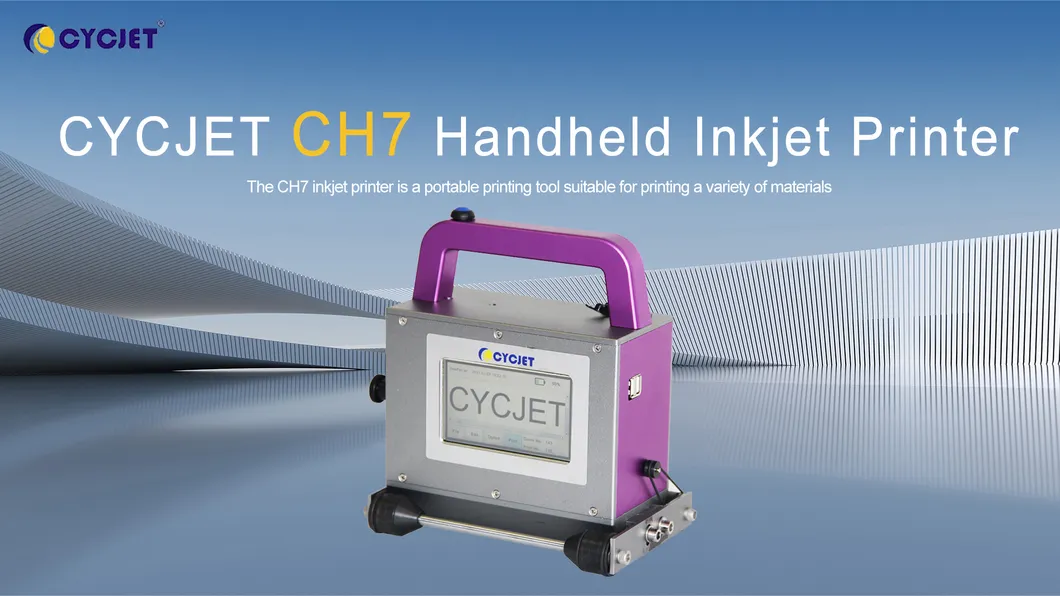

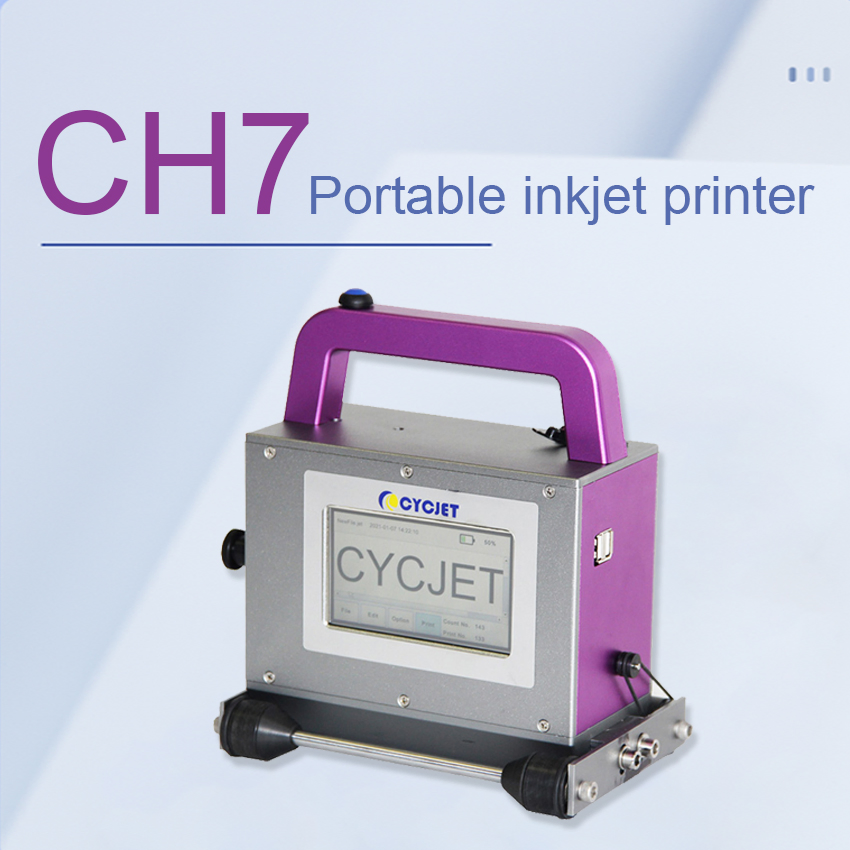

Handheld Inkjet Printer
Model NO.
CH7
Usage
Industrial, Chemical, Drug, Food
Automatic Grade
Hand Pressure
Printing Speed
60m/Min
Printing Height
2-71mm
Print Direction
360° Direction
Ink Type
Solvent-based / Oil-based
Production Capacity
300 units/Month
2

Product Parameters

Specifications
Feature Specification Details
Print Spacing8mm-10mm (subject to content & ink type)
Print LinesUnlimited within Max height 71mm
Resolution200DPI Height; 100-400DPI Cross direction
Print ContentDate, Time, Photo, Serial Number, Batch, Barcode, QR Code
Language SupportEnglish, Russian, Arabic, Spanish, Japanese, Korean, etc.
Display4.3" Color Touch Screen
Battery LifeStandby ~8h; Continuous Print ~7h
Machine Weight2.5KG
3

Main Features

  • Completely independent of PC editing via large color touch screen.
  • WYSIWYG (What You See Is What You Get) interface with built-in mass fonts.
  • Humanized structural design for comfortable long-term operation.
  • Unique wheel design for flexible printing on different shapes and surfaces.
  • Closed cartridge and ink system for convenient replacement.
4

Detailed Photos

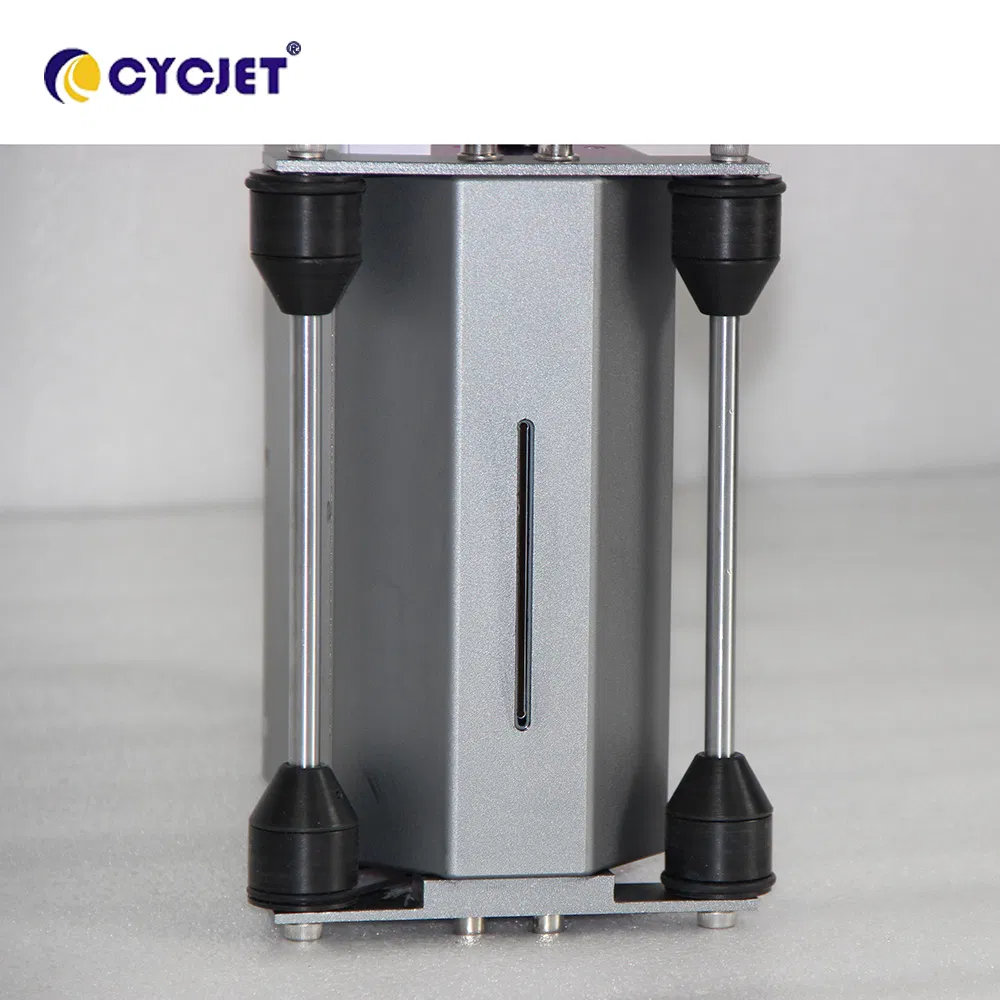

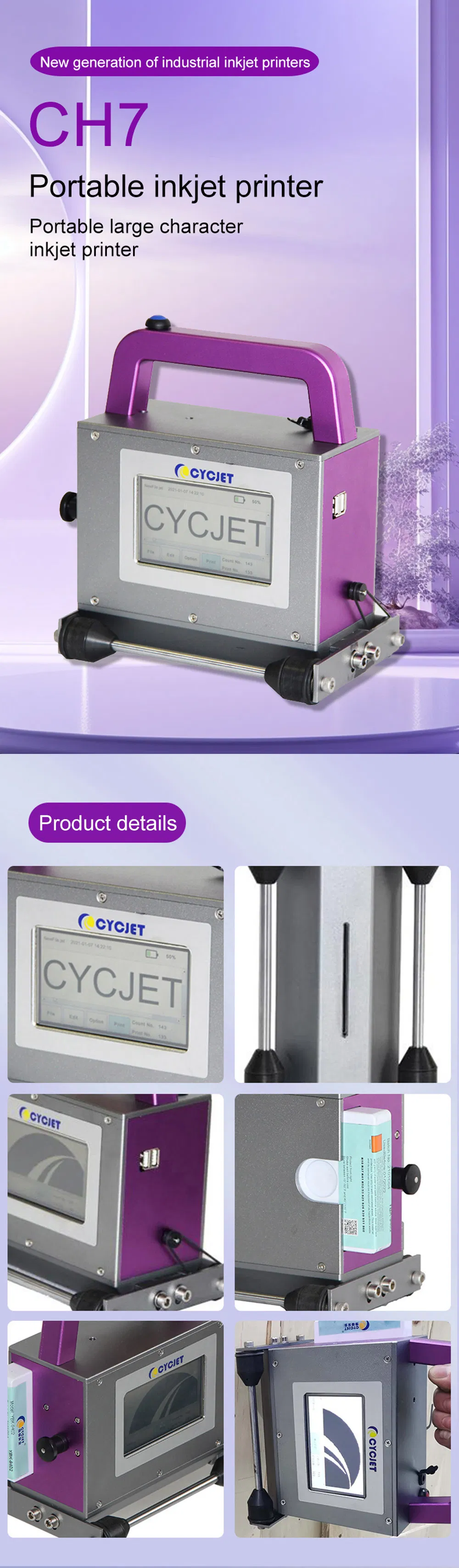

Product Detail 1

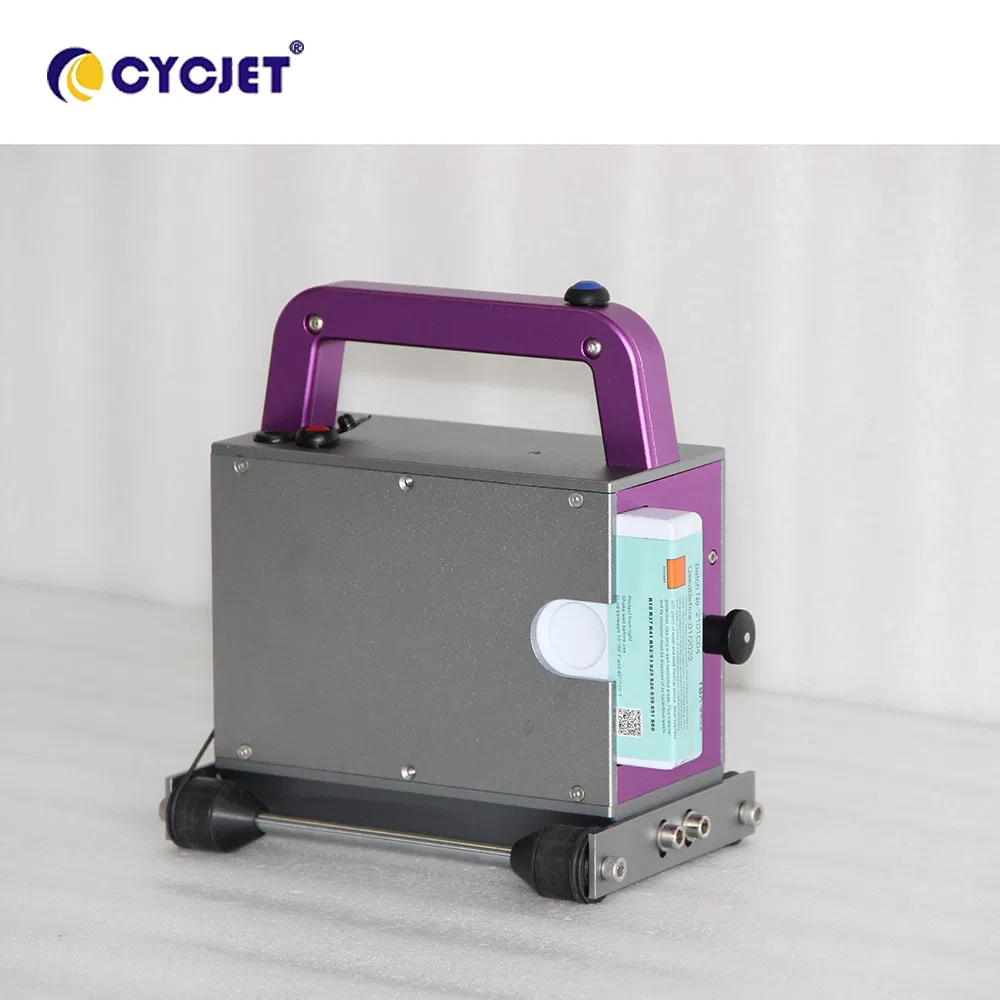

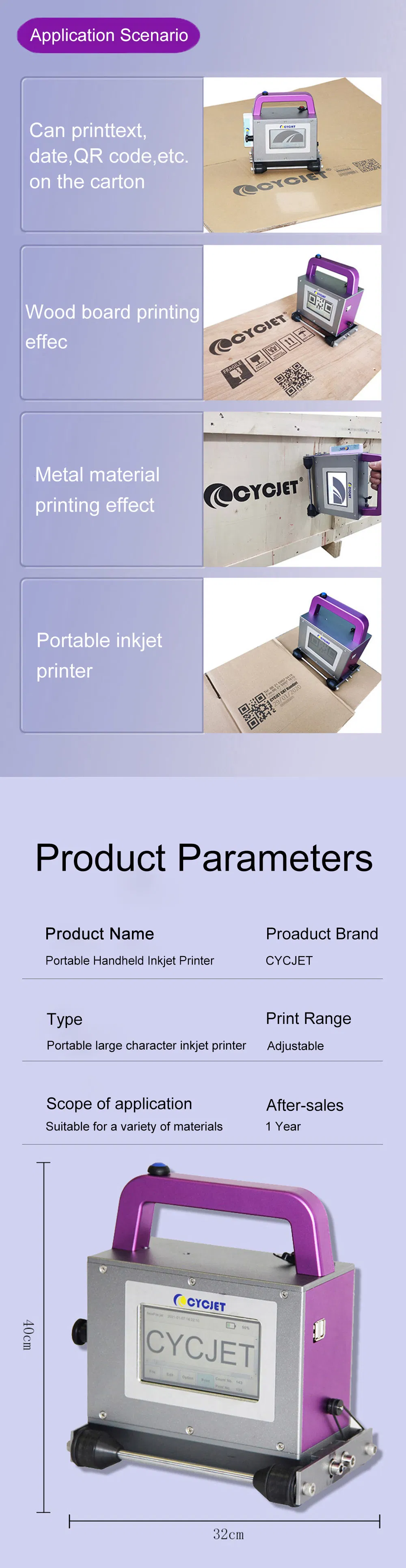

Product Detail 2
5

Our Advantages

As a high-tech enterprise, our products have been exported to more than 90 countries and regions including the USA, UK, France, Germany, and UAE. We focus on "Smart Thinking, Smart Printing" to provide efficient marking solutions.

Advantages
Quality Control
6

Packaging & Shipping

Packaging
Shipping
?

Frequently Asked Questions

How high can I print the font?
The print font height is adjustable between 2-71mm depending on the model configuration, and the length is not limited.
How long does it take for the ink to dry?
Generally, 3 seconds is needed for standard surfaces. For materials like glass or certain plastics, it may require 5-6 seconds.
What is the ideal printing distance?
The recommended distance from the nozzle to the printed object is between 2mm and 5mm for optimal clarity.
Can I print on uneven surfaces or bottles?
Yes, the printer can print on uneven surfaces. For circular objects like bottles, it is recommended to use the included fixed plate for stability.
Is it possible to print logos and custom images?
Yes, font sizes are adjustable and logos can be imported via Type-C connection. Images should not exceed 150 pixels in height for best results.
Can I print QR codes, text, and time simultaneously?
Yes, the system supports multi-content printing, allowing you to include QR codes, text, real-time stamps, and logos in a single file.
