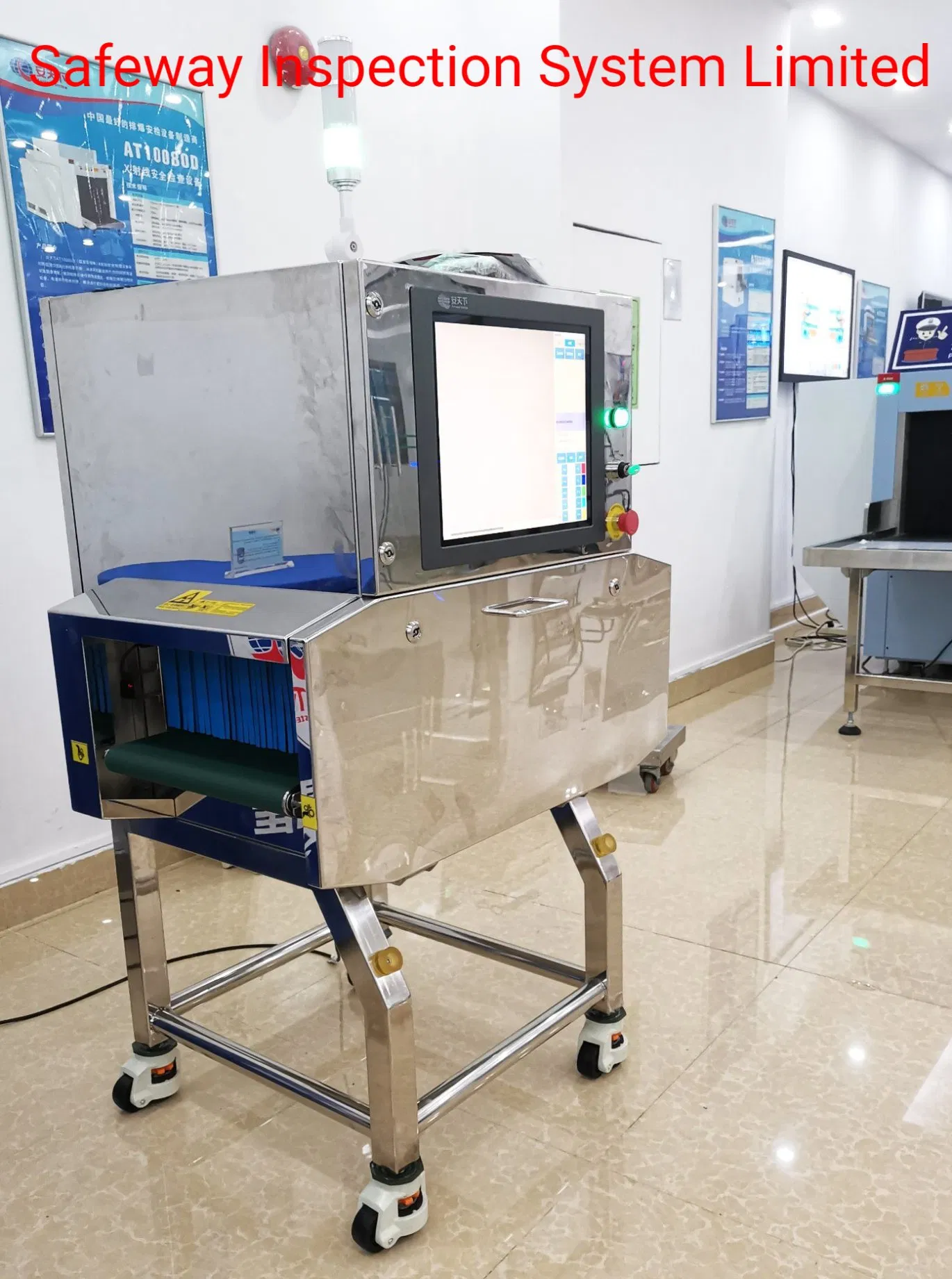

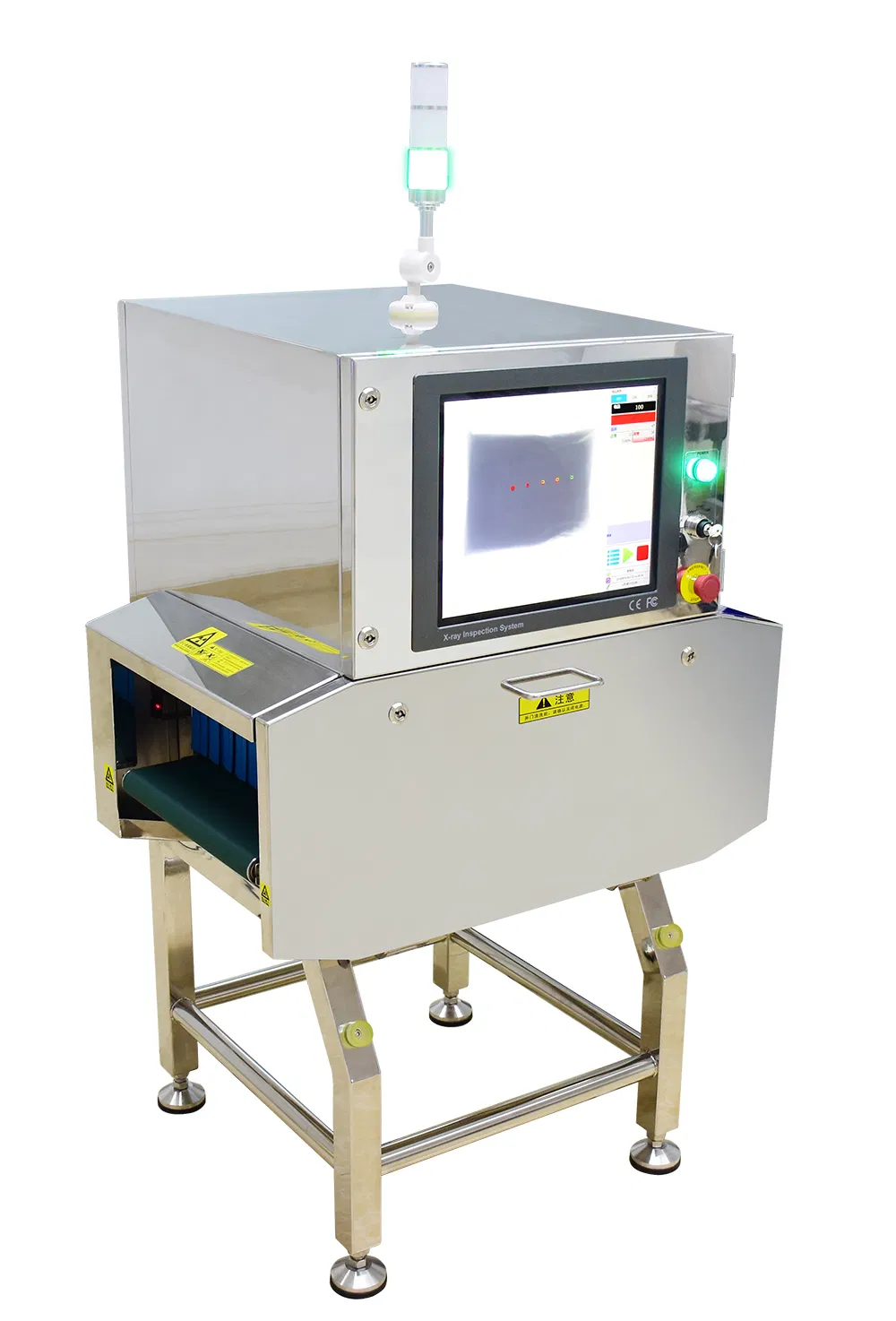

AT4016 X-ray Foreign Body Detector
The AT4016 is a single-source X-ray foreign body detection equipment independently developed for high-precision industrial needs. Utilizing an embedded Linux operating system and highly integrated hardware, the system ensures rapid operation, convenient control, and extremely stable performance.
Widely used in food, medical, textile, aquaculture, and integrated circuit board industries. Ideal for HACCP and IFS certification quality control, identifying defects like damage, deformation, missing components, or air bubbles.
Utilizes X-ray penetrating ability to detect metal or non-metal foreign bodies (glass, ceramics, stone). It inspects meat, fruits, milk powder, chocolate, and textiles for broken needles or packaging cracks.
Digital Processing
All-digital signal transmission and reception provide strong anti-interference ability and high-definition image display.
Unique Linux System
Multi-core ARM architecture with extremely low power consumption and real-time status monitoring.
Safety & Environment
Complies with industry safety standards with extremely low radiation leakage and one-key shutdown functionality.
Stable & Reliable
Strictly controlled under ISO9001. Guaranteed to run for 10,000+ hours failure-free through rigorous vibration and temperature tests.

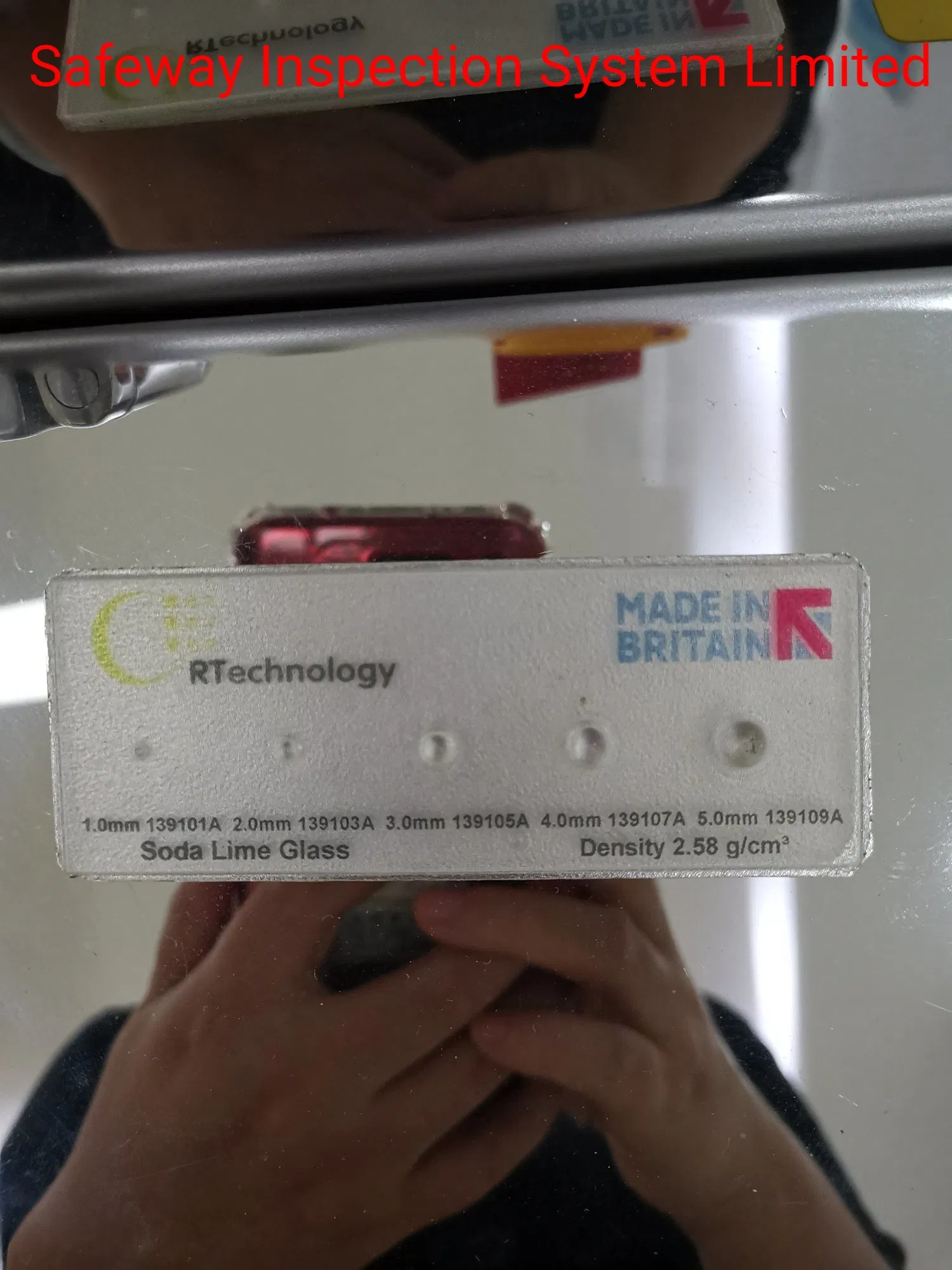

| Best Accuracy | Stainless steel ball Φ0.4mm, Wire Φ0.2*2mm, Ceramic/Glass Φ1.0 |
| Display | 17-inch full-color touch screen |
| Protection Grade | IP66 |
| Body Material | SUS304 Stainless Steel |
| X-ray Generator | 30-80KV (Adjustable), 1-3mA |
| Radiation Leakage | Less than 0.3μGy/h (Better than safety standards) |
| Belt Material | Food-grade 1.2mm PU belt |
| Dimensions | 850 mm (L) * 730 mm (W) * 1679 mm (H) |
A1: It can detect metal foreign bodies and non-metal objects such as glass, ceramics, stones, and high-density plastics within food, textiles, and medical products.
A2: Yes, the leakage radiation dose rate is less than 0.3μGy/h, which is significantly better than international health and safety standards. It features double-layer isolation curtains for protection.
A3: Yes, the equipment has a protection grade of IP66 and is constructed from SUS304 stainless steel, making it suitable for demanding industrial environments.
A4: Yes, the system includes a training mode with self-learning capabilities for items, identifying product defects such as cracks, air bubbles, and missing contents.
A5: The maximum load capacity of the conveyor belt is 5kg, with an adjustable speed ranging from 3 to 60 meters per minute.
A6: The AT4016 features a humanized design with a removable protective curtain and an easy-to-clean body, ensuring low maintenance effort.
