📋 Basic Specifications
Automatic Grade
Fully Automatic
Principle
Thermal Inkjet Technology
Application
High Resolution Ink Jet Printer
Packaging
Box/Bag/Pipe/Paper
Seamless Joint
Accepted (Multi Print Head)
Ink Solution
Support Porous, Semi-Porous and Non-Porous
Controller Size
100*100*50mm
Power Supply
AC 90V-240V/50-60Hz
Tech Support
Yes (Strong Support)
High resolution Industrial Continuous Inkjet Printer
🚀 Key Product Features
▶

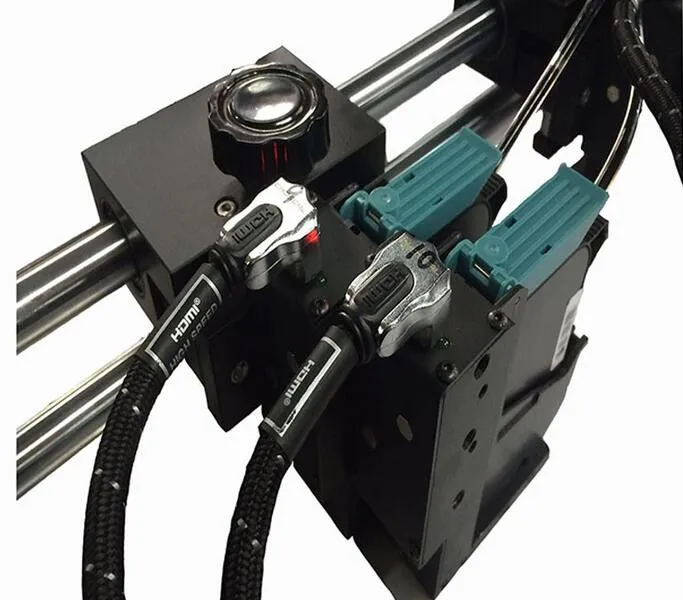

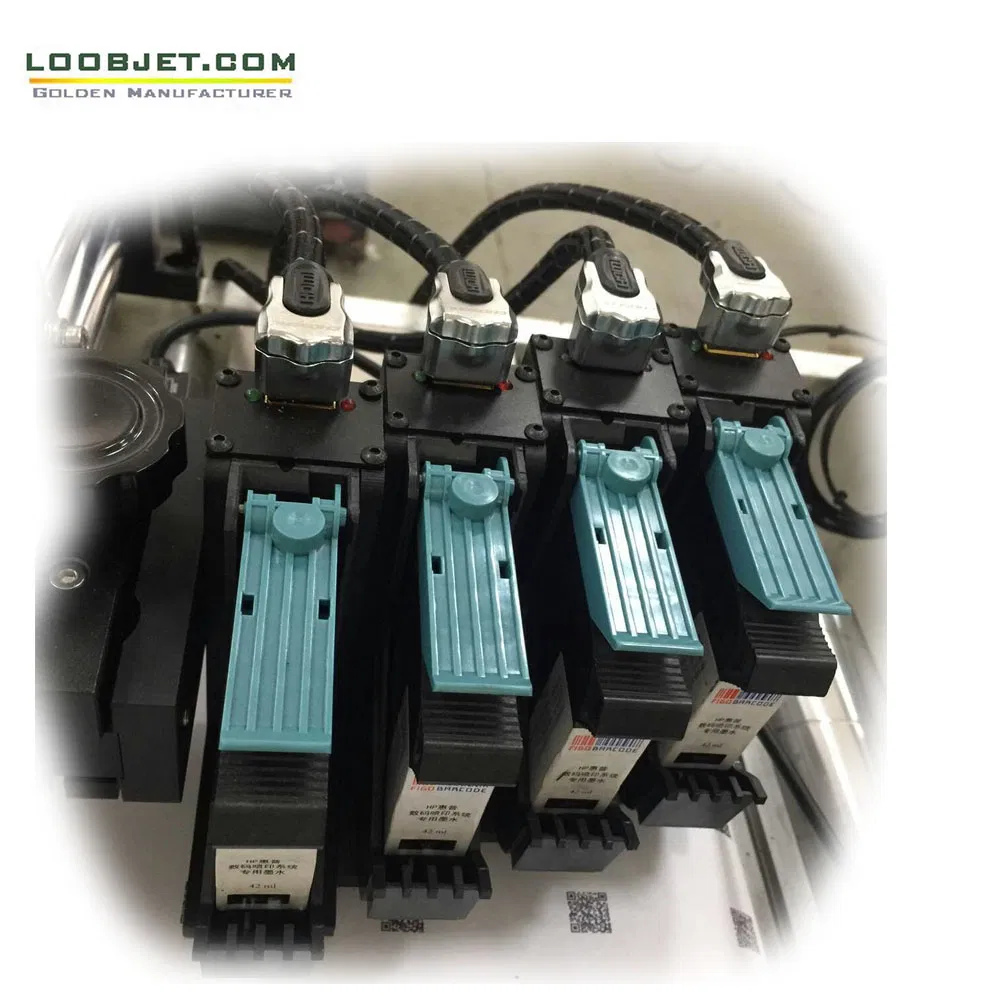

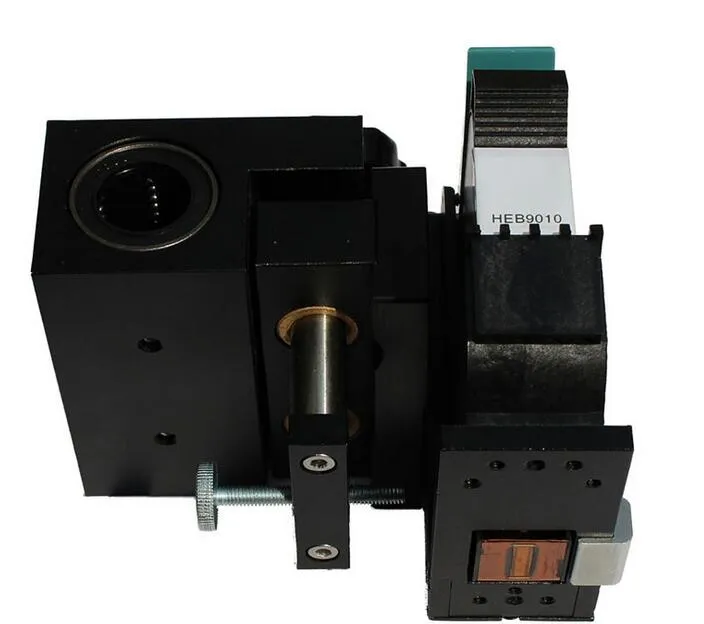

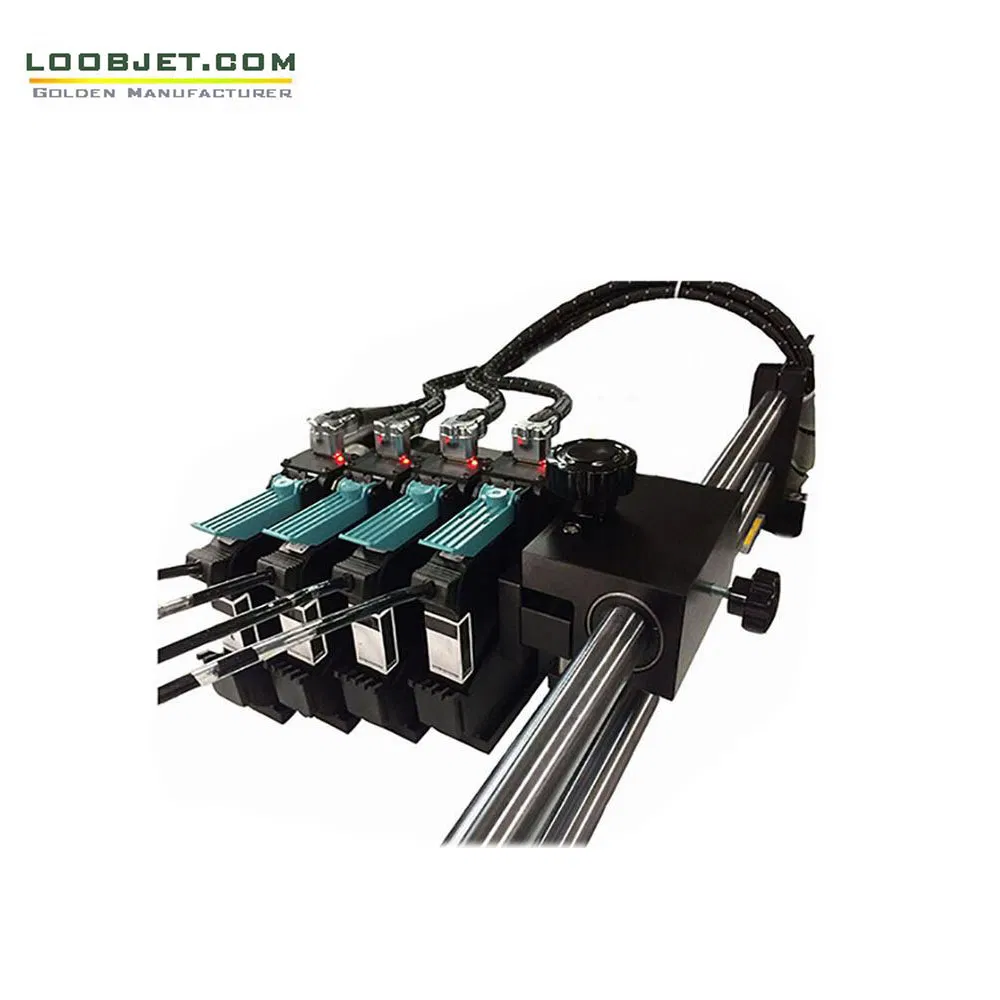

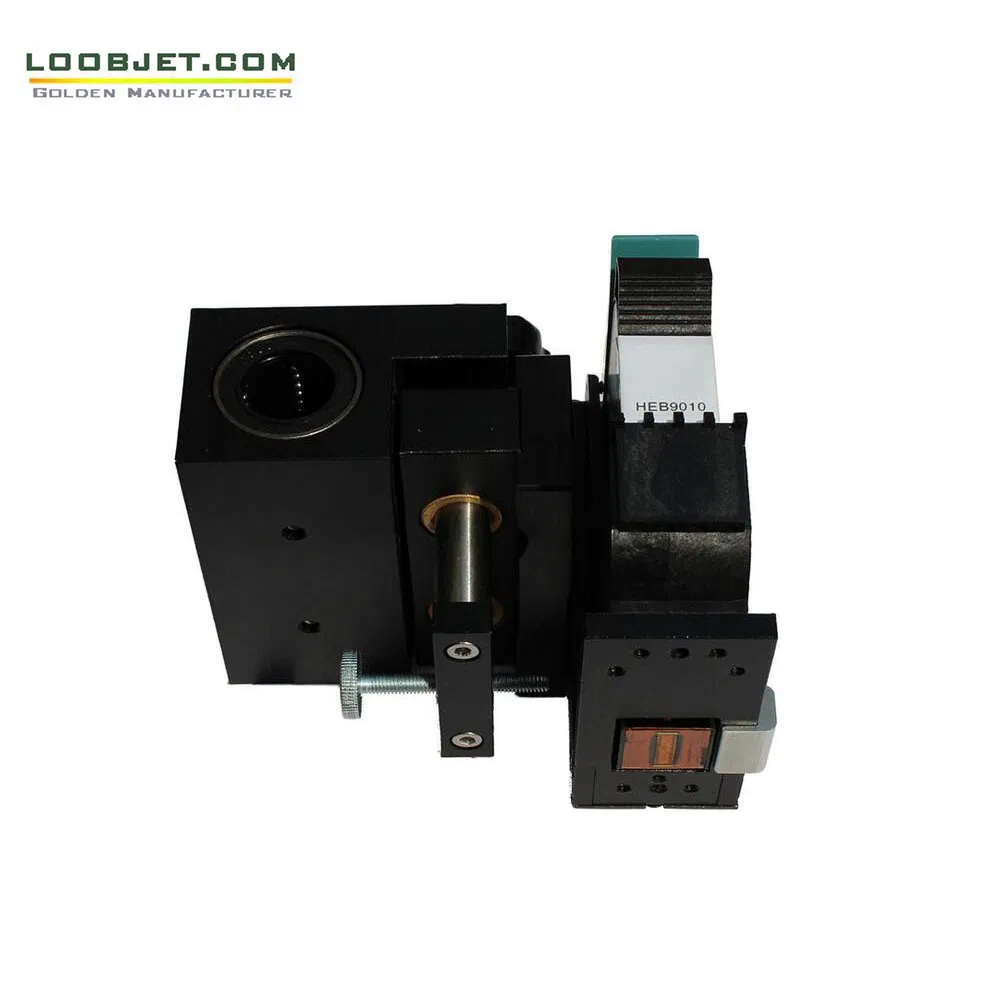

Advanced TIJ 2.5 Print Heads
Utilizes TIJ2.5 generation technology. Single print nozzle height is 12.7 mm. Disposable maintenance-free heads with a long life cycle capable of printing one litre of ink.
▶
High Resolution & High Speed
Delivers sharp 300*300dpi to 600*600dpi bar code printing. Adjustable speeds ranging from 30 meters/minute up to 304 meters/minute.
▶

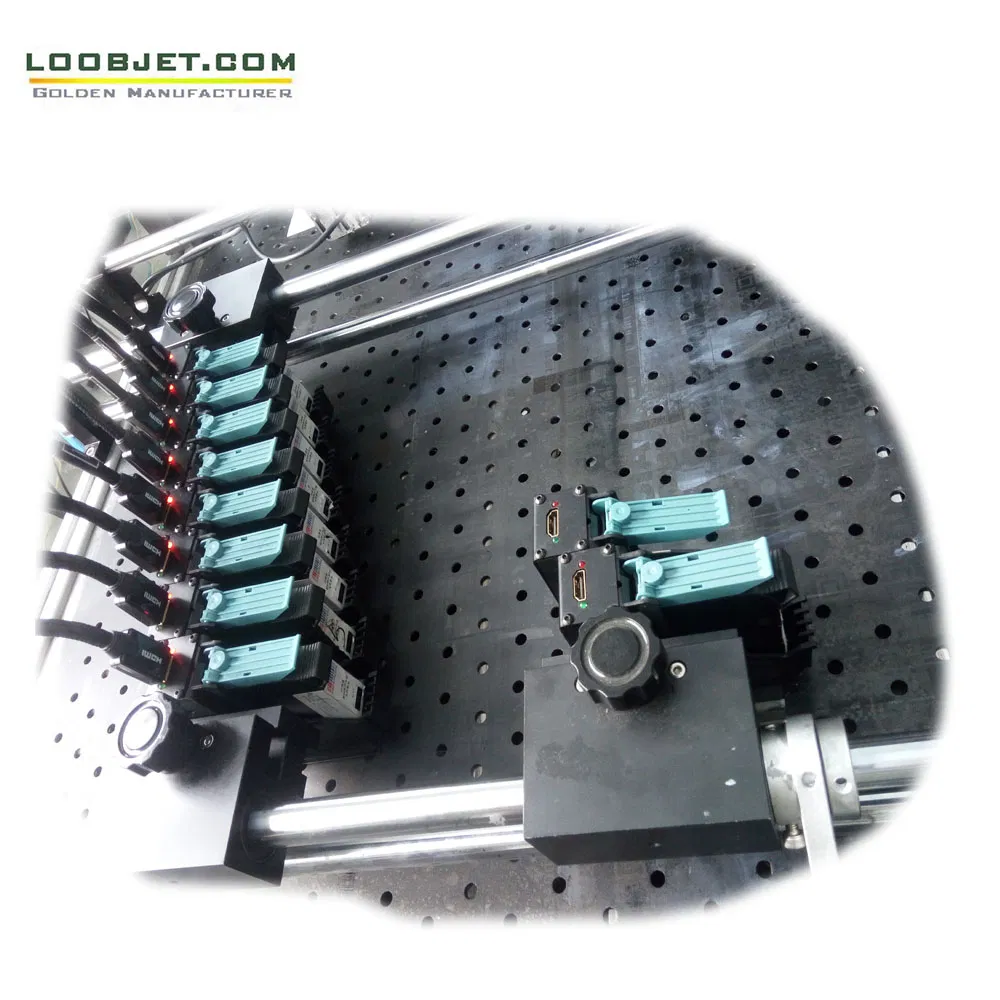

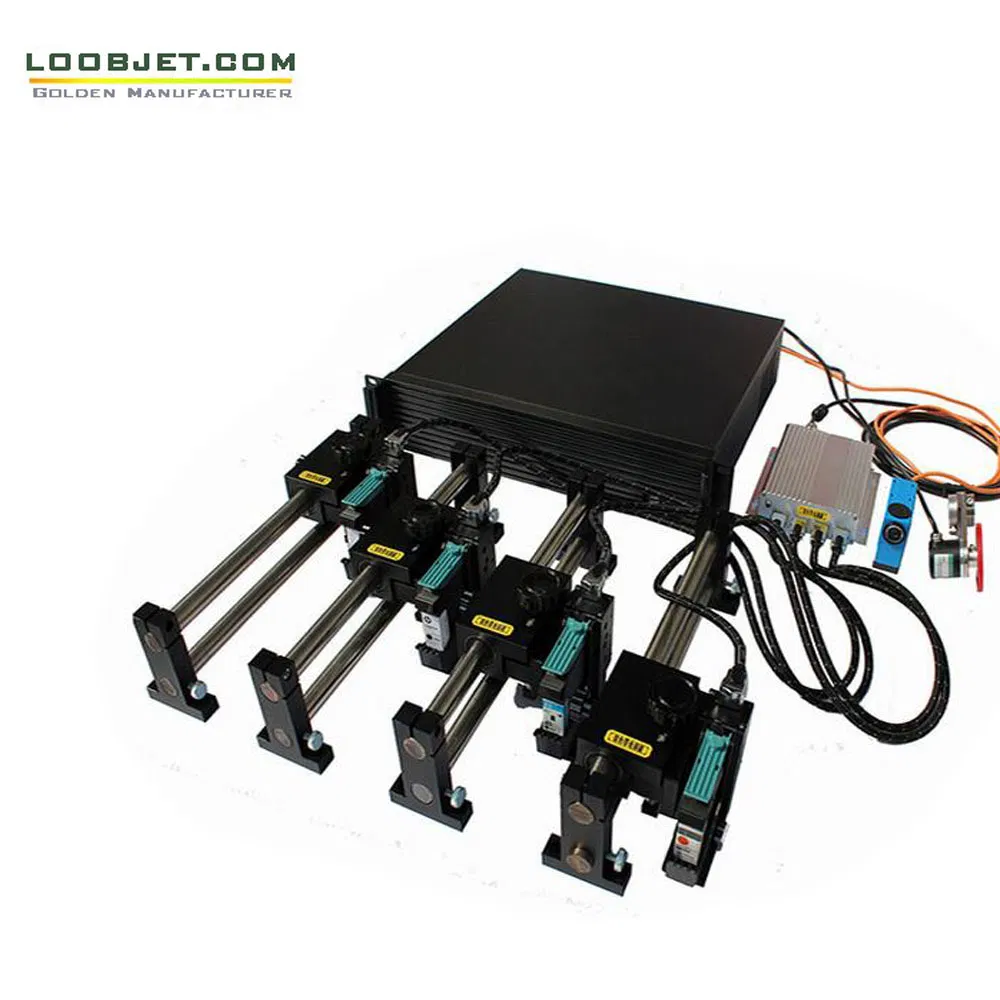

Scalable System Design
Computer-controlled via Gigabit Ethernet. Each system controller manages 1-4 print heads. Up to 6 systems can be linked to control 24 heads (304.8 mm total width).
▶
Smart Content Management
Supports static text, images, dynamic bar codes (180+ types), counters, and real-time dates. Seamlessly integrates with external databases like Excel and TXT.
▶
Versatile Media Compatibility
Prints on water-based certified ink media including suction type surfaces, coated paper, offset paper, PVC, cartons, and light oil cartons.
⚙ Technical Details
| Controller Size |
100mm * 100mm * 50 mm |
| Max Print Height |
Single Controller: 50.8 mm (4 heads)
Six Joint: 304.8 mm (24 heads) |
| Interface Support |
Serial port, Ethernet, Magic eye, Encoder, Nozzle interface |
| Printing Precision & Speed |
60 m/min (600 x 600 dpi)
90 m/min (600 x 300 dpi)
150 m/min (600 x 150 dpi) |
| Ink Delivery System |
Ink cartridge, ink bag, or ink tank system |
| Sensor & Synchronizer |
Supports NPN/Contact sensors; 300 ppi synchronizer |
| Software Environment |
X Windows, Windows 7, Windows 8 (pro) |
| Barcode Support |
1D: EAN128, Code25, Code39, Code128, etc.
2D: PDF417, Data Matrix, QR Code |
| Working Environment |
0 ºC to 40 ºC; Humidity 10% ~ 80% |
❓ Frequently Asked Questions
What is the maximum printing height of this system?
A single controller can support up to 50.8 mm with four heads. By joining six systems, you can reach a maximum height of 304.8 mm (12 inches).
What kind of surfaces can I print on?
The system is compatible with a wide range of media including coated paper, offset paper, PVC, coated cartons, and various suction-type materials.
Does the printer support variable data like QR codes?
Yes, it supports over 180 types of barcodes and QR codes, including Data Matrix, PDF417, and real-time dynamic data from external databases like Excel.
Is the print head maintenance difficult?
No, it uses TIJ2.5 disposable technology, making the print heads virtually maintenance-free. You simply replace the cartridge when needed.
Can the system operate in high-speed production lines?
Absolutely. The printer can achieve speeds up to 304 meters per minute depending on the resolution requirements, making it ideal for 24-hour industrial production.
Is technical training provided?
Yes, we provide free training and strong technical support to ensure your team can operate and integrate the system efficiently.
