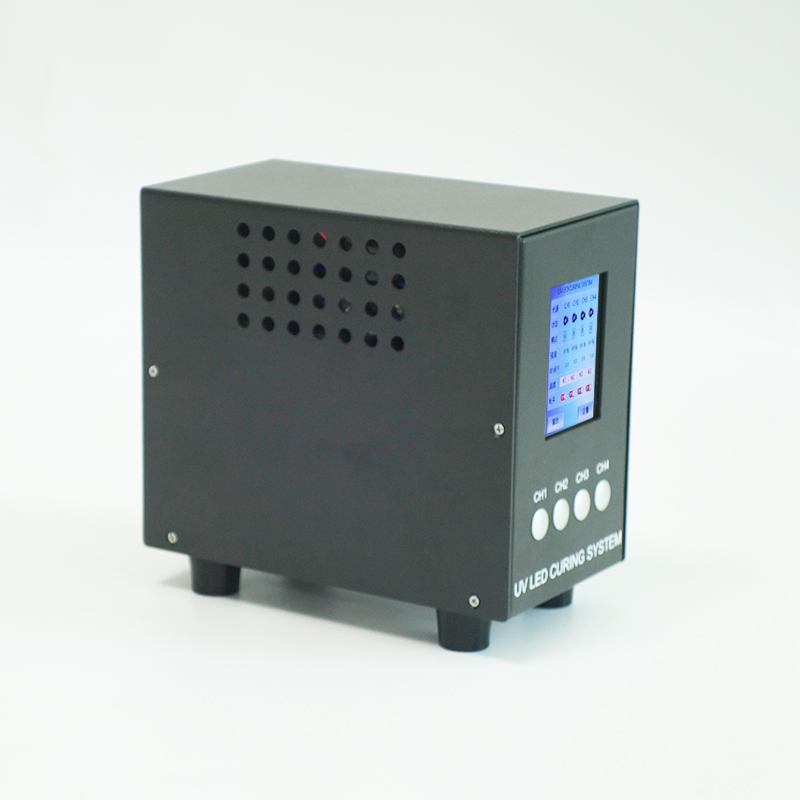

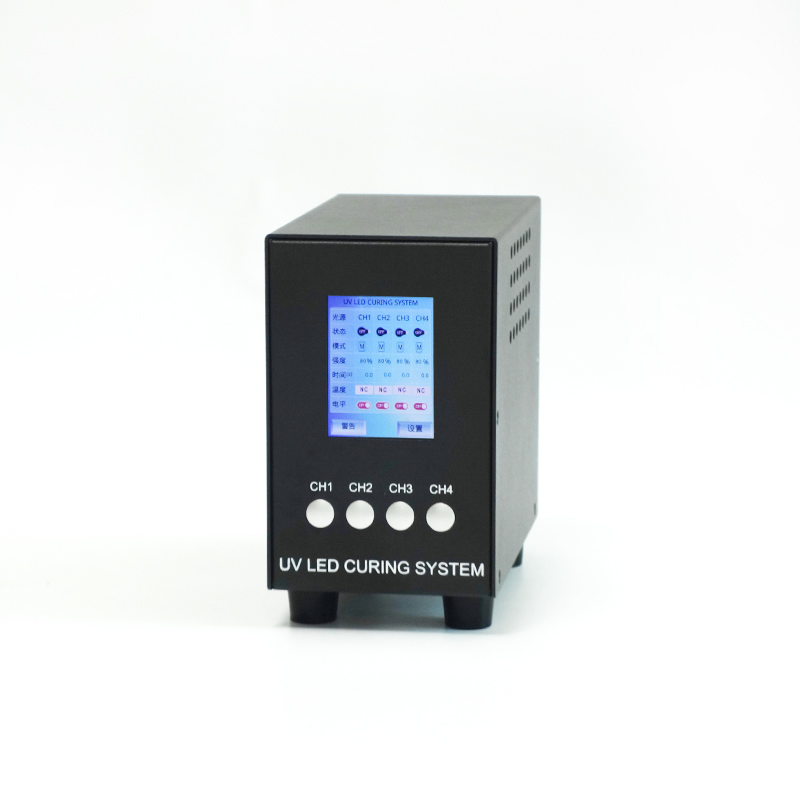

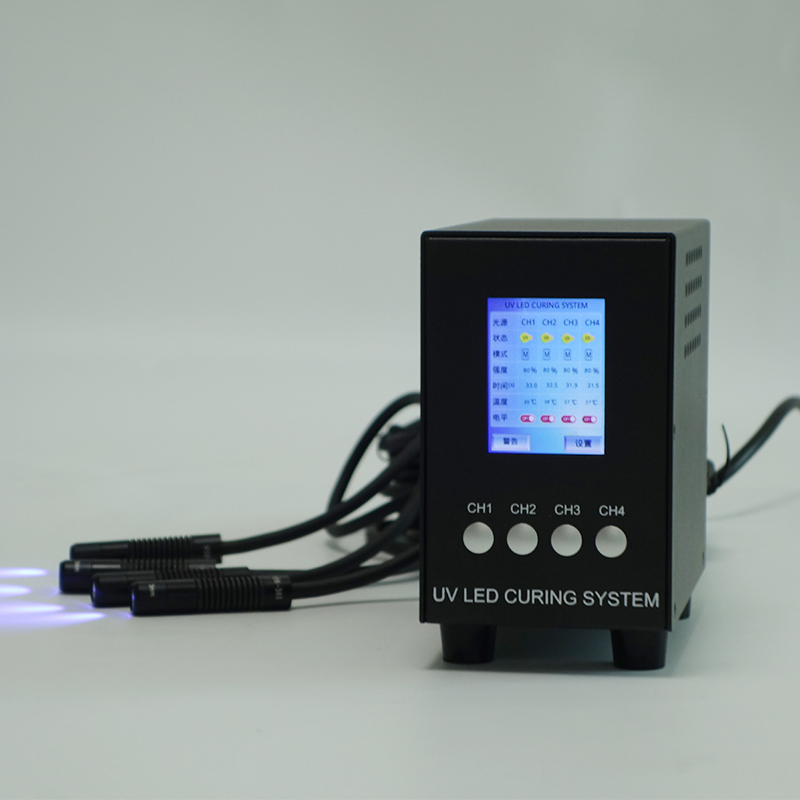

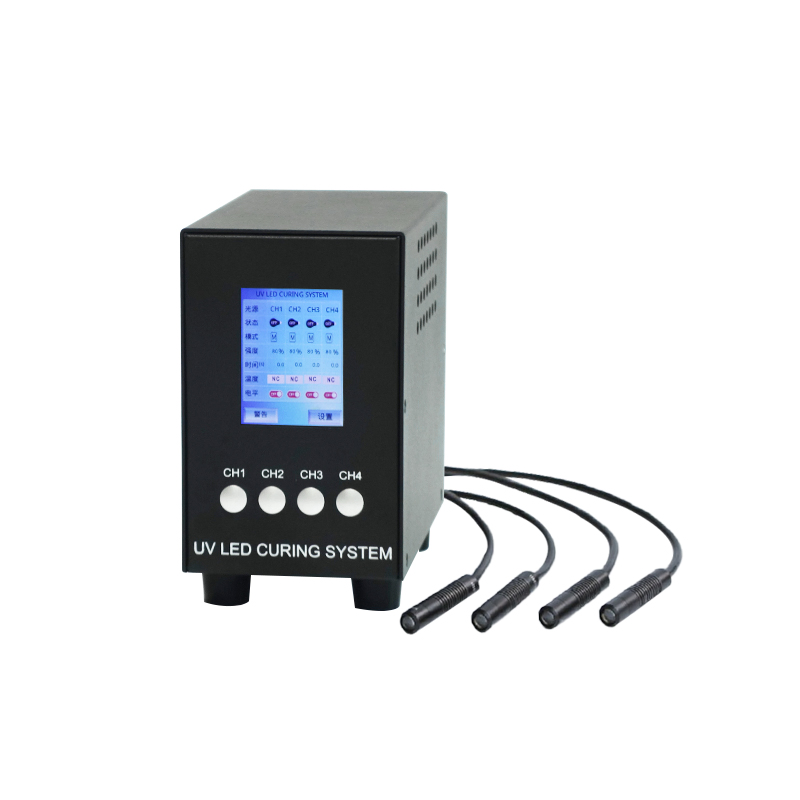

Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, such as irradiation processes with different intensities and different times, the shortest production efficiency and machine utilization can be achieved, especially in fully automated production lines.

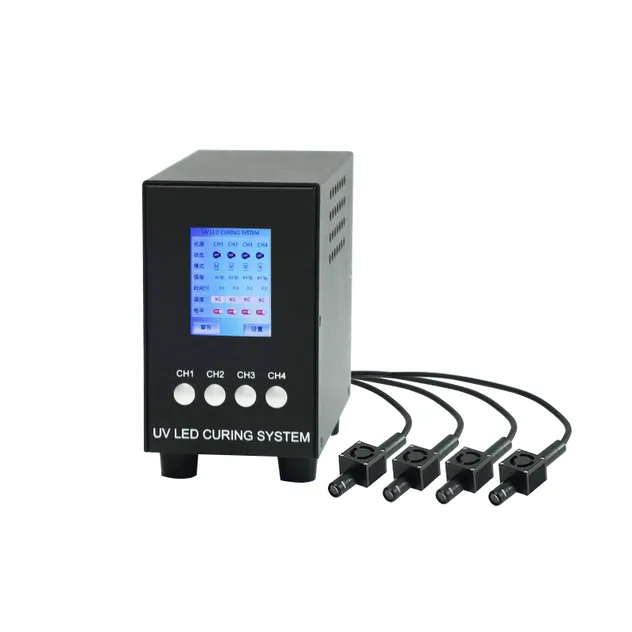

Right elevation

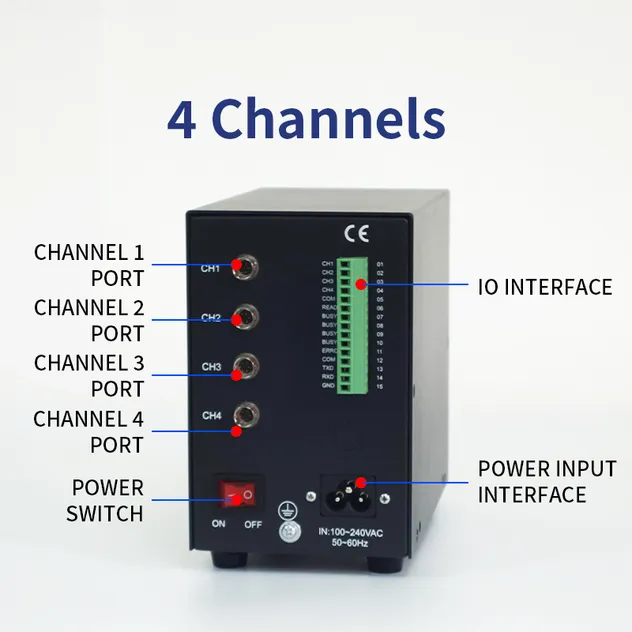

Left elevation
| Parameter | Details |
|---|---|
| Model | A1400-XTP-S |
| Wavelength | 365nm, 385nm, 395nm, 405nm, 470nm |
| Irradiate Lamp Heads | 1-4pcs |
| Maximum UV Intensity | 18000mw/cm² |

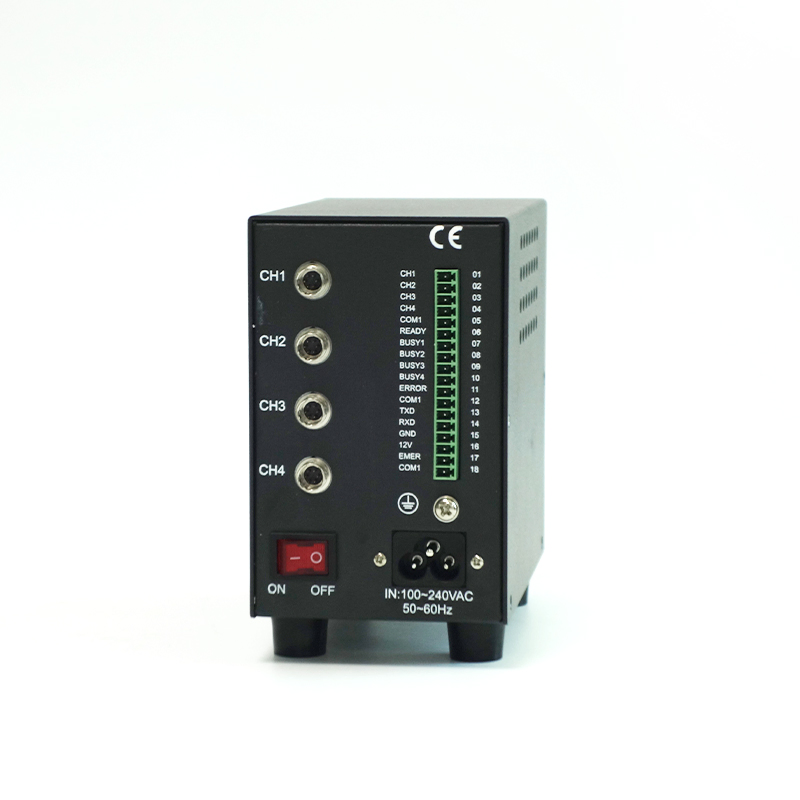

| Control Method | RS232/PLC/Pedal/Touch Screen |
| LED Life | 20000 Hrs |
| Irradiated Mode | Manual, Automatic (0.1S~999.9S), Step, Cycle step |
| Cooling Method | Natural Cooling or Fan Cooling |
| Dimensions | 160*92*140mm |

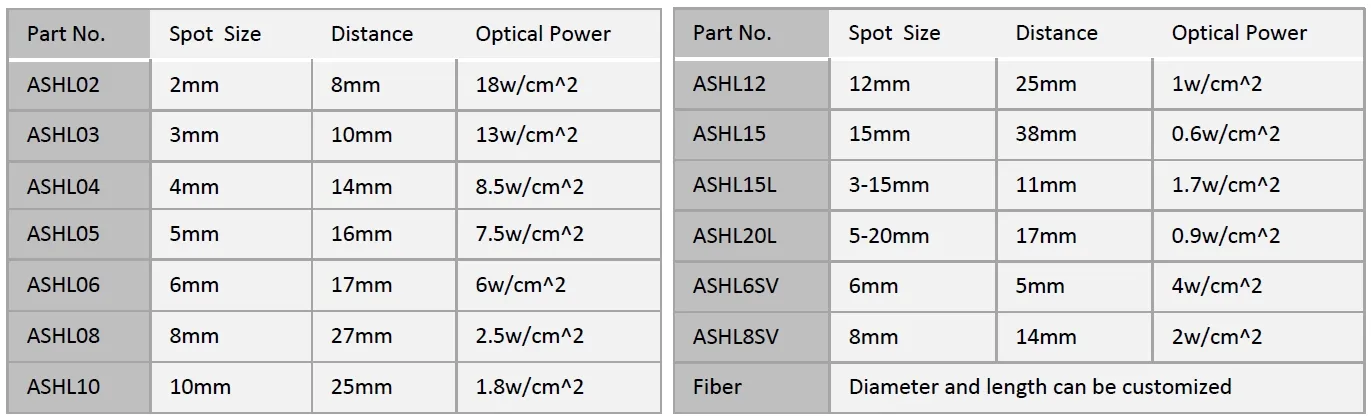

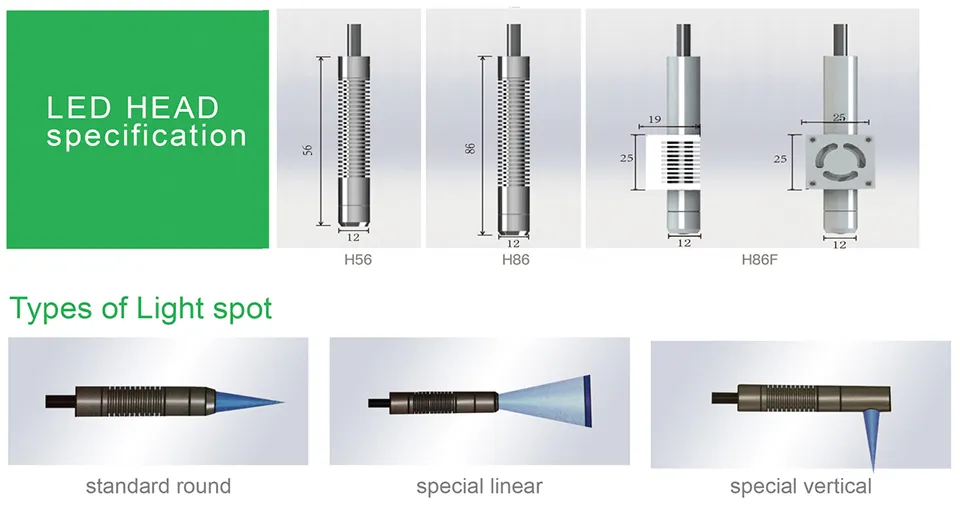

We offer various lens sizes and head types to meet specific project needs:
We are a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we export to 50+ countries, offering reliable machines backed by R&D innovation and strict quality control.
