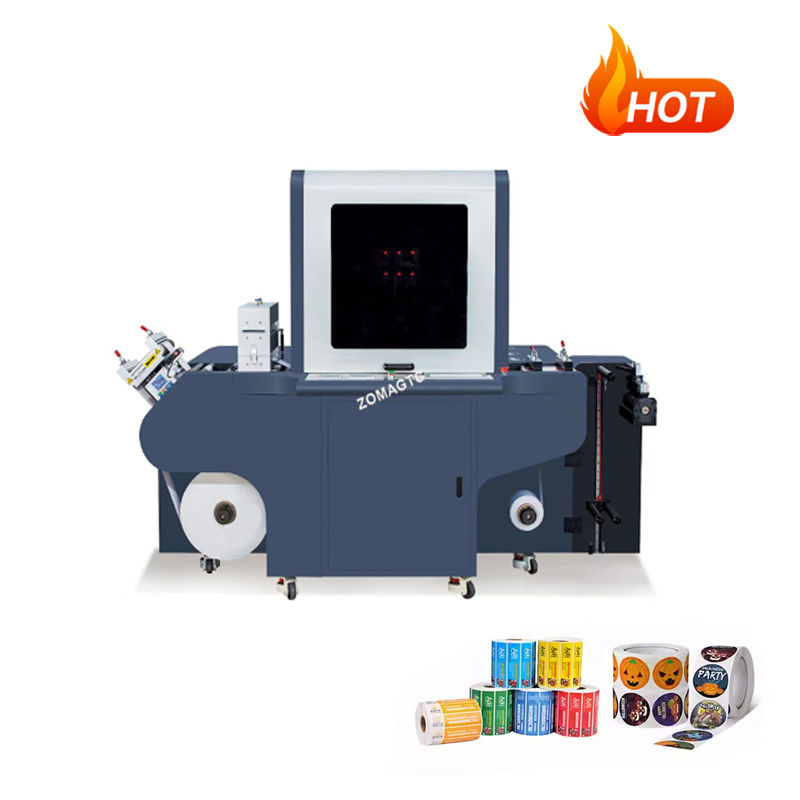

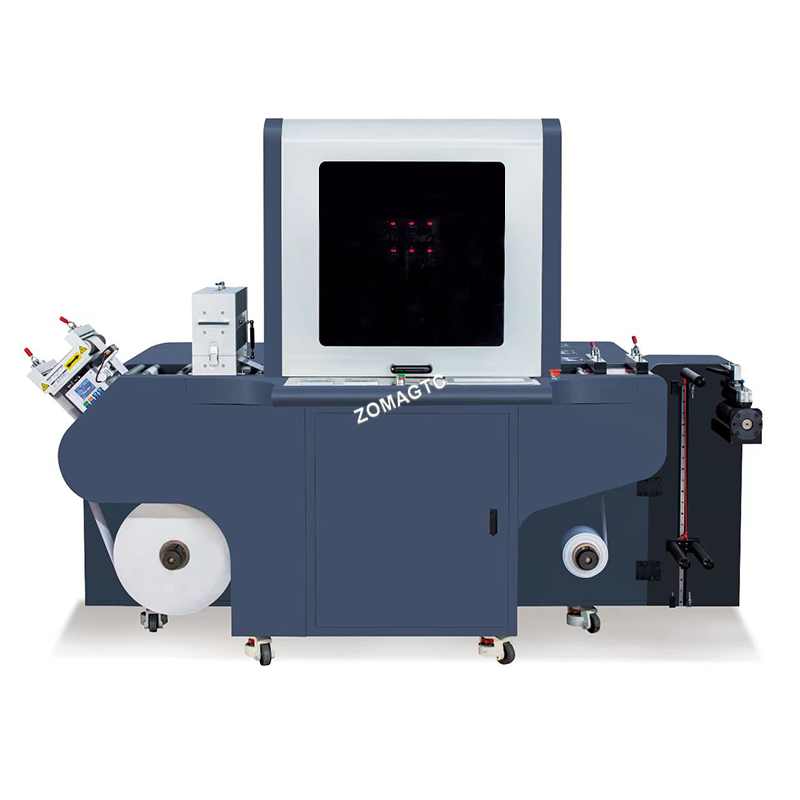

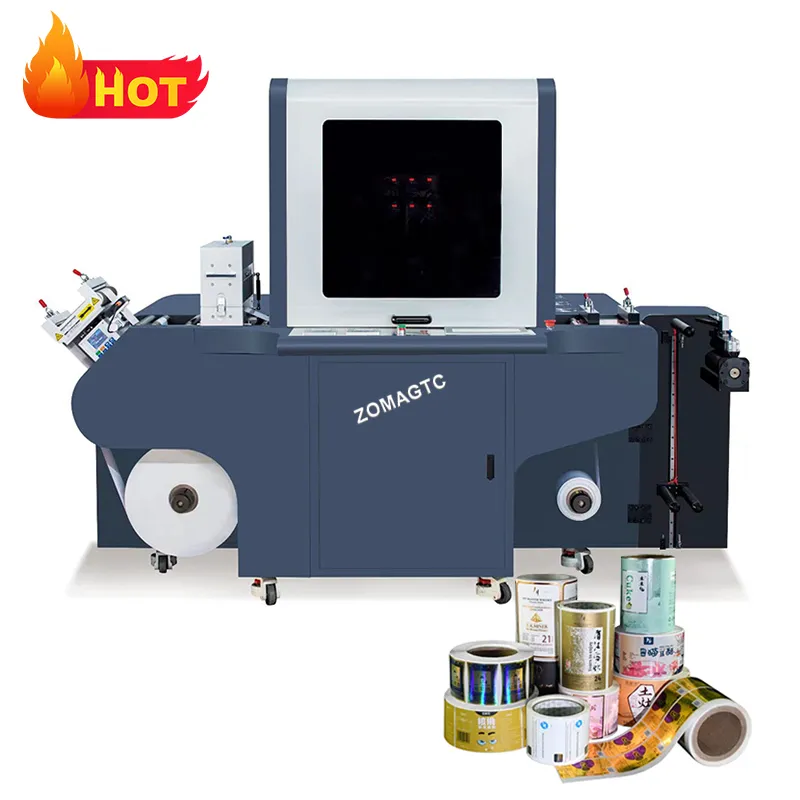

| Model NO. | ZM-X108 |
| Plate | Flatbed |
| Structure | Flat-Bed Cylinder Press |
| Color & Page | Multi-Colour Printing Press |
| Usage | Paper Printer, Label Printer |
| Automatic Grade | Automatic |
| Printing Interface | USB3.0 / Fast Ethernet |
| Print Technology | Dod Piezoelectric Inkjet Kyocera Head |
| Print Width | 108mm(4.25")/216(8.5") |
| Ink Type | LED-UV Curable Ink |
| Print Resolution | 600X600dpi / 600X1200dpi |
| Print Speed | Up to 50m/Min (164FT/Min) |
| Ink Channels | 6 Channels: CMYK, White, Varnish, Spot Color |
| Media Type | Coated/uncoated paper, self-adhesive label, aluminum foil, PP, PE, PVC, PET, BOPP, etc. |

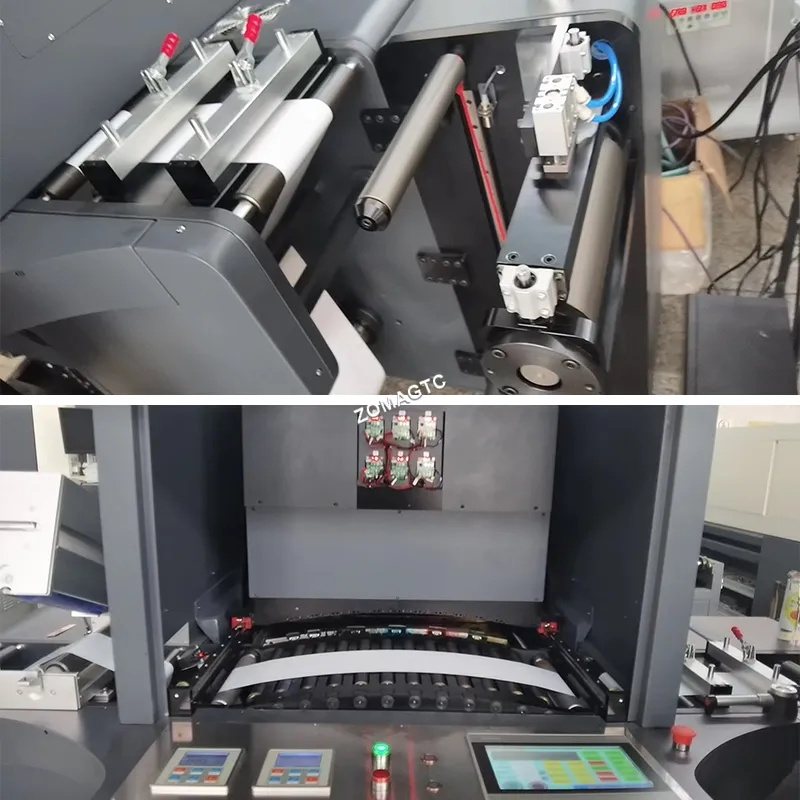

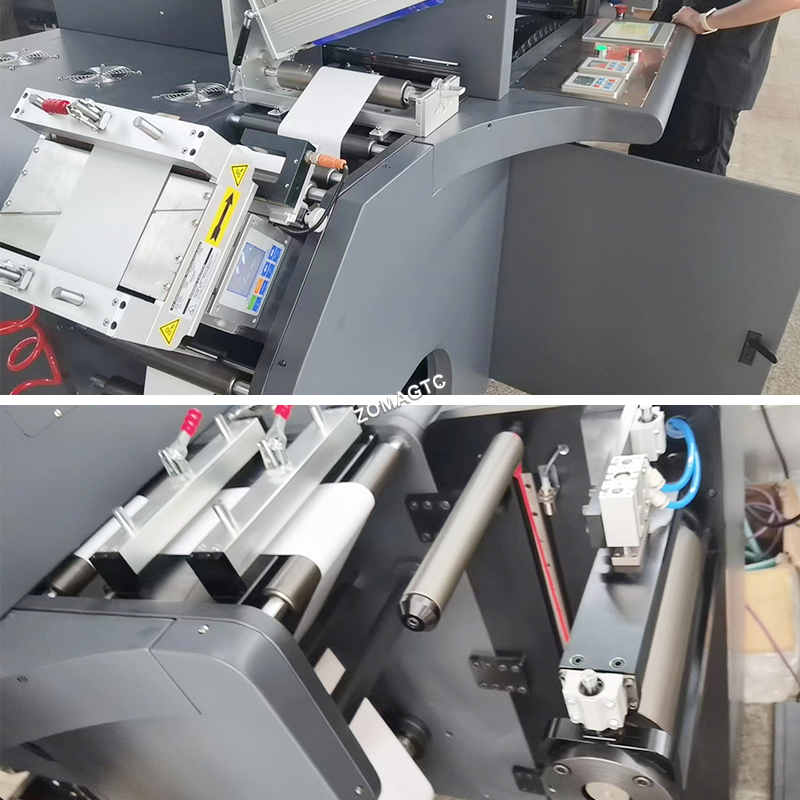

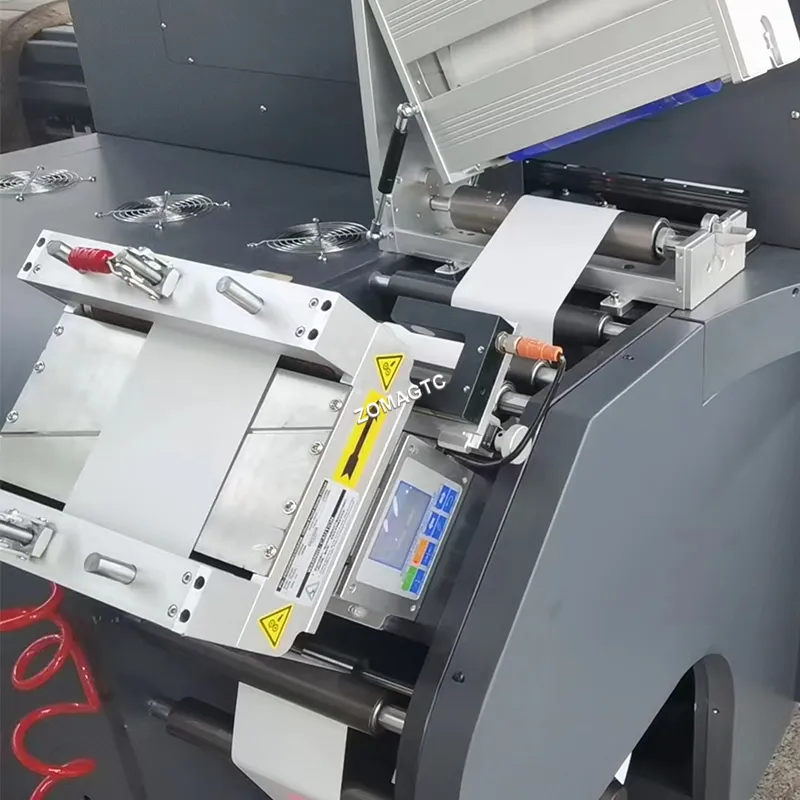

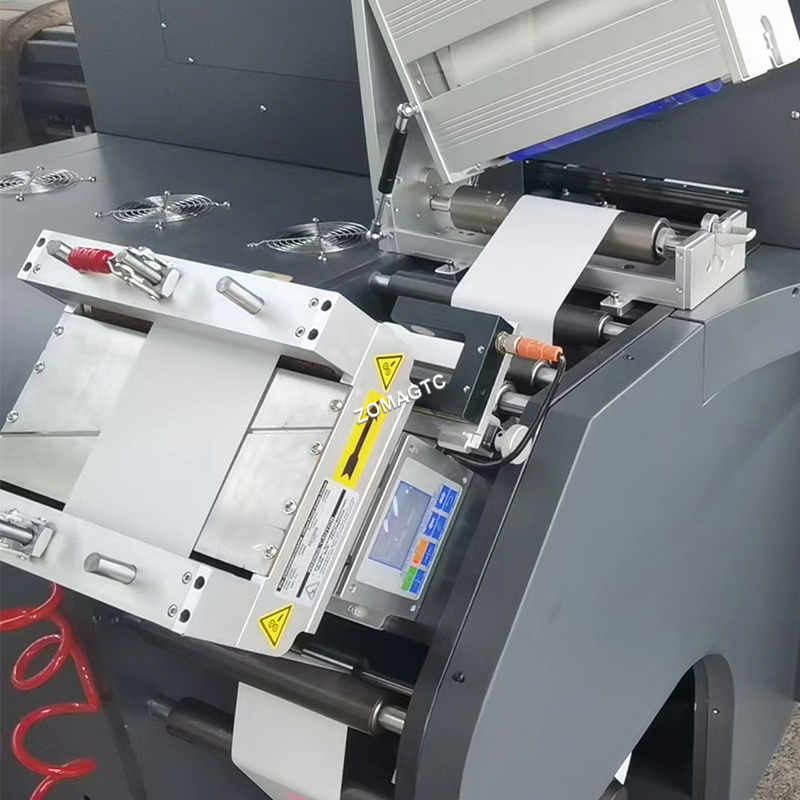

Utilizes a 76.2mm(3") servo-driven rewind spindle with magnetic particle clutch and closed-loop tension control system. Supports rewind diameter up to 500mm.
Double driver motor and accurate tension control system ensure the media can be rolled back neatly for high-precision workflows.
Print module position can be adjusted within the full media region (230mm) via software without manual media adjustment.
Specifically designed for industrial short-run narrow-format production including labels, hangtags, tickets, and RFID.
