📊 Basic Info.
| Model NO. |
MY-JTX-3020 |
Portable |
Non Portable |
| Form |

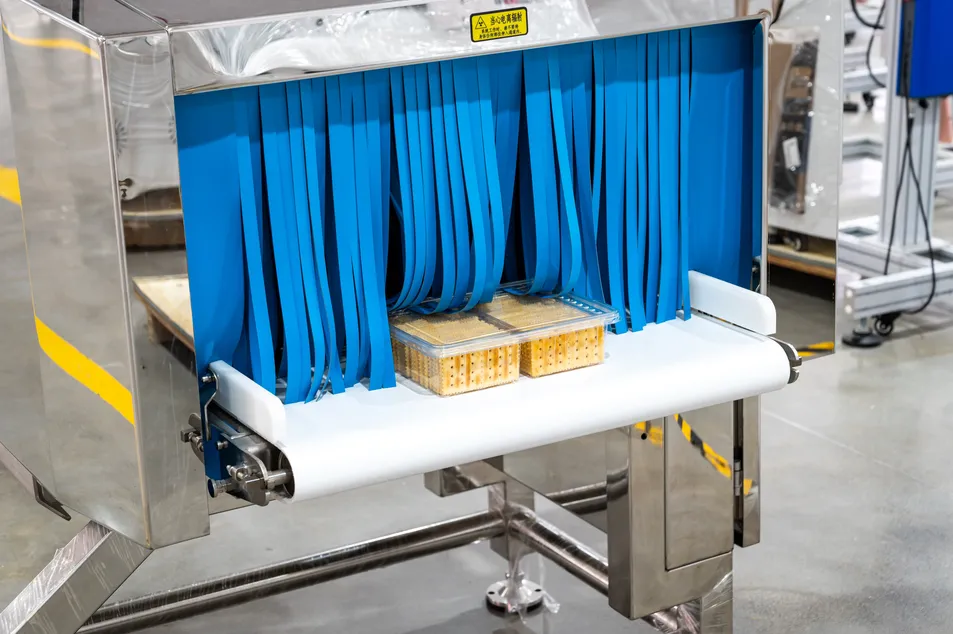

Tunnel Aperture |
Application |
Security Check, Industrial |
| Type |
Conveying X-ray Detector |
Certification |
CE, ISO |
| Operating System |
Linux / Windows 10 |
HMI |
17-Inch Touch LCD Screen |
| Conveyor Speed |
30~70 M/Min |
Material |
SUS304 Stainless Steel |

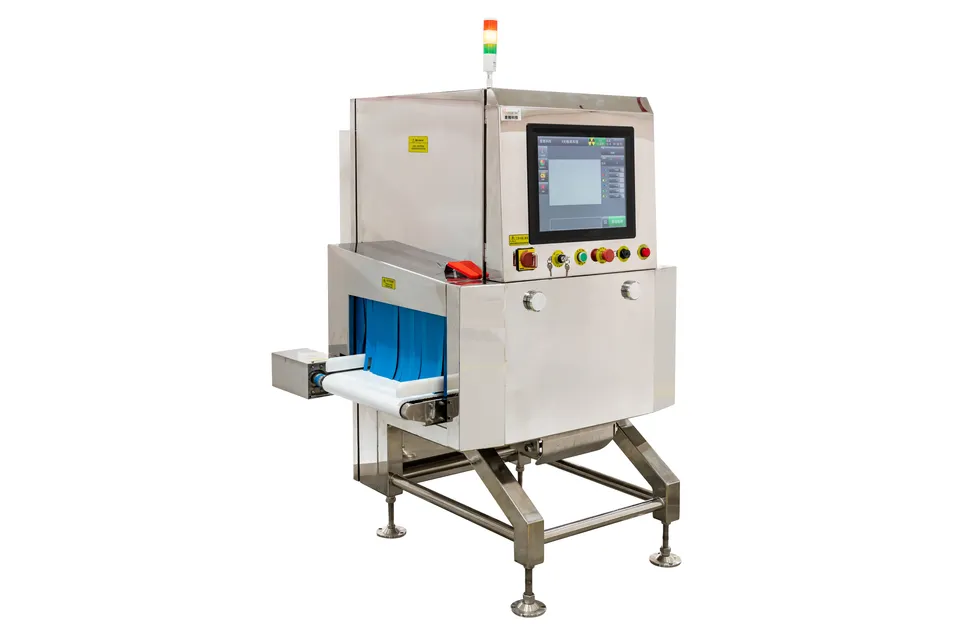

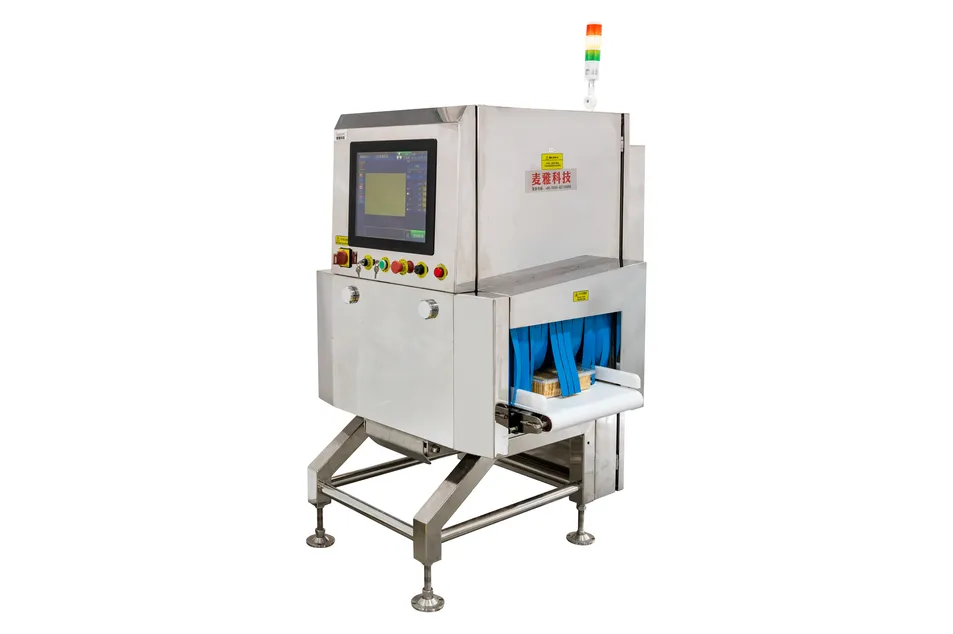

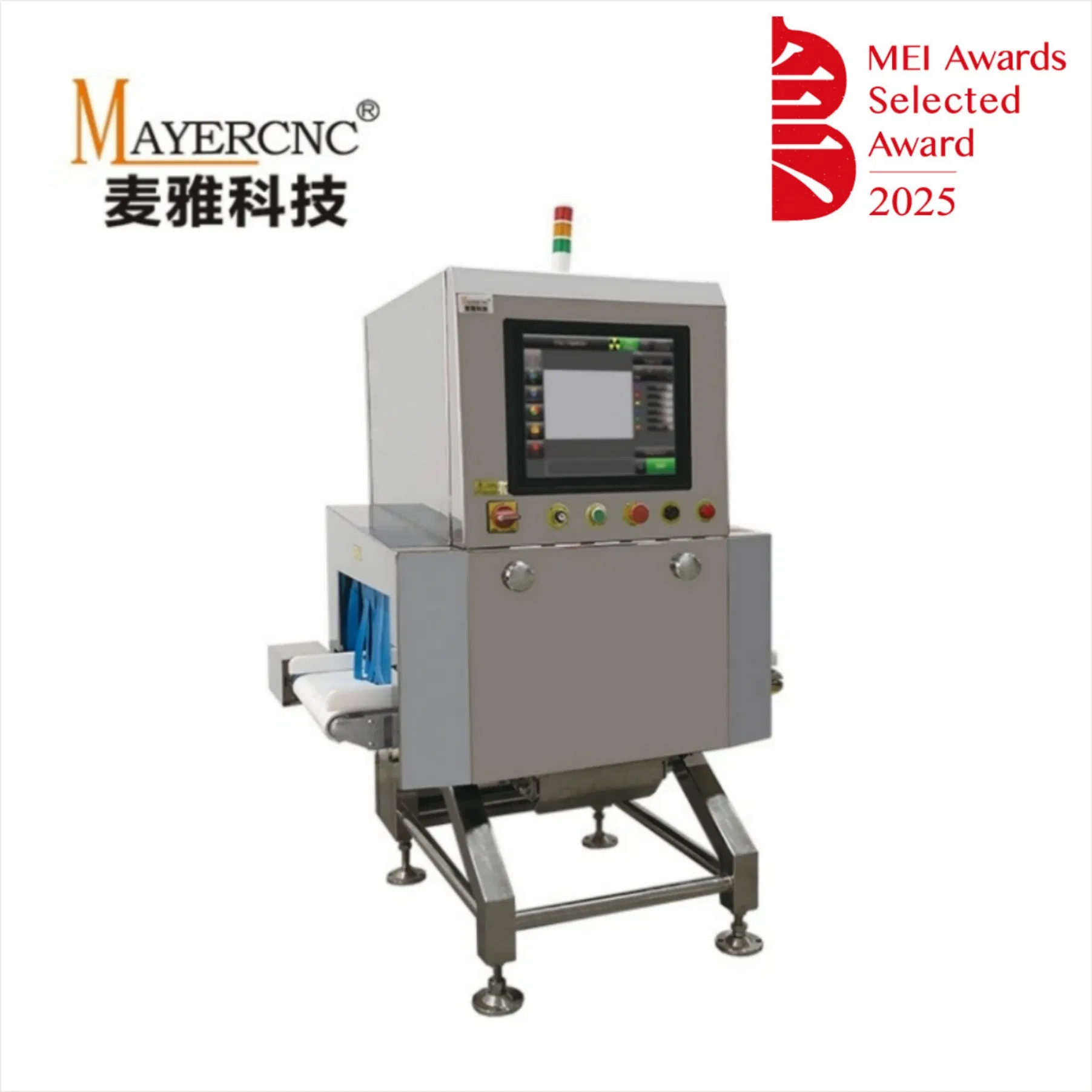

🔍 Product Description
| Model Number |
MY-JTX-3020 |
MY-JTX-4025 |
MY-JTX-6035 |
| Ray source |
150w-350w |
| Detection accuracy |
Stainless steel ball: Φ 0.4 mm; Glass ball: Φ 1.0 mm; Ceramic ball: Φ 1.0 mm |
| Conveyor speed |
30~70 m/min |
| Max Product Weight |
5kg |
5kg |
10kg |
| Max Product Dimensions |
W ≤ 280mm, H ≤ 130mm |
W ≤ 380mm, H ≤ 170mm |
W ≤ 580mm, H ≤ 240mm |
| Protection Class |
IP65 (Dustproof and Waterproof) |
💡 Key Features & Advantages
Advanced Algorithm Platform
Achieves excellent high-precision detection based on an intelligent computing architecture.
Smart AI Learning
Simple and intuitive. New products can be quickly added through auto-learning wizards without prior experience.
Customized Solutions
Customized AI algorithms suit special product requirements, running parallel tests to boost accuracy.
Remote Technical Support
Equipped with 4G wireless connection for fast remote support and automatic failure alerts.
🏢 Expert Inspection Solutions
Our expertise lies in the research and production of metal foreign object detection, weight detection, X-ray inspection, visual systems, and laser marking equipment. We are recognized for integrating high-precision technology with intelligent automated systems.
📜 Certifications & Cooperation
❓ Frequently Asked Questions
What kind of contaminants can the X-ray system detect?
The system is designed to detect various metal impurities (iron, copper, stainless steel) as well as glass, ceramic, and high-density bone fragments mixed in raw materials or finished products.
How do I know if this machine is right for my products?
Our technical team recommends models based on your product specifications, density, and packaging. We accept customization to ensure the equipment meets your specific inspection sensitivity requirements.
What is "product effect" and does it affect X-ray inspection?
"Product effect" occurs when moisture or salt content interferes with traditional metal detectors. Food X-ray inspection equipment is not affected by product effect, providing much more accurate results for high-moisture items like bread or meat.
Is the machine easy to operate for new staff?
Yes, the system features a 17-inch touch screen with a simple English menu. It includes an auto-learning wizard that allows operators to set up new products quickly without extensive technical training.
What technical assistance is provided after purchase?
We offer remote technical support via 4G connection, online installation guidance, and remote training sessions. Our after-sales team provides instant communication to resolve any operational issues.
What is the typical lead time for an order?
Standard equipment typically takes about 20 business days to deliver after the initial deposit is received and specifications are confirmed.
