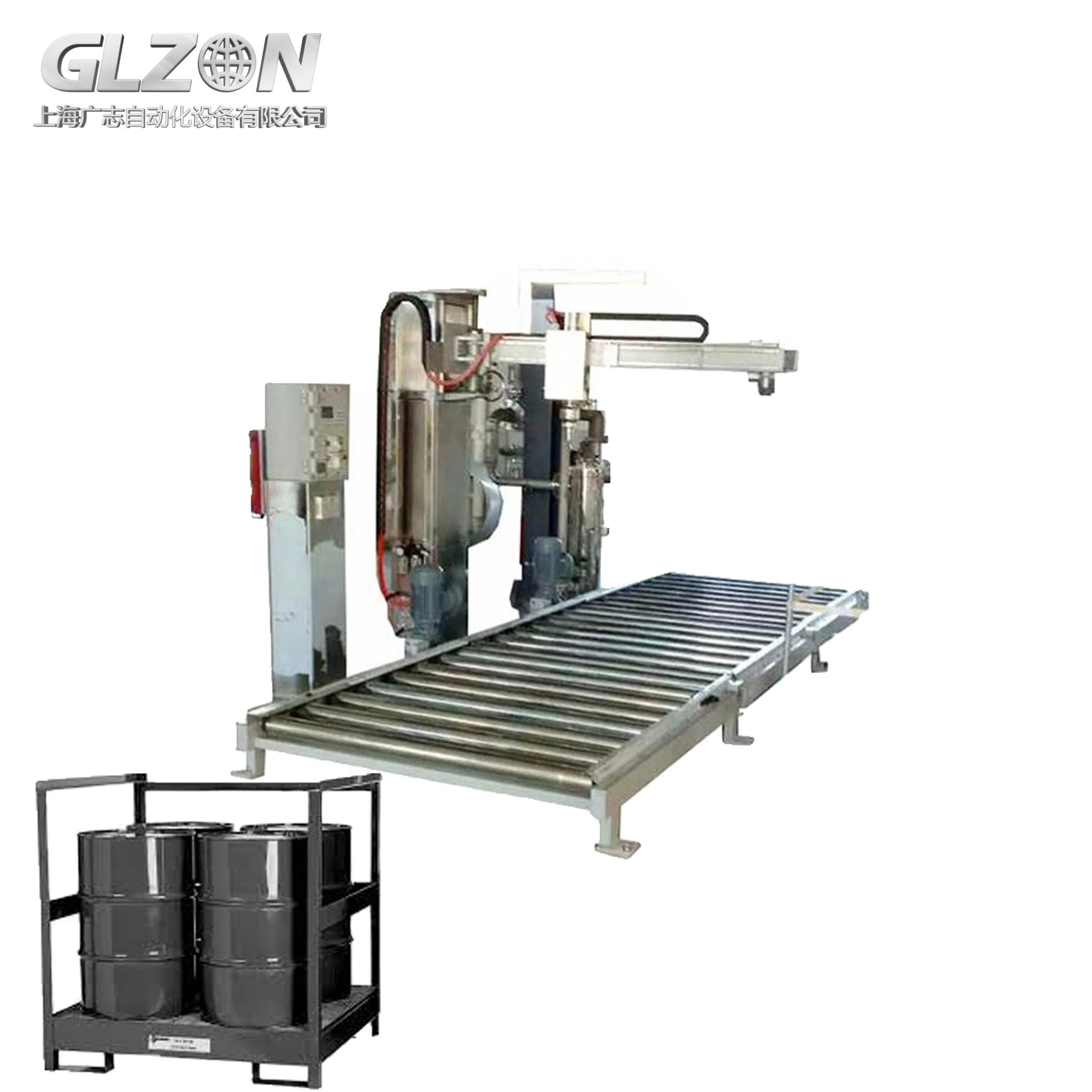

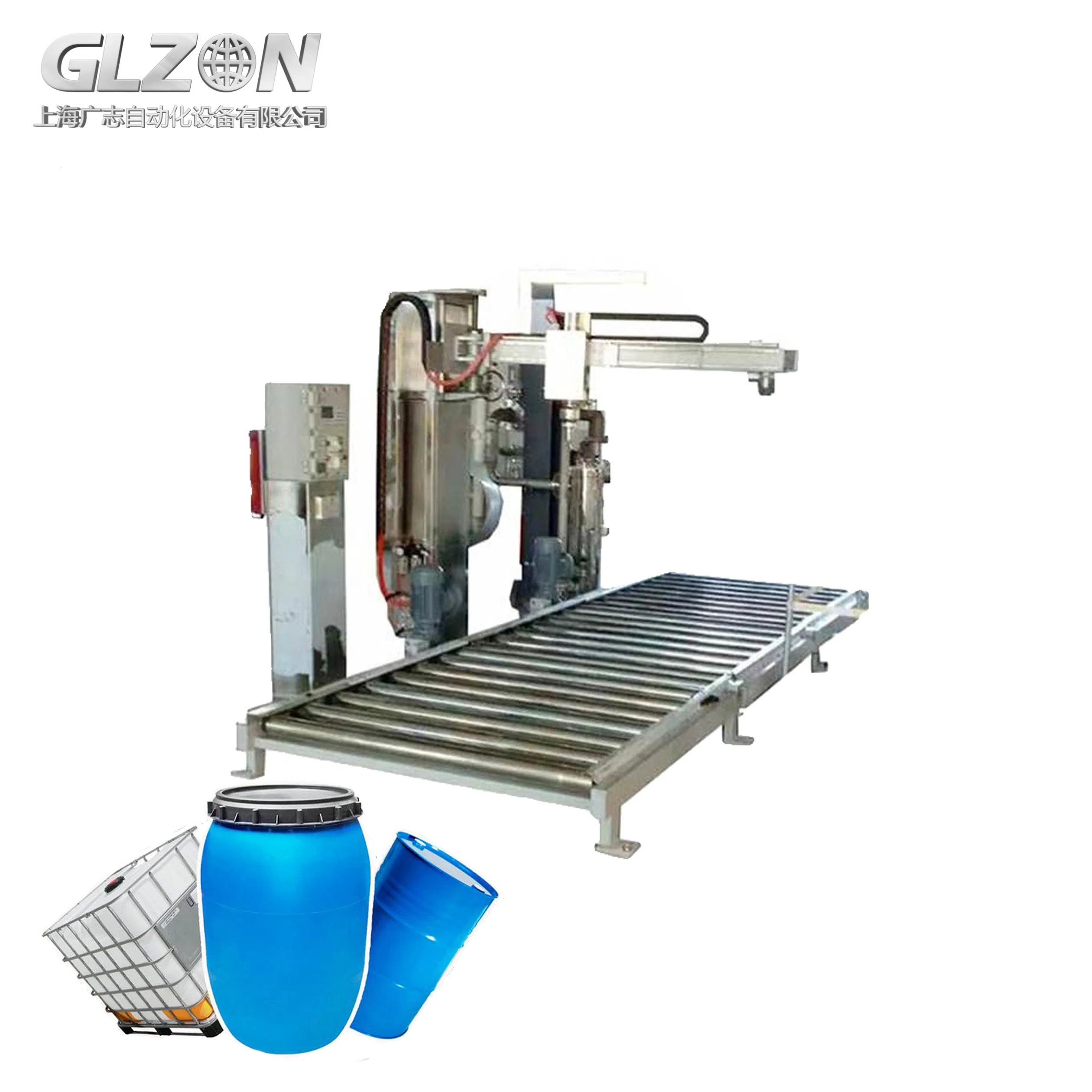

Advanced Drum and Tote Liquid Filling System for 200L to 1000L

1 / 5

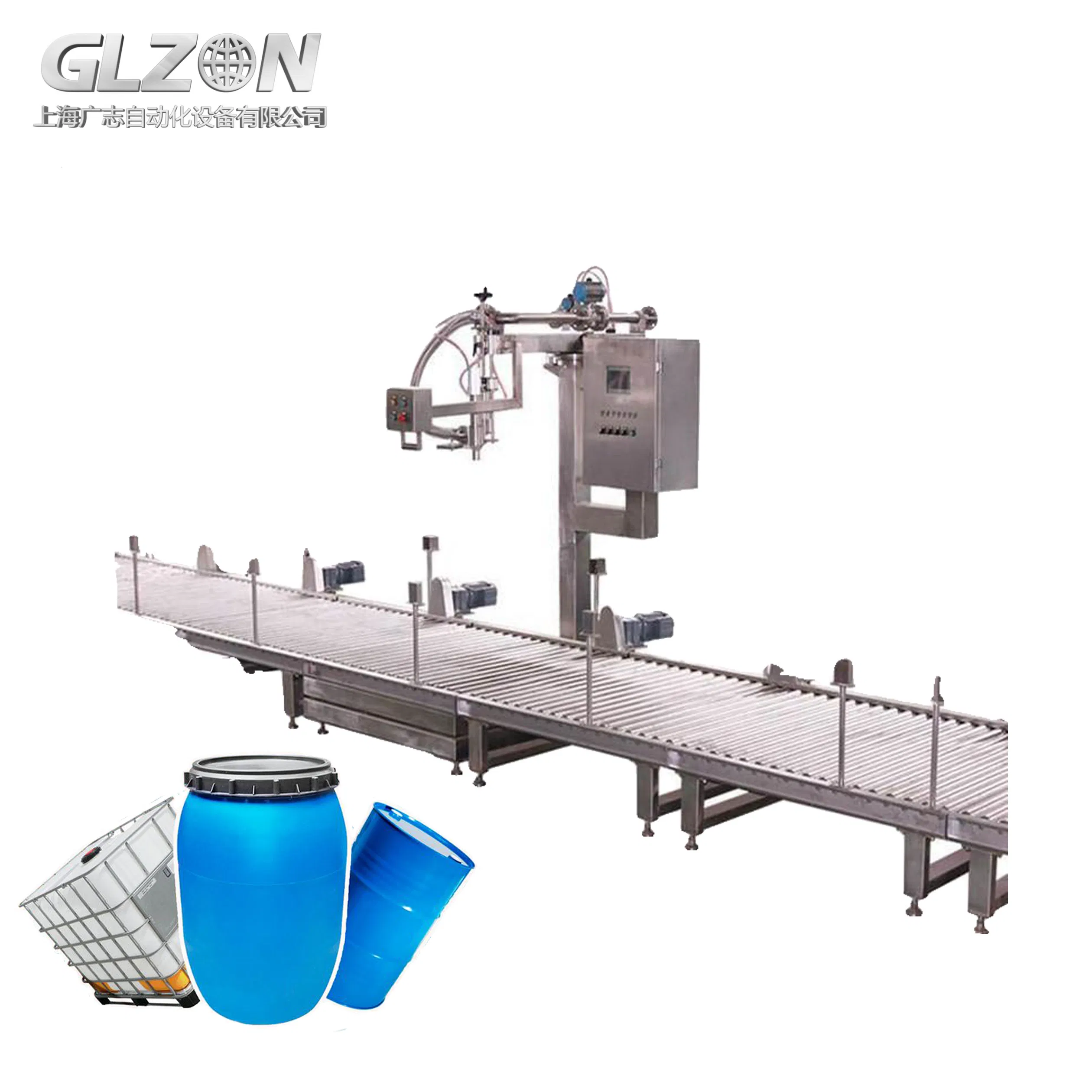

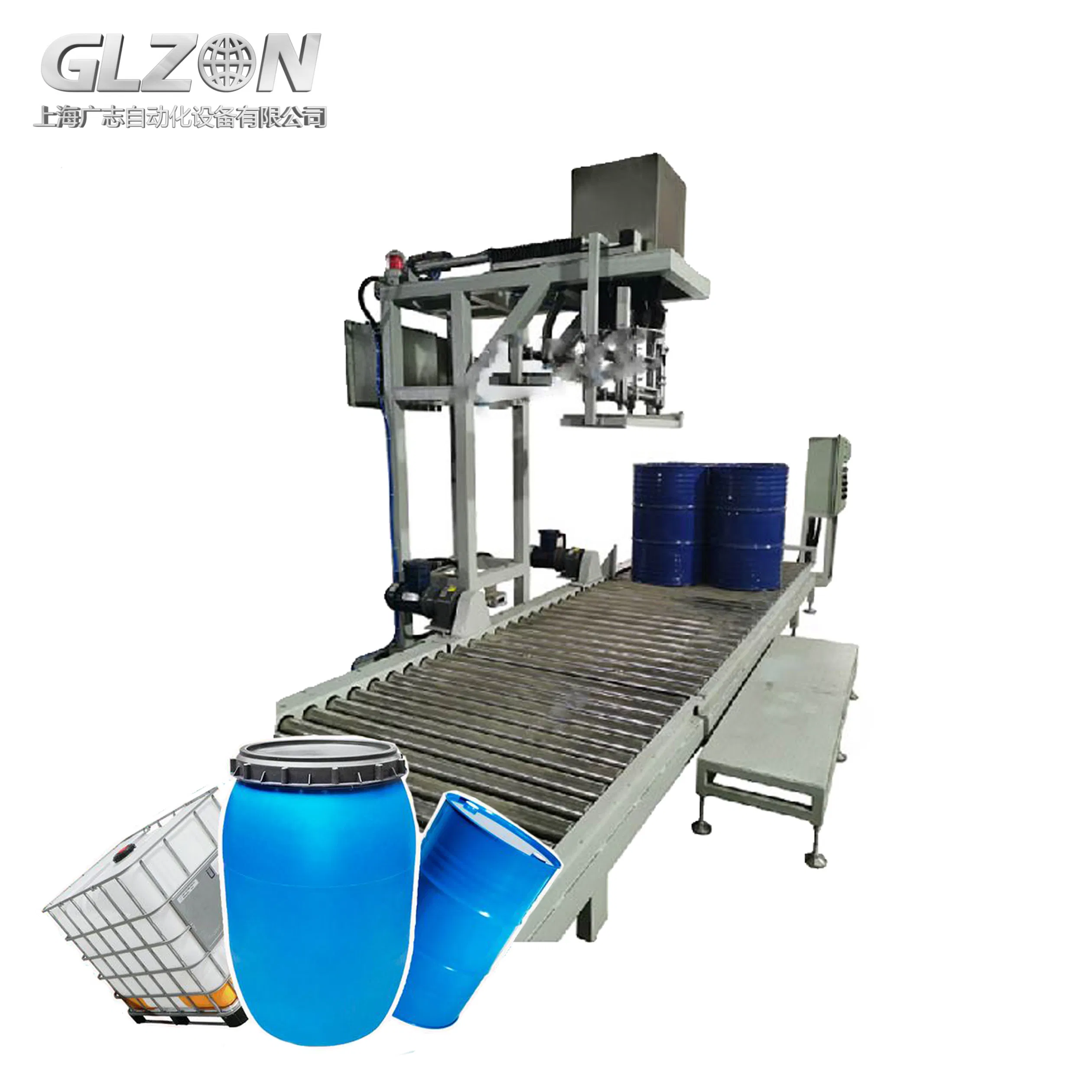

Advanced Drum and Tote Liquid Filling System for 200L to 1000L

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Send Inquiry

Product Description

◈

Basic Information

Model NO.	GZM-1000L
Type	Weighing-type Filling Machine
Automatic Grade	Automatic
Material Type	Liquid
Filling Valve Head	Single-Head
Filling Principle	Pressure
Filling Accuracy	99.99%
Voltage	220V 50/60Hz
Applicable Industries	Oil, Lube, Engine Oil, Liquid, Liquid Soap, Gel, Bitumen
Packaging	Barrel / IBC Tote

📊

Product Parameters

Applicable Materials	Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, etc.
Filling Range	100-1000L
Air Pressure	0.6-0.8MPA
Filling Accuracy	±0.2%
Speed	12~15 barrels/hour (1000L single station)
Material	SUS304 / SUS316 / Carbon Steel / PTFE

✔

Product Advantages

●

PLC Smart Control – Easy-to-use touchscreen interface with programmable settings.

●

High Precision – Filling accuracy up to ±0.2%.

●

Hygienic Design – SUS304/316 stainless steel for safe handling.

●

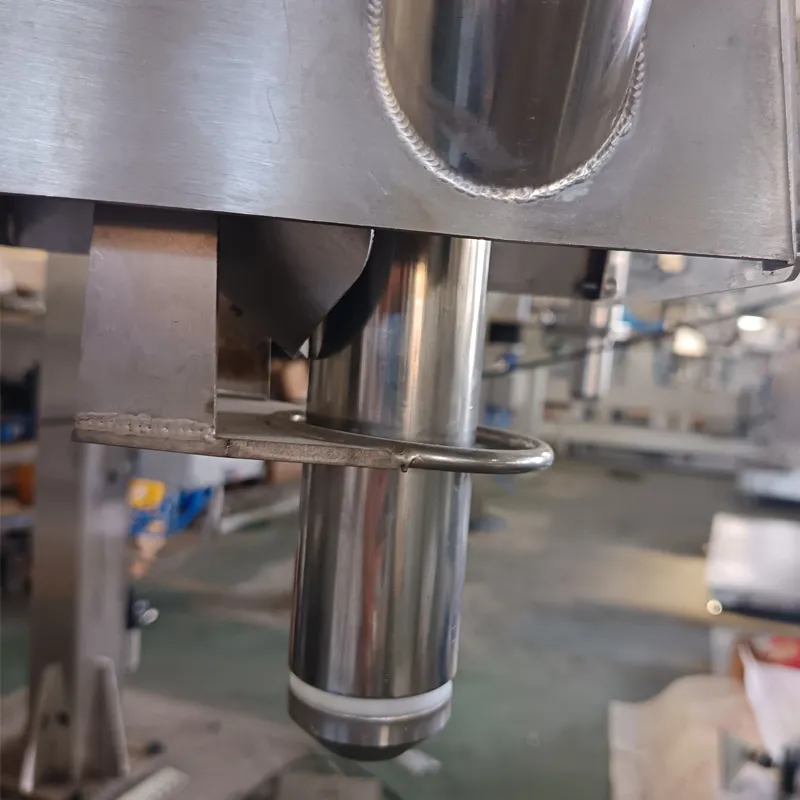

Anti-Drip Nozzles – Clean, leak-free operation.

●

Customizable Options – Adaptable to different barrel sizes and viscosities.

⚙

Product Features

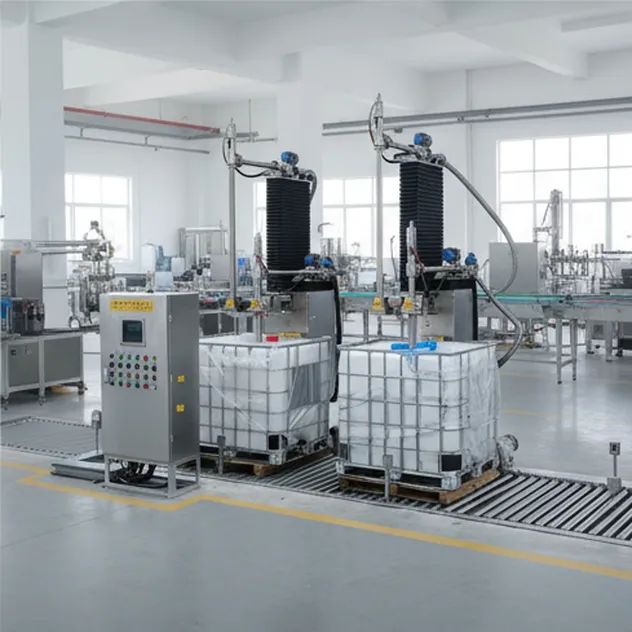

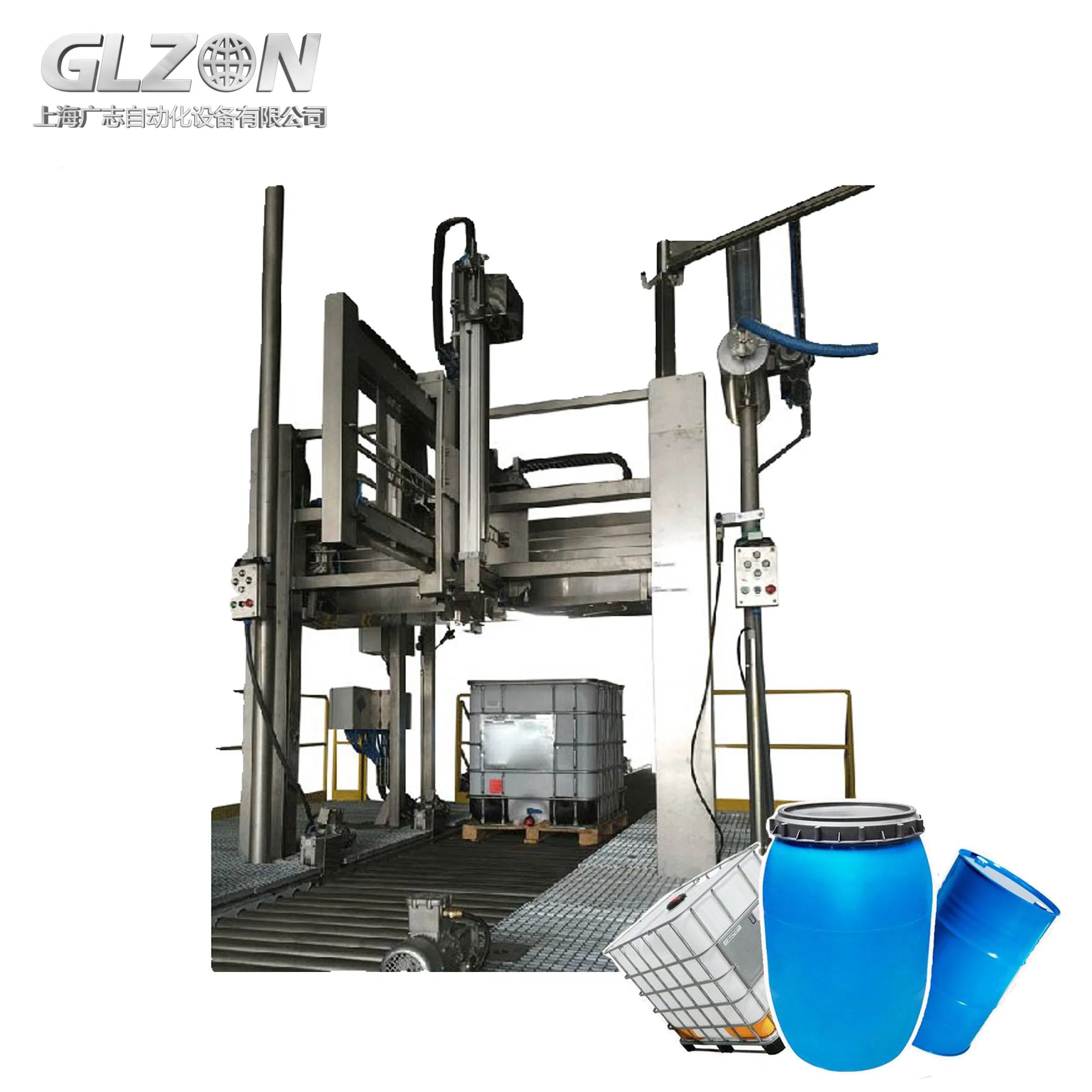

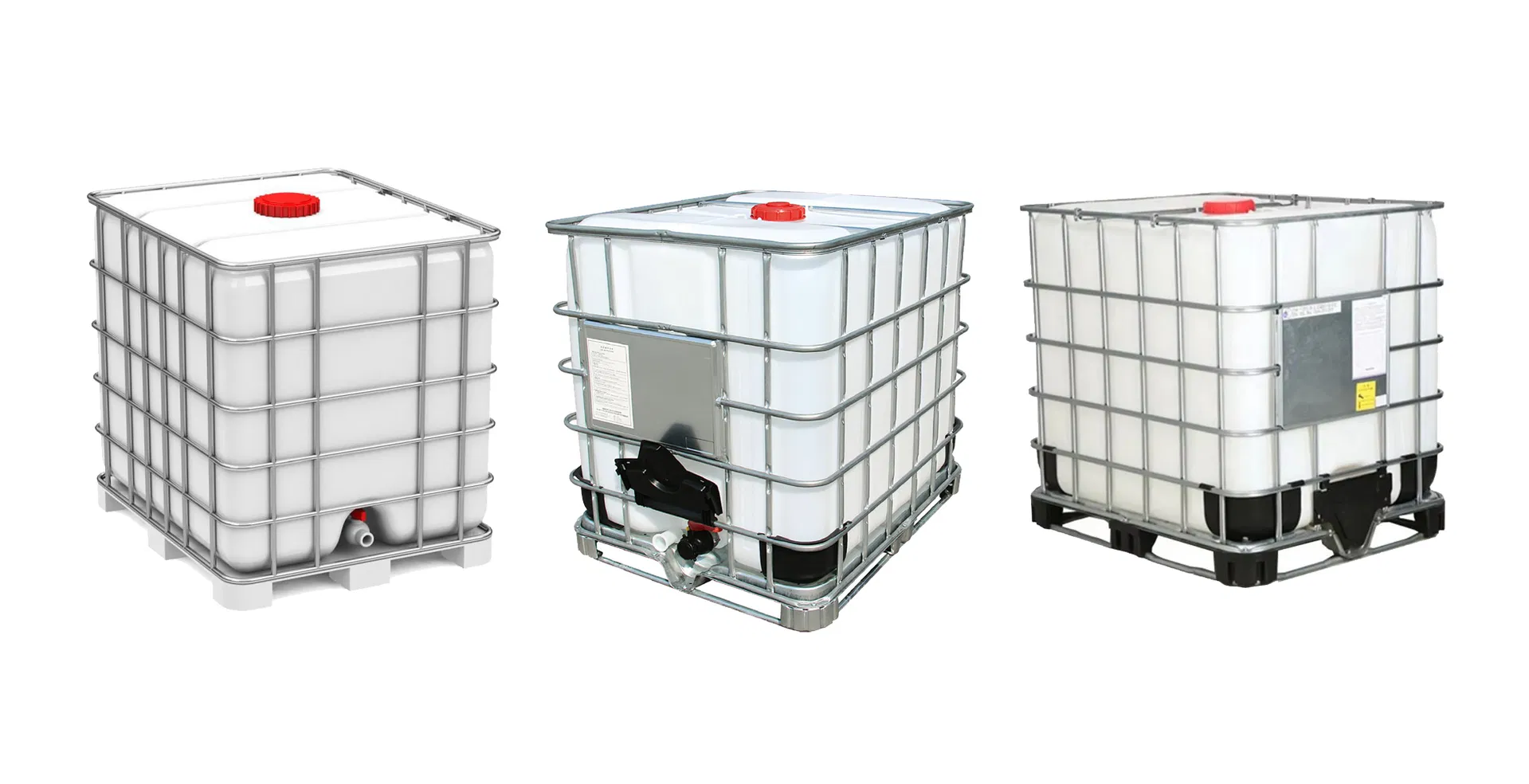

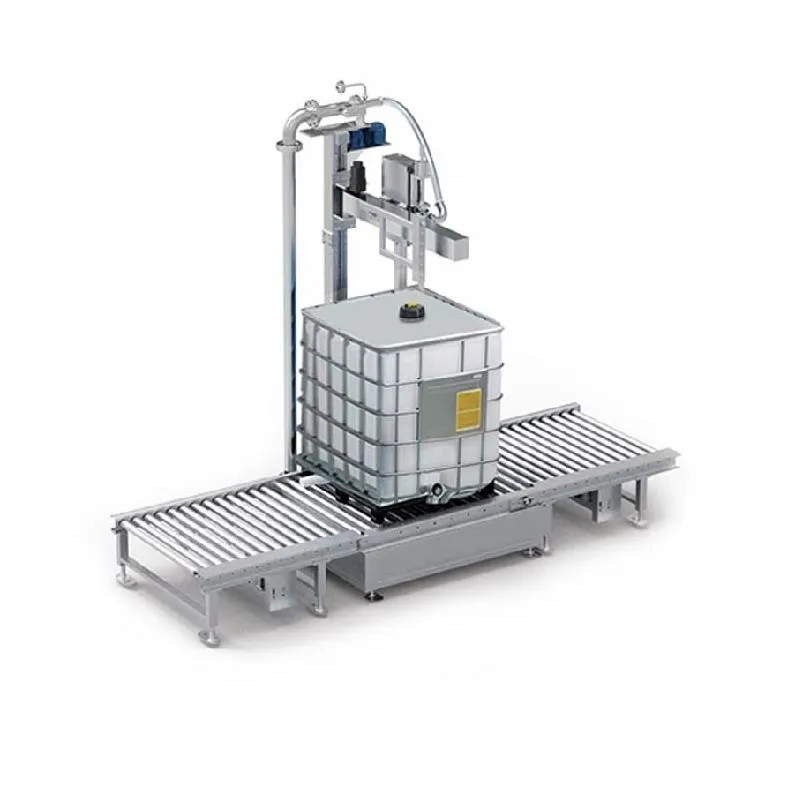

The fully automatic IBC barrel filling line is suitable for 1000L IBC containers. It automates positioning, filling, weighing, and metering operations.

The equipment features composite explosion-proof technology, safety protection, and clean closed filling to prevent gas pollution or leakage.

Optional auxiliary functions include nitrogen replacement, air curtain protection, pipeline purging, and heating for specialized material characteristics.

▶

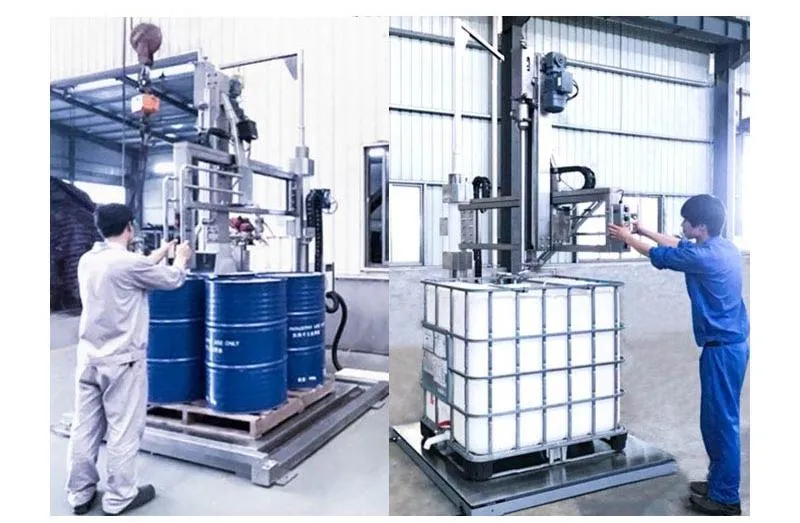

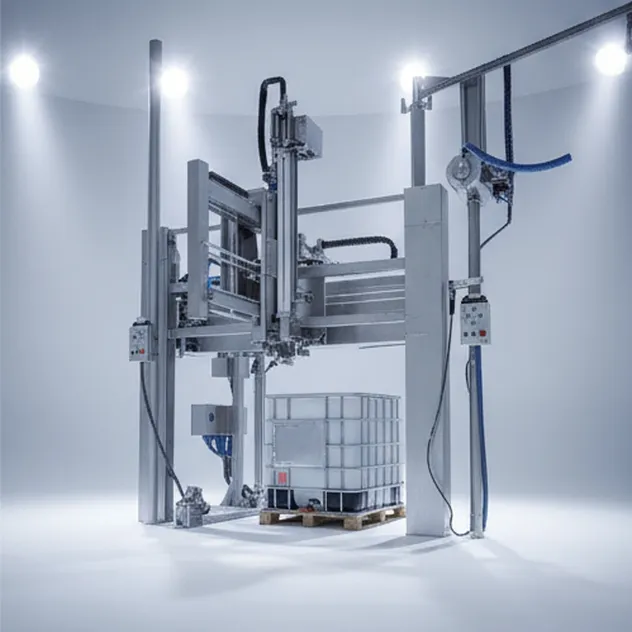

Operation Process

Place the bucket on the weighing platform; the system automatically detects position.

Nozzle inserts into the bucket mouth; automatic peeling and valve activation.

Four-stage filling (large, medium, small, trace) until target value is reached.

Nozzle rises; bucket is moved to the lid lock area.

Pneumatic locking of the cover and final palletizing.

🔍

Detail Display

🏢

Professional Manufacturer

Specializing in liquid filling lines, powder packaging machines, and weighing systems, our facility covers 60,000 m² dedicated to industrial innovation. We provide customized solutions for the petrochemical, chemical, paint, and food sectors globally.

🛠

After Sales Service

✓

Standard Warranty: 12 months or 2,000 operating hours.

✓

Global Support: 24/7 technical assistance and spare parts supply.

✓

Training: Comprehensive on-site or remote operation and maintenance training.

Frequently Asked Questions

Q: What is the lead time for equipment orders? A: Standard models typically ship within 15-30 days, while customized units require 30-45 days.

Q: Do you provide after-sales service internationally? A: Yes, we provide 24/7 technical support and have partnered service centers in key global regions.

Q: Can the machine handle different bucket or IBC sizes? A: Absolutely. Our systems offer flexible configurations and tailored attachments to suit various container sizes.

Q: What documents are provided for export? A: We provide a full export package including Commercial Invoices, Packing Lists, Bills of Lading, and COCs.

Q: Is the equipment suitable for hazardous or explosive environments? A: Yes, our machines feature composite explosion-proof, anti-static, and leak-proof designs for safe operation in hazardous areas.

Q: What is the typical filling accuracy of your weighing system? A: Our high-precision systems achieve a filling accuracy of ±0.2% to ±0.5% depending on the material type.
