Advanced Laser High-Speed Drilling System for Precision Engineering

1 / 5

Advanced Laser High-Speed Drilling System for Precision Engineering

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Overview

Model NO.AT-61166

OriginChina

Package Size150.00cm * 90.00cm * 150.00cm

Package Gross Weight2000.000kg

Product Description

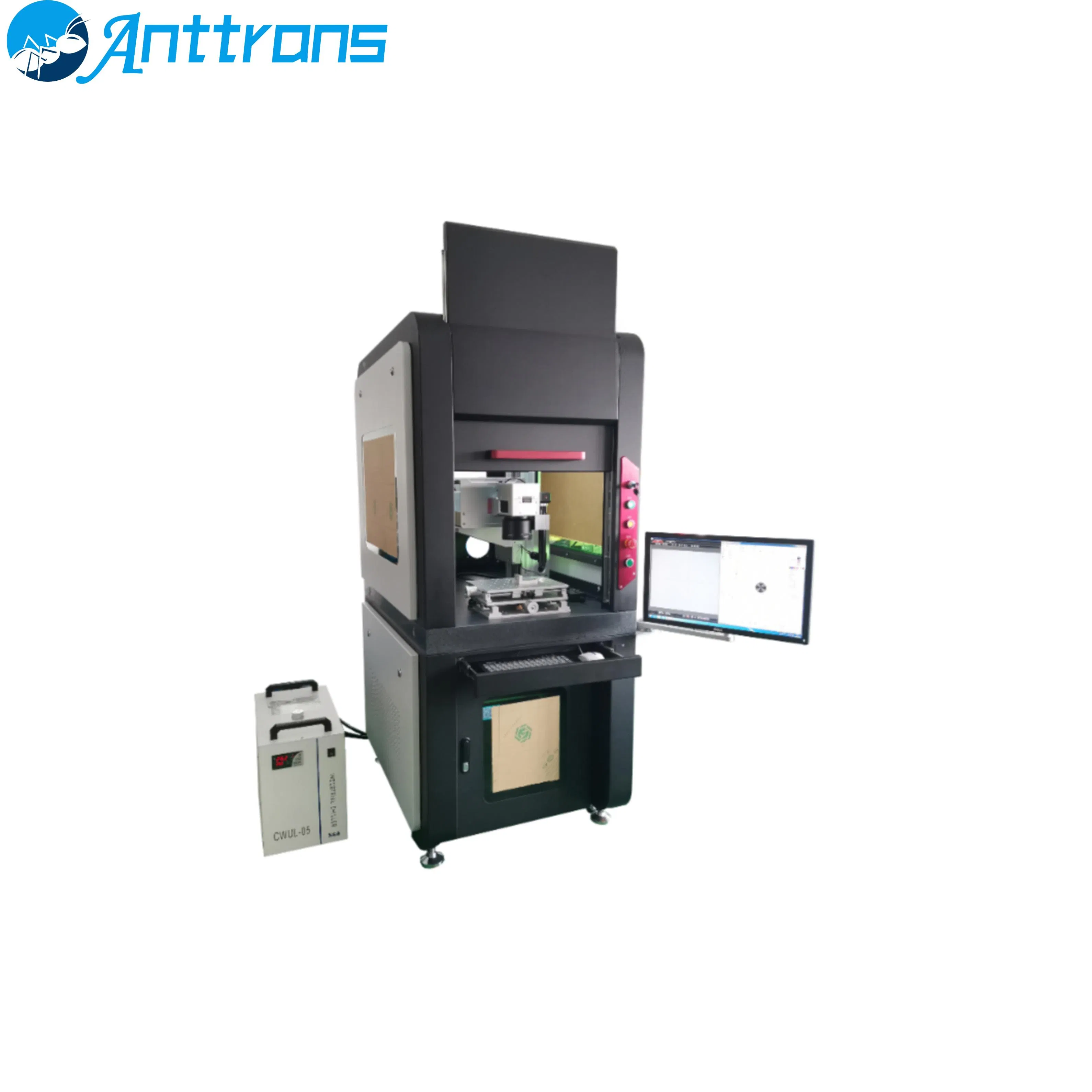

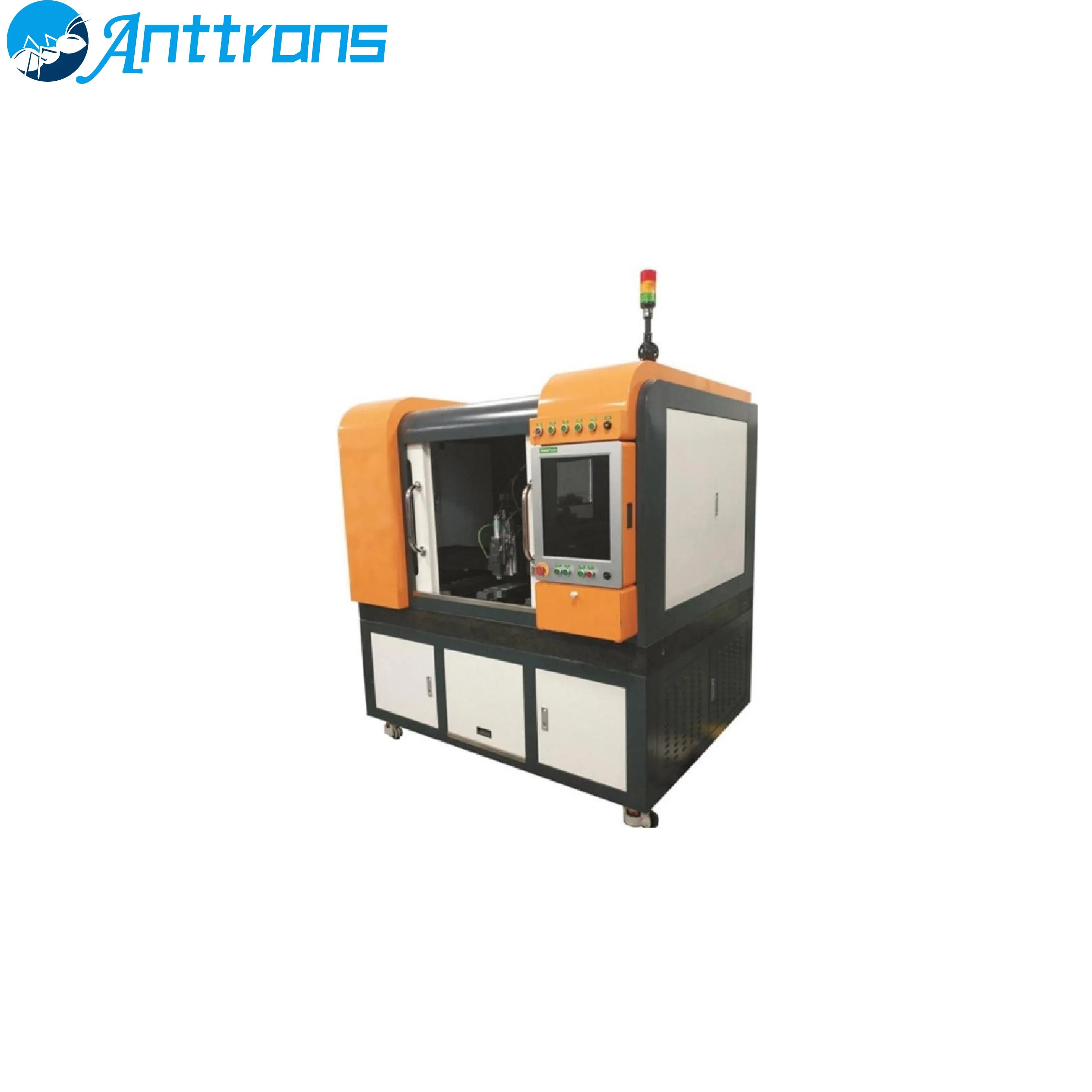

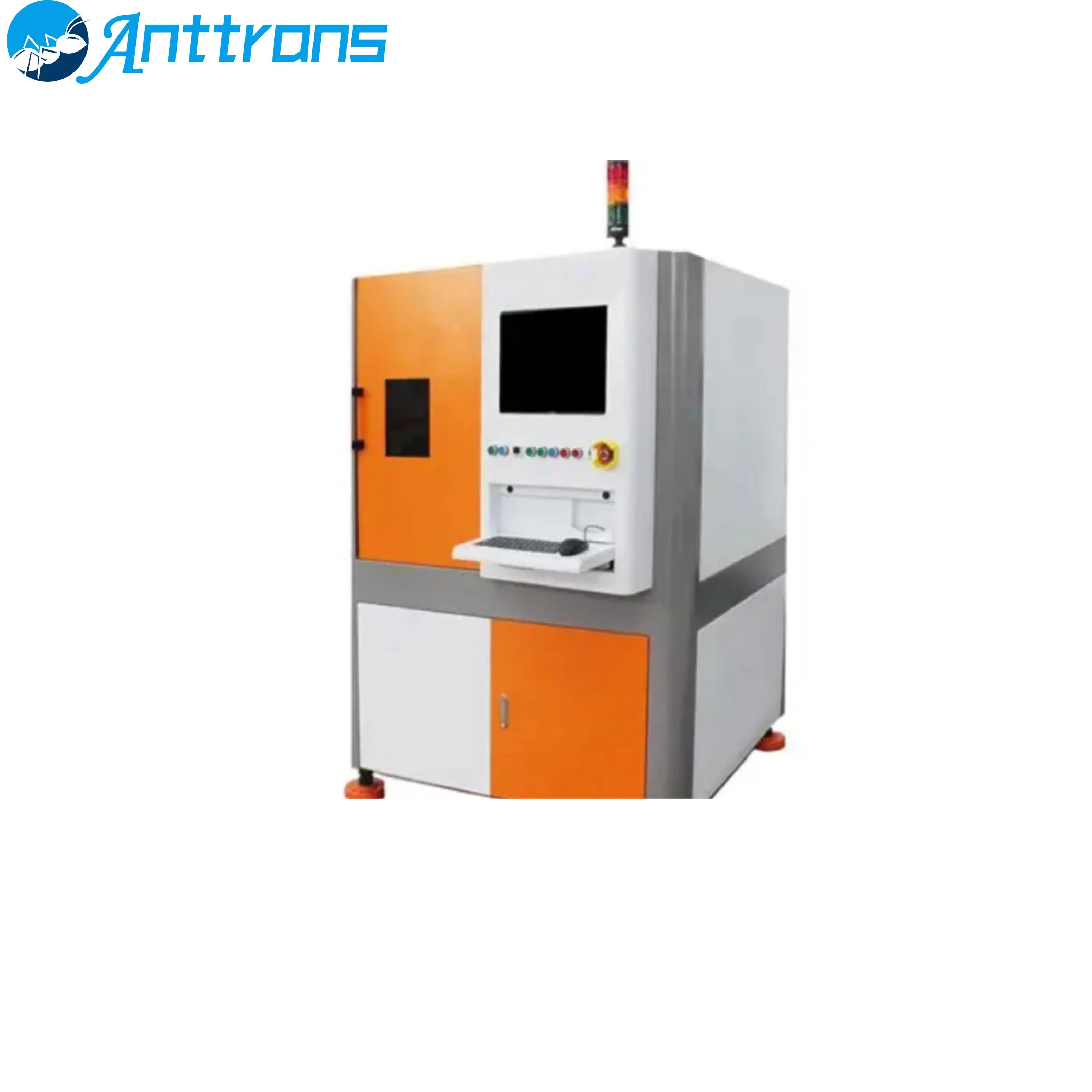

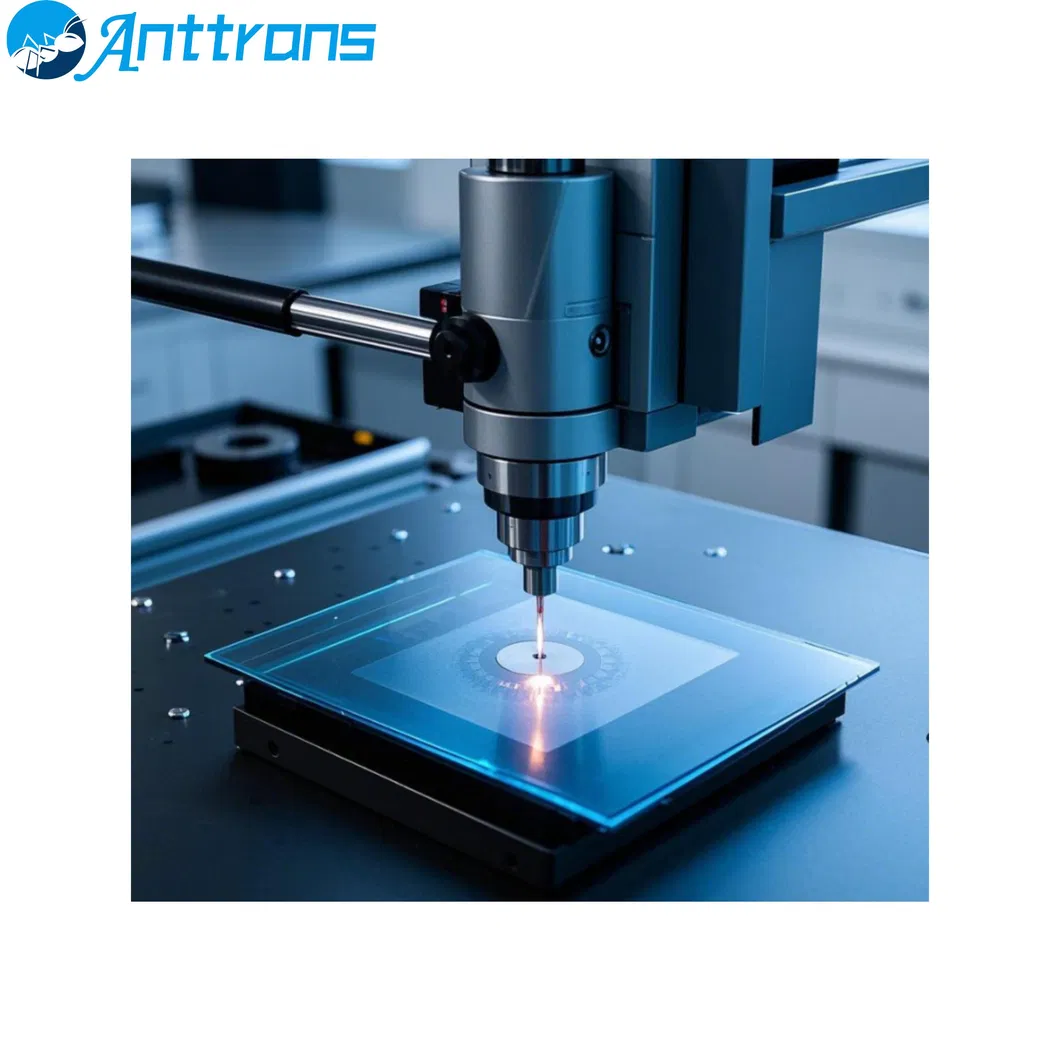

The Laser High-Speed Drilling System is a galvanometer-based precision laser processing equipment that combines high-power fiber laser technology with high-speed precision galvanometer control. It enables ultra-fine, high-speed micro-hole processing on thin sheet materials, with a minimum hole diameter of 0.02mm and positioning accuracy up to 2μm. It is widely suitable for precision drilling needs in industries such as electronics, automotive, aerospace, and medical devices, offering a cost-effective solution for micron-level micro-hole processing.

Product Features

Utilizes a single-mode fiber laser with excellent reflection isolation and diffraction-limited beam quality.
High-precision servo cutting head with auto-focus capability and fast response.
Precision optical path and beam control structure for superior spot control.
Linear gantry dual-drive platform with high stability and acceleration exceeding 1G.
High-precision 5-axis control system with path optimization and nesting capabilities.
Ultra-high-speed drilling mode exceeding 50 holes per second.
Off-axis visual positioning system supporting secondary positioning of parts.
High-flatness marble platform with a fully enclosed structure for long-term stability.
Well-designed cable management and dust removal for maintenance-free operation.
Minimum hole diameter down to 0.05mm with smooth cuts and no slag.

Company Capability

Our operation specializes in a wide range of technical services and technology development. Key areas include software and hardware integration, specialized equipment for semiconductor devices, and experimental analysis instruments. We are dedicated to providing high-quality CNC machine tools, optical instruments, and functional glass materials, alongside specialized metal cutting and welding equipment to meet global industrial demands.

Product Parameters

Category	Parameter	FM -LPCD1500/3000
Laser	Wavelength	1060~1080nm
Laser	Peak Power	1500W (3000W)
Laser	Beam Quality M²	<1.05
XY Stage	Travel	600600mm / 800800mm
XY Stage	Repeatability	≤±0.005mm
XY Stage	Positioning Accuracy	≤±0.02 mm
XY Stage	Acceleration	≤1G
Z Axis	Travel	150mm
Processing Capability	Minimum Hole Diameter	0.05mm
Processing Capability	High-Speed Drilling	>50 holes/s

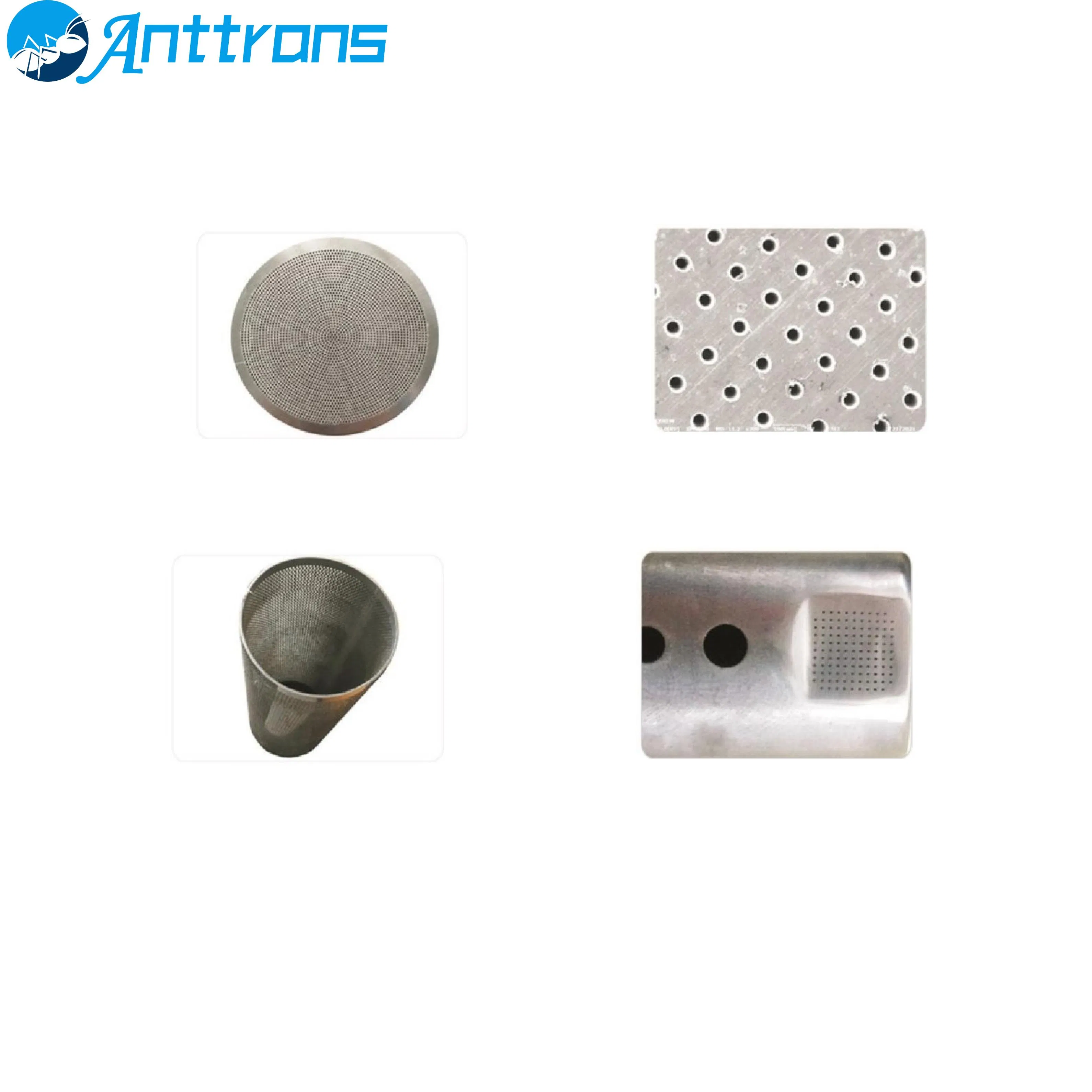

Processing Capability	Materials	Metals, alloys, ceramics
Power Consumption	Power Consumption	≤5kW
Weight	Weight	1500Kg

Detailed Photos

Frequently Asked Questions

Q: What is the minimum drilling diameter achievable with this system? A: The system can achieve ultra-fine micro-holes with a minimum diameter of 0.02mm to 0.05mm depending on the material.

Q: How fast can this laser system drill holes? A: It features an ultra-high-speed drilling mode capable of processing more than 50 holes per second.

Q: Which materials are compatible with the Laser High-Speed Drilling System? A: The equipment is designed to process metals, various alloys, and ceramic materials efficiently.

Q: What industries benefit most from this laser equipment? A: It is widely used in high-precision industries including electronics, automotive manufacturing, aerospace, and medical device production.

Q: Does the system include positioning assistance? A: Yes, it is equipped with a high-precision off-axis visual positioning system that supports secondary positioning for maximum accuracy.

Q: What kind of stability can I expect during long-term operation? A: The system utilizes a high-flatness marble platform and a fully enclosed structure to ensure long-term mechanical stability and precision.
