| Model NO. | GZM-1000L |
| Type | Weighing-type Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid |
| Filling Valve Head | Single-Head |
| Filling Principle | Pressure |
| Packaging | Barrel |
| Voltage | 220V 50/60Hz |
| Filling Accuracy | 0.2% |
| Specification | 7510*2030*2100mm |
| Package Size | 160.00cm * 80.00cm * 180.00cm |
| Package Gross Weight | 300.000kg |
10L / 30L / 50L
200L / 1000L
| Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids |
| Filling range(L) | 100-1000L |
| Air pressure (Mpa) | 0.6-0.8MPA |
| Filling accuracy (%) | ±0.2% |
| Speed(can/hour) | 30-50 barrels (Depending on the material flow rate) |
| Material | sus304 / sus316 / carbon steel / PTFE |

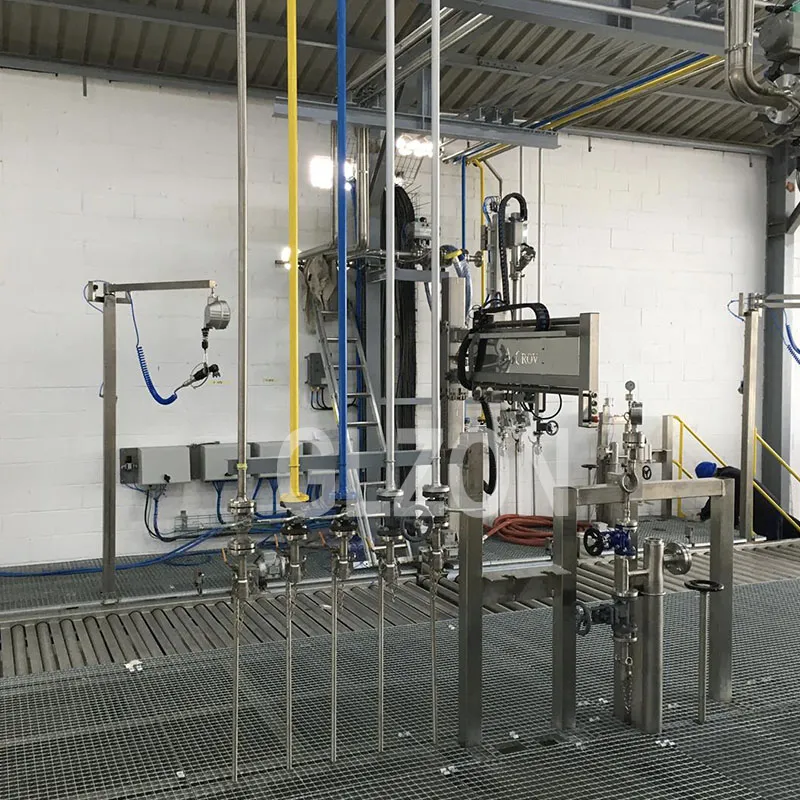

System Features

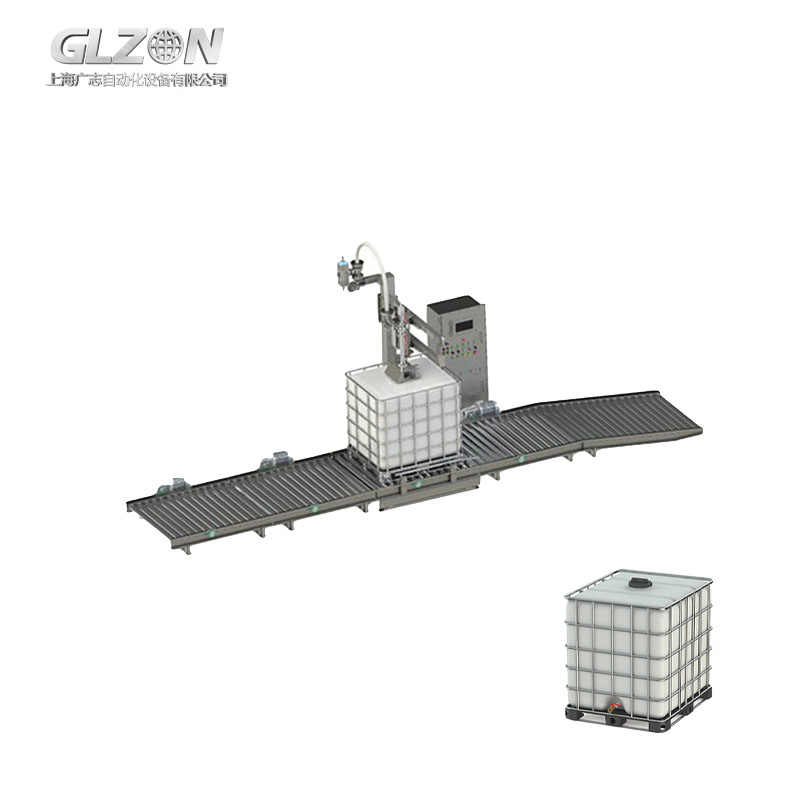

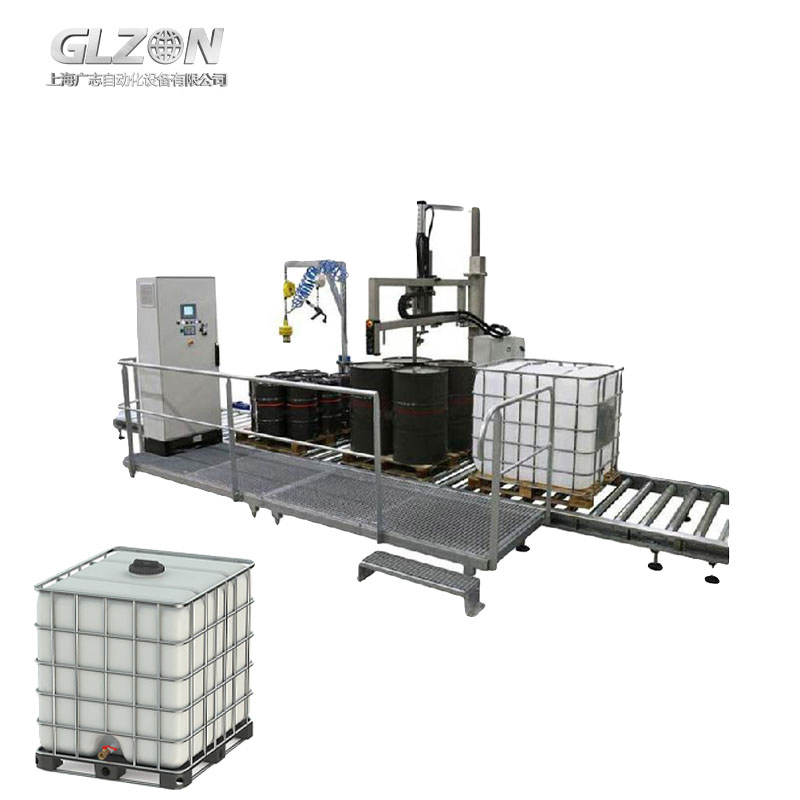

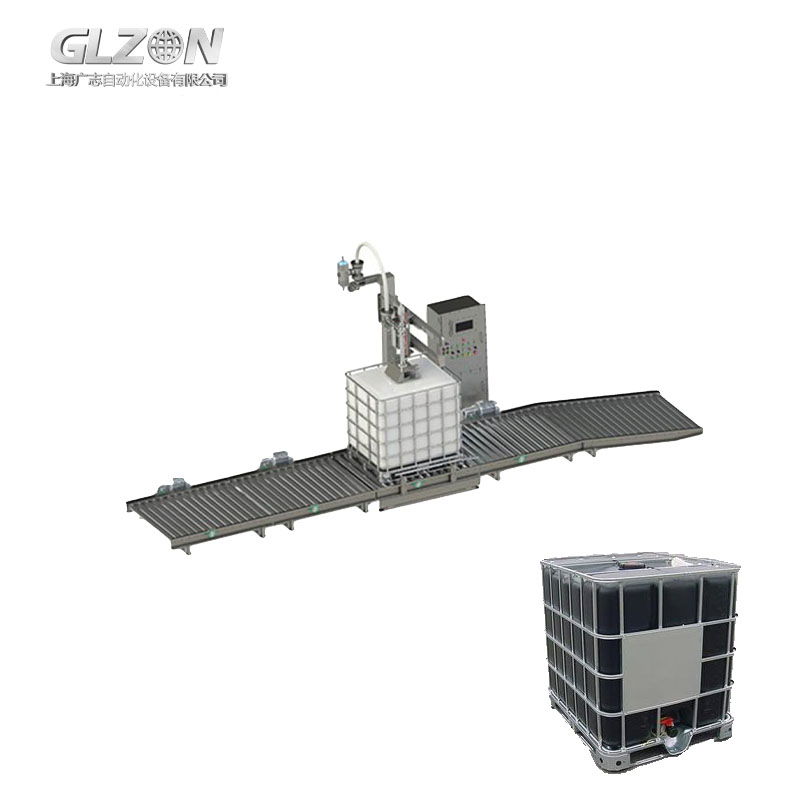

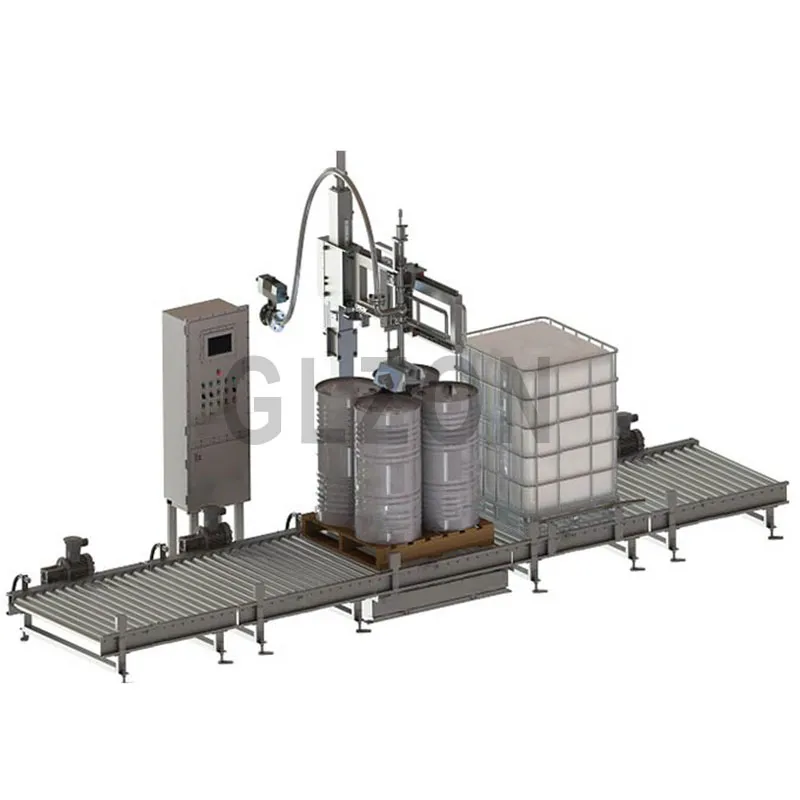

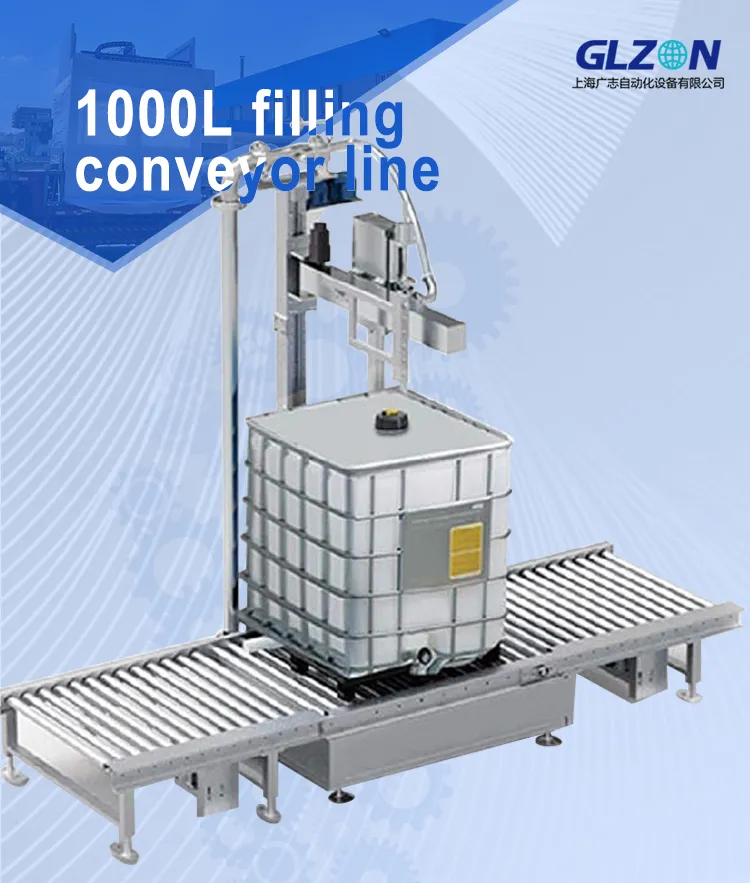

Fully automatic IBC barrel filling line for 1000L containers. The process including barrel supply, positioning, filling, weighing, and metering are all automated for high efficiency.

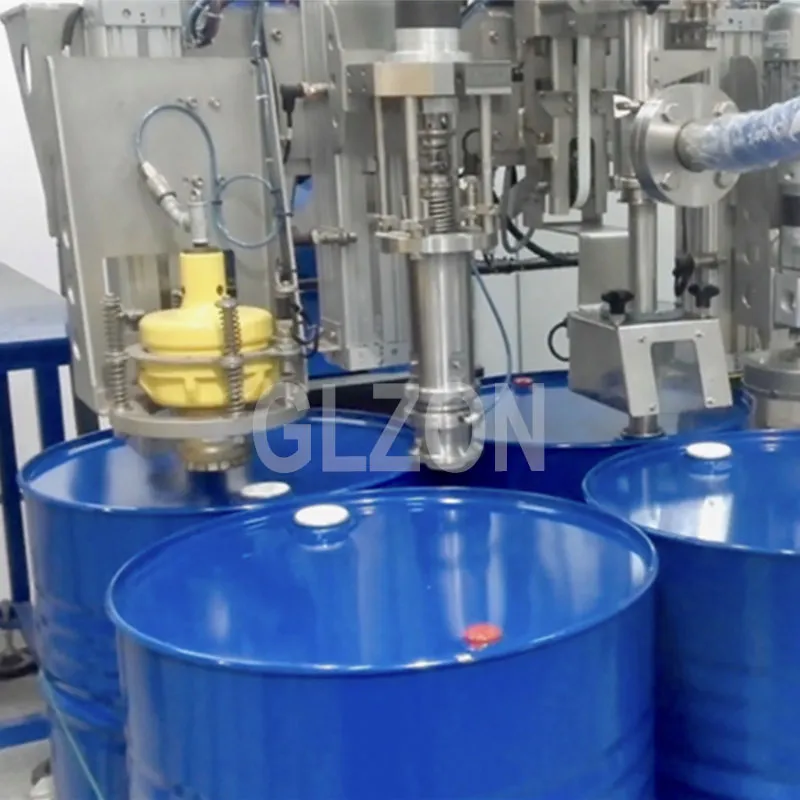

How to operate
Load the empty barrel onto the pipeline; the system automatically stops and positions it under the nozzle. The nozzle descends, performs automatic taring, and fills at dual speeds for precision. After completion, it moves to the capping station.

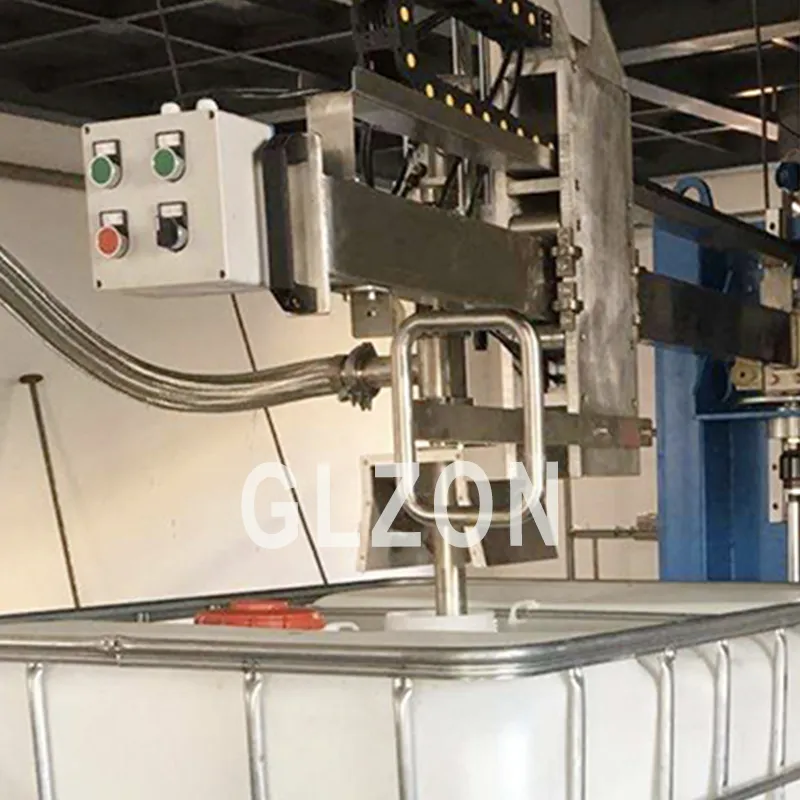

Touch screen PLC control
Equipped with high-precision weighing controllers (sampling speed up to 128 times/second) and frequency converters to ensure superior filling quality and accuracy.

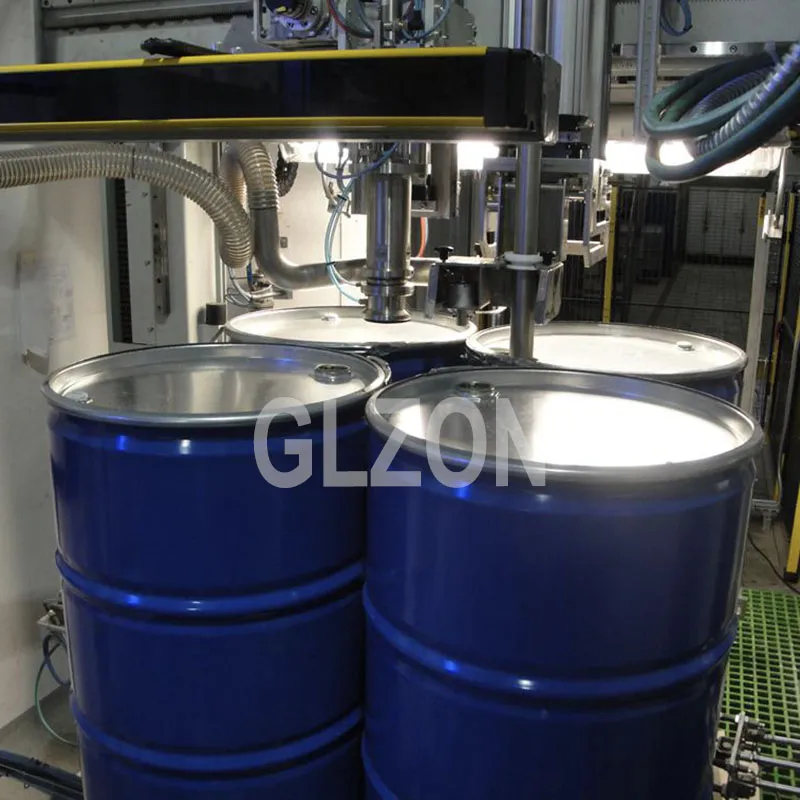

Pneumatic filling
Features computer weighing, submersible filling, and frequency conversion three-speed adjustment. The filling volume is directly set with a gap compensation function.

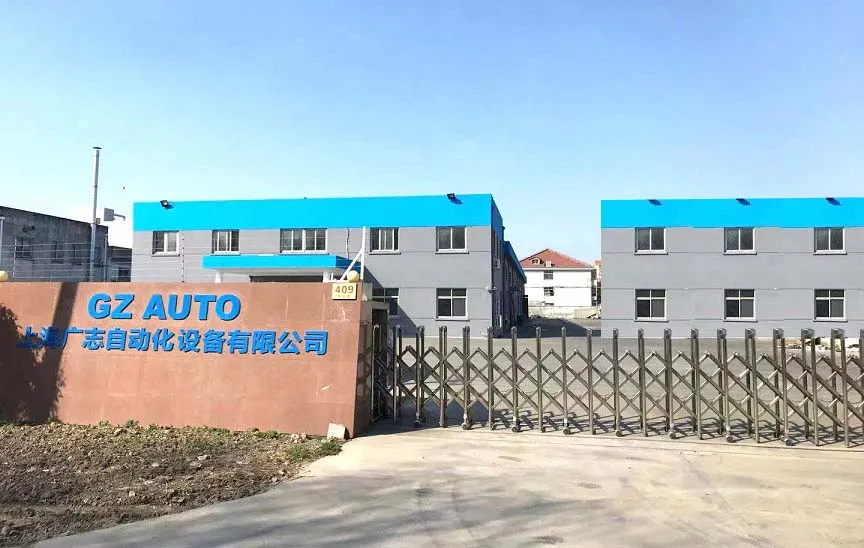

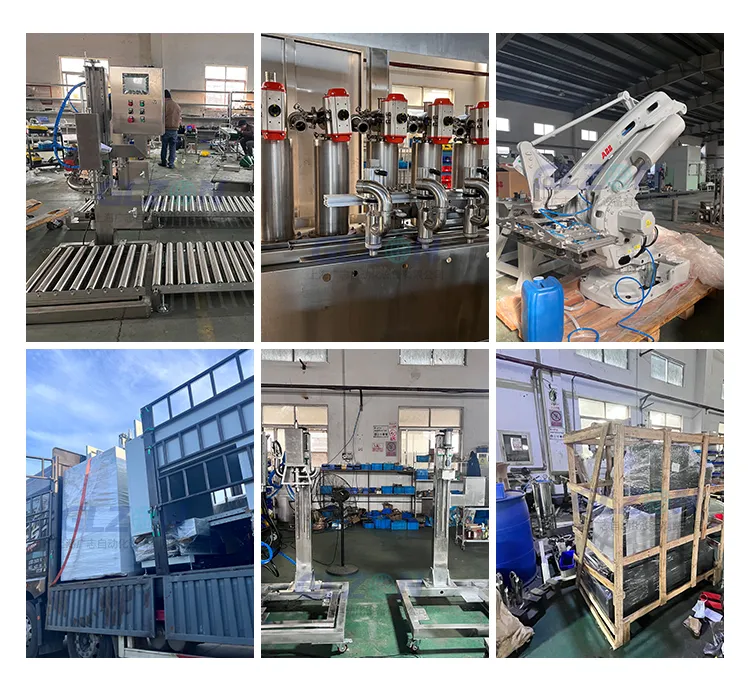

Our Manufacturer
As a domestic high-tech enterprise, we specialize in high-excellence and high-compatibility equipment. The company has passed ISO9001 international quality system certification and ISO14001 environmental management system certification. Our machinery is designed to meet "CE certification" standards, specializing in advanced packaging machinery.
Shipping Scenarios
Component Brand Partners
Note: The manufacturer reserves the right to update product designs and specifications at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
