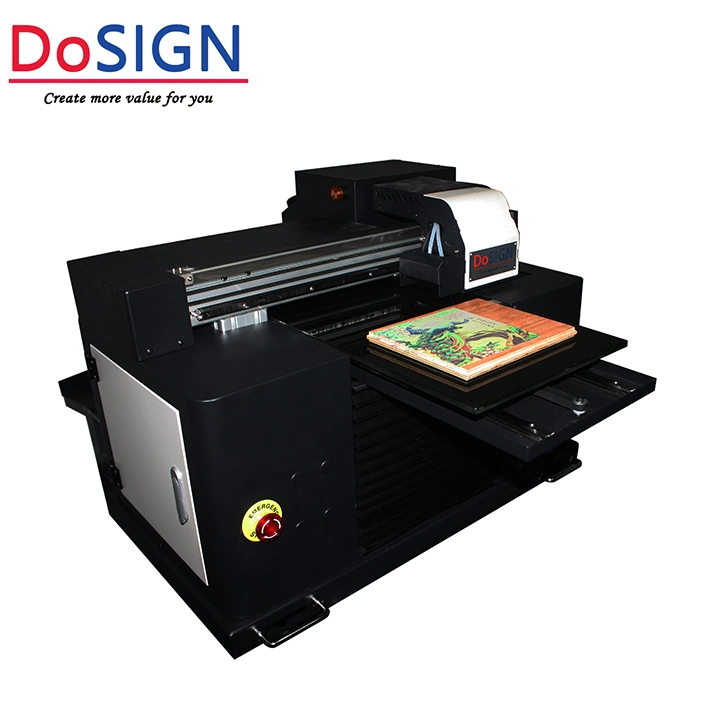

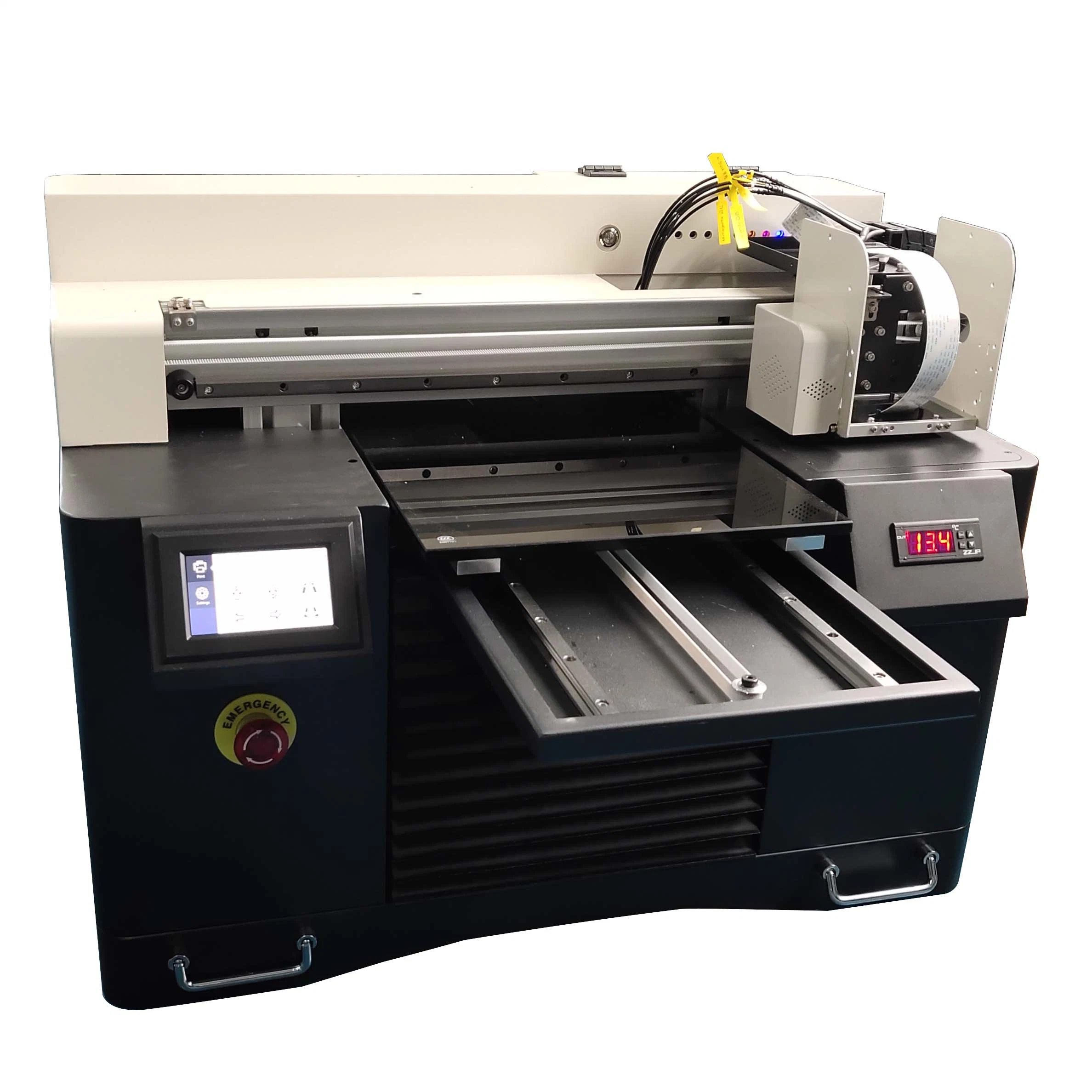

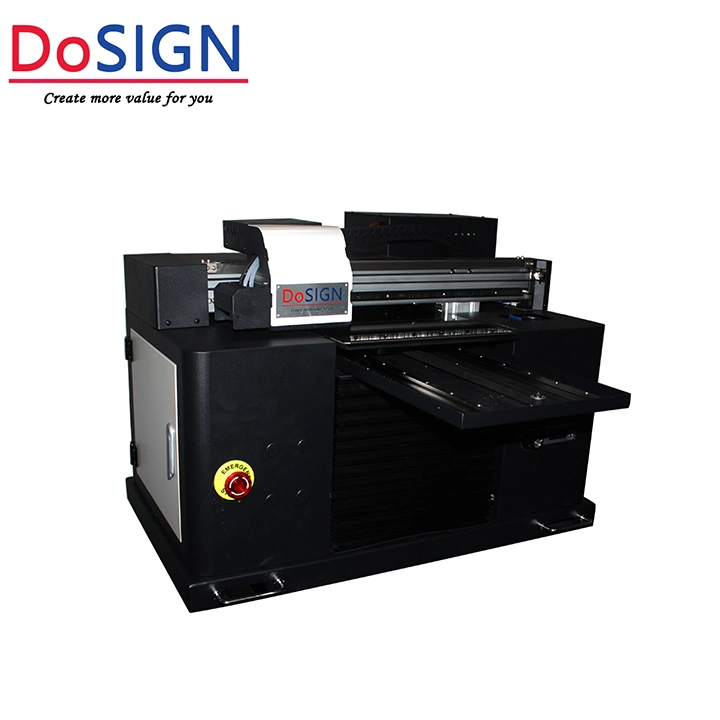

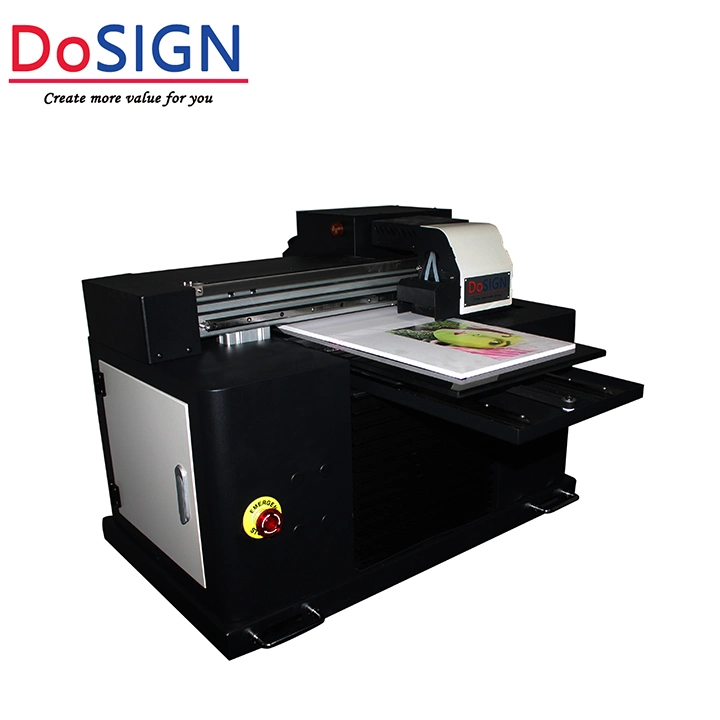

A3 size Multifunctional Digital UV inkjet printer with DX8 TX800 print head
This A3 size PVC visa card printing machine and phone skin printer can print on glass, metal, plastic, acrylic, ceramic, and more with vivid colors and fast speed. It is an excellent choice for entry-level customers or kiosk usage.
Engineered with a stable board system and TX800 DX8 Printhead, it achieves a maximum printing speed of A4/50s. The 6-color model supports CMYK+WW for superior white ink density on dark materials. Combined with Ultra RIP software, it enables one-pass printing for all colors.
| QUOTATION SHEET OF A3 UV PRINTER | |
|---|---|
| Printer Model | A3 UV Printer DS-A3U |
| Printing tech | Micro Piezo Technology DX5 DX7 DX8 |
| Printing Size | 320*550mm |
| Print resolution | 720*1440 dpi |
| Accepted material's height | 20CM |
| Print quality | True Photographic quality |
| Printing direction | Smart Bi-directional Printing Mode |
| Printing speed | 720 dpi: 50 seconds/A4; 1440 dpi: 100 seconds/A4 |
| Applicable industry | Rigid PVC board, glass, plastic, leather, metal, wood, porcelain, acrylic, etc. |
| Max Media weight | 10 KGs NET. |
| Operating system | Windows XP/ME/Vista/Win7/Win10 |
| Interface | Double USB port |
| Ink colors | C, M, Y, K, White / Varnish |
| Ink type | UV LED ink |
| Height adjustment | Automatic |
| Power consumption | 36 W/ Hour |

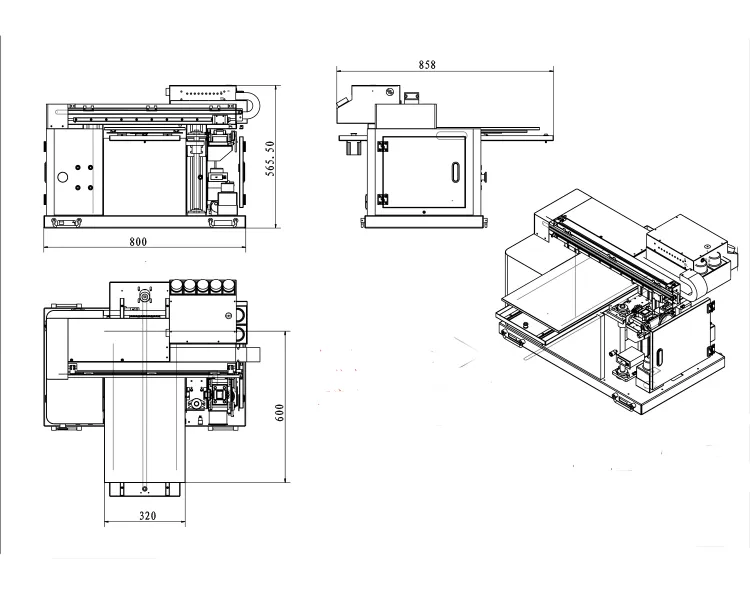

| Machine Size | 820mm x 625mm x 430mm |

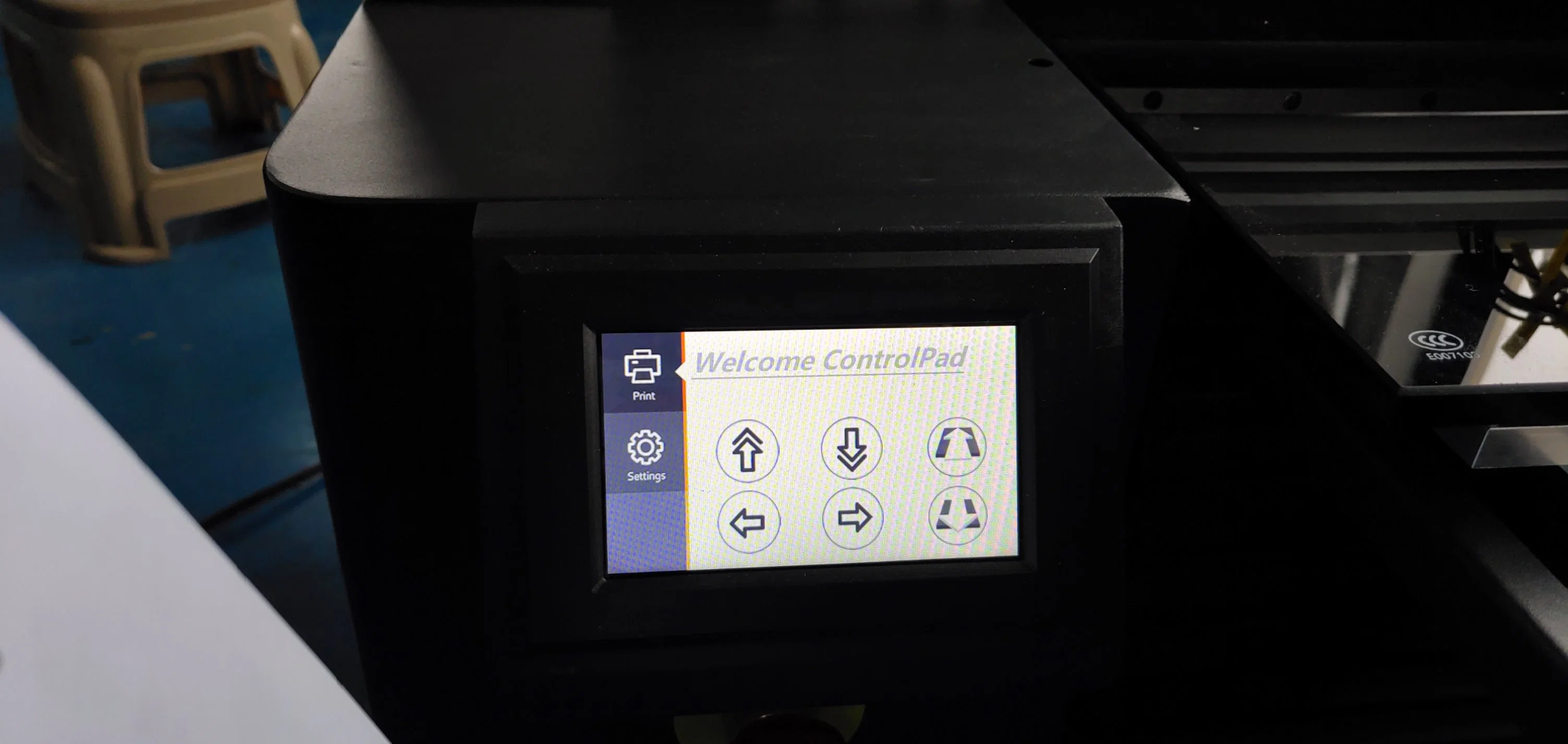

Smart easy operation LCD display control panel

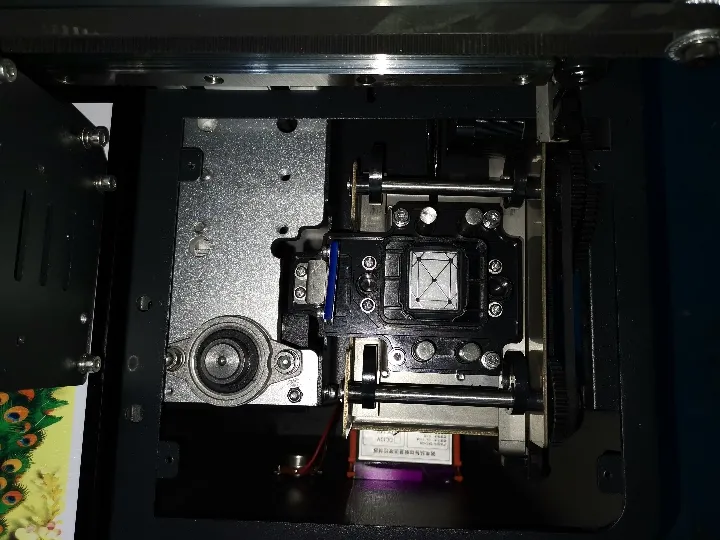

Automatic lifting and down capping

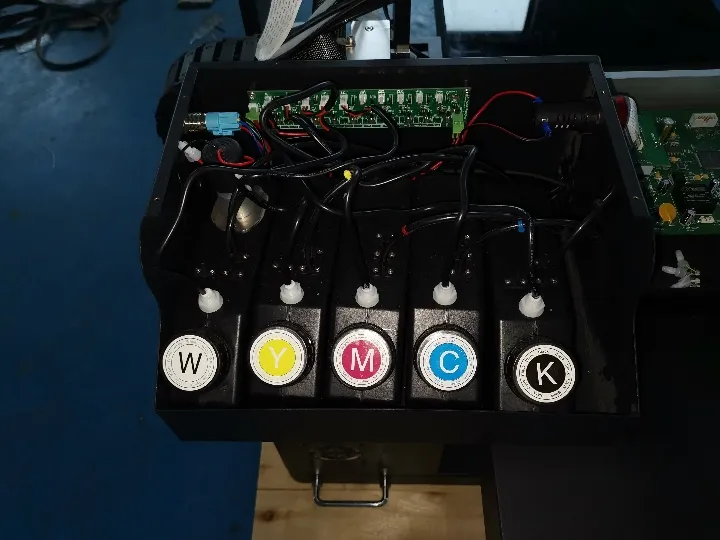

Ink bottles (includes low ink alarm & white ink circulation)
