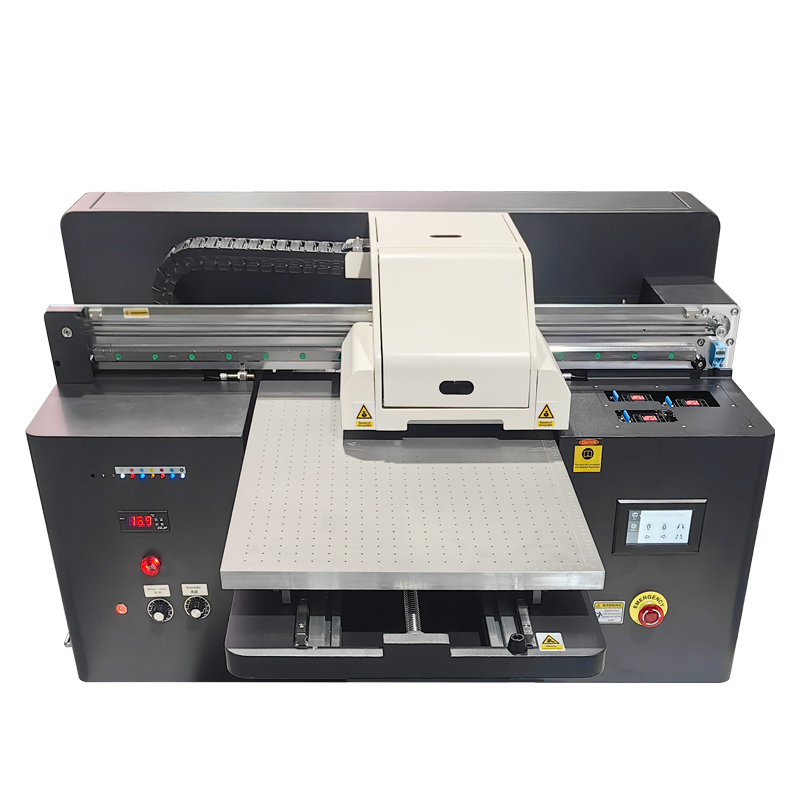

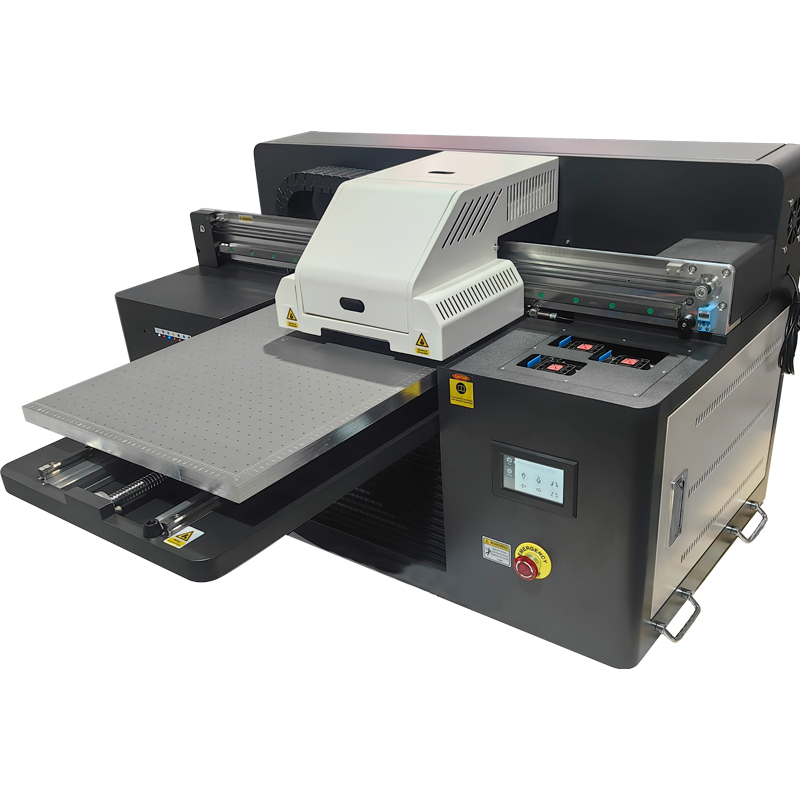

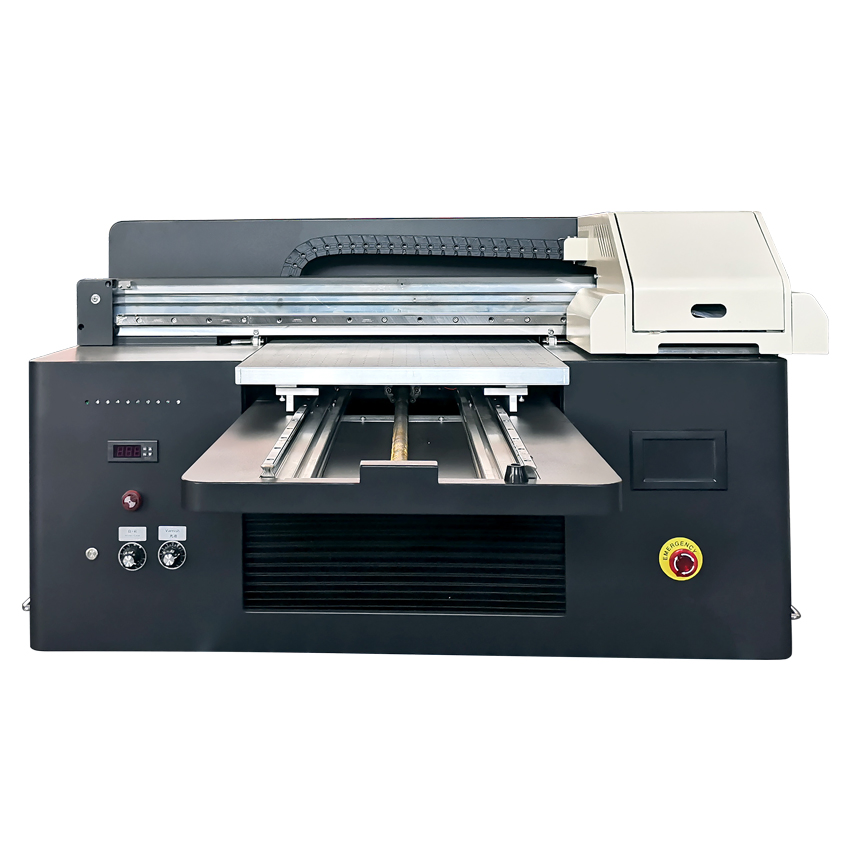

A2 4060 3 Printheads Plotter Stampa UV DTF Printer with Ricoh Gen5i

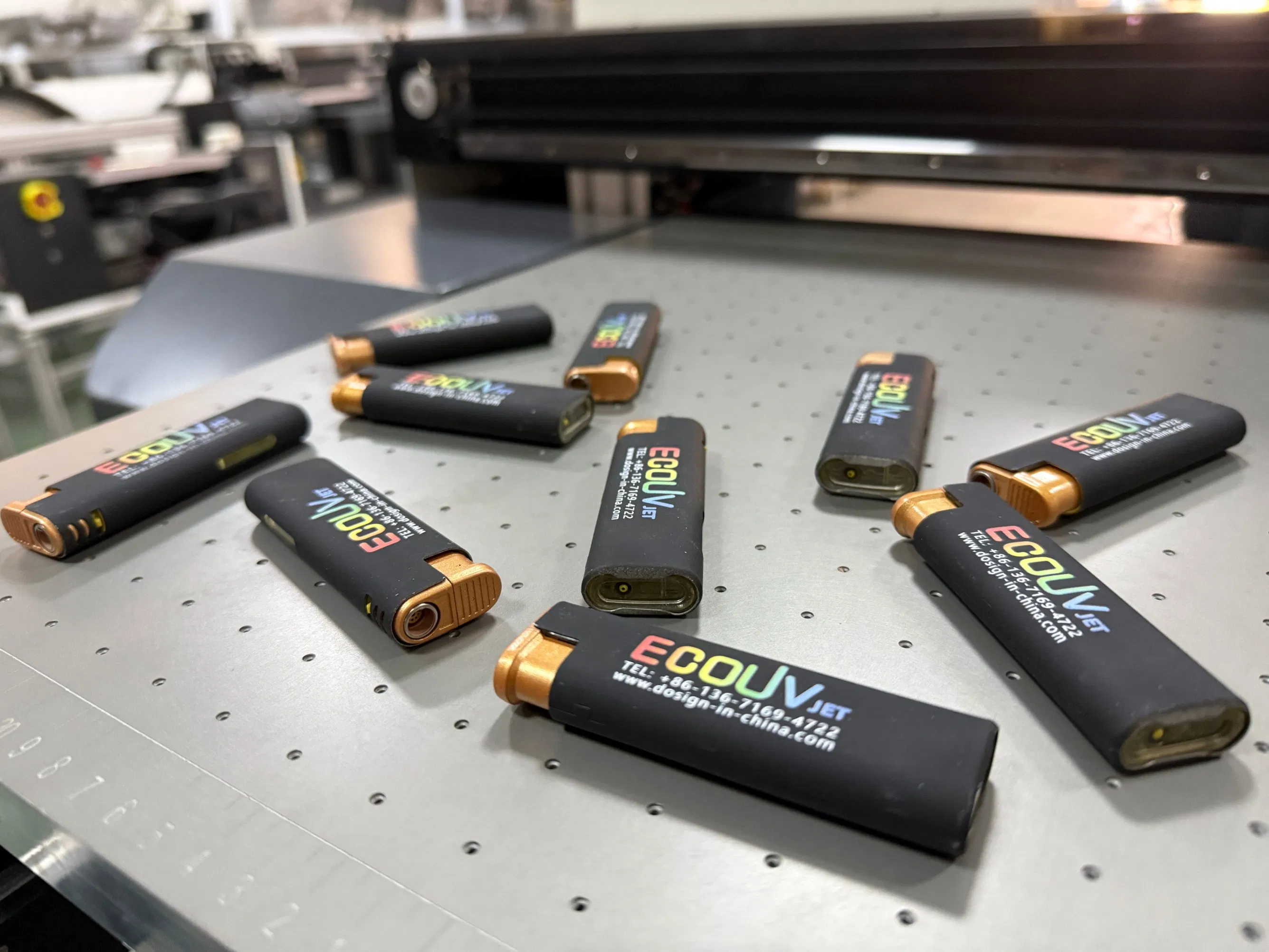

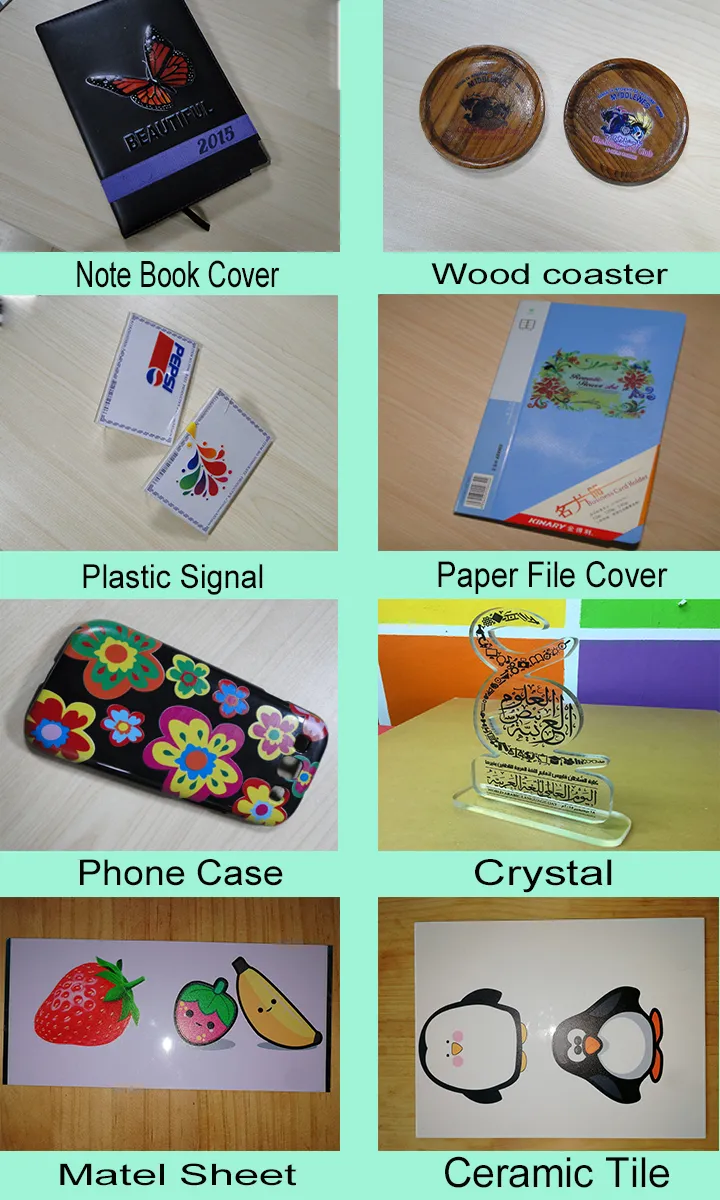

The A2 size 43*60cm (16.9*23.6 inches) UV printing machine features a 25.6 cm (10 inch) media thickness capacity. This versatile UV printer is designed to print on glass, metal, plastic, acrylic, ceramics, and more with vivid colors and fast speeds. It is an ideal choice for entry-level users or kiosk operations.

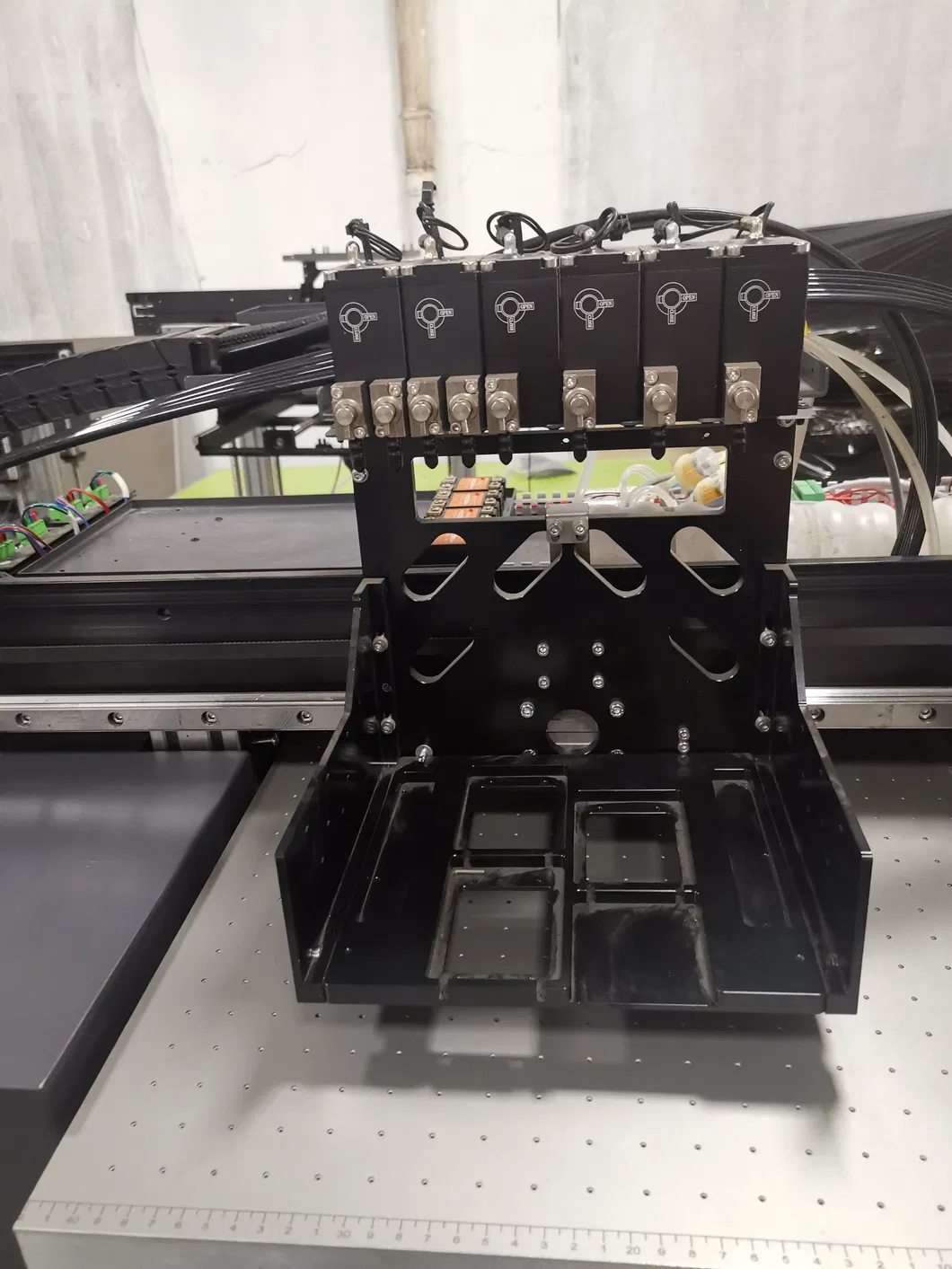

✓Equipped with a stable board system and 2 or 3 pieces of TX800, DX8, XP600, I1600, DX7, G5i, or I3200 printheads. It achieves printing speeds of A4/50s with a 6-color model, ensuring high white ink density on dark materials.

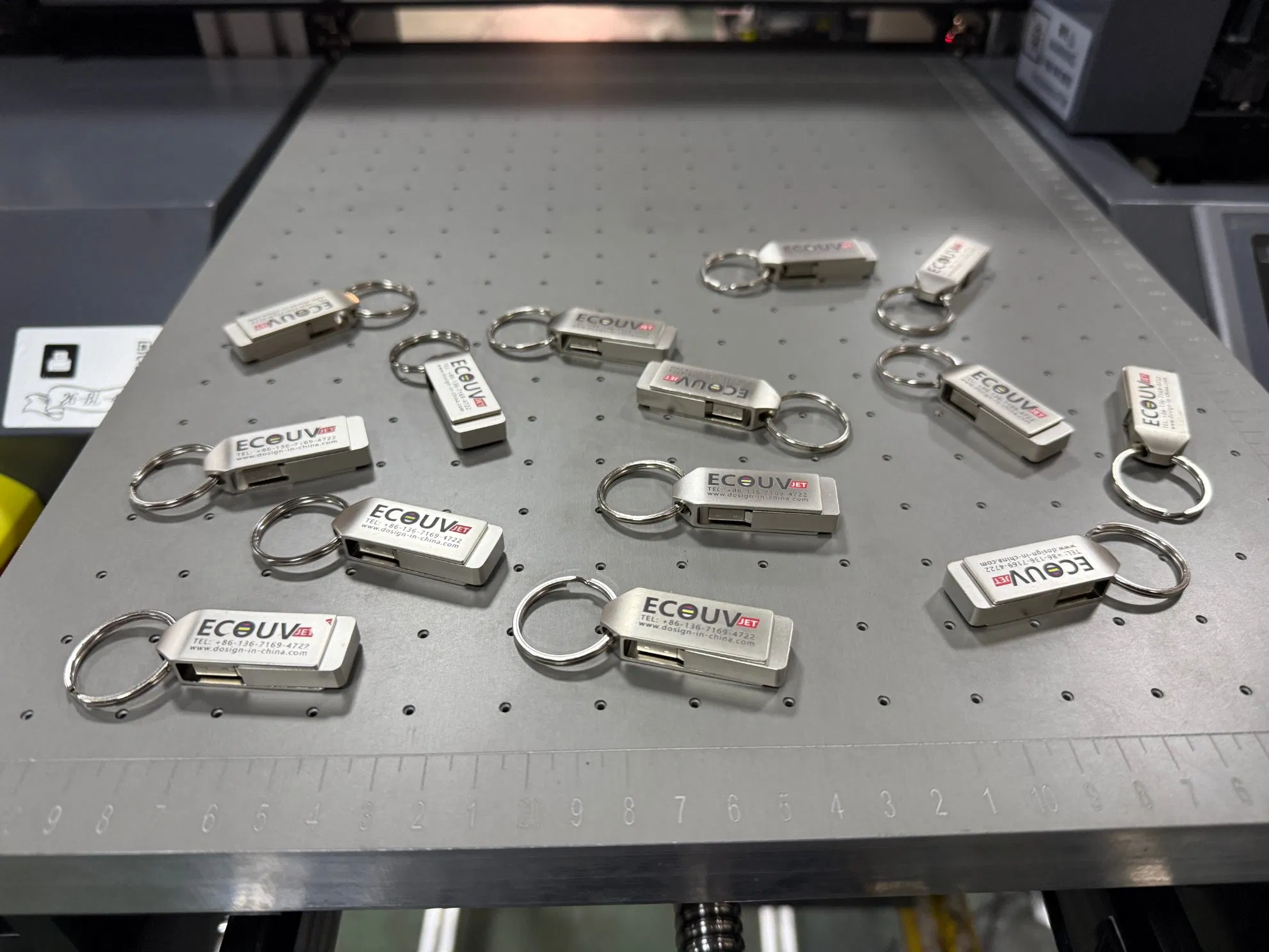

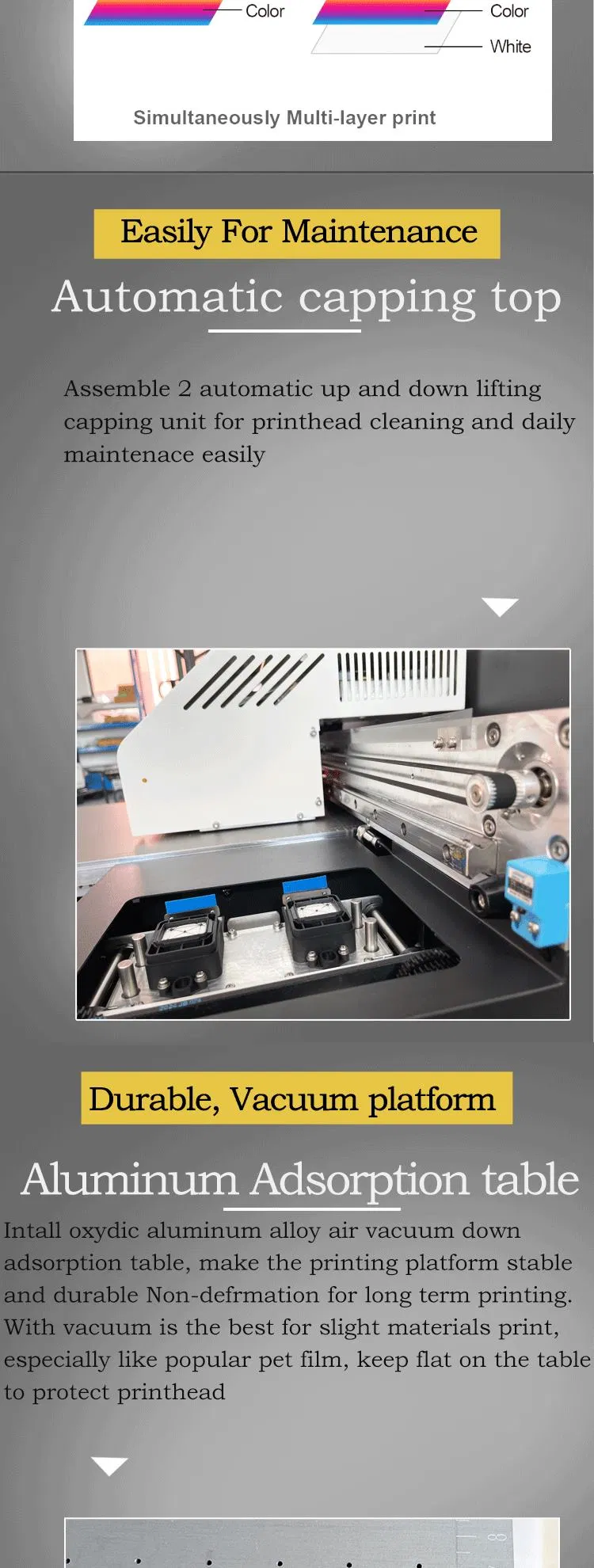

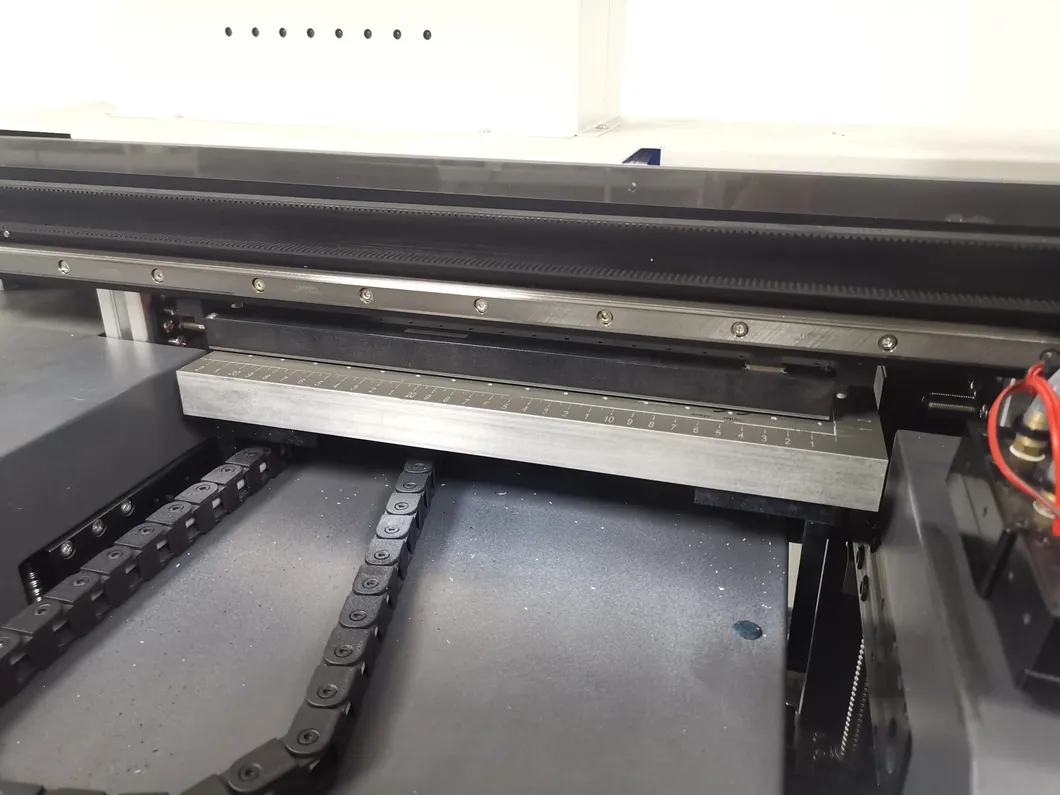

✓Features an aluminum alloy air vacuum adsorption table, which is more durable and accurate than glass, keeping lightweight materials perfectly flat during the printing process.

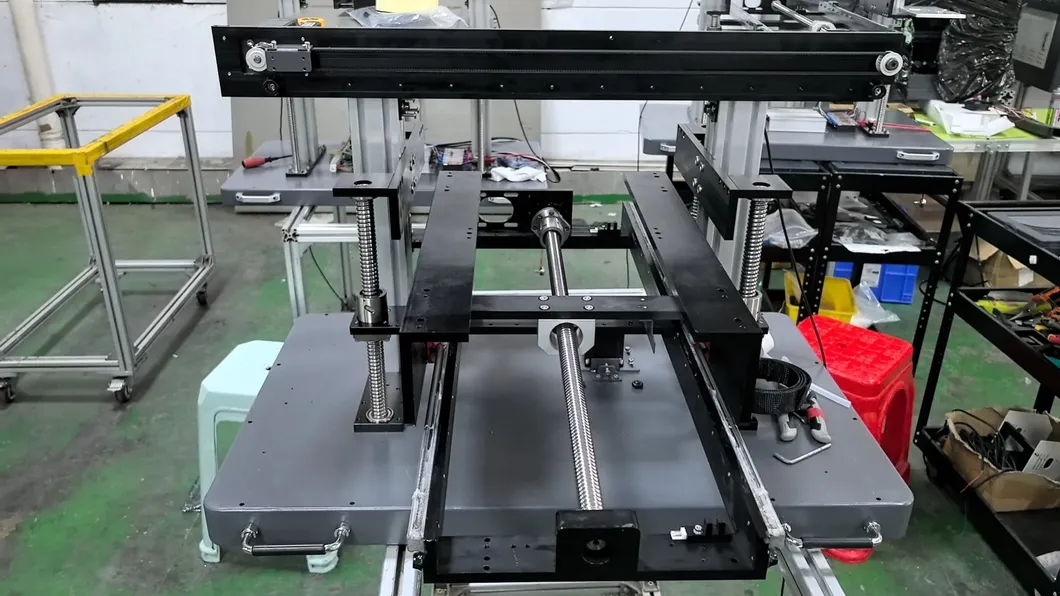

✓The Z-axis movement utilizes a ball screw drive instead of a belt, providing significantly higher precision and resolution.
✓The water circulation cooling system ensures the UV LED lamps remain at a stable temperature, extending their lifespan up to 20,000 hours and preventing light banding.
| Printer Model | A2 UV Printer DS-A2U-03 |
| Printing Tech | 2 or 3 pieces TX800(dx10) XP600 DX7 i1600 I3200 Ricoh G5I(TH5241) |
| Max Printing Size | 43*60cm / 16.9*23.6 inches |
| Resolution | 2160dpi |
| Media Height | 25.6 cm / 10 inch |
| Printing Speed | 720 dpi: 50s/A4; 1440 dpi: 100s/A4 |
| Ink Colors | C, M, Y, K, White + Varnish |
| Ink Type | UV LED Ink |
| Software | Maintop, CorelDraw, Illustrator (Free RIP Included) |
| Machine Size | 820mm x 625mm x 430mm |
