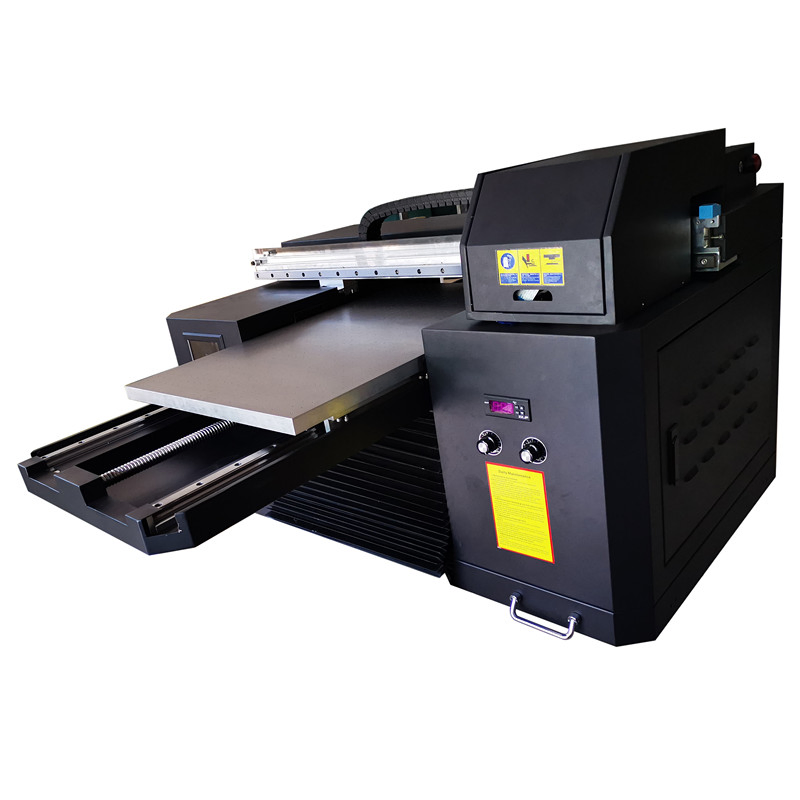

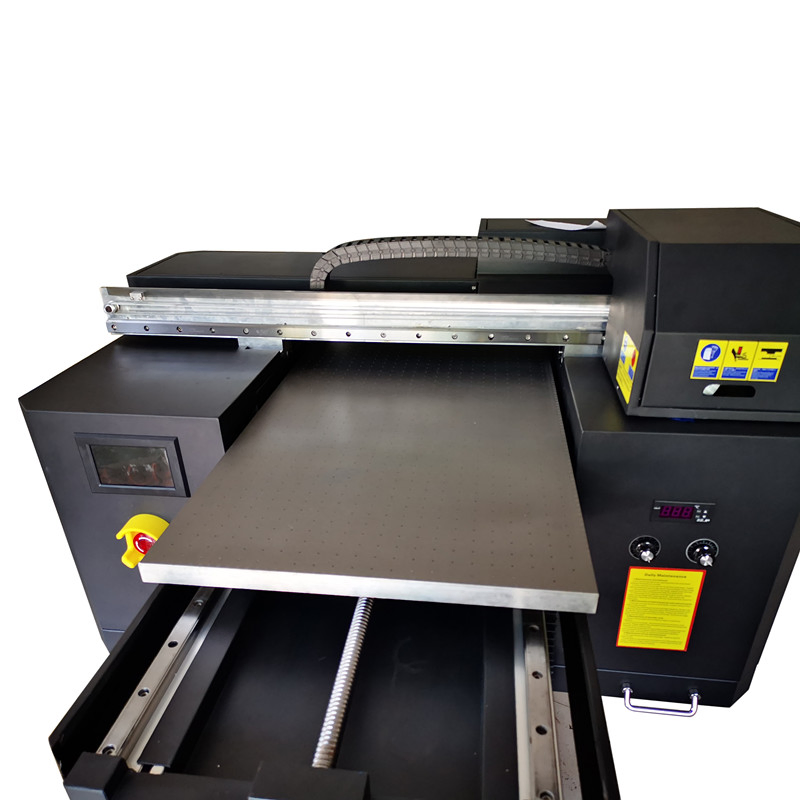

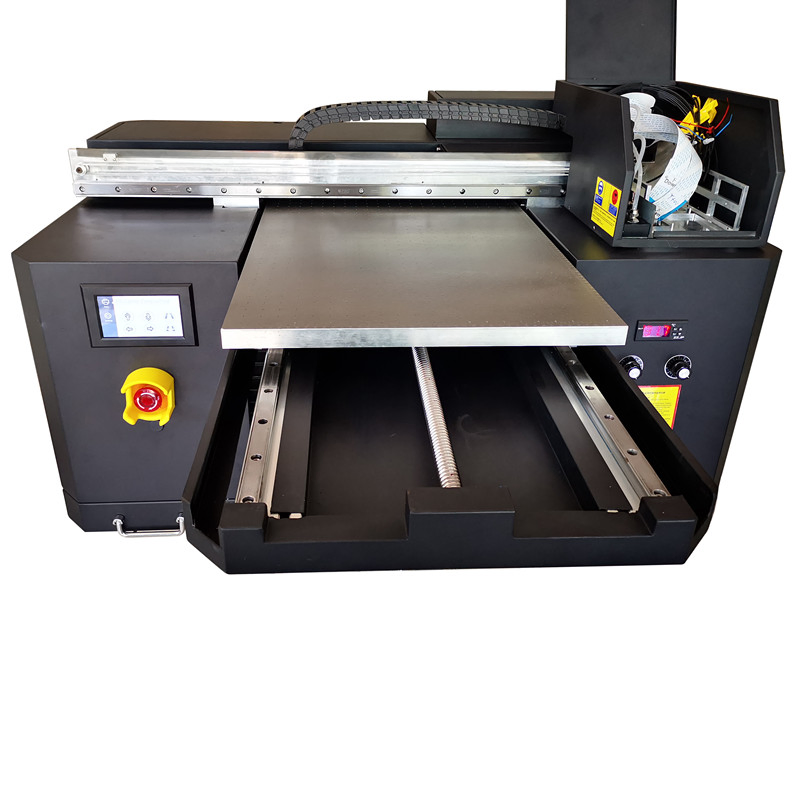

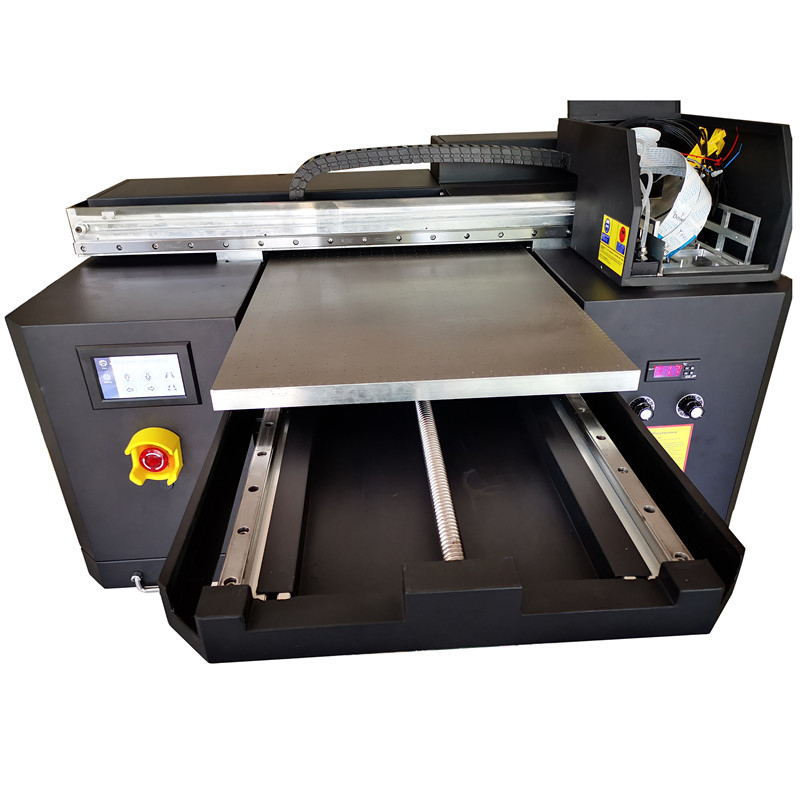

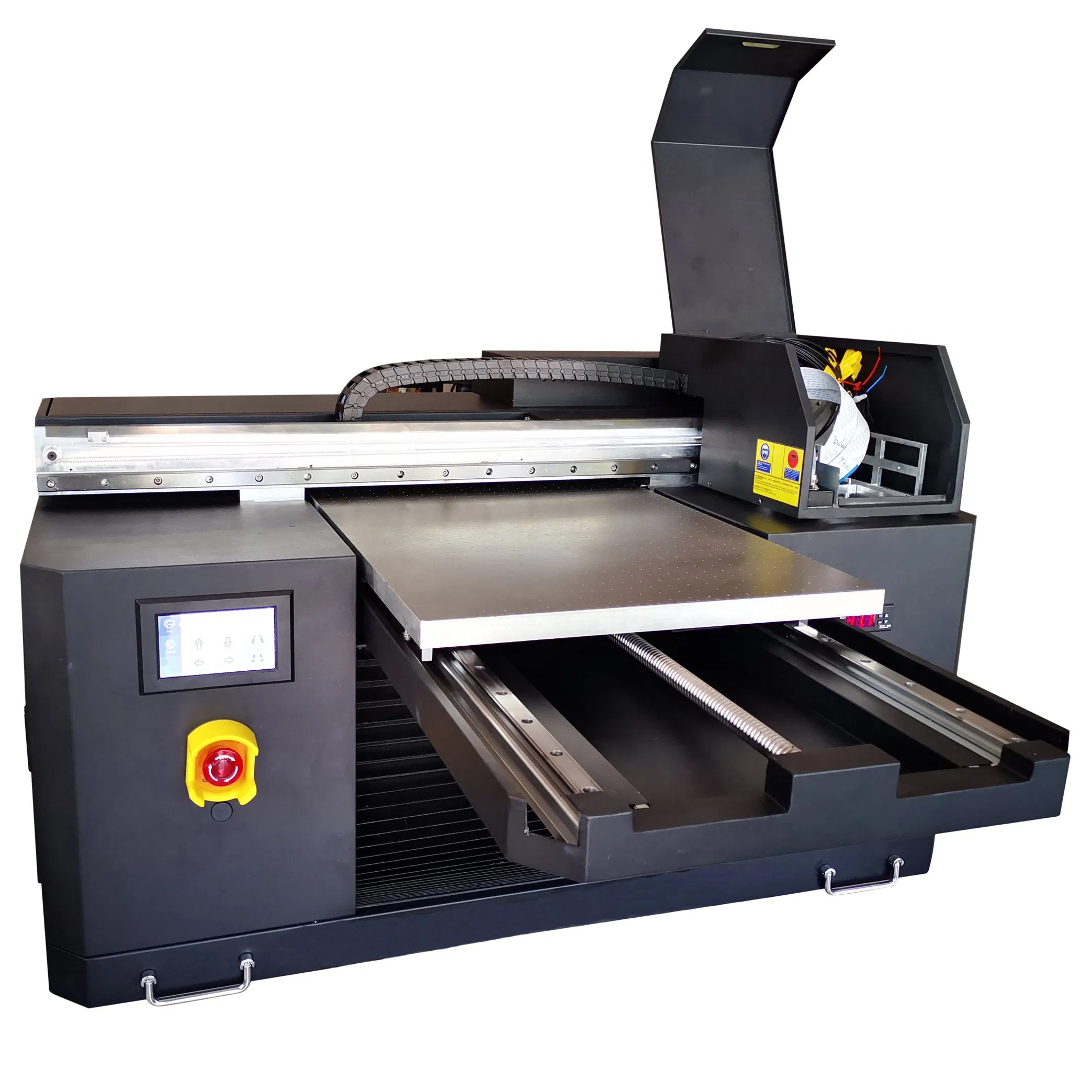

A2 4060 Double Print Heads Digital Flatbed LED UV Printer with Rotary

Basic Specifications

Model NO.

DS-A2U Plus

Color & Page

Multi-Colour Printing Press

Usage

Label, Card, UV Metal Printing

Automatic Grade

Automatic

Printing Interface

USB2.0

Printing Speed

A4 Size / 50secs

Printhead

2 Pieces Dx8 Heads

Printing Size

A2 Size 400*600mm

Ink Type

UV Curable Ink

Dry System

LED UV Lamp Drying

Media Height

18cm

Cooling System

Water Circulation

Product Description

💡

A2 4060 Double Print Heads Digital Flatbed LED UV Printer with Rotary
This professional A2 size 4060 PVC card and mobile skin UV printer is designed for high-precision printing on glass, metal, plastic, acrylic, and ceramics.

The system features a stable industrial-grade board system and 2 pieces of DX8/TX800 printheads. It achieves a maximum printing speed of A4/50s. With its 6-color model, it ensures high white ink density on dark materials. Combined with professional RIP software, it supports one-pass printing for all colors.

Technical Parameters

Printing Technology	Micro Piezo Technology (2x DX8 TX800)
Print Resolution	720*1440 dpi
Accepted Material Height	18 CM
Printing Direction	Smart Bi-directional Printing Mode
Applicable Industries	PVC, Glass, Metal, Wood, Acrylic, Ceramic, Leather, etc.
Ink Colors	C, M, Y, K, White / Varnish
Height Adjustment	Automatic
Ink Consumption	15 ML / SQM
Machine Size	820mm x 625mm x 430mm

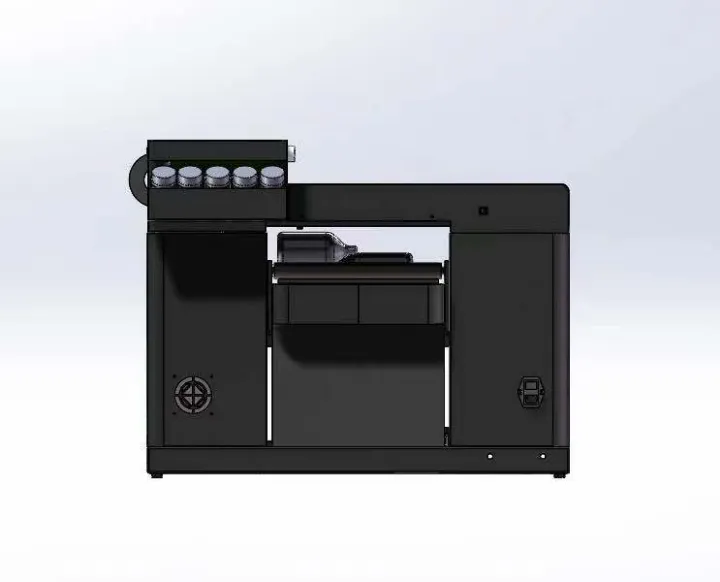

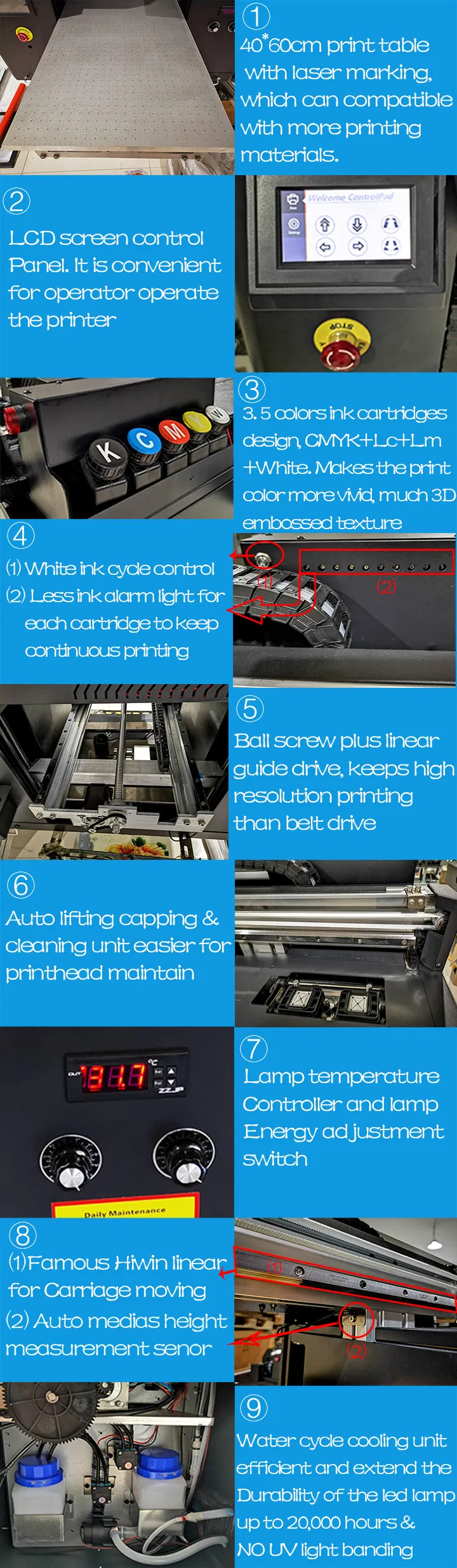

Details & Applications

Frequently Asked Questions

What materials can this UV printer print on?

The UV printer can print on almost all materials, including phone cases, leather, wood, plastic, acrylic, pens, golf balls, metal, ceramics, glass, and textiles.

Can it create an embossing 3D effect?

Yes, it is capable of printing embossing 3D effects. Please contact our technical team for specific process videos.

Does it support rotary bottle printing?

Yes, both bottles and mugs (even those with handles) can be printed using the specialized rotary printing device.

Is pre-coating required for all materials?

Some specific materials like metal, glass, and acrylic require a pre-coating to ensure the print is anti-scratch and durable.

What is the maintenance routine for the printer?

The printer features an auto-cleaning and auto-keep-wet system. We recommend a normal cleaning before powering off. If unused for over a week, power it on every 3 days for a test print.

What is the estimated printing cost?

Typically, the ink cost is approximately $1 per square meter when using our high-quality UV inks.
