| Model NO. | A7 |
| Axes | 7 Axis |
| Displayer | 8 Inch Real Color LCD Display |
| Program | Teach Function, G Code |
| Interface | USB+RS232 Communication Port |
| Function | PLC+CNC+Teach |
| Material | PCB Board |
| Certification | ISO 9001:2008, CE |
| CPU | Arm(32bits)+DSP+Fpga |
| Application | Welding, Palletizing, Painting, Tending |
| User Storage | 256MB (Expand to 2GB) |
Package Size: 49.00cm * 32.00cm * 38.00cm
Gross Weight: 10.000kg
Transport Package: Carton

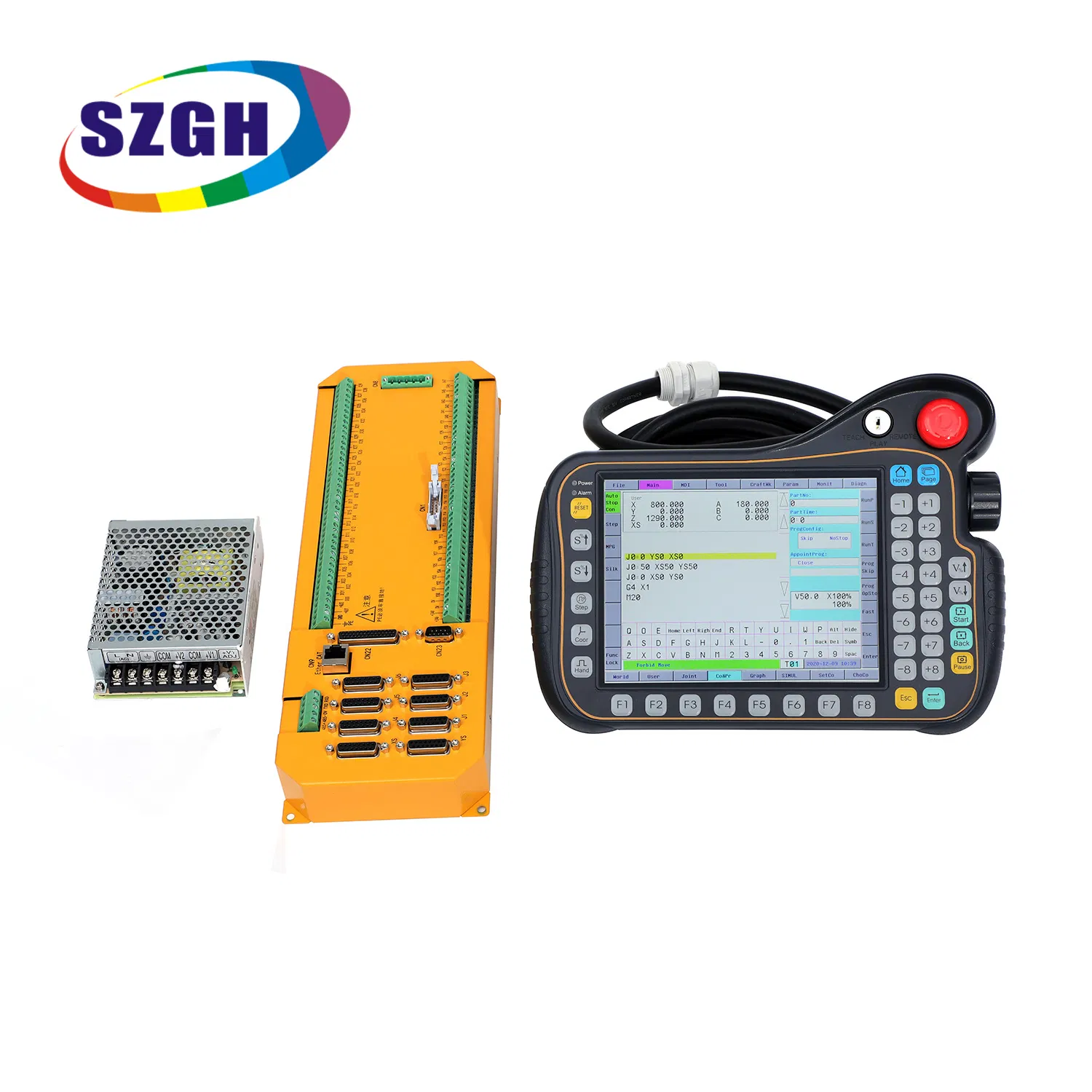

This Intelligent Industrial Grade CNC Robot Controller adopts an international open and flexible software and hardware platform. It is configured with special multi-axis motion control cards, DA cards, and security interfaces.

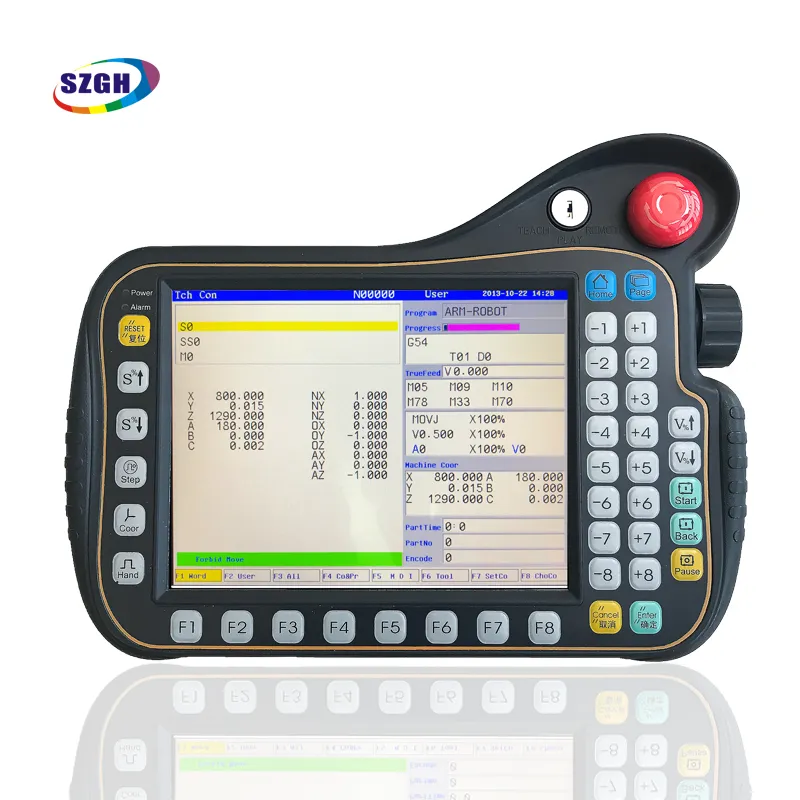

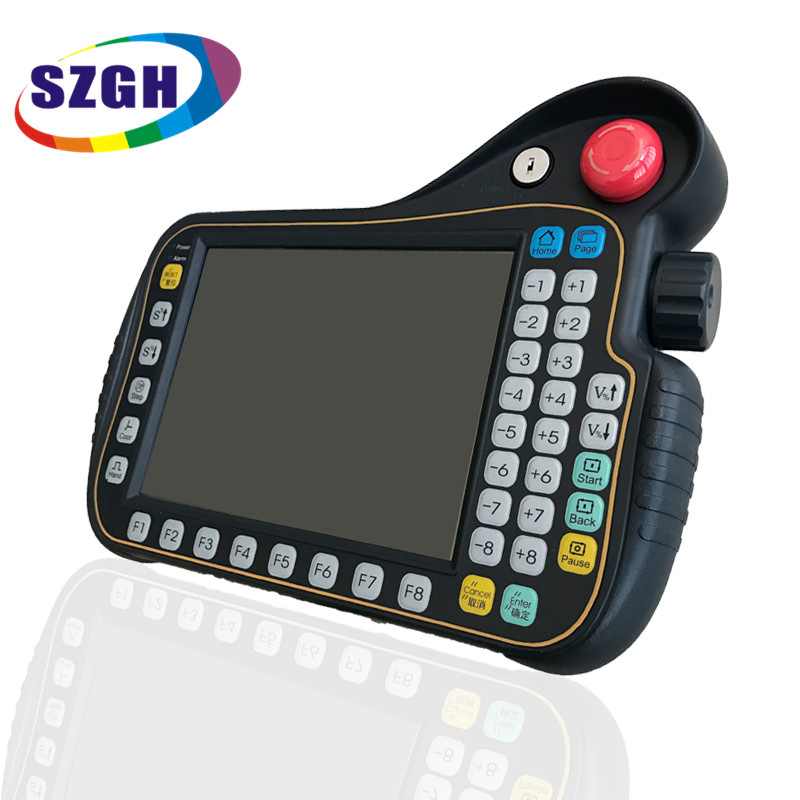

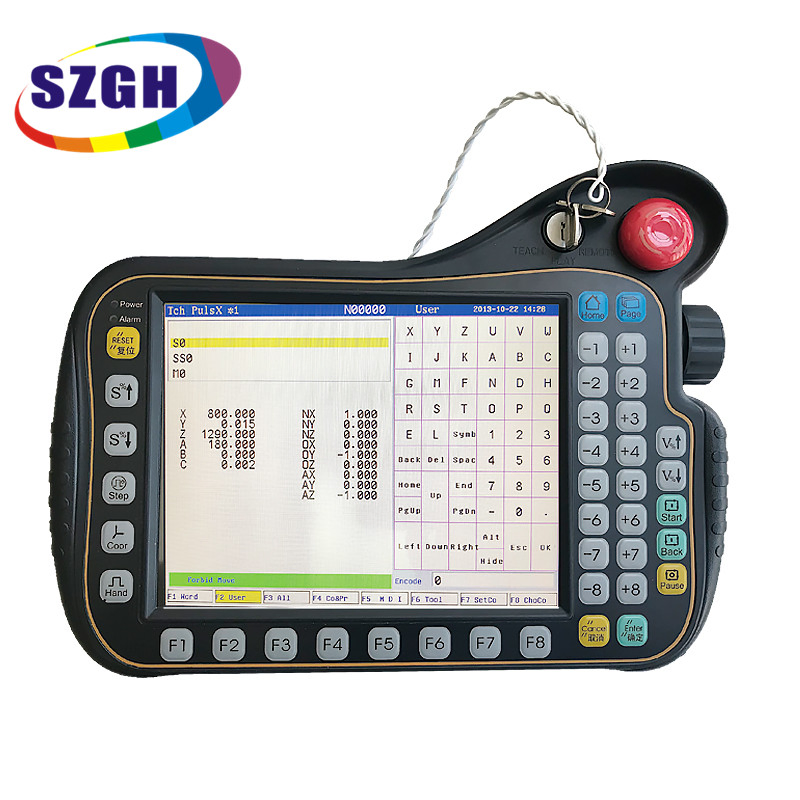

The controller features a concise structure using high-strength engineering plastics and injection molding. It is equipped with an E-Stop button and Safe-Start switch. The color LCD touch screen and MPG allow for easy manual operation, Teach-In, and remote playback.
| Feature | Specification |
|---|---|
| Display | 8 inch color screen |
| Interface | USB+RS232 Communication Port |

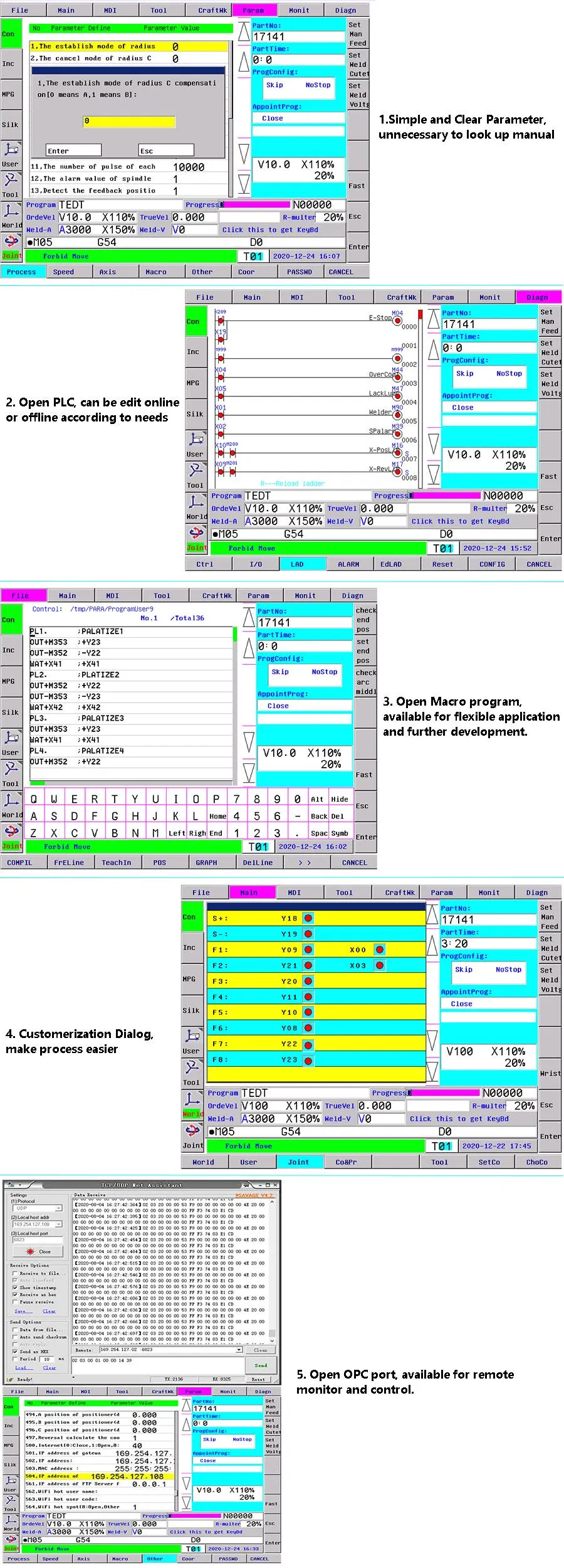

| PLC Support | Built-in standard PLC Program, customizable |
| Basic I/O | 48*32 |
| Function | Welding, palletizing, painting, tending |
| Control System | Specifications |
|---|---|
| Control axis number | Standard 6-axis + 2-axis |
| Operating mode | Teaching, Reproduction, Remote |
| Programming mode | Keyboard input, Teaching reproduction, Process programming |
| Motion function | Point to point, Straight line, Arc |
| Coordinate systems | Joint, User, Tool, World |
| Alarm functions | Emergency stop, Servo alarm, Safety maintenance, Arcing abnormality |

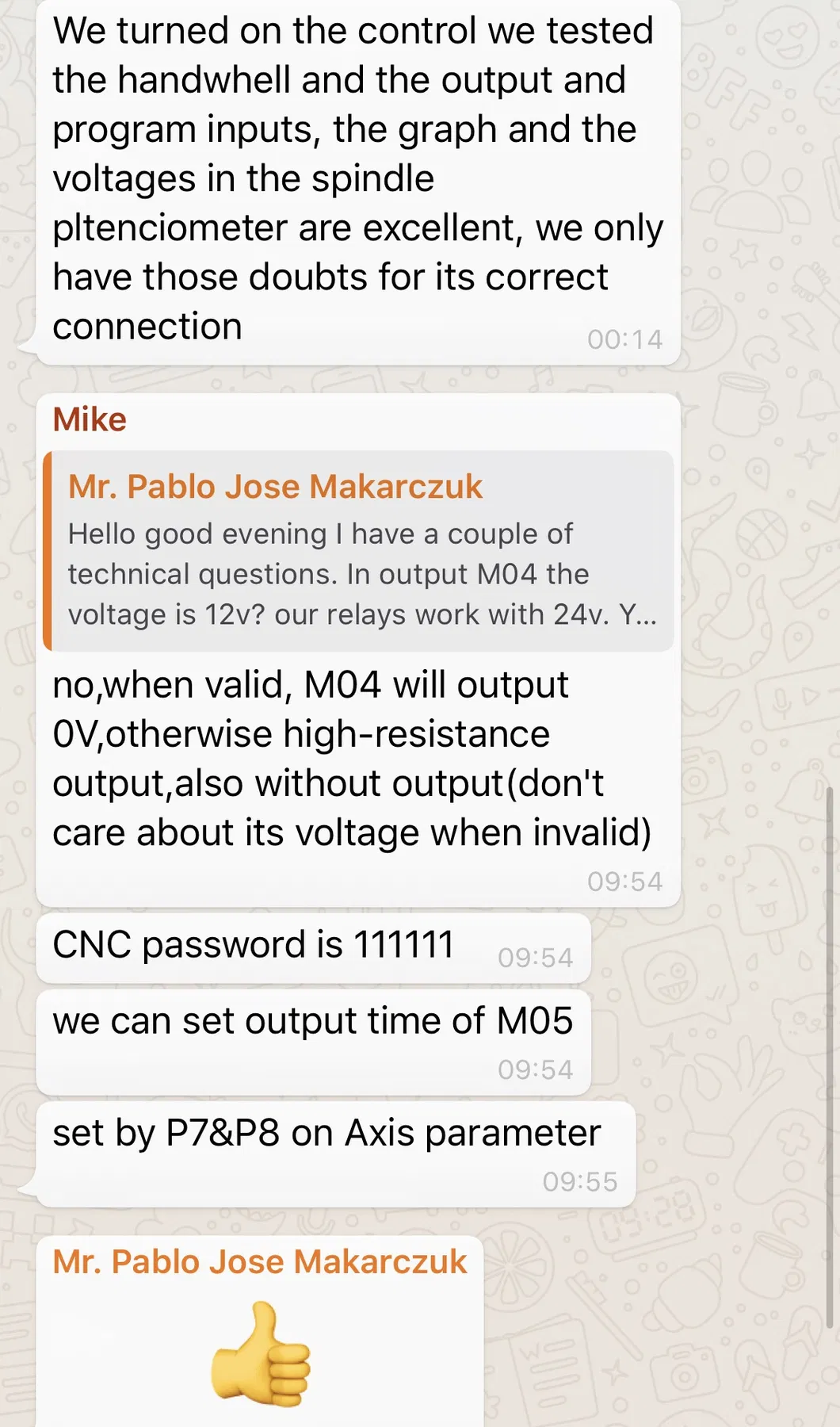

Professional Technical Support: Our team of engineers provides professional after-sales service to all clients, ensuring quick replies and effective problem-solving.
