6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding
6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding
6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding
6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding
6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding
1 / 5
6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding
6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding
6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding
6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding
6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding

6 Axis Industrial Robotic Arm Controller for TIG/MIG/Mag Welding

Customization: Available
After-sales Service: Supported
Warranty: 12 Month
Send Inquiry

Product Description

i

Basic Information

Model NO.
A6
Type
Semi-Closed Loop
Axis
6 Axis
Material
PCB Board
Displayer
8 Inch Real Color LCD Display
Certification
ISO 9001:2008, CE
Interface
USB+RS232 Communication Port
User Store Room
256MB (Expand to 2GB)
CPU
Arm(32bits)+DSP+Fpga
Application
Welding, Palletizing, Painting, Tending
Package Size
49.00cm * 32.00cm * 38.00cm
Gross Weight
13.000kg
★

Product Description

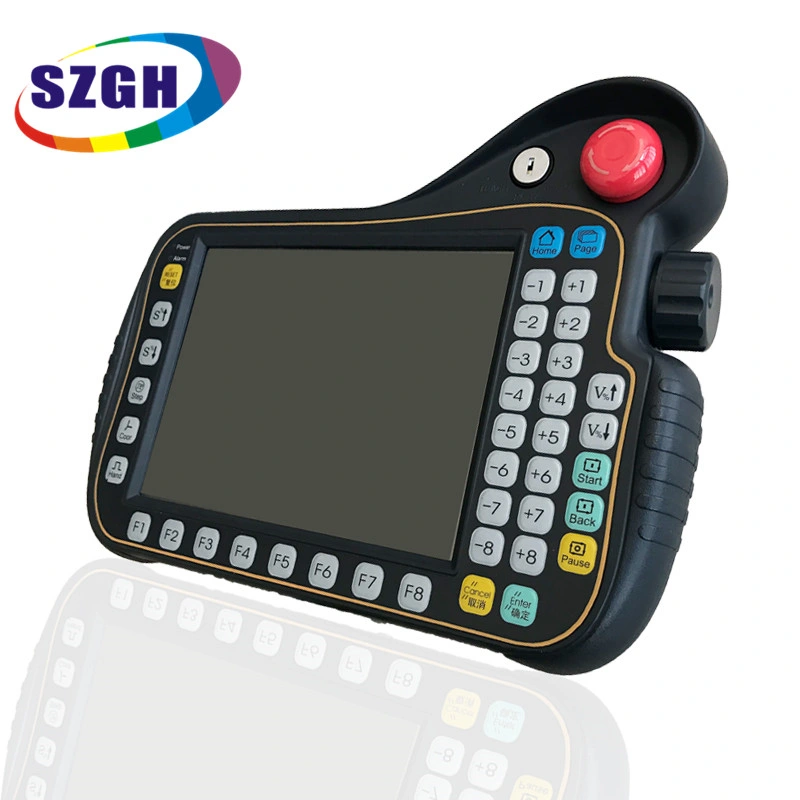

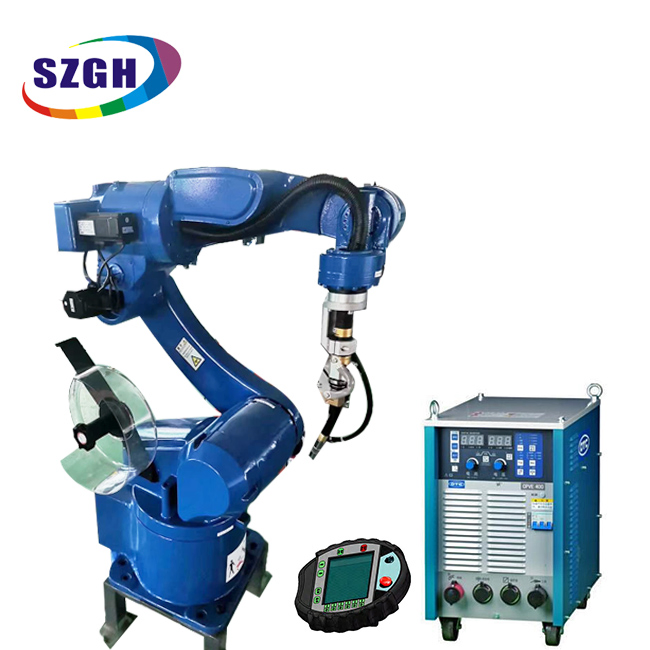

6 Axis Industrial Robotic Arm Controller for TIG/MIG/MAG Welding

The A6 is an Intelligent Industrial Grade CNC Robot Controller, adopting an international open and flexible software and hardware platform. It is configured with a special multi-axis motion control card, DA card, and security interfaces.

Featuring a high-strength engineering plastic injection-molded structure, the A6 includes an E-Stop button and Safe-Start switch. The color LCD touch screen and MPG allow for easy manual operation, Teach-In, and remote play functions.

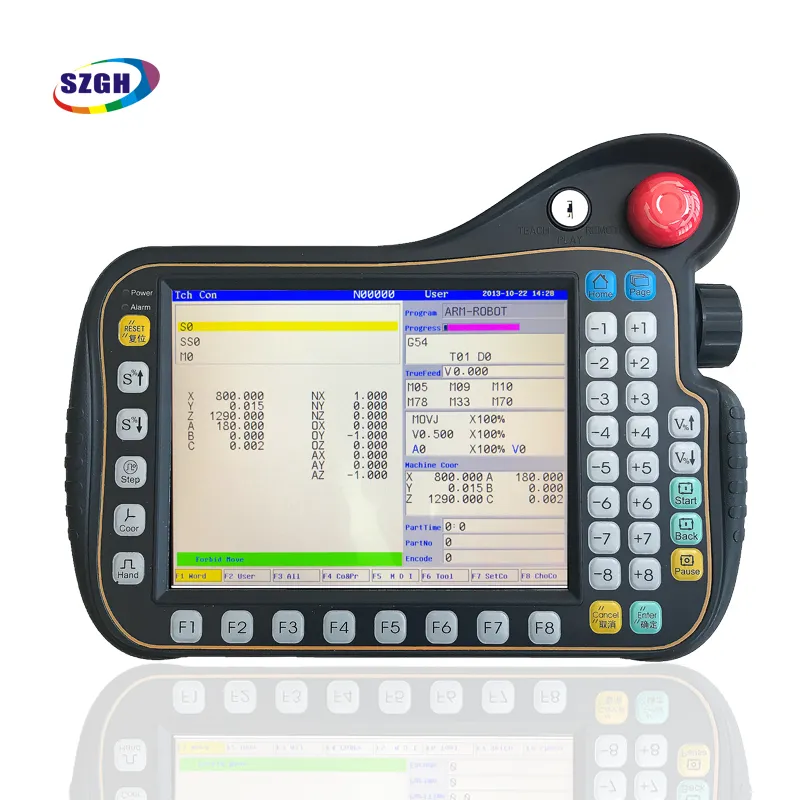

Controller Display
Display8 inch color screen
InterfaceUSB+RS232 Communication Port
SupportBuilt-in standard PLC Program, customizable
Basic I/O48*32
FunctionWelding, palletizing, painting, tending
⚙

Product Features & System Functions

  • Optimized structure algorithm for various robot body controls
  • Modular function settings adapted for diverse application areas
  • 8-axis control capability (auxiliary axes like traveling axis, positioners)
  • Supports multi-turn absolute value servo systems
  • Bus embedded host structure for convenient expansion
  • 48*32 way I/O input and output with PLC online editing
  • Motion Function
    • Control AxisStandard 6-axis + 2-axis
    Operating ModeTeaching, Reproduction, Remote
    Point to point, straight line, arc
    Coordinate SystemJoint, User, Tool, World coordinates
    Alarm FunctionEmergency stop, servo alarm, safety maintenance, arcing abnormality
    System AlgorithmsVertical multi-joint, Parallel, L-shaped, SCARA, Delta, and Special purpose

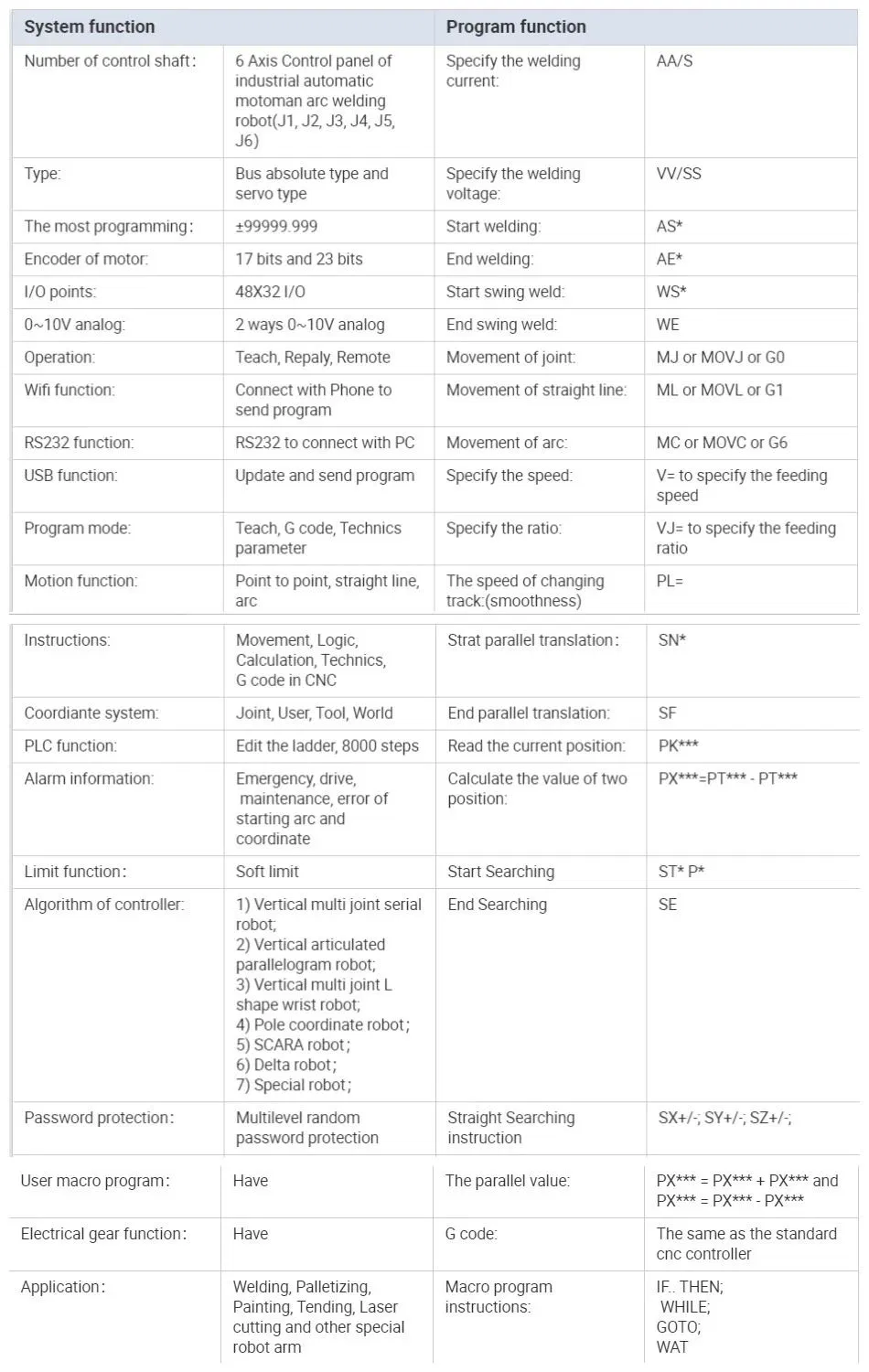

    Technical Drawing

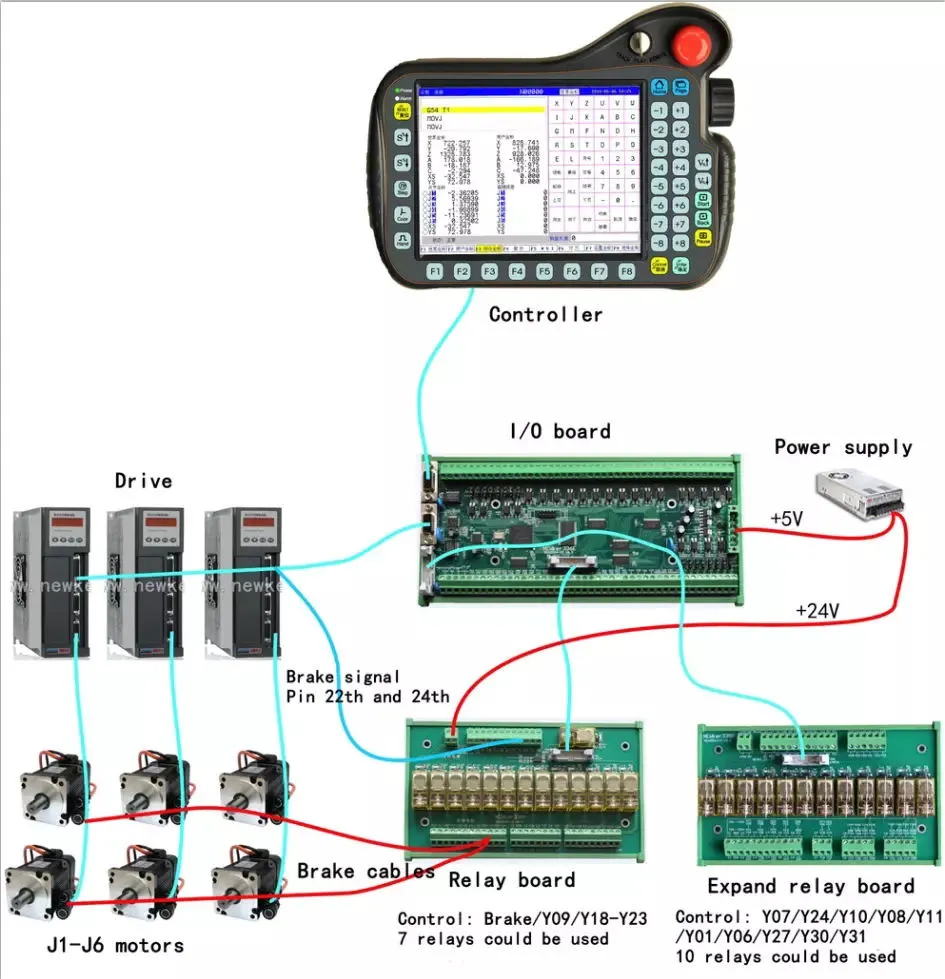

    Product Details
    ✔

    Certifications & Quality

    Certification
    Production
    Factory
    ☎

    Service & Support

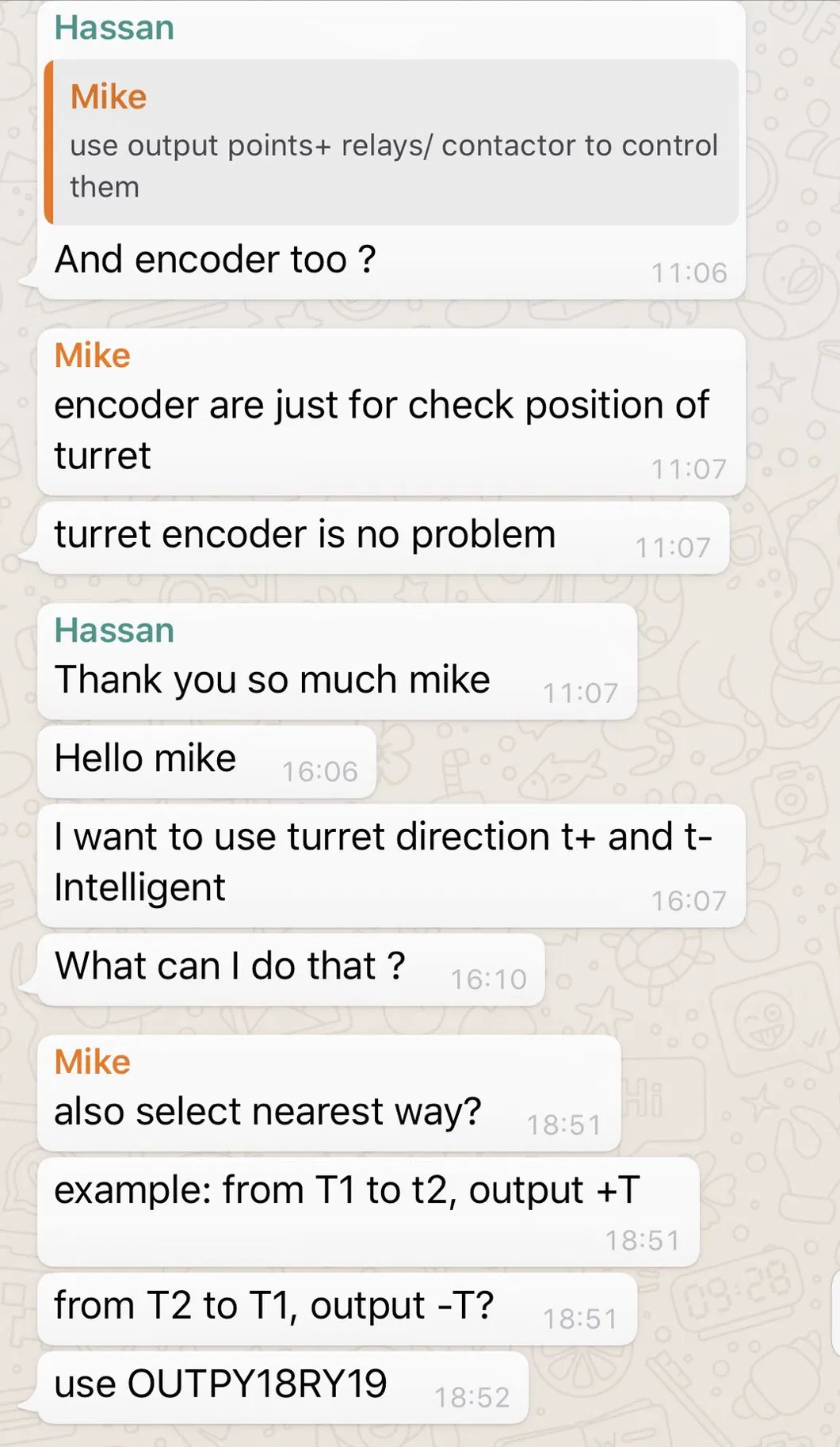

    Technical Support

    Professional Support:

    • Expert engineer teams for troubleshooting
    • Quick response times
    • Video technical support and online guidance
    • Comprehensive manuals and process instructions
    ?

    Frequently Asked Questions

    Do you support customized manufacturing?
    Yes, we provide customized manufacturing according to requirements, including display interfaces and logo integration.
    How long is the typical delivery time?
    Standard stock items take 3-5 days. Non-stock items usually take 5-10 days, while customized manufacturing requires 10-20 days depending on quantity.
    Are samples available for testing?
    Yes, samples can be provided at a specific sample price.
    What are the primary application areas for this controller?
    The system is designed for handling, welding (TIG/MIG/MAG), inkjet, palletizing, cutting, polishing, forging, and casting.
    What are the payment terms?
    For amounts ≤ 2000 USD, 100% in advance. For amounts > 1000 USD, 70% T/T in advance with the balance due before shipment.
    How many axes can this system control?
    The standard configuration is 6 axes, but it can be expanded to control up to 8 axes for auxiliary equipment like traveling axes and positioners.
