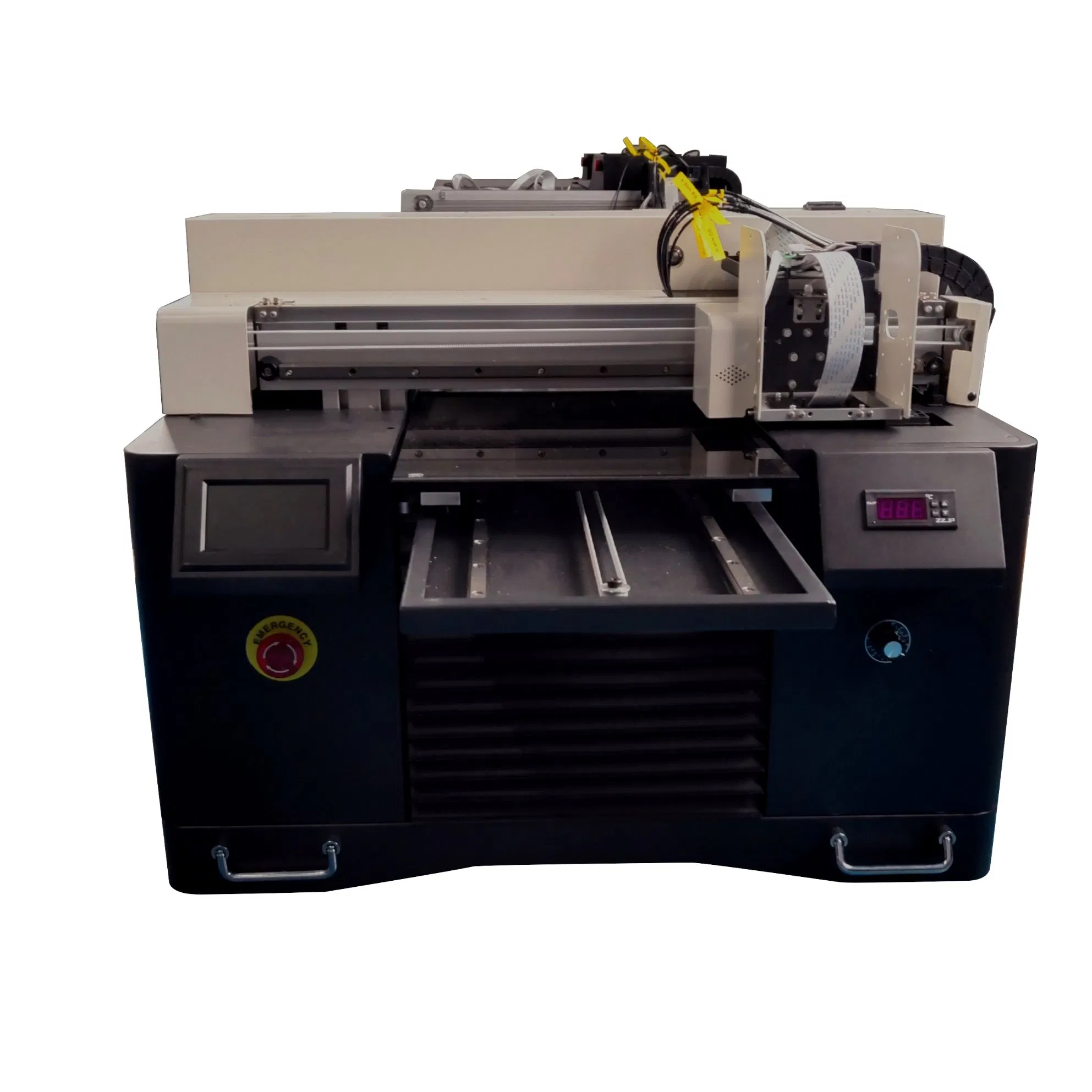

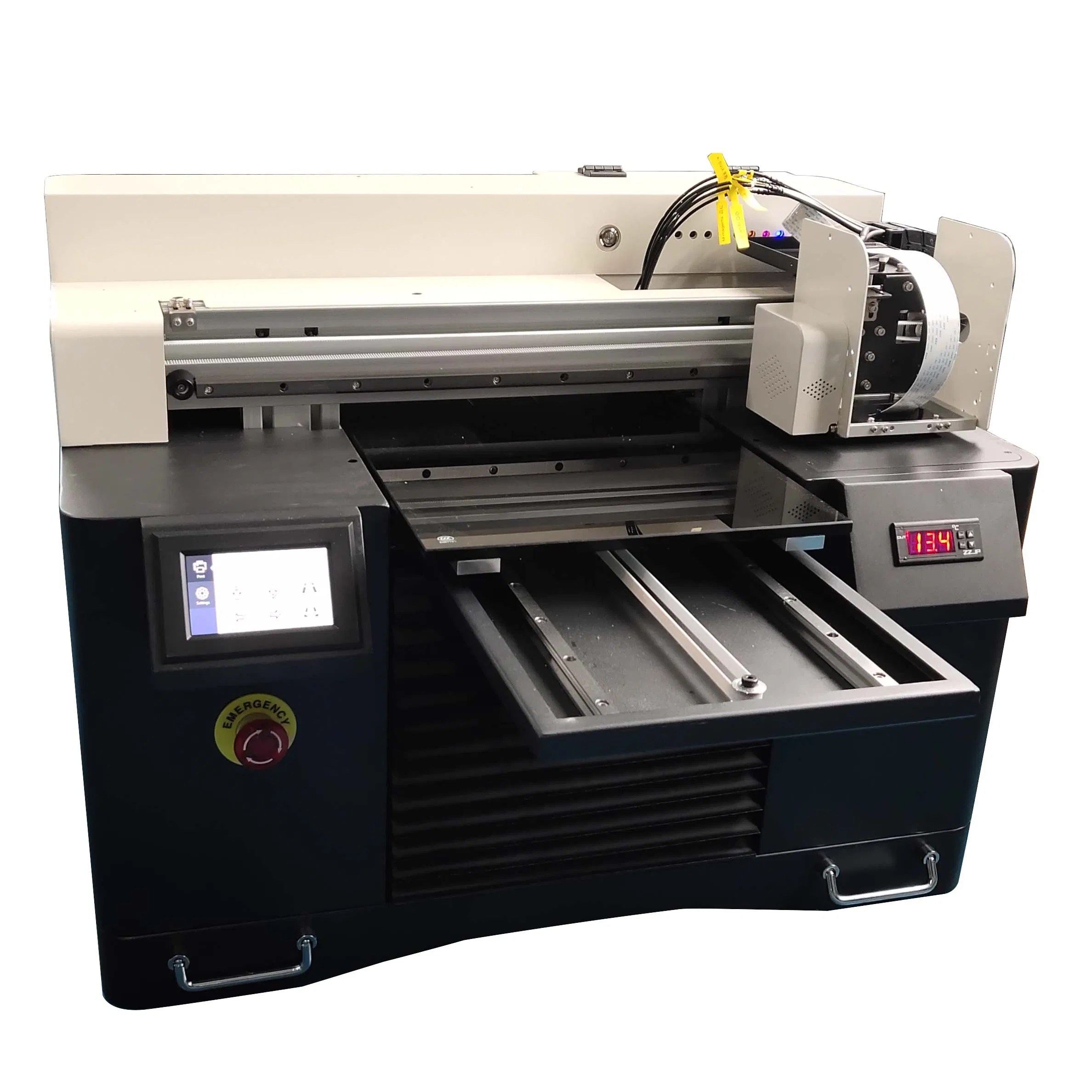

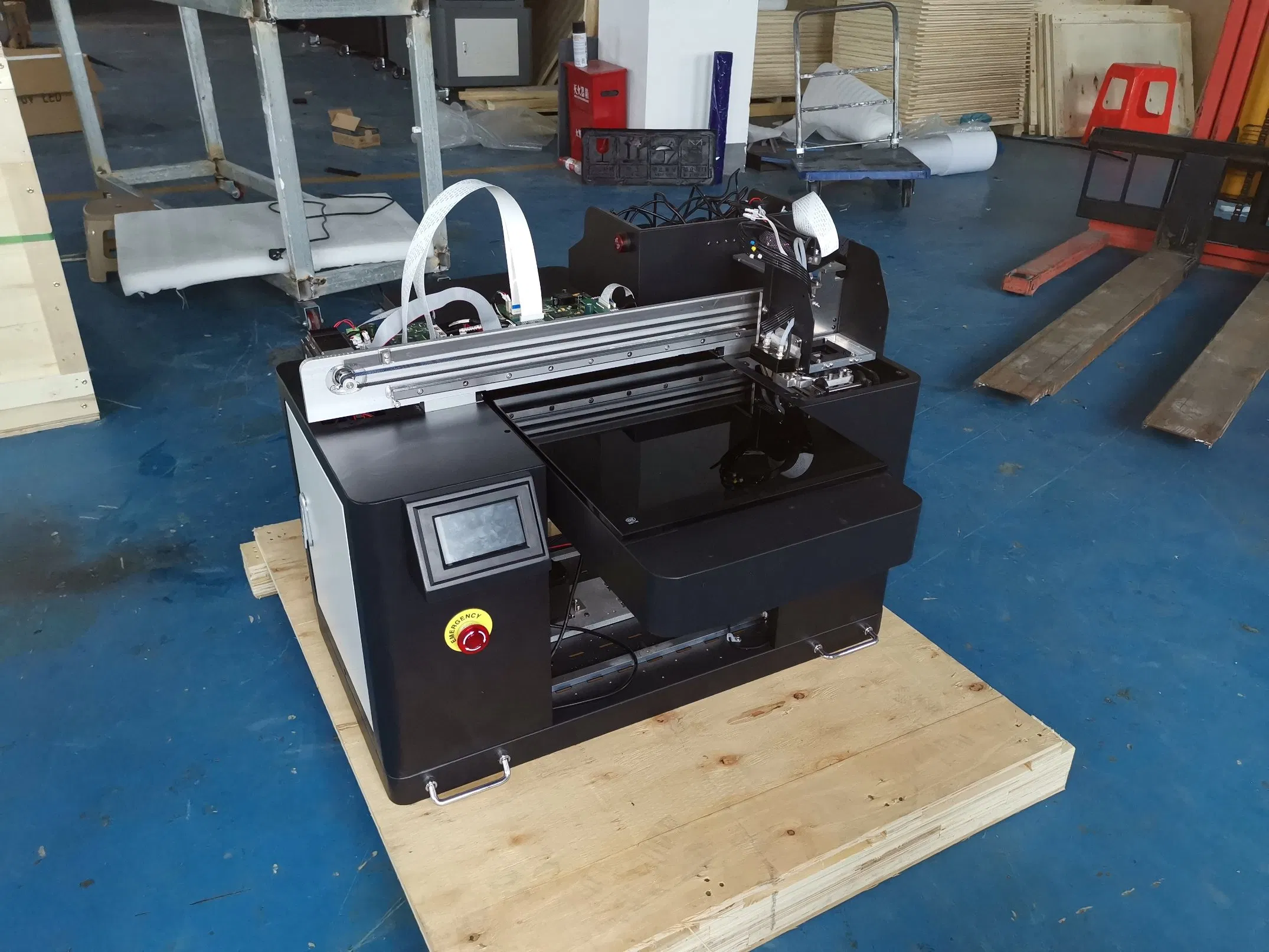

40*60cm A2 2 Print Heads UV Printer for versatile printing on wood, acrylic, and more.
Overview:
This A2 size 4060 PVC visa card and iPhone skin UV printer utilizes digital technology to print on glass, metal, plastic, acrylic, ceramic, and more. With vivid colors and high speed, it is an excellent choice for entry-level users or kiosk operations.
Equipped with a stable board system and 2 Pieces TX800 DX8 Printheads, it achieves a maximum printing speed of A4/50s. The 6-color model supports CMYK+WW for superior white ink density on dark materials. Combined with Ultra RIP software, it enables all-color printing in a single pass.
| Printer Model | A2 UV Printer DS-A2U |
| Printing tech | Micro Piezo Technology 2 pieces DX8 TX800 printheads |
| Printing Size | 400*600mm |
| Print resolution | 720*1440 dpi |
| Accepted material's height | 20CM |
| Print quality | True Photographic quality |
| Printing speed | 720 dpi: 50 seconds/A4; 1440 dpi: 100 seconds/A4 |

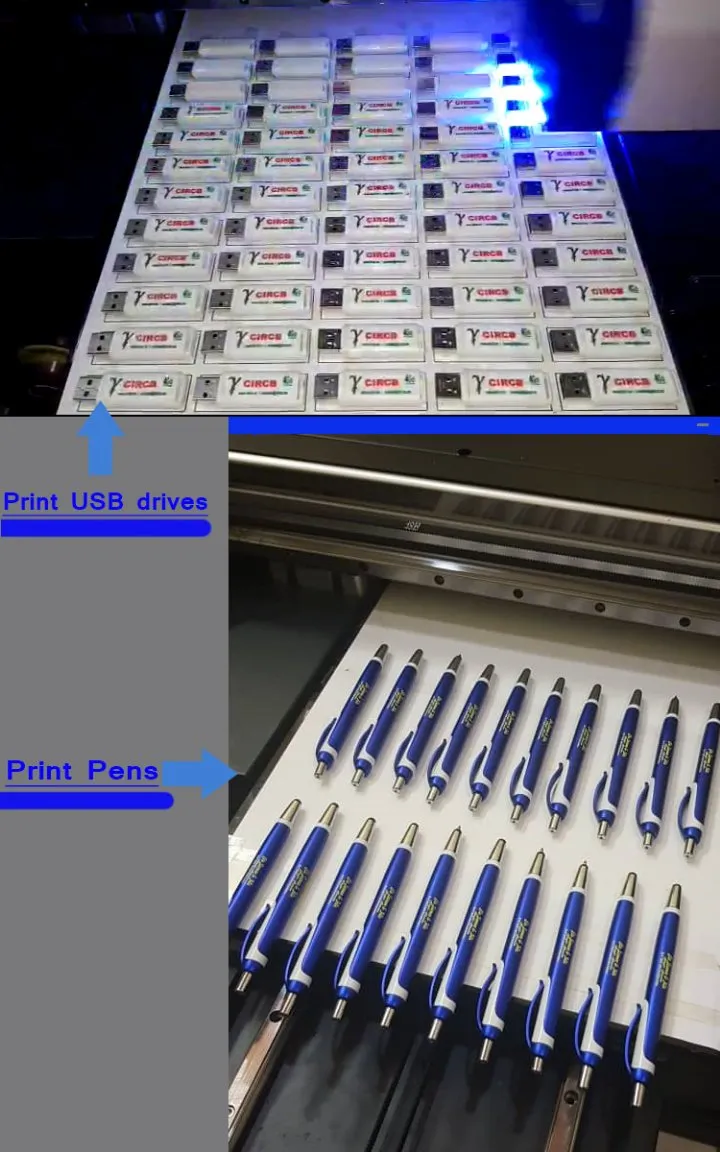

| Applicable industry | Rigid PVC board, glass, plastic, leather, rubber, metal, wood, porcelain, acrylic, aluminum, ceramic tile, marble, etc. |
| Max Media weight | 10 KGs NET. |
| Operating system | Windows XP/ME/Vista/Win7/Win10 |
| Ink colors | C, M, Y, K, White / Varnish |
| Ink type | UV LED ink |
| Power consumption | 36 W/ Hour. |

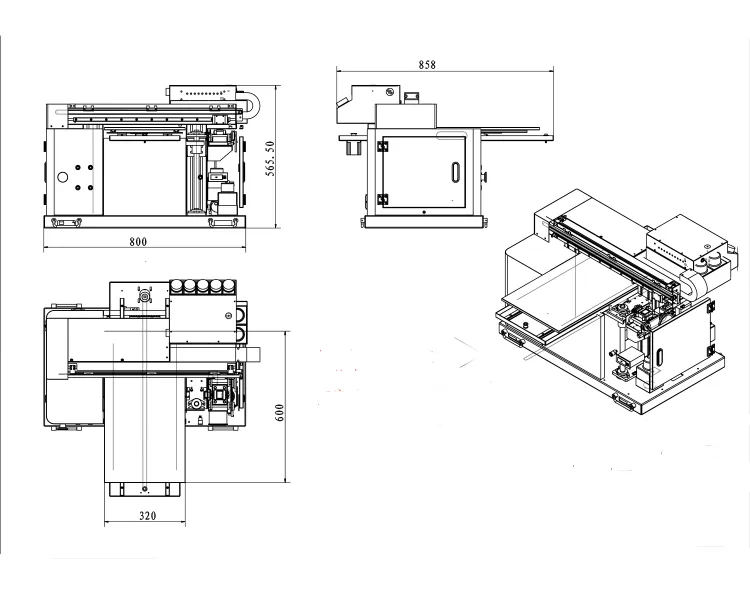

| Machine Size | 820mm x 625mm x 430mm |

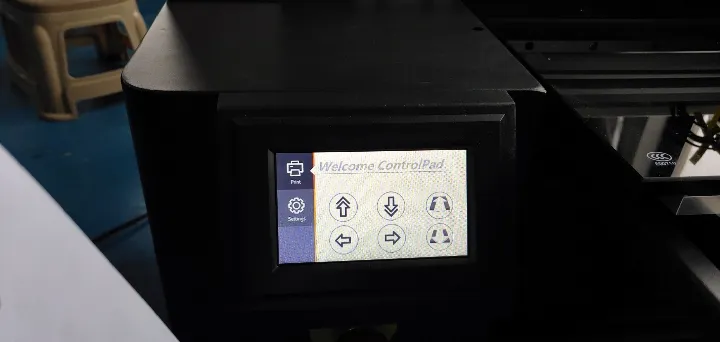

Smart easy operation LCD display control panel

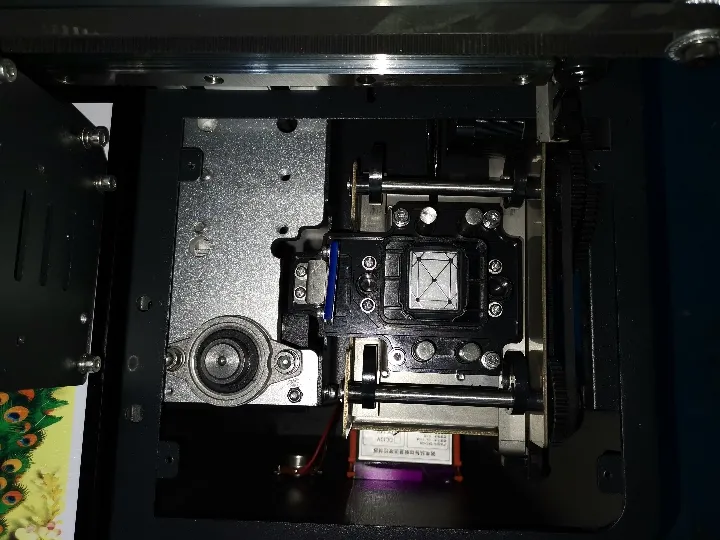

Automatic lifting and down capping

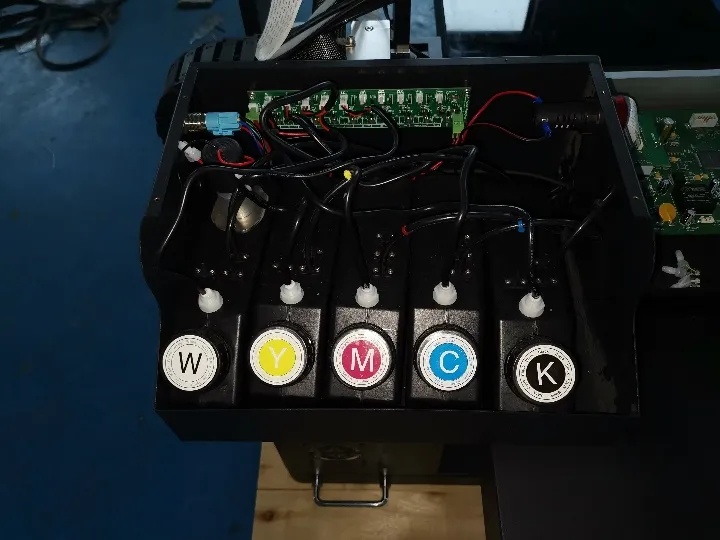

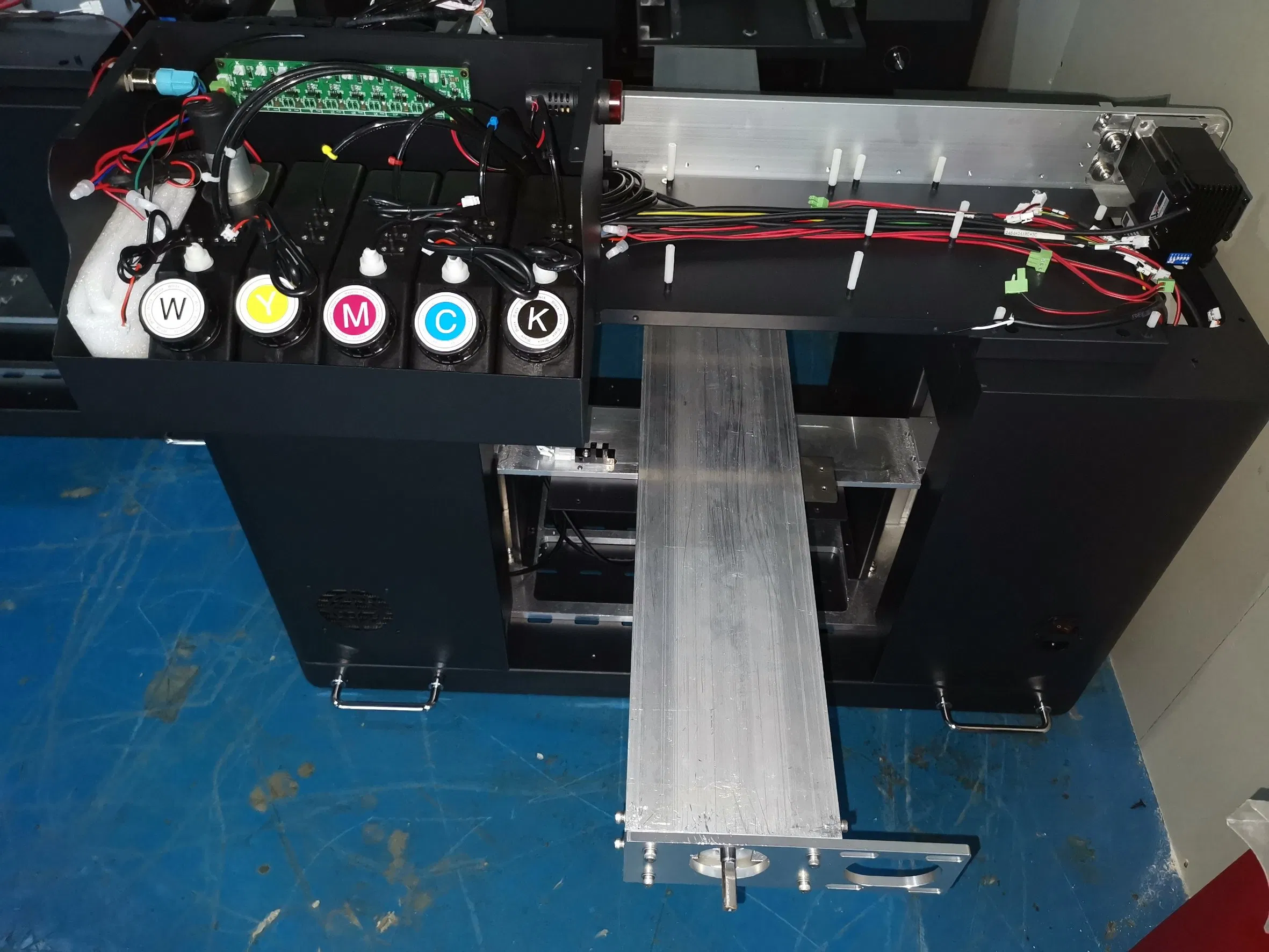

Ink bottles (includes low ink alarming system, white ink circulation system)
