| Model NO. | DS-A2U-03 |
|---|---|

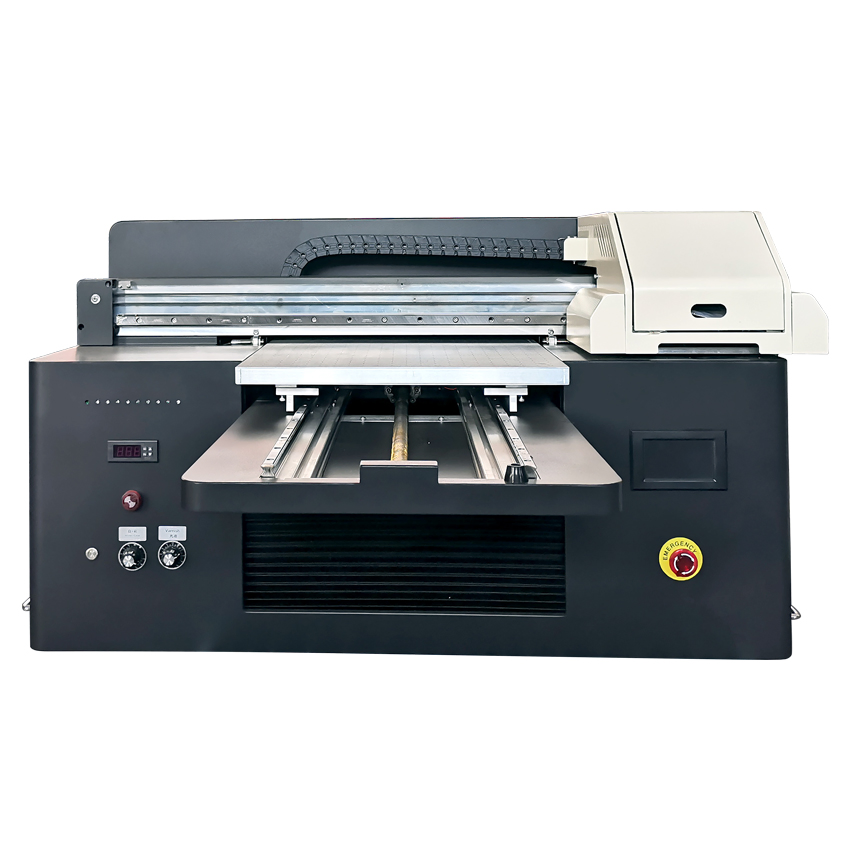

| Product Name | A2 PRO UV Printer |
| Printing Size | 43*60cm / 16.9*23.6 Inches |

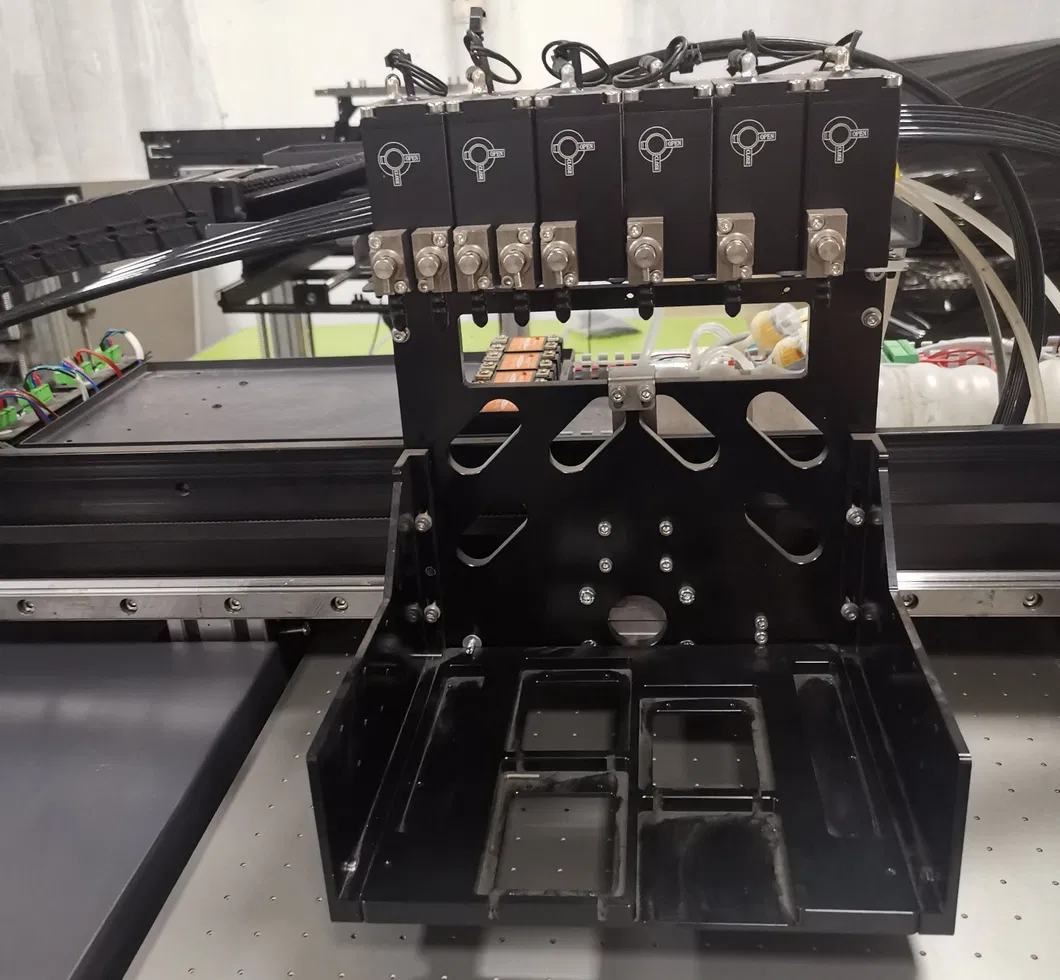

| Printhead | Dx8 XP600 Dx7 I1600 G5I I3200 Heads |
| Accept Media Height | 25.6 Cm / 10 Inch |
| Printing Type | UV Inkjet Printer |
| Automatic Grade | Automatic |
| Dry System | LED UV Lamp Drying System |
| Cooling System | Water Circulation Cooling System |
| Color Config | Varnish + White + KCMY |
| Package Gross Weight | 150.000kg |
| Package Size | 160.00cm * 120.00cm * 120.00cm |

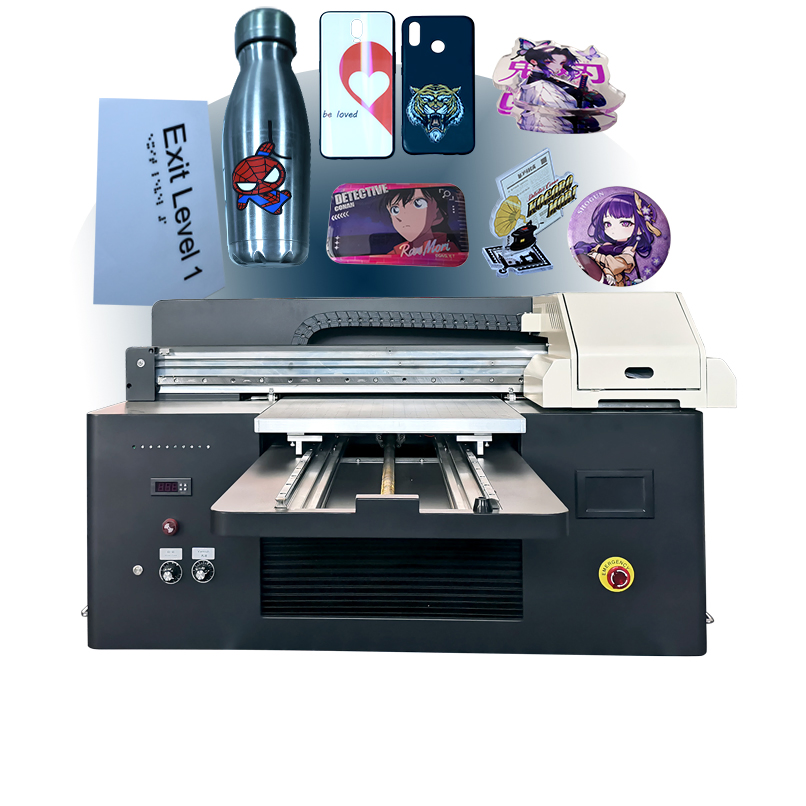

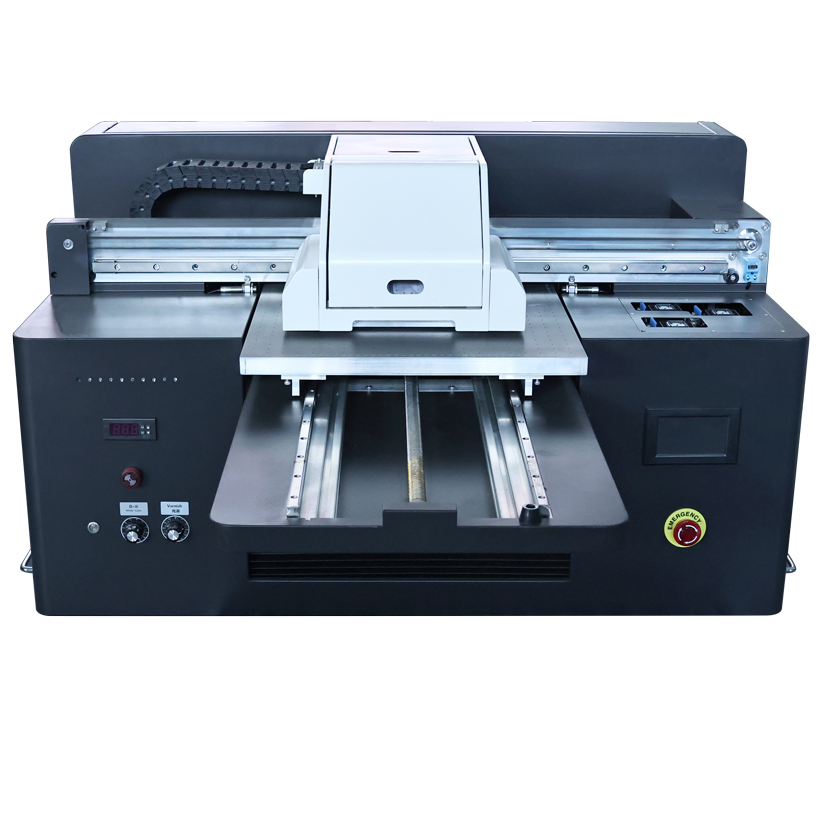

This A2 size (43*60cm) UV printing machine features a 25.6 cm (10 inch) thickness capacity, making it ideal for various applications including PVC cards, mobile phone covers, glass, metal, plastic, acrylic, and ceramics. Equipped with an advanced stable board system and multiple printhead options (XP600, I1600, I3200, G5i), it achieves high-speed printing with vivid color output.
| Printer Model | A2 UV Printer DS-A2U Plus |
|---|---|
| Max Printing Resolution | 2160 dpi |
| Printing Speed | A4 Size: 50s (720dpi) / 100s (1440dpi) |
| Ink Consumption | 15 ML / SQM |
| Max Media Weight | 10 KGs |
| Software Compatibility | Maintop, CorelDraw, Illustrator |
| Operating System | Windows XP / Vista / Win7 / Win10 |
| Machine Dimensions | 820mm x 625mm x 430mm |
This versatile printer is widely used in decoration, signage, electronics, and gift industries. It handles rigid PVC, glass, leather, metal, wood, ceramic tiles, marble, and even full assembled items like luggage or boxes.
