4-Channel LED Spot Curing System Ultraviolet Lamp Machine with Irradiation Heads

1 / 5

4-Channel LED Spot Curing System Ultraviolet Lamp Machine with Irradiation Heads

Customization:	Available
Usage:	Industrial use
Shape:	Square

Send Inquiry

Product Description

💡

Product Overview

4-Channel LED Spot Curing System Ultraviolet Lamp Machine with irradiation heads

Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, such as irradiation processes with different intensities and different times, the shortest production efficiency and machine utilization can be achieved, especially in fully automated production lines.

Model NO.

A2400-TP4

Wavelength

365/385/395/405/470nm

Material

Metal

Certification

Input Voltage

AC100~240V(50/60Hz)

LED Life

20000hrs

Cooling Method

Air Cooling / Fan Cooling

Application

Electronics, Medical, Automotive

⚙️

Key Specifications

Applications

✔UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.

✔UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry

✔UV Ink: UV printing, 3D printing

Core Configurations

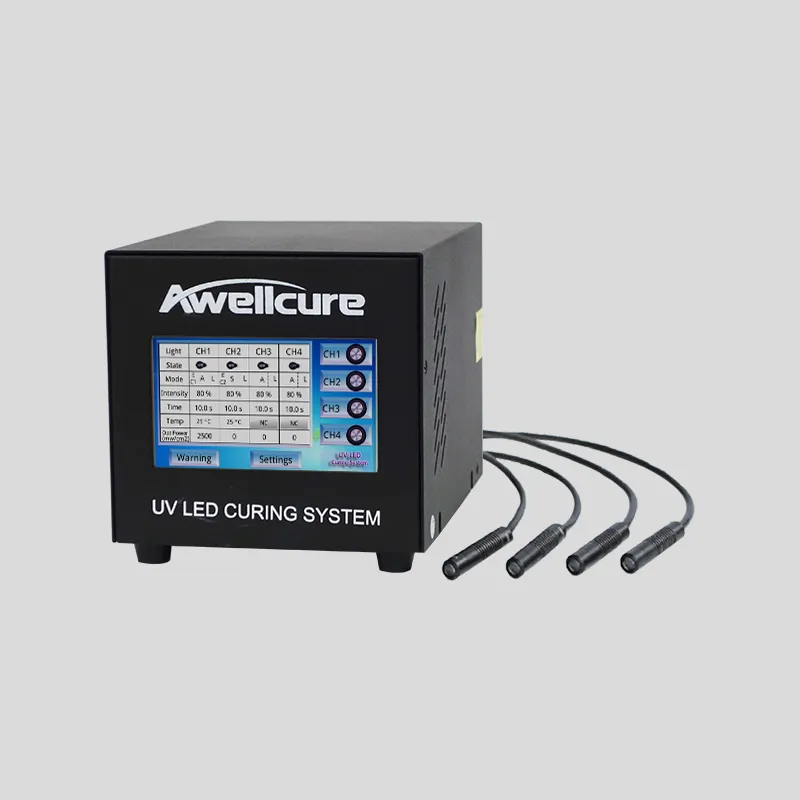

1Controller: Supports multi-language, 1-8 independent channels, compact design, and abnormal situation warnings.

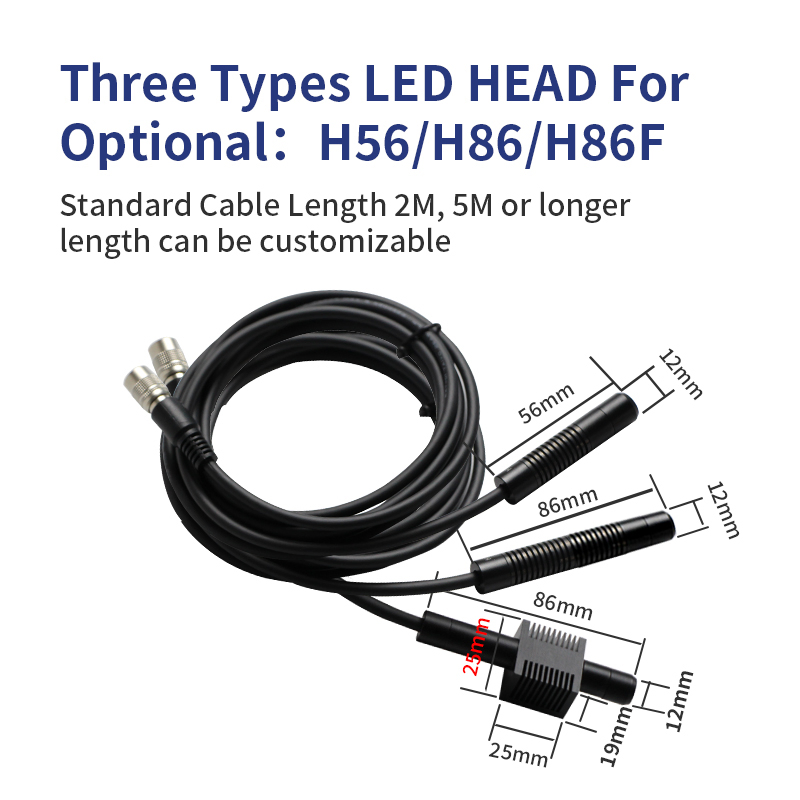

2LED Head: High output power (18W/cm²), using NICHIA high-level LED and Taiyo bending-resistant cables.

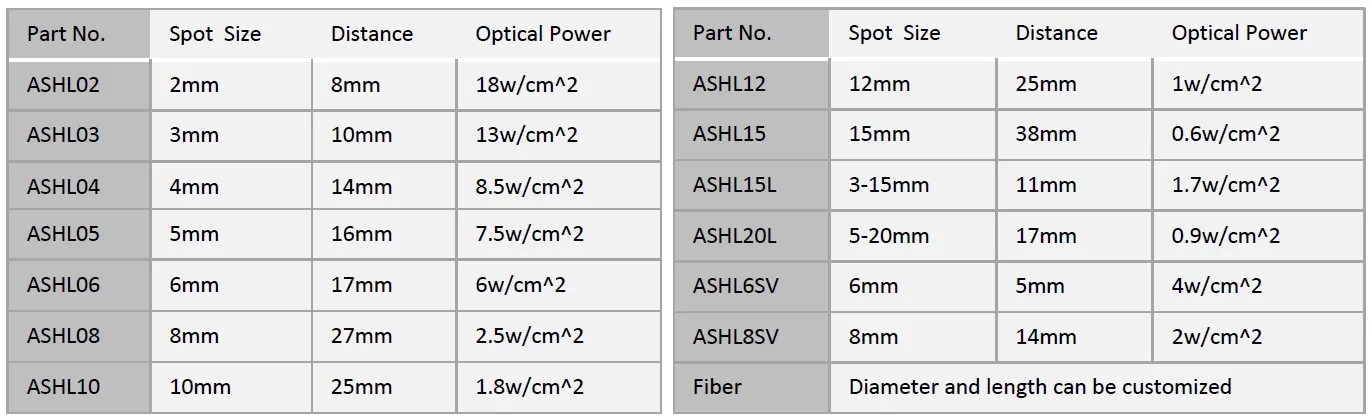

3Optical Lens: Wide range of sizes (2mm to 15mm) and types (Standard, Line, Vertical).

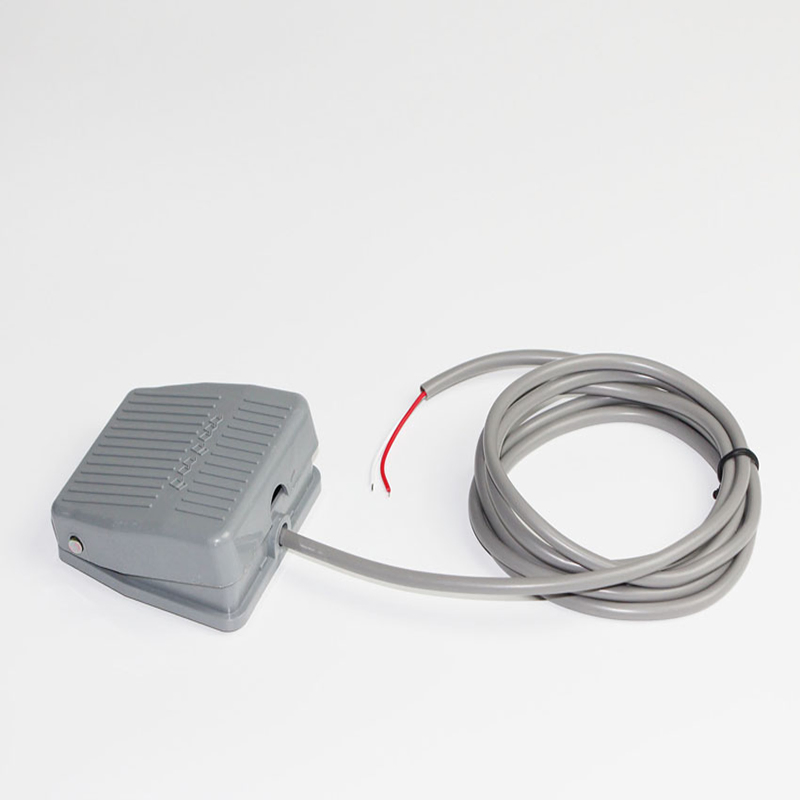

4Safety & Control: Includes UV protective glass and Foot Pedal for I/O Port control.

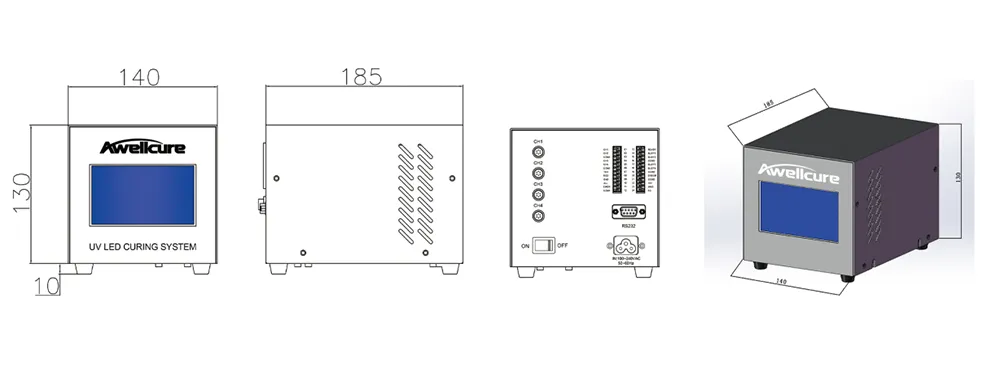

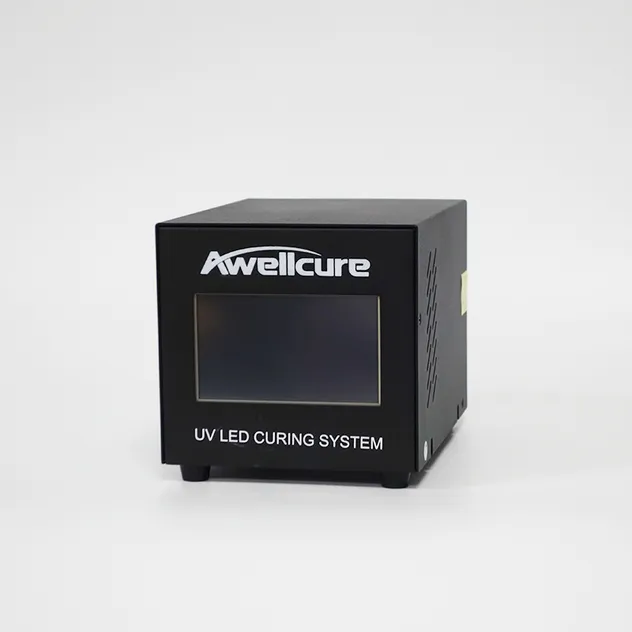

Right Elevation

Left Elevation

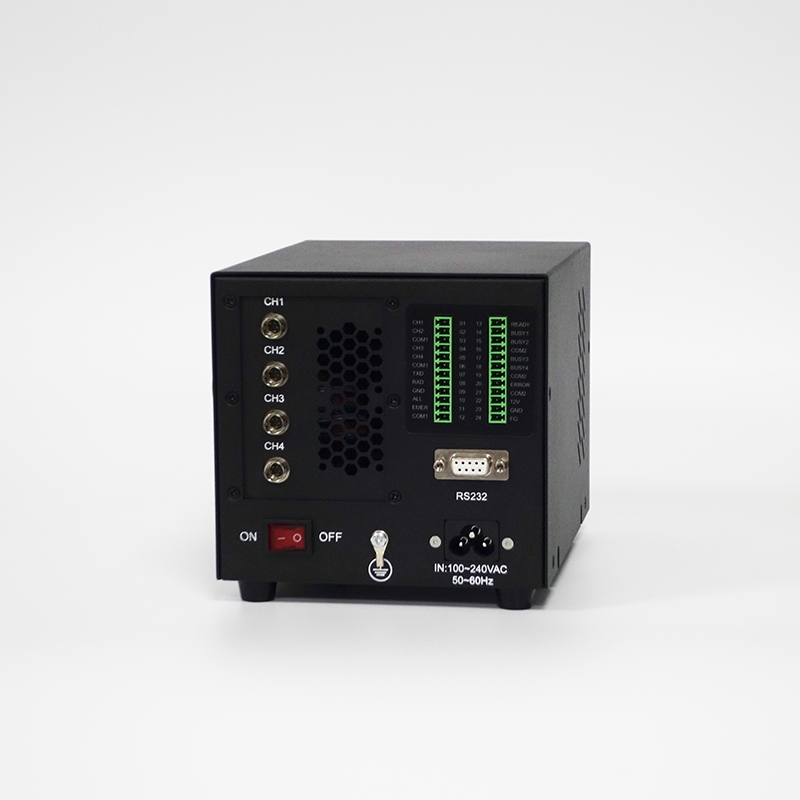

Front Elevation

📊

Technical Parameters

Feature	Details
Model	A2400-TP4
Wavelength	365nm, 385nm, 395nm, 405nm, 470nm
Irradiate Lamp Heads	1-4 pcs
Maximum UV Intensity	18000 mw/cm²
Adjustable Power	1% - 100%
Control Method	RS232 / PLC / Pedal / Touch Screen
LED Life	20000 Hours
Cooling Method	Natural or Fan Cooling
Irradiated Mode	Manual, Automatic (0.1S~999.9S), Step, Cycle
Dimensions	185 * 40 * 130 mm

📐

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

🛠️

Service & Support

●Standard Warranty: 12 months.

●Extended Warranty: Optional up to 36 months.

●Global Support: 24/7 technical assistance and spare parts supply.

●Training: On-site or remote operation and maintenance training.

🏢

Capabilities

As a leading manufacturer of UV LED Curing Systems with over 12 years of expertise, we are ISO 9001, CE, and RoHS certified. We offer reliable machines backed by R&D innovation and strict quality control.

❓

Frequently Asked Questions

Q: What is the lead time for orders? A: Standard models typically ship within 10–15 days, while customized units require approximately 20–30 days.

Q: Do you provide after-sales service overseas? A: Yes, we provide global 24/7 technical assistance and have partnered service centers in key regions.

Q: Can I request a customized curing lamp size? A: Absolutely! We offer tailored attachments and customized configurations to meet your specific project needs.

Q: What documents do you provide for export? A: We provide a full export package, including Commercial Invoice, Packing List, Bill of Lading, and COC.

Q: How do I place an order for this system? A: Please contact our sales team for a formal quote, and once details are finalized, you can confirm with a Purchase Order (PO).

Q: What is the expected lifespan of the UV LEDs? A: The LED life is rated for over 20,000 hours, significantly reducing the need for frequent lamp replacements.
