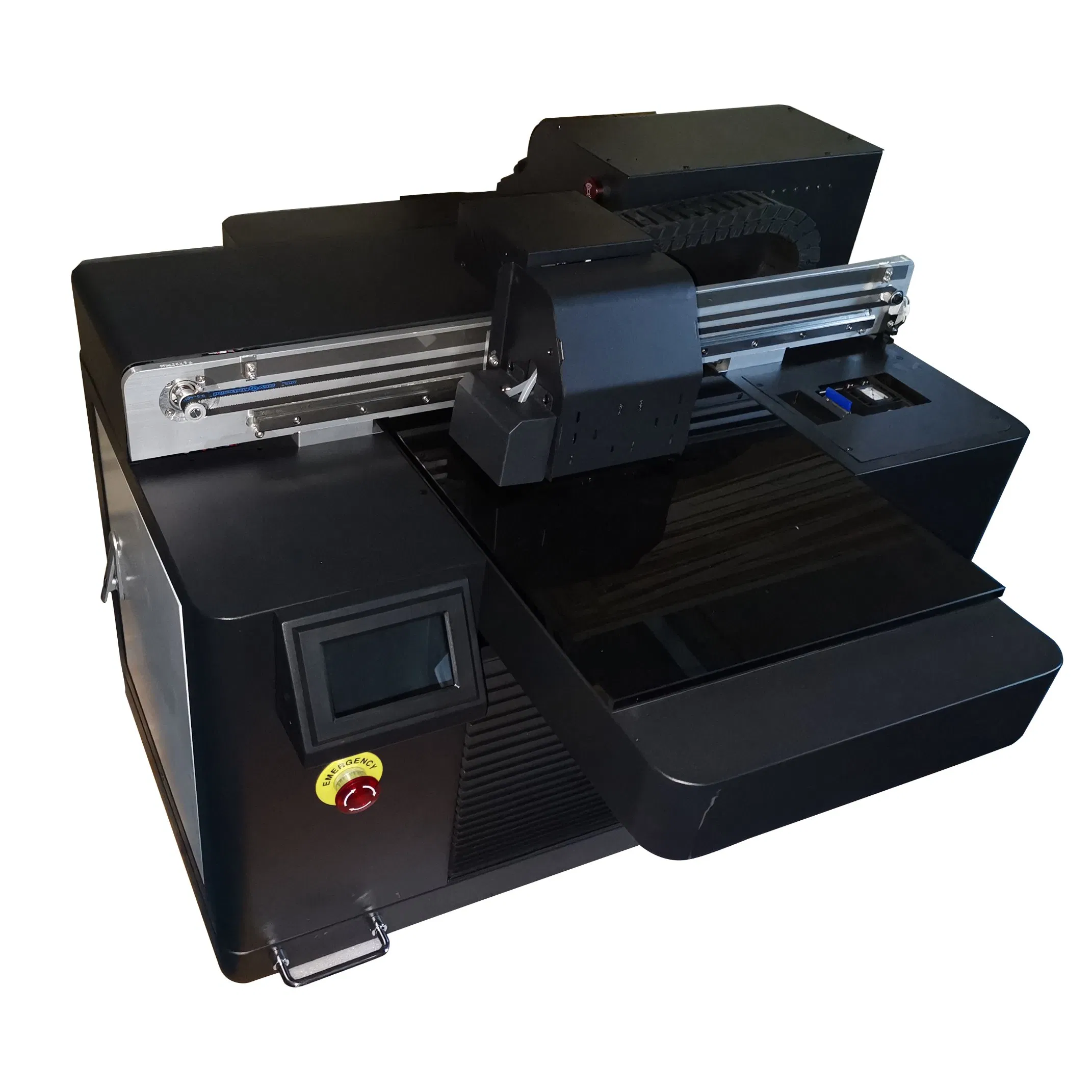

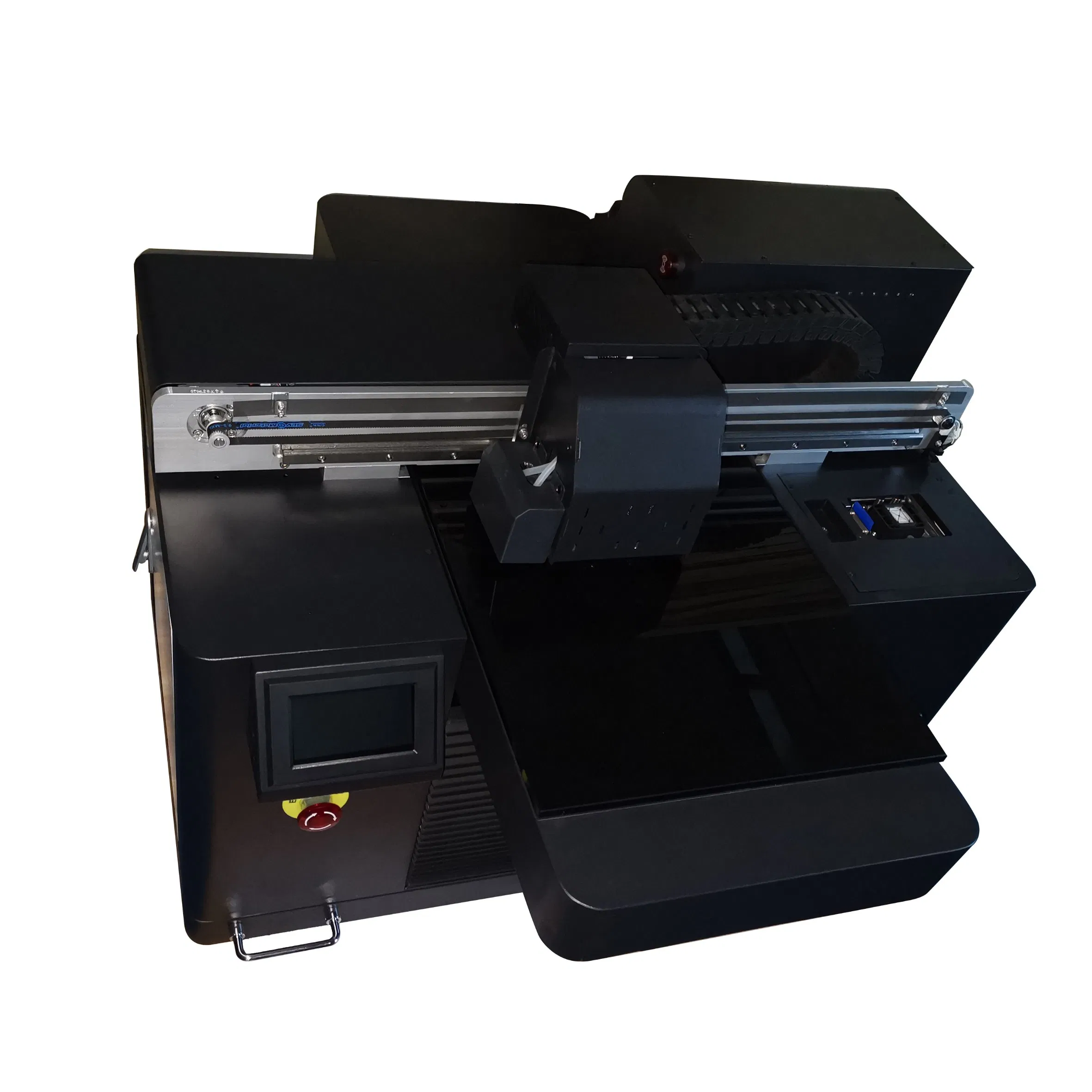

3D A3 UV Printer Machine with 1 or 2 Print Heads

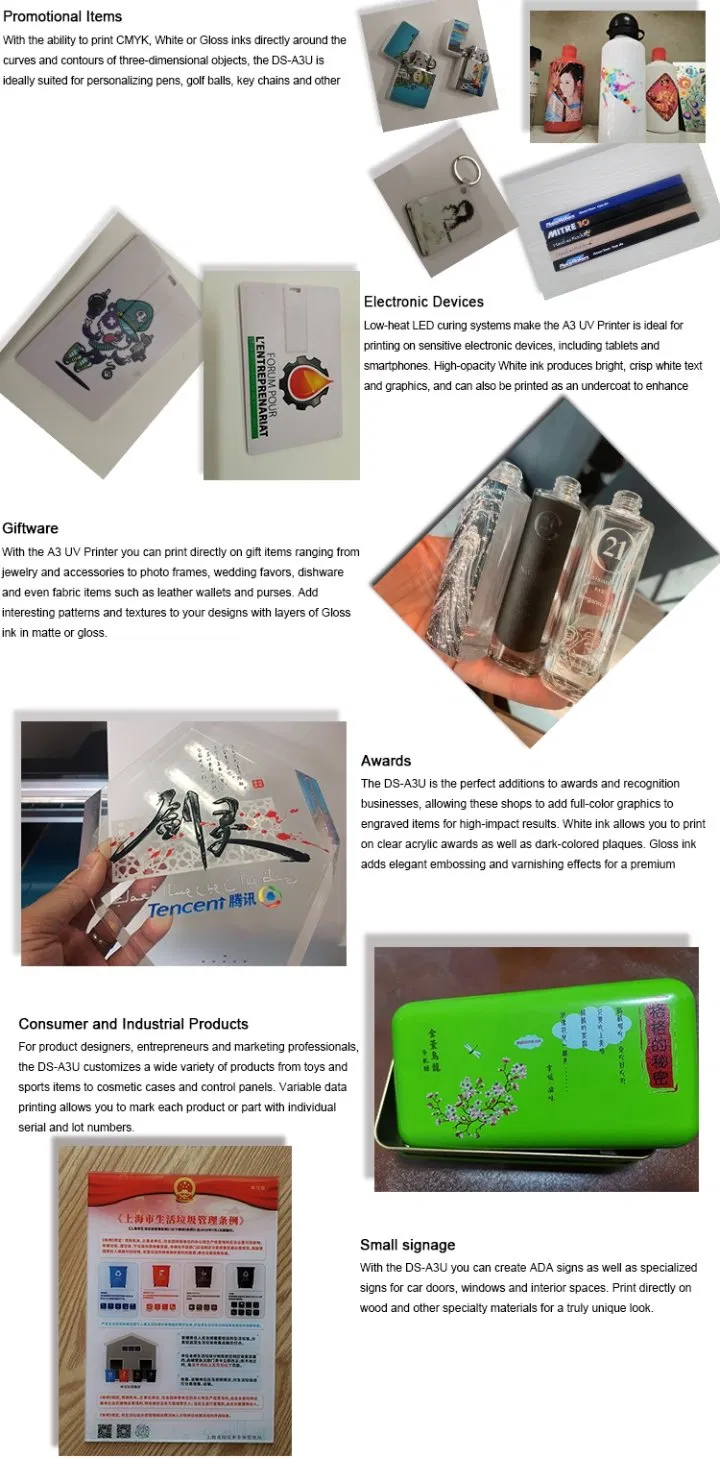

The A3 size PVC card and phone skin printer is engineered with advanced digital technology. It enables direct printing on glass, metal, plastic, acrylic, ceramics, and more with vivid colors and exceptional speed. It is an ideal choice for entry-level users or kiosk operations.
Equipped with a stable Chinese board system and TX800/DX8/DX7/DX5 printheads, it achieves a maximum printing speed of 50 seconds for A4 size. The 6-color model supports CMYK+White for dark materials, ensuring high white ink density. Combined with Ultra RIP software, it can print all colors in a single pass.
| QUOTATION SHEET OF A3 UV PRINTER | |
| Printer Model | A3 UV Printer DS-A3U |
| Printing Tech | Micro Piezo Technology DX5 DX7 DX8 |
| Print Resolution | 720*1440 dpi |
| Accepted Media Height | 20CM |
| Printing Speed | 720 dpi: 50s/A4; 1440 dpi: 100s/A4 |
| Applicable Industry | PVC board, glass, plastic, leather, special paper, metal, wood, porcelain, ABS, acrylic, aluminum, ceramic tile, marble, etc. |
| Ink Colors | C, M, Y, K, White / Varnish |
| Ink Consumption | 15 ML/SQM |

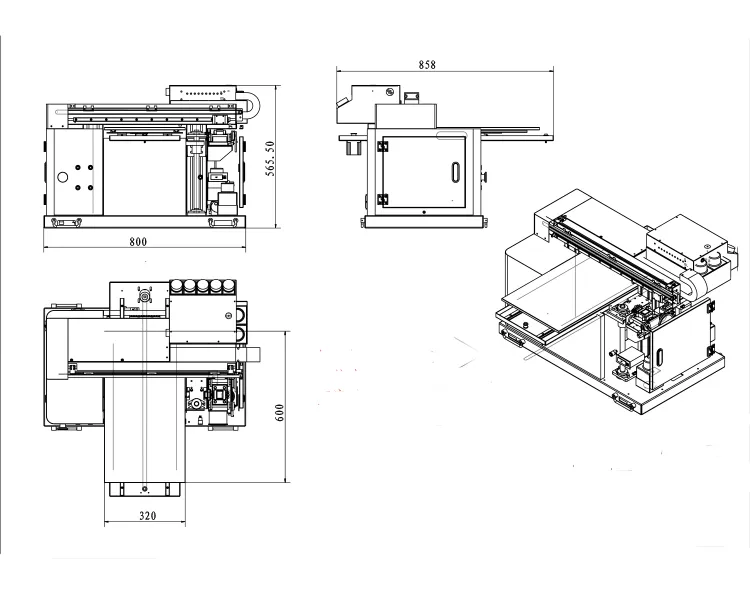

| Machine Size | 820mm x 625mm x 430mm |

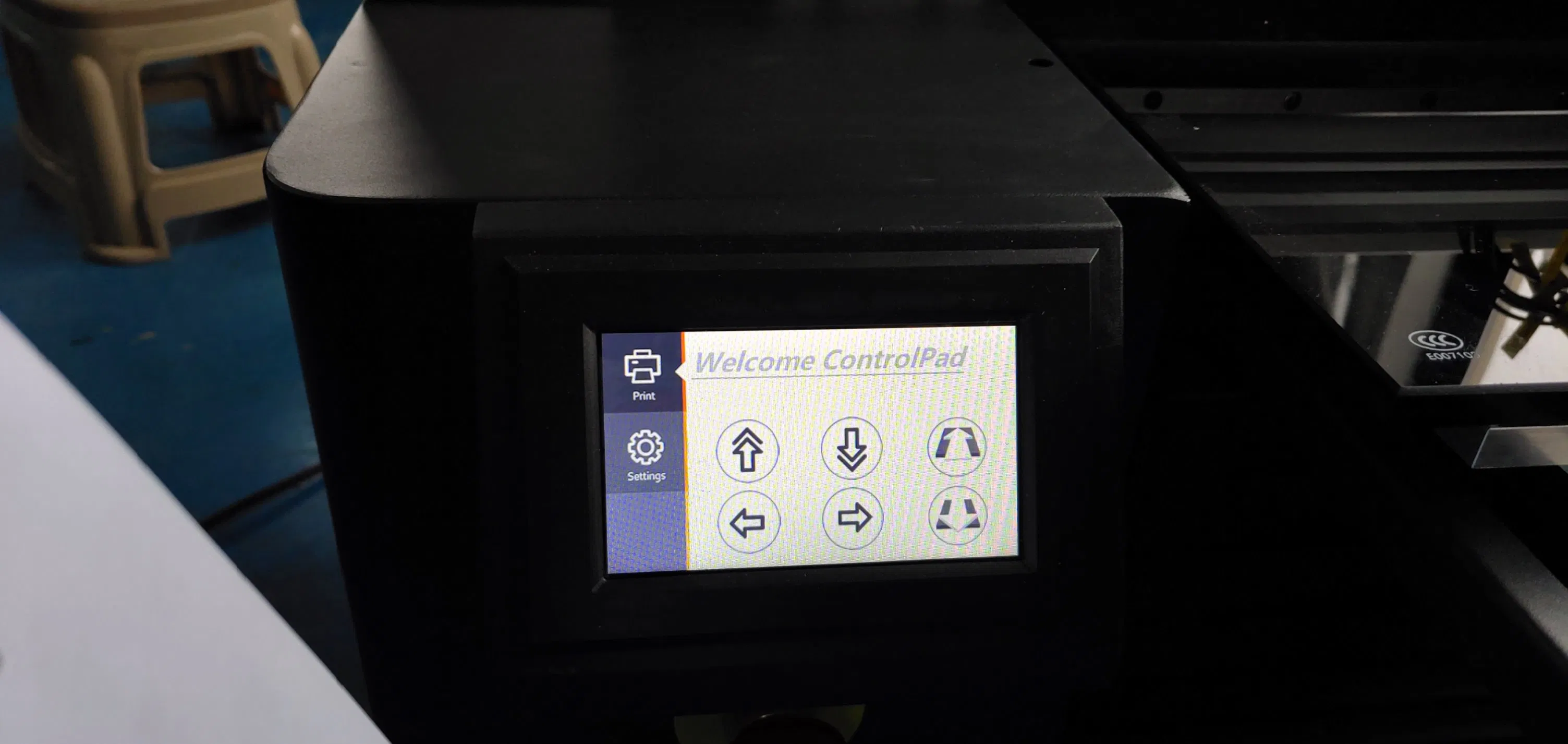

Smart easy operation LCD display control panel

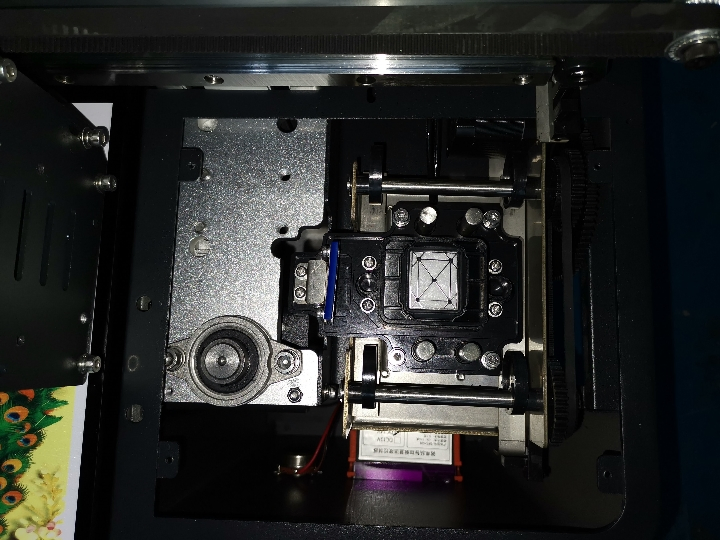

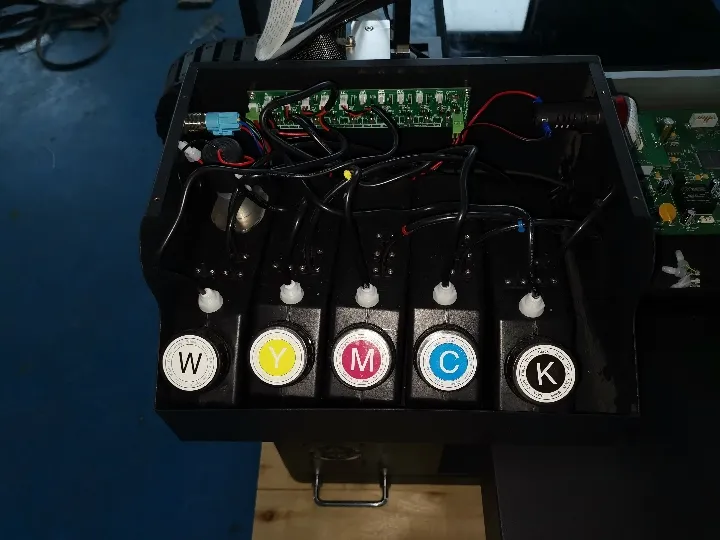

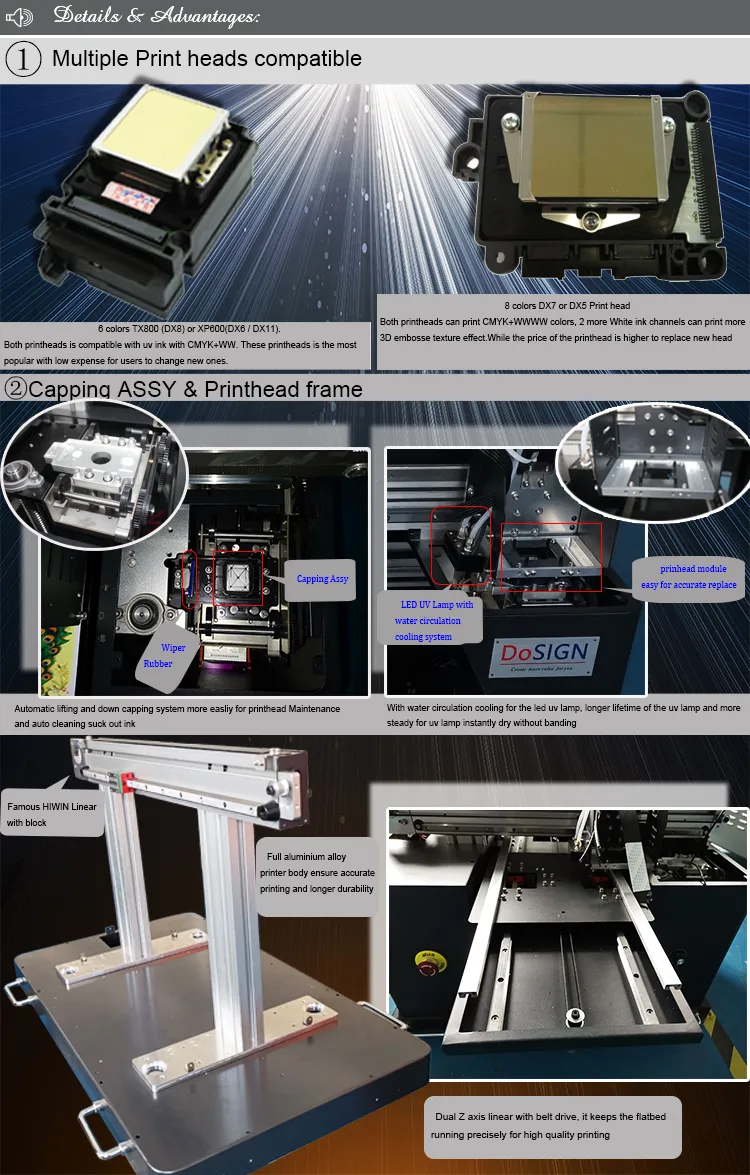

Automatic lifting and down capping & Ink bottles with low ink alarming system
